SMART-AVI SMCVG2DVI Manual de usuario

NOTICE

The information contained in this document

is subject to change without notice. Smart-AVI makes

no warranty of any kind with regard to this material,

including but not limited to, implied warranties of

merchantability and fitness for any particular purpose.

Smart-AVI will not be liable for errors contained herein or for

incidental or consequential damages in connection with the

furnishing, performance or use of this material.

No part of this document may be photocopied, reproduced or

translated into another language without prior written consent

from Smart-AVI.

For more information, visit www.smartavi.com.

SmartAVI, Inc. / Twitter: smartavi

2840 N. Naomi Ave. Burbank, CA 91504

Tel: (818) 565-0011 Fax: (818) 565-0020

http://www.SmartAVI.com

Converts VGA input to DVI-D output

with local VGA display

SMCVG2DVI

VGA to DVI Active Converter

www.smartavi.com

Installation

Manual

Technical Specications

What’s in the Box?

PART NO. QTY DESCRIPTION

SMCVG2DVIS 1 VGA to DVI Active Converter. Includes: [SMCVG2DVI &

(PS5VD2A)

Power Supply 1 PS5VDC2A

User Manual 1

VIDEO

Format VGA, DVI-D Single-link

Resolution WUXGA (1920x1200), UXGA (1600x1200), SXGA

(1280x1024), XGA (1024x768), SVGA (800x600), VGA

(640x480)

Input Interface (1) HD-15 Female

Output Interface (1) DVI-D Single-link Female, (1) HD-15 Female

Connector HD-15, DVI-D

OTHER

DDC Signal 5 Volts [peak-to-peak], TTL

TDMS Signal 1.2 Volts[peak-to-peak], TTL

Power External 5VDC2A @ 10W

Dimensions 5”W x 1.375”H x 4”D

Weight 0.6 lbs.

Approvals Device: CE, ROHS

Power Supply: C-UL US, CE

20 ft. over DVI-D

SMCVG2DVI

VGA

Introduction

The SMCVG2DVIS automatically detects the VGA input

resolution and converts it to the new DVI (Digital Video

Interface) video display format. It also supports a local

VGA display.

Installation

1. Turn o the computer, displays and the make sure

the SMCVG2DVI is unplugged.

2. Connect a VGA cable to the computer and to the

VGA IN port on the rear of the SMCVG2DVI.

3. Connect the local VGA display to the VGA OUT

port on the rear SMCVG2DVI.

4. Connect the DVI display to the DVI OUT port on

the rear SMCVG2DVI.

5. Connect the power cord to the SMCVG2DVI.

6. Power on the computer and the displays.

Using the SMCVG2DVI

To adjust the settings for the output signal, use the buttons on the

front of the SMCVG2DVI.

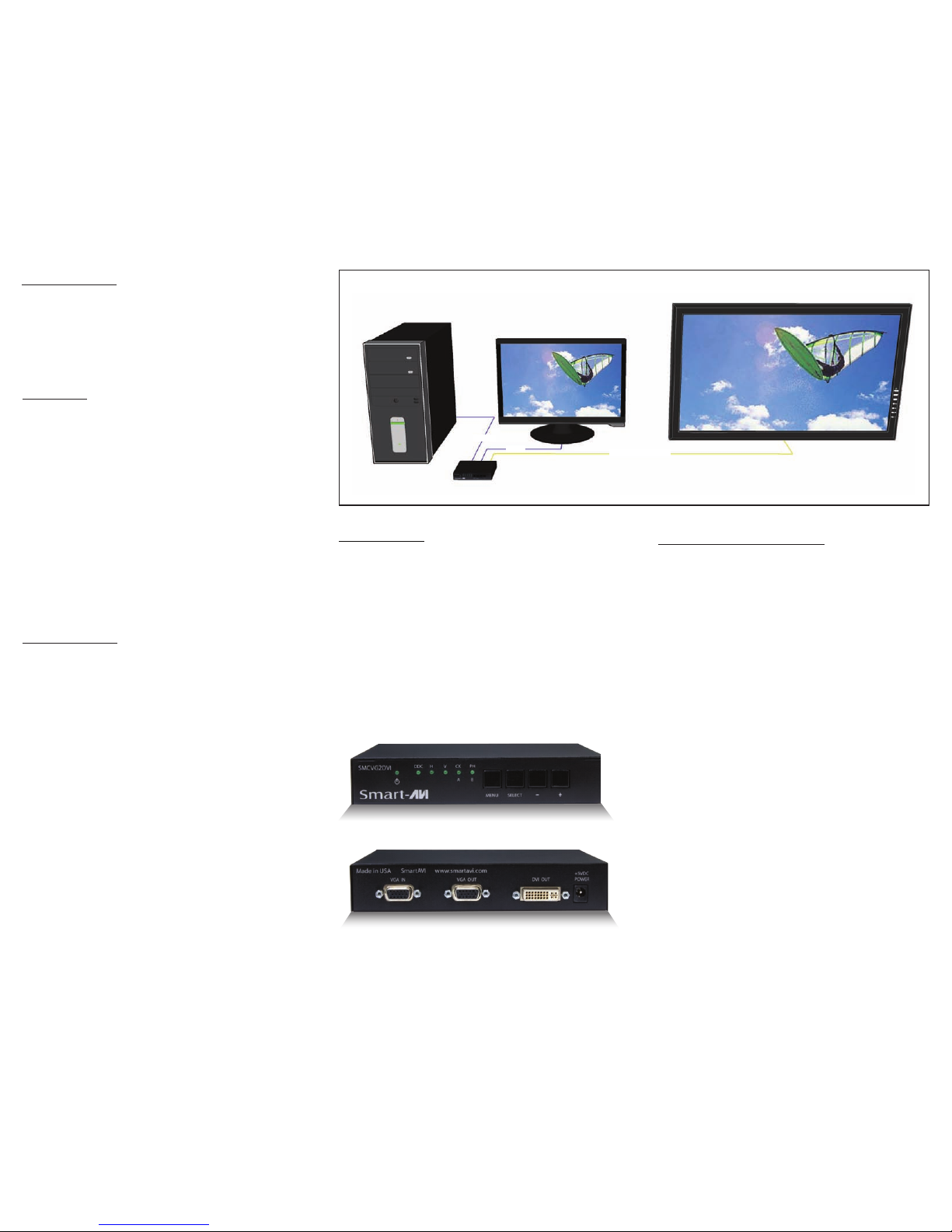

Product - Installation Diagram

Applications

• Security Environments

• Home Theater Integration

• Restaurants and Bars

• Information Kiosks/Displays

Features

• Allows old system to connect to DVI display

• Converts analog video signals to digital DVI signal

• Highly precise 8-bit A/D conversion of each color

channel, better image quality

• Ensures to send high-denition signal without

signal loss

• Supports Plug-and-play function, no software

installation required

• Front panel switches for better synchronization

and tuning to the Display

• Automatic DDC learning

• Sync Tuning for better signal conversion

SMCVG2DVI Front

SMCVG2DVI Rear
