SQ-07MT 7” video door phone

with touch screen

Thank you for the

choice of our equipment

User manual

{ Design. Uniqueness. Innovation } UNIQUE

DIRECT

SERIES

1Rev. 1.0 2

Attention!

As a result of continuous upgrades and functionality improvements, technical

characteristics of the device can be changed without any preliminary declaration.

This manual can contain some inaccuracy or misprint. The owner reserves the right to

make corrections to the information described in the user manual and device package.

The last revision of this manual is available on www.slinex.com

Safety instructions

Read and keep that manual.

The device installation process should be carried out by the qulied specialists.

Use the device from –10 ˚C to +55 ˚C, always keep it within that temperature range.

Installation surface should be free from vibration and impact inuence.

Keep this device far from open sources of heat, such as radiators, heaters, and ovens.

The device can be installed near other electronic equipment in case if the temperature of the environment

does not exceed previously mentioned range.

The device should be protected from the direct inuence of the natural phenomena, such as direct sunlight,

rain or snow.

Don’t use aggressive or abradant detergent for the device surface cleaning.

Use soft wet cloth or tissue to remove strong dirt.

Don’t overpower outlets. It can cause re or electric shock.

Nature protection

Don’t throw away the device with other industrial or nutritive trash if you see that

symbol. Some regions have separation and recycling systems for the electronic

equipment. Connect with local authorities to receive information about recycling of

electronic equipment for your region.

Rights and limitation of liability

languages or reproduced in any way including electronic or mechanical.

Document recording and copying is strictly denied without owner permission.

Table of contents

1. Package ............................................................................................................................................................................................ 3

2. Specication...................................................................................................................................................................................3

3. Description......................................................................................................................................................................................4

4. Installation....................................................................................................................................................................................... 5

4.1 Cable requirements.......................................................................................................................................................5

4.2 Schematic diagrams......................................................................................................................................................6

4.3 Unit mount ....................................................................................................................................................................... 8

5. Operation.........................................................................................................................................................................................9

5.1 Incoming call ...................................................................................................................................................................9

5.2 Door panel and camera monitoring......................................................................................................................10

5.3 Incoming call redirection ..........................................................................................................................................11

5.4 Intercom ..........................................................................................................................................................................12

6. Monitor settings..........................................................................................................................................................................12

6.1 Main screen navigation..............................................................................................................................................12

6.2 System settings.............................................................................................................................................................13

6.3 Melody and volume settings ...................................................................................................................................15

6.4 Working mode settings..............................................................................................................................................16

6.5 Alarm settings ...............................................................................................................................................................17

6.6 Display settings.............................................................................................................................................................20

6.7 Snapshots and records playback............................................................................................................................21

7. Manual and automatic recording.........................................................................................................................................23

8. External sensors motion detection recording..................................................................................................................23

9. Limited Warranty.........................................................................................................................................................................24

{ Design. Uniqueness. Innovation } UNIQUE

DIRECT

SERIES

3 4

Microphone

«Intercom» button – call another monitor or incoming call redirection

«Monitor» button – door panel or camera image monitoring

«Answer» button – incoming call answer and start talking with the visitor

«Unlock» button – door unlocking

«Hang Up» button – stop conversation with the visitor / current system settings menu exit

MicroSD memory card slot (on the side of the monitor)

Touch display

Power LED. Active when the power is on.

First door panel LED. Active when the rst door panel is on.

Second door panel LED. Active when the second door panel is on.

127 мм

198 мм 20

мм 8

2 3 4 5 6

Screen

Resolution

Video system

Audio type

Call time

Internal memory

Memory extension slot

Standby mode power consumption

Working mode power consumption

Power supply

Mounting type

Size

Working temperature

7”, color TFT with touch screen

800×480 pixels

PAL/NTSC

Half duplex

120 seconds

100 snapshots

microSD, up to 32 GB

3 W

7 W

Built-in power supply, ~100–240 V

Surface mount

197×127×20 mm

−10...+55 ˚C

1. Package

SQ-07MT door monitor − 1 pc.

Wall mounting bracket − 1 pc.

Connection wires − 7 pcs.

Mounting screws and nuts − 1 pkg.

User manual − 1 pc.

2. Specication

3. Description

{ Design. Uniqueness. Innovation } UNIQUE

DIRECT

SERIES

5 6

4.2 Schematic diagrams

Diagram 1. SQ-07MT door panels, cameras, locks and TV connection.

Power

Audio

GND

Video

Not used

Signal

GND

Video

Lock

Door

panel 1

Door

panel 2

SQ-07MT (Master)

Lock power

supply

Lock Lock power

supply

Video

GND

Door 1

Door 2

CCTV 1

CCTV 2

Input

Output

PowerTV out

GND

+13,5 V

Camera

power

suppply

Camera

power

suppply

Motion

sensor

Motion

sensor

CCTV 2

Video

GND

+12 V

CCTV 1

4. Installation

4.1 Cable requirements

Disconnect all power cables before device installation.

This device can be connected with such cable types depends on the distance between door monitor and

door panel:

) Use 4-wire cable with such parameters:

• distance up to 25 meters use a cable with 0,22 mm square of one wire;

• distance 25 to 50 meters use a cable with 0,41 mm square of one wire;

• distance 50 to 100 meters use a cable with 0,75 mm square of one wire.

b) If the distance between door monitor and door panel is between 80 and 100 meters then use a 3-wire

cable with 0,75 mm square of one wire and RG-59 or RG-6 coaxial cable for the video signal.

c) Shielded or non-shielded twisted pair (not recommended):

• distance up to 25 meters non-shielded twisted pair can be used;

• distance 25 to 50 meters shielded twisted pair should be used.

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

0 - 50 m

Shield

50 - 80 m

80-100 m

RG-59 or RG-6 Video

GND

+12 V

Not used

Signal

GND

Video

Power

Audio

GND

Video

0 - 25 m

25 - 50 m

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Shield Shield

{ Design. Uniqueness. Innovation } UNIQUE

DIRECT

SERIES

7 8

Door 1

Door 2

CCTV 1

CCTV 2

Input

Output

PowerTV out

Door 1

Door 2

CCTV 1

CCTV 2

Input

Output

PowerTV out

Door 1

Door 2

CCTV 1

CCTV 2

Input

Output

PowerTV out

Diagram 2. SQ-07MT system connection.

SQ-07MT (Master)

Door 1

Door 2

CCTV 1

CCTV 2

Input

Output

PowerTV out

SQ-07MT (Slave)

Notes:

* Use «Power»plug to connect external power supply +13,5 V. While use external power supply please keep

main power cord ~100-240 V disconnected from the outlet, otherwise it can damage monitor circuits.

** Door panels, cameras, power supplys, locks and motion sensors illustrated on the schemes are optional

devices and aren’t included into monitors kit.

Audio

GND

Data

Video

Audio

GND

Data

Video

Audio

GND

Data

Video

Audio

GND

Data

Video

Audio

GND

Data

Video

SQ-07MT (Slave) SQ-07MT (Slave)

4.3 Unit mount

1) Take the surface mount bracket from the kit and situate it 150-160 cm from the oor line.

2) Mark and drill four halls in the wall.

3) Take four nuts from the kit and hammer them into the drilled halls.

4) Fix surface mount bracket on the wall by four screws from the kit.

5) Connect all communication wires and x the monitor on the surface mount bracket.

{ Design. Uniqueness. Innovation } UNIQUE

DIRECT

SERIES

9 10

5.2 Door panel and camera monitoring

Standby mode

Monitor will display

the image from the

rst door panel

(monitoring time – 60 seconds)

Monitor will display

the image from the

second door panel

(monitoring time – 60 seconds)

Press «Monitor»

button or slide from

left to right side of

the screen

5. Operation

5.1 Incoming call

Standby mode

Melody is ringing on the

monitor and door panel,

image from the door panel

appears on the monitor screen

Visitor presses call button

on the rst door panel

Visitor presses call button

on the second door panel

Press «Answer» button or slide

from up to bottom side of

the screen to start conversation

with the visitor

Melody stops ringing and

conversation starts,

talking time is 120 seconds

Press «Hang up» button

or slide two fingers towards

each other to stop

conversation or incoming call

Press «Unlock» button or slide

from bottom to up side of the

screen to open lock connected

to the current door panel

Notes:

1) Monitor will be automatically switched into standby mode if the user doesn’t answer incoming call

during 60 seconds;

2) Image and sound from the door panel will be active during 20 seconds after the moment user presses

button. It let the user know if the visitor passed through the door.

20 seconds

Standby mode

Monitor will display

the image from the

rst CCTV camera

(monitoring time is unlimited)

Monitor will display

the image from the

second CCTV camera

(monitoring time is unlimited)

Press «Monitor»

button or slide from

left to right side of

the screen again

Press «Monitor»

button or slide from

left to right side of

the screen again

Press «Monitor»

button or slide from

left to right side of

the screen again

Press «Monitor»

button or slide from

left to right side of

the screen again

Press «Hang up» button

or slide two fingers towards

each other to stop

monitoring mode

Press «Answer» button or slide

from up to bottom side of

the screen to start conversation

with the visitor

Press «Unlock» button or slide

from bottom to up side of the

screen to open lock connected

to the current door panel

{ Design. Uniqueness. Innovation } UNIQUE

DIRECT

SERIES

11 12

5.4 Intercom

Two monitors connected into one system are used.

Melody starts

ringing

Standby mode

5.3 Incoming call redirection

Two monitors connected into one system are used.

Notes:

1) If only one door panel connected to the monitor then you can exit monitoring mode by pressing

«Monitor» button one more time. (all other sources of video signal should be disabled in the monitor

settings).

2) If several monitors connected into one system, the user can view the image from door panels and

cameras on any monitor inside this system. The image will be transferred from the «Master» monitor door

panels and cameras to the «Slave» monitors.

3) If someone presses call button on the door panel while monitoring is active then the image from this

door panel appears on the monitor screen and call melody starts. Press «Answer» button to start

conversation.

Note:

If incoming call was successfully redirected to the other monitor then current monitor will enter standby

mode.

Melody starts ringing on

the other monitor inside

the system and visitor image

appears on the monitor screen

Conversation with the

visitor on the other

monitor in progress

Incoming call from the

door panel and the

user starts conversation

Press «Intercom»

button or slide from

right to left side of

the screen to start

call redirection

20 seconds

Note:

If someone pressed call button on the door panel while intercom is active then the image from this door

panel will appear on the screen and call melody will starts. Press «Answer» button to start

conversation with the visitor.

6. Monitor settings

6.1 Main screen navigation

Press any place of the screen in standby mode to enter main screen. Then select and press any icon on the

screen to enter corresponding sub menu. Change any parameters by up and down arrows situated near

current parameter. After all settings have been made, press icon or press button to exit from

current sub menu. Press icon or press button to exit from the main screen. No need to save any

changes because they saved automatically after changing.

You can also monitor image from the door panels or cameras by entering «Monitor» menu from the main

screen and selecting appropriate video source.

Standby mode

Conversation with the

other monitor is in progress

Press «Answer» button or slide

from up to bottom side of

the screen to start conversation

Press «Answer» button or slide

from up to bottom side of

the screen to start conversation

with the visitor

Press «Unlock» button or slide

from bottom to up side of the

screen to open lock connected

to the current door panel

Press «Hang up» button

or slide two fingers towards

each other to stop

conversation or incoming call

Press «Hang up» button

or slide two fingers towards

each other to stop

conversation or incoming call

Press «Intercom»

button or slide from

right to left side of

the screen to start

intercom

Monitor System Ring

Alarm Color Files Exit

Mode

{ Design. Uniqueness. Innovation } UNIQUE

DIRECT

SERIES

13 14

6.2 System settings

Press «System» icon in the main menu to enter system settings of the monitor:

Release date − date of software release.

Format SD − micro SD card formatting. Please format microSD card before use it.

Recommended to use microSD cards of the 6-th class and above.

Format flash − internal memory formatting.

Backup pictures− copy files from the internal memory to microSD card.

Update −firmware updating of the monitor (place updating files on the microSD root folder).

Reboot − system reboot.

Following parameters are available in the «System» menu:

Language − the language of the settings menu.

Time − date and time settings.

Time display − date and time screensaver display in stndby mode (Off, 1, 3, 5, 10 min.).

Information:

Software version − current software version of the monitor.

Information

Time

Language

Main menu

Language

System

Main menu

Time

System

Main menu

System

Main menu

English

DD-MM-YY 08-07-2016 16:17

Time display: 10 min

{ Design. Uniqueness. Innovation } UNIQUE

DIRECT

SERIES

15 16

6.3 Melody and volume settings

Press «Ring» icon in the main menu to enter melody and volume settings.

Following parameters are available in the «Ring» menu:

Ring select − choose the melody for every door panel.

Ring volume −choose volume level (from 00 to 09) depending on the time of a day and also ringing

time of the melody (10-45 seconds).

Silence mode − incoming call melody and keyboard muting, «On» or «O».

6.4 Working mode settings

Press «Mode» icon in the main menu to enter working mode settings.

Following parameters are available in the «Mode» menu:

Mode − choose «Master» if you use one monitor in the system or if it’s the monitor which all the door

panels and CCTV cameras are connected to. Choose «Slave» if there is more than one monitor in the

system and no door panels or CCTV cameras connected to this monitor.

Door 2 status − «On» or «O», include or exclude second door panel from the monitoring list.

Software version: 1.1.3.2

Release date: 2016-07-08

Format SD

Format flash

Backup pictures

Update

Reboot

Ring VolumeRing Select

Door 1 01

Door 2 02

Ring vol 1: 08 : 00 ~ 18 : 00 08 30 sec

Ring vol 2: 18 : 00 ~ 23 : 00 04 30 sec

Ring vol 3: 23 : 00 ~ 08 : 00 01 30 sec

Silence mode: Off

System

Main menu

Information

Main menu

Ring

Ring select

Main menu

Ring

Ring volume

Main menu

Ring

{ Design. Uniqueness. Innovation } UNIQUE

DIRECT

SERIES

17 18

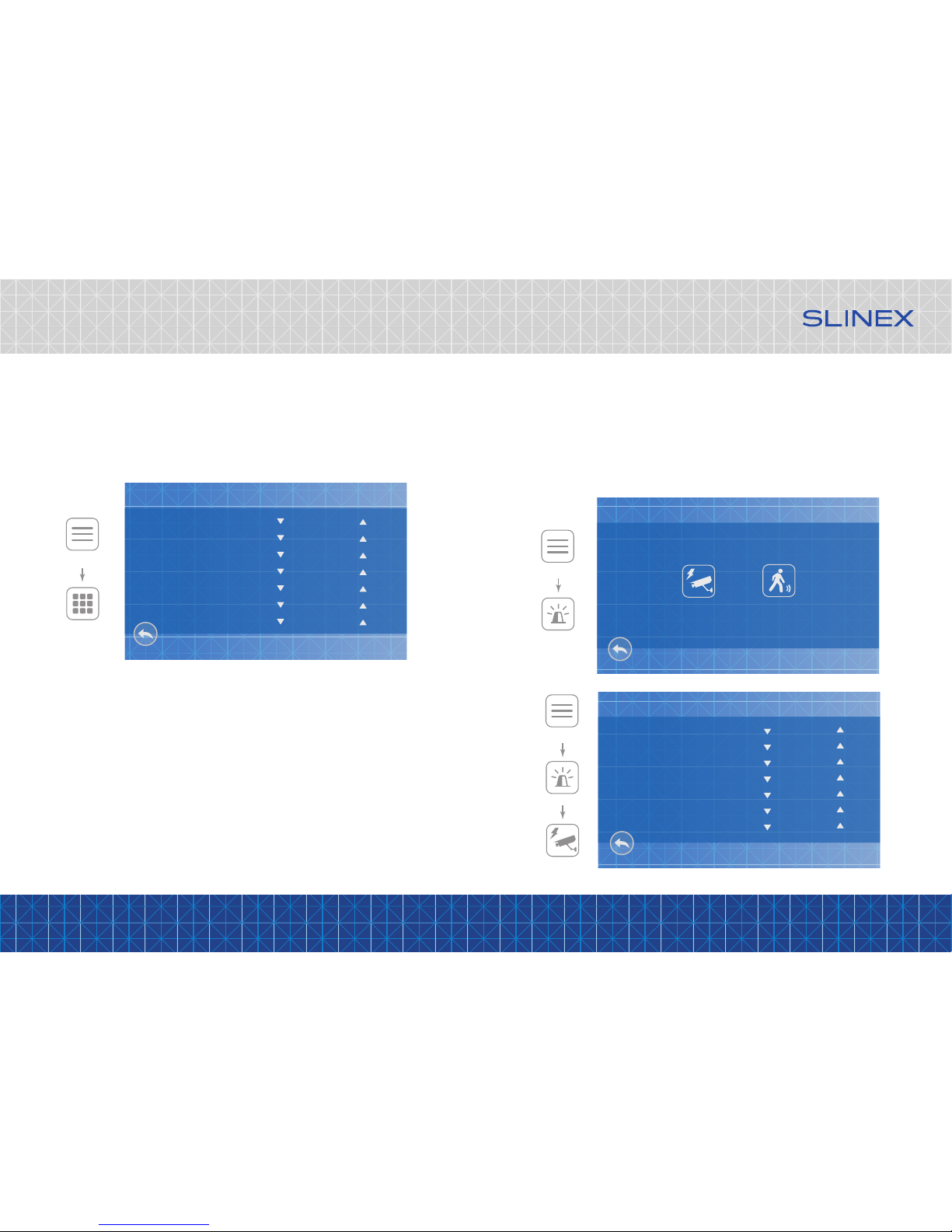

6.5 Alarm settings

Press «Alarm» icon in the main menu to enter alarm settings.

Following parameters are available in the «Alarm» menu:

CAM alarm –additional cameras alarm settings;

Motion detect –software motion detection.

CAM alarm includes next sub menu:

CAM1 sensor type: «NO», motion sensor with normally disconnected contacts are used;

«NC», motion sensor with normally connected contacts are used;

«O», motion sensor doesn’t used.

CAM2 sensor type: «NO», motion sensor with normaly disconnected contacts are used;

«NC», motion sensor with normaly connected contacts are used;

«O», motion sensor doesn’t used.

CAM1 − «On» or «O», include or exclude first CCTV camera from the monitoring list.

CAM2 − «On» or «O», include or exclude second CCTV camera from the monitoring list.

CAM1 ring time − alarm melody ringing time activated by CAM1 motion sensor, from 00 to 30

seconds.

CAM2 ring time − alarm melody ringing time activated by CAM2 motion sensor, from 00 to 30

seconds.

Alarm record: «Snapshot» − save photo if motion detection has occurred;

«Record» − save video if motion detection has occurred.

Mode:

Door 2 status:

Record mode:

Door 1 unlock time:

Door 2 unlock time:

Key backlight:

Keyboard sound:

Record mode: «Snapshot» – take snapshot while incoming call or manually;

«Record» – record video while incoming call or manually.

Door 1 unlock time − Door 1 relay delay time, 2 –10 seconds.

Door 2 unlock time − Door 2 relay delay time, 2 –10 seconds.

Key backlight − «On» or «O».

Keyboard sound − «On» or «O».

Main menu

Mode

Main menu

Alarm

CAM alarm

Main menu

Alarm

Motion detect

CAM alarm

Master

Snapshot

02 sec

03 sec

Off

CAM1 sensor type:

CAM2 sensor type:

CAM1:

CAM2:

CAM1 ring time:

CAM2 ring time:

Alarm record:

10 sec

Record

Otros manuales para SQ-07MT HD

Tabla de contenidos

Otros manuales de Sistema de intercomunicación de Slinex

Slinex

Slinex Shan Manual de usuario

Slinex

Slinex ML-20CR Manual de usuario

Slinex

Slinex SL-10IPT HD Manual de usuario

Slinex

Slinex SQ-07MTHD Manual de usuario

Slinex

Slinex Imani Manual de usuario

Slinex

Slinex MA-02 Manual de usuario

Slinex

Slinex SM-07N Cloud Manual de usuario

Slinex

Slinex SQ-07MT HD Manual de usuario

Slinex

Slinex ML-16HD Manual de usuario

Slinex

Slinex DESIGN DIRECT ML-16 Manual de usuario

Slinex

Slinex SL-10IP Manual de usuario

Slinex

Slinex SM-07 Manual de usuario

Slinex

Slinex SONIK 7 Cloud Manual de usuario

Slinex

Slinex SM-04M Manual de usuario

Slinex

Slinex Sonik 7 Manual de usuario

Slinex

Slinex Imani Manual de usuario

Slinex

Slinex UNIQUE DIRECT Series Manual de usuario

Slinex

Slinex Design Direct Series Manual de usuario

Slinex

Slinex Innovation Direct Series Manual de usuario

Slinex

Slinex ML-16HR Manual de usuario

Slinex

Slinex ML-20HD Manual de usuario

Slinex

Slinex IP DIRECT Series Manual de usuario

Slinex

Slinex ML-20CRHD Manual de usuario

Slinex

Slinex ML-15HD Manual de usuario

Manuales populares de Sistema de intercomunicación de otras marcas

Bticino

Bticino LINEA 3000 Manual de usuario

MSI

MSI MSI-140 Manual de usuario

golmar

golmar Stadio Plus Manual de usuario

CyberData

CyberData 011211 series Manual

Vidos

Vidos duo M1021 Manual de usuario

Vimar

Vimar ELVOX 7539/E Manual de usuario

SSS Siedle

SSS Siedle BTSV 850-03 Manual de usuario

Dahua

Dahua VTO Series Manual de usuario

Elvox

Elvox 5651 Manual de usuario

Videx

Videx VIDEOKIT Series Manual de usuario

Rocom

Rocom Doortello Business FW T2.05W2.04 Manual de usuario

Viking

Viking E-35-EWP Manual de usuario

Safeguard Supply

Safeguard Supply LRA-EX1000 Manual de usuario

SSS Siedle

SSS Siedle BFCV 850 Series Manual de usuario

GRD

GRD MAX V2 Manual de usuario

Alecto

Alecto ADI-250 Manual de usuario

Aiphone

Aiphone IE-8MD Manual de usuario

Perel

Perel EDB4 Manual de usuario
