Slant/Fin VICTORY II VHS Series Hoja de datos

HOT WATER SUPPLY AND RETURN HEADERS

PARTS LIST AND ASSEMBLY INSTRUCTIONS

L-Series: Oil-fired Modular Boilers

Header Parts List Header Package Order Code

Item Part No. 2 3 4 5 6 7 8 9 10

1-1/2" Stub Header - 2 stub - 27" C-C (pkgd. separately) 43-0920 2 – 4 2 – 4 2 – 4

1-1/2" Stub Header - 3 stub - 27" C-C (pkgd. separately) 43-0921 – 2 – 2 4 2 4 6 4

Flex Joint - 1-1/2" pipe 43-2023 2 4 4 6 8 8 10 12 12

Flex Joint - 3" pipe 41-1755 4 4 8 8 8 12 12 12 16

Cast End Cap - 3/4" NPT 41-1780 1 1 1 1 1 1 1 1 1

Cast End Cap - No tap 41-1753 1 1 1 1 1 1 1 1 1

Nipple - 1-1/2" x 4" 43-0904 3 4 6 7 8 10 11 12 14

Nipple - 1-1/2" x 15" 43-0923 2 3 4 5 6 7 8 9 10

Nipple - 1-1/2" x 30" 43-0924 1 1 2 2 4 4 5 6 6

Nipple - 1-1/2" x close 43-0927 2 3 4 5 6 7 8 9 10

Square Nipple - 1-1/2" x 8" T.O.E. 43-0925 1 2 2 3 4 4 5 6 6

Square Nipple - 1-1/2" x 34" T.O.E. 43-0926 1 2 2 4 6 5 6 6 6

Union - 1-1/2" 902428071 2 2 4 4 4 6 6 6 8

Tee - 1-1/2" 43-0917 2 3 4 5 6 7 8 9 10

Bushing - 1-1/2" x 3/4" 902179321 2 3 4 5 6 7 8 9 10

Elbow - 1-1/2" 902454071 4 6 8 10 12 14 16 18 20

Installation Instructions 43-0901 1 1 1 1 1 1 1 1 1

Number of Modules

Publication CH-40L

Printed in U.S.A. 1003

Part No. 43-0901

43-2572

43-2573

3'' RETURN HEADER

WITH 11/2'' STUBS

(3 MODULE)

* 3'' BUILDING

PIPING

(BY OTHERS)

11/2'' X 34'' SQUARE NIPPLE

11/2'' X 30'' NIPPLE

CAST END CAP

WITH 3/4'' TAPPING.

SUPPLY OR RETURN.

FOR USE WITH LWCO.

3'' SUPPLY HEADER

WITH 11/2'' STUBS

(3 MODULE)

11/2'' X 4'' NIPPLE

11/2'' ELBOW

11/2'' X 15'' NIPPLE

CAST END CAP

3'' RETURN HEADER

WITH 11/2'' STUBS

(2 MODULE)

3'' FLEX JOINTS

(SEE DETAIL "A")

11/2'' X 8'' SQUARE NIPPLE

11/2'' FLEX JOINT

(SEE DETAIL "A")

11/2'' X 4'' NIPPLE

FACTORY SUPPLY AND RETURN HEADER ASSEMBLY — OIL

NOTE:

Shown reverse return (Preferred). For direct return, header assembly piping

connections may be made at the same end of the boiler bank, not as shown.

Some governing agencies do not allow compression type couplings.

Consult your local code requirements.

3'' PIPE X 20''

(BY OTHERS)



11/2'' UNION

11/2'' X 11/2'' X 11/2'' TEE

11/2'' X 3/4'' BUSHING

3/4'' DRAIN VALVE

11/2'' X CLOSE NIPPLE

11/2'' ELBOW



3'' SUPPLY HEADER

WITH 11/2'' STUBS

(2 MODULE)

*3'' BUILDIING PIPE

CONNECTION

1/2'' PRESSURE

TEMPERATURE

GAUGE

1/2'' WELLS

3'' FLEX JOINT

(SEE DETAIL "A")

1 ELBOW

CONTROL HEADER

3'' x 1/2'' x 1/2'' x 1/2''

*Building piping must be rigidly secured so

itcannot move where connected to

headers.

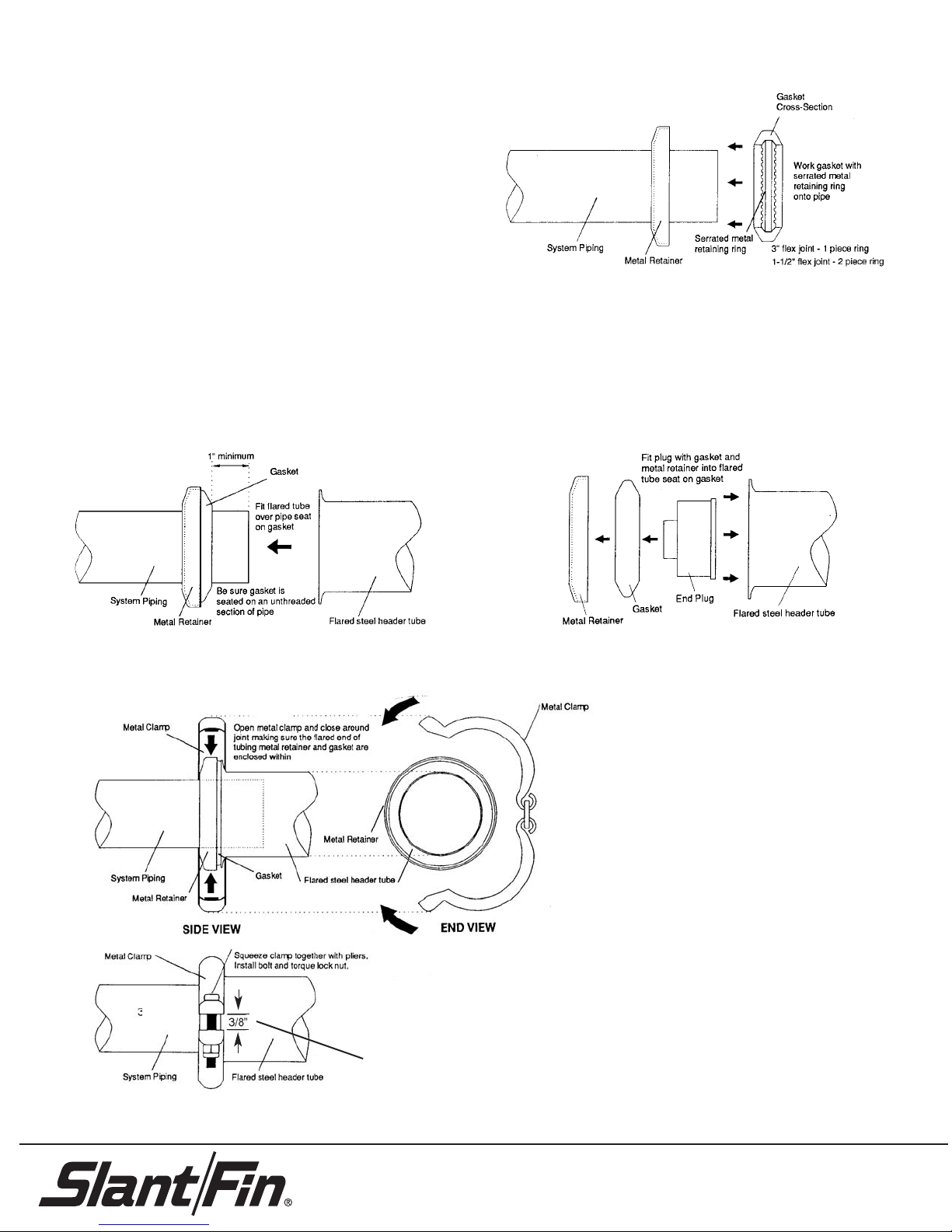

Caravan Flex Joint Assembly Instructions

1. Slip the metal retainer on the system piping with the larger

diameter side facing the end of the pipe to be joined. The

3" flex joint has a single piece serrated metal retaining

ring. This retaining ring should be seated in the recess in

the inner diameter of the gasket with its mounting tabs

overlapping slightly where the ring splits. The 1-1/2" flex

joint has a 2 piece serrated retaining ring that must be

installed in the inner recess of the gasket with its ends

butting.

Work the gasket with the serrated metal retaining ring onto the pipe. When installing the gasket be sure the retaining rings seat

properly around the pipe. On the 1-1/2" flex joint install the bottom half of the gasket first leaving the other half of the retaining ring

free at the top. Then stretch the top of the gasket with the ring over the top of the pipe. When installing the gaskets if a lubricant

is needed, use a soap and water solution only. DO NOT use any oil based lubricants.

2. The gasket must be fully seated in the metal retainer (press together with pliers if necessary). BE SURE THE GASKET IS

SEATED ON AN UNTHREADED SECTION OF PIPE AT LEAST 1" FROM THE END. Slip the flared end of the Slant/Fin

header tube over the pipe and seat against the gasket. Follow illustration a or b for cast end cap or piping.

a) b)

3. Open hinged metal clamp and slip over joint. Be sure that the flared end of the steel tubing, the retainer ring and the gasket

are enclosed within the clamp.

4. Install the bolt and lock nut and tighten the lock nut to

the following torque values: 1-1/2" flexjoint is 140-160

inch-pounds, 3" flex joint is 220-240 inch-pounds.

NOTE: On 3” schedule 40 pipe, spacing between clamps is

approximately 3/8” when properly torqued.

SLANT/FIN CORPORATION, Greenvale, N.Y. 11548 • Phone: (516) 484-2600

FAX: (516) 484-5921 •Canada: Slant/Fin LTD/LTEE,Mississauga, Ontario

www.slantfin.com
