Slamtec RPLIDAR C1 Manual de usuario

www .slam tec.com

ShanghaiSlam tec.C o.,Ltd

RPLIDAR C1

360 Degree Laser Range Scanner with

Fusion Technology

Development Kit User Manual

Model: C1M1

2023-10-13 rev.1.0




CONTENTS ...................................................................................................................................................1
OVERVIEW...................................................................................................................................................3
ITEMS IN THE DEVELOPMENT KIT .......................................................................................................................3
RPLIDAR C1 .....................................................................................................................................................4
USB CABLE.........................................................................................................................................................4
CONNECTION AND USAGE.......................................................................................................................5
CONNECTION ......................................................................................................................................................5
INSTALL DRIVER FOR THE USB CABLE ...............................................................................................................5
RUN DEMO APPLICATION ...................................................................................................................................7
TROUBLESHOOTING ............................................................................................................................................9
MOTOR SPEED ADJUSTMENT ..............................................................................................................................9
SDK INTRODUCTION AND USAGE........................................................................................................11
RPLIDAR C1 PIN DEFINITION AND SPECIFICATION .........................................................................................11
PIN DEFINITION FOR THE USB CABLE...............................................................................................................12
CONFIGURE RPLIDAR C1 SCAN FREQUENCY..................................................................................................12
SDK USAGE......................................................................................................................................................12
OPERATION RECOMMENDATION........................................................................................................13
PRE-HEATING FOR BEST PERFORMANCE...........................................................................................................13
AMBIENT TEMPERATURE ..................................................................................................................................13
REVISION HISTORY.................................................................................................................................14
APPENDIX...................................................................................................................................................15
IMAGE AND TABLE INDEX.................................................................................................................................15
Contents

3/ 15

RPLIDAR C1 development kit includes the matched tools used for evaluating

RPLIDAR’s performance and initial development. After connecting the RPLIDAR C1

with PC via USB cable, users can observe the cloud map of the environment scanning

point collected by the RPLIDAR in RoboStudio and start development based on the

SDK.

Items in the Development Kit

RPLIDAR C1 Development Kit contains:

oRPLIDAR C1

oUSB cable

oMicro-USB cable

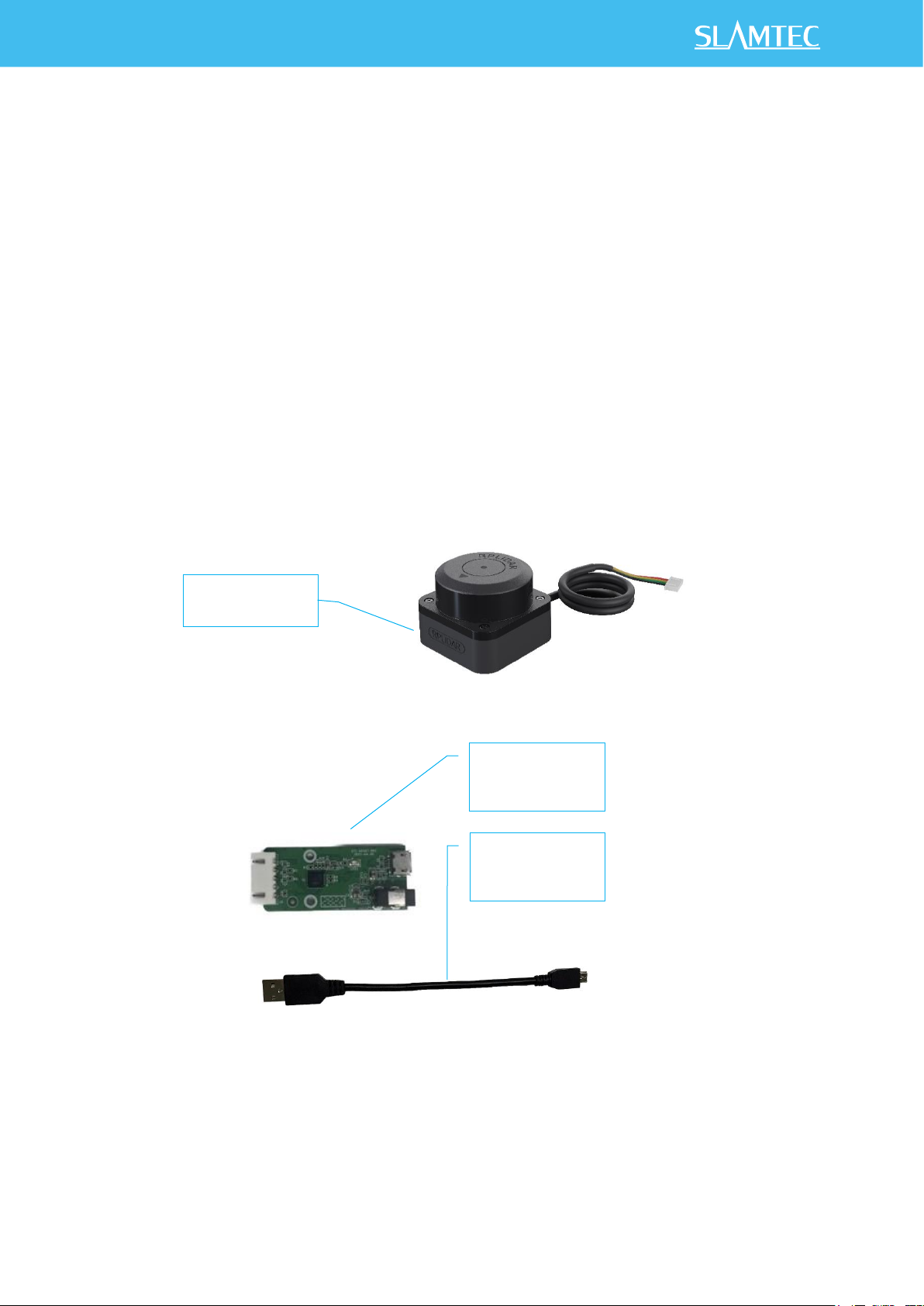

Figure 1-1 Items in the RPLIDAR Development Kit

Overview

RPLIDAR C1

USB cable

Micro-USB cable

4/ 15

RPLIDAR C1

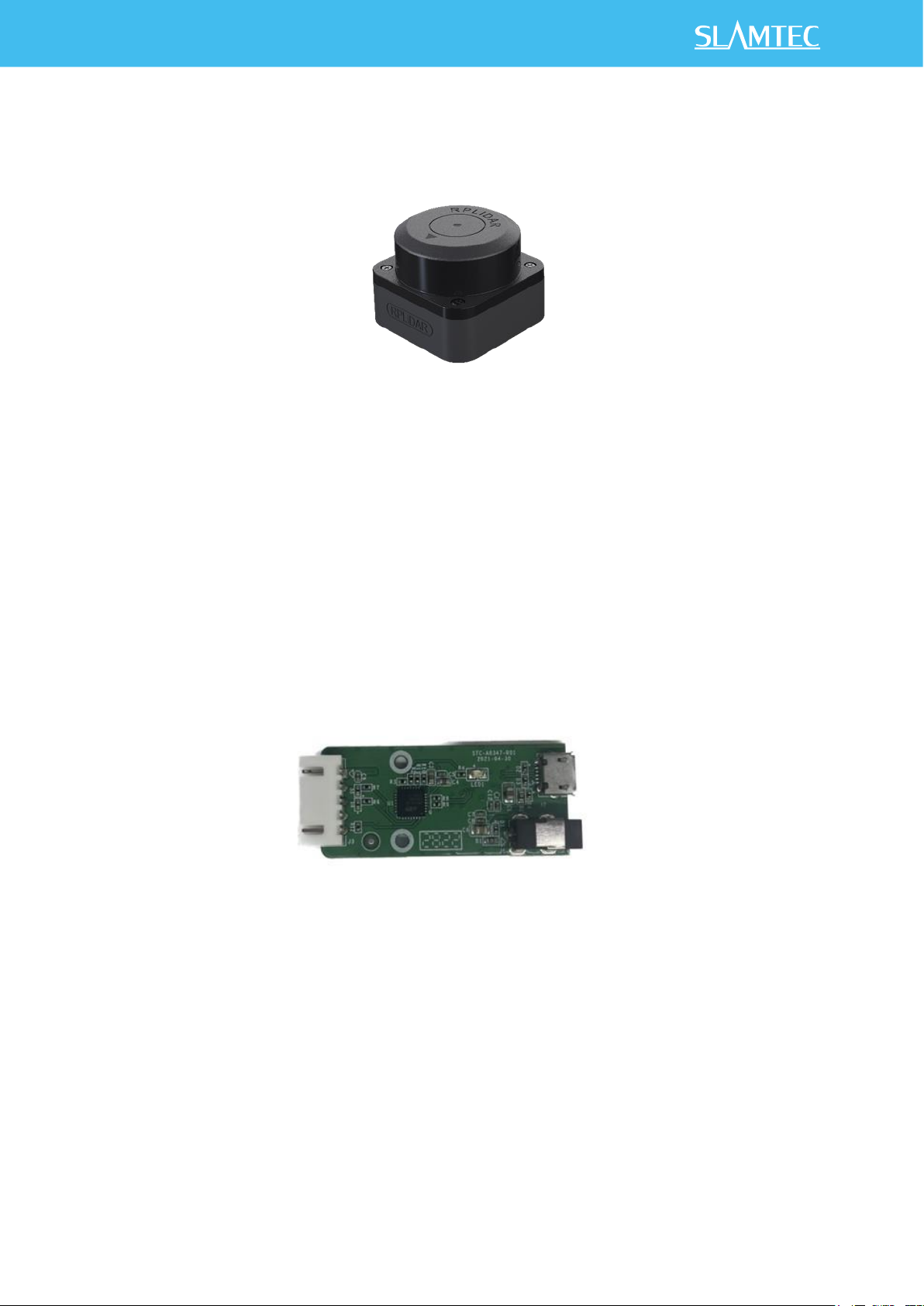

Figure 1-2 The RPLIDAR C1

The RPLIDAR C1 development kit contains standard RPLIDAR C1. The drivable

motor controller can be used to configure the scan frequency by tuning motor speed.

Developers can also choose to turn off the motor for power saving purpose.

RPLIDAR usage and interface definition will be introduced in the coming sections.

USB cable

Figure 1-3 RPLIDAR USB cable

5/ 15

Connection

RPLIDAR C1 can be easily connected to PC according to the following steps.

1) Connect RPLIDAR C1 with the USB cable.

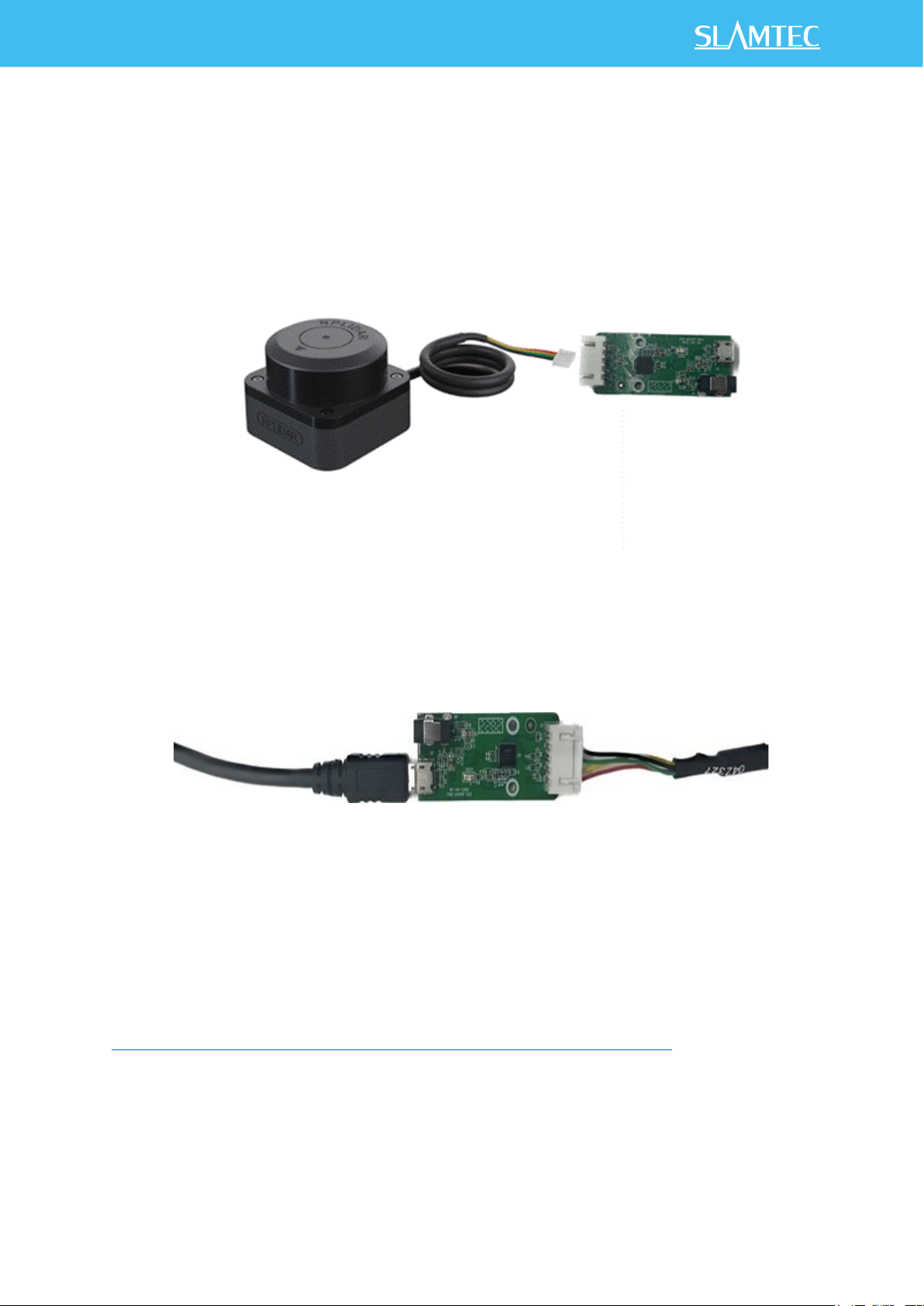

Figure 2-1 Connect RPLIDAR C1 and USB cable

2) Connect the USB cable to your PC via the Micro-USB cable. If the PC is on,

after connecting the USB cable to your PC, the indicator light of the USB will

light up but the RPLIDAR will not start scanning.

Figure 2-2 Connect the USB cable to PC via Micro-USB Cable

Install Driver for the USB cable

The USB cable converts UART to USB by using CP2102 chip. You need to install the

device driver for the chip. The driver can be found in the provided SDK package or

downloaded from Silicon Labs’ official website:

http://www.silabs.com/products/mcu/Pages/USBtoUARTBridgeVCPDrivers.aspx

Here’s the installation steps in Windows: after connecting the RPLIDAR with PC,

please find the driver file “CP210x VCP Windows” and choose correct operating

system version accordingly: x86 for 32-bit OS and x64 for 64-bit OS.

Connection and Usage

6/ 15

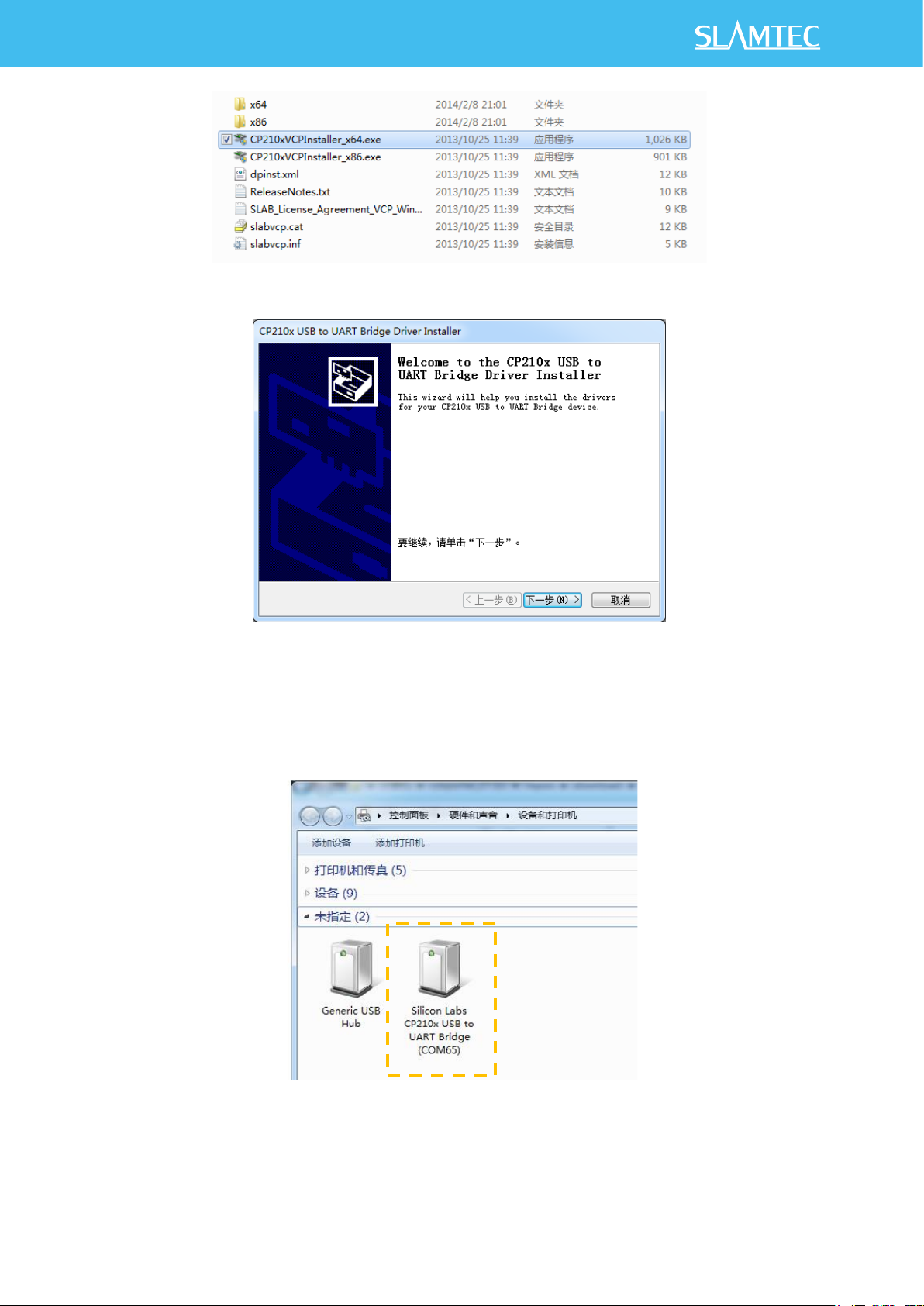

Figure 2-3 Choose USB cable Driver for Installation

Figure 2-4 Start Page of USB cable Driver Installation

After Installing the driver according to the above installation steps, you will see

corresponding serial port name in the [Control Panel] -> [Device and Printers]. Please

refer to the below figure.

Figure 2-5 Recognized Serial Port Name Matched with the USB cable

7/ 15

Run Demo Application

SLAMTEC provides a Lidars plugin in RoboStudio for users in test and evaluation.

You can view the scan result directly in the UI and save the scan result to files for further

processing.

This GUI demo can only run under Windows. For Linux and MacOS users, please refer

to the other simple demo provided in the SDK.

Please make sure you have connected RPLIDAR to PC by using USB cable and

installed the device driver correctly before running the demo application in RoboStudio.

Launch RoboStudio and log in.

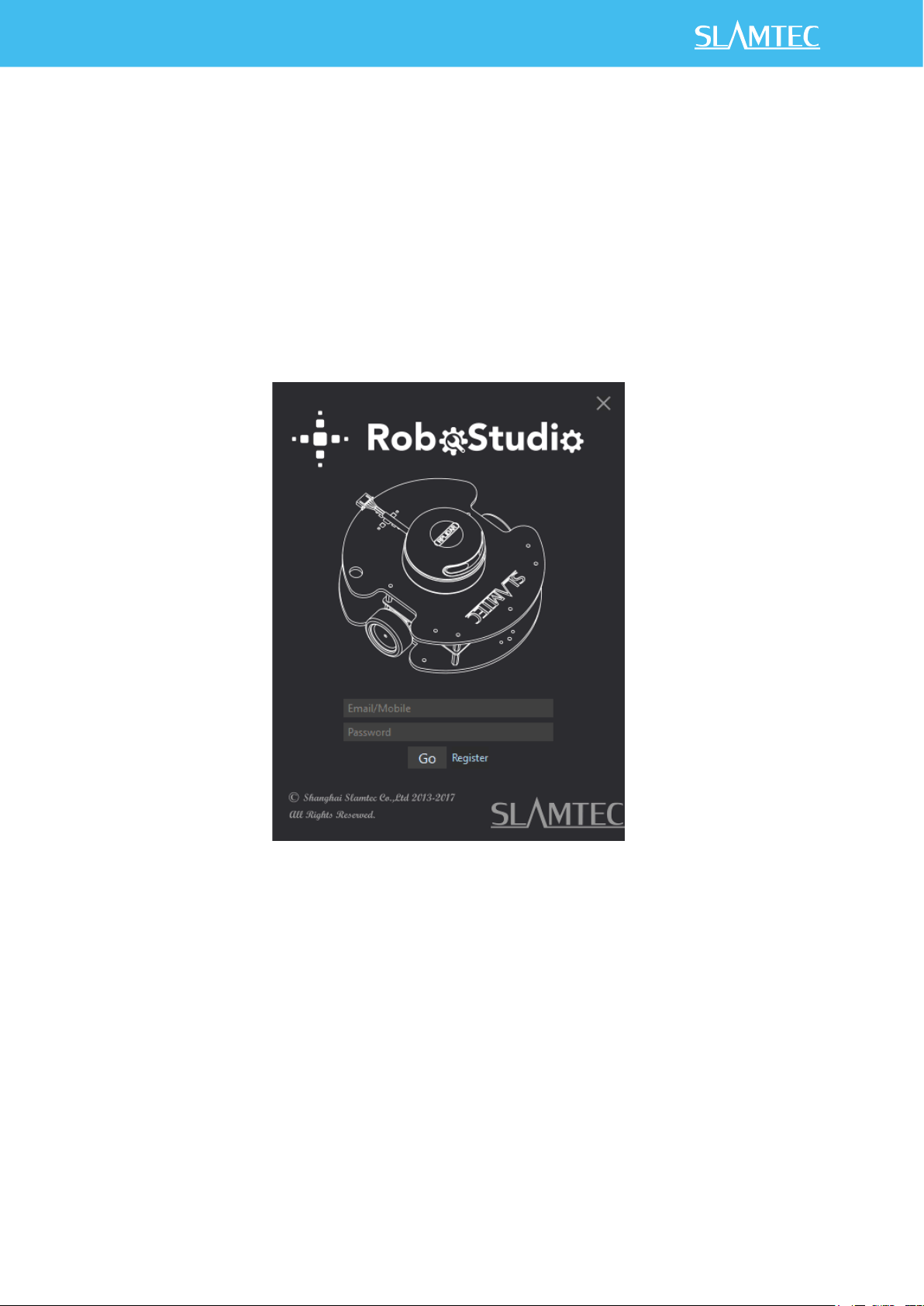

Figure 2-6 RoboStudio Login Page

If the connection is ok, you shall see the user interface is shown as below.

1. Click File->Lidars to open the lidar control panel in the left;

2. Click Serial Ports to extend the lidar lists and you’ll find the RPLIDAR C1

previously connected to your PC;

3. Click the RPLIDAR C1 icon to extend the tool buttons below the icon: the left one

is to adjust the motor speed while the right one is to open the tool bar in the major work

area as shown in Figure 2-7.

8/ 15

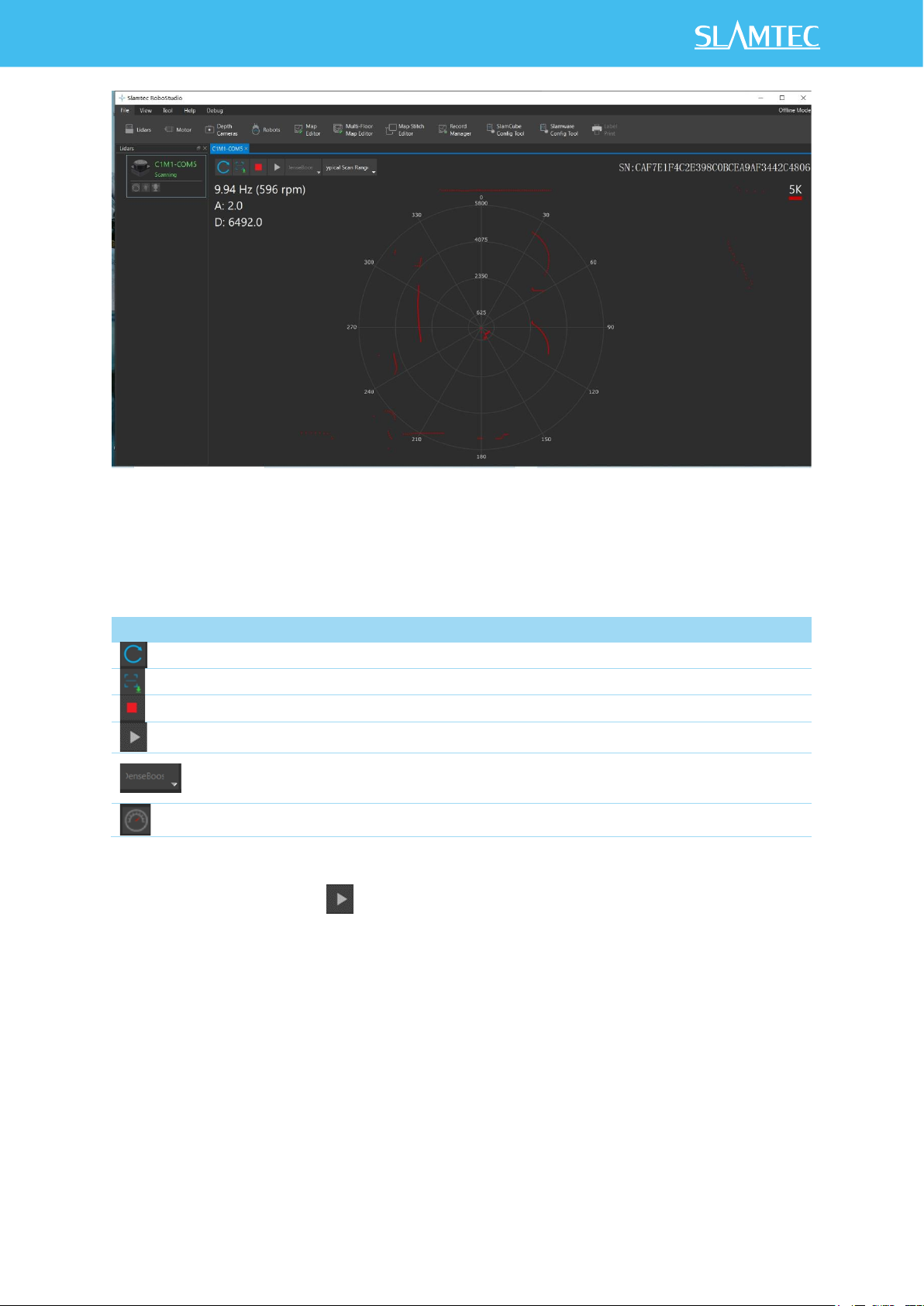

Figure 2-7 The Lidar Plugin in RoboStudio

The serial number, version and model of the RPLIDAR C1 will show next with its icon

in the lidar control panel. The supported commands of RPLIDAR are showed in the

tool bar. The descriptions are listed in the bellow table.

Figure 2-8 The Supported Commands of RPLIDAR in RoboStudio

Press the Start Scan button , the scan data will be displayed as below (by default, the

motor rotating speed should be 10Hz.):

Button

Function

Description

Restart RPLIDAR

Restart scan core to clear internal errors

Save Scan Data

Save current scan data to the local file

Stop Scan

Scan core enter power save mode

Start Scan

Scan data will be displayed after scan core starting work

Work Mode Switch

Switch among different work modes to fit in specific

environments

Adjust Motor Speed

Adjust the motor speed as required

9/ 15

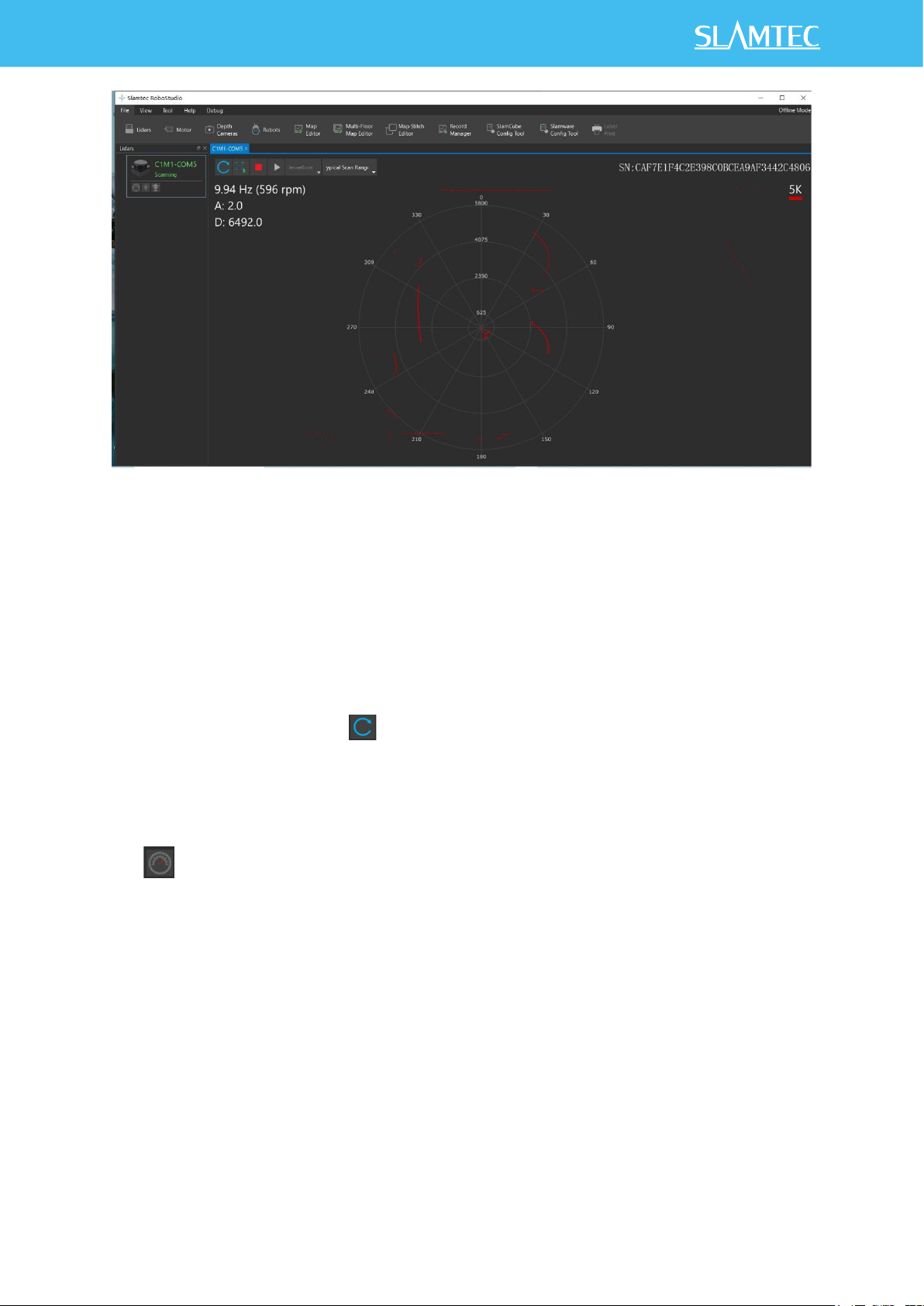

Figure 2-9 The Scan Outline by RPLIDAR in RoboStudio

Right click in the major working area to choose a range so as to zoom in or out the view.

The scan frequency is also showed in the above interface.

Troubleshooting

When the scan core or the laser power works abnormally, the scan core will enter

protection mode. This state can be retrieved via SDK API. If such scenario happened,

please send restart command to reset the scan core.

Motor Speed Adjustment

During the running process, different motor rotating speed can be achieved by pressing

the button, which can fit in different working environments or meet specific

requirements. There will be a speed adjustment dialog box and dash board popped up

for users to enter required speed. After entering a value, the motor will work as the

settled rotating speed automatically. User can also drag the sliding handle to the

required rotating speed.

The current actual rotating speed will show in the upper left corner of the major work

area. For instance, the actual rotating speed in the following screenshot is 10.02Hz.

10 / 15

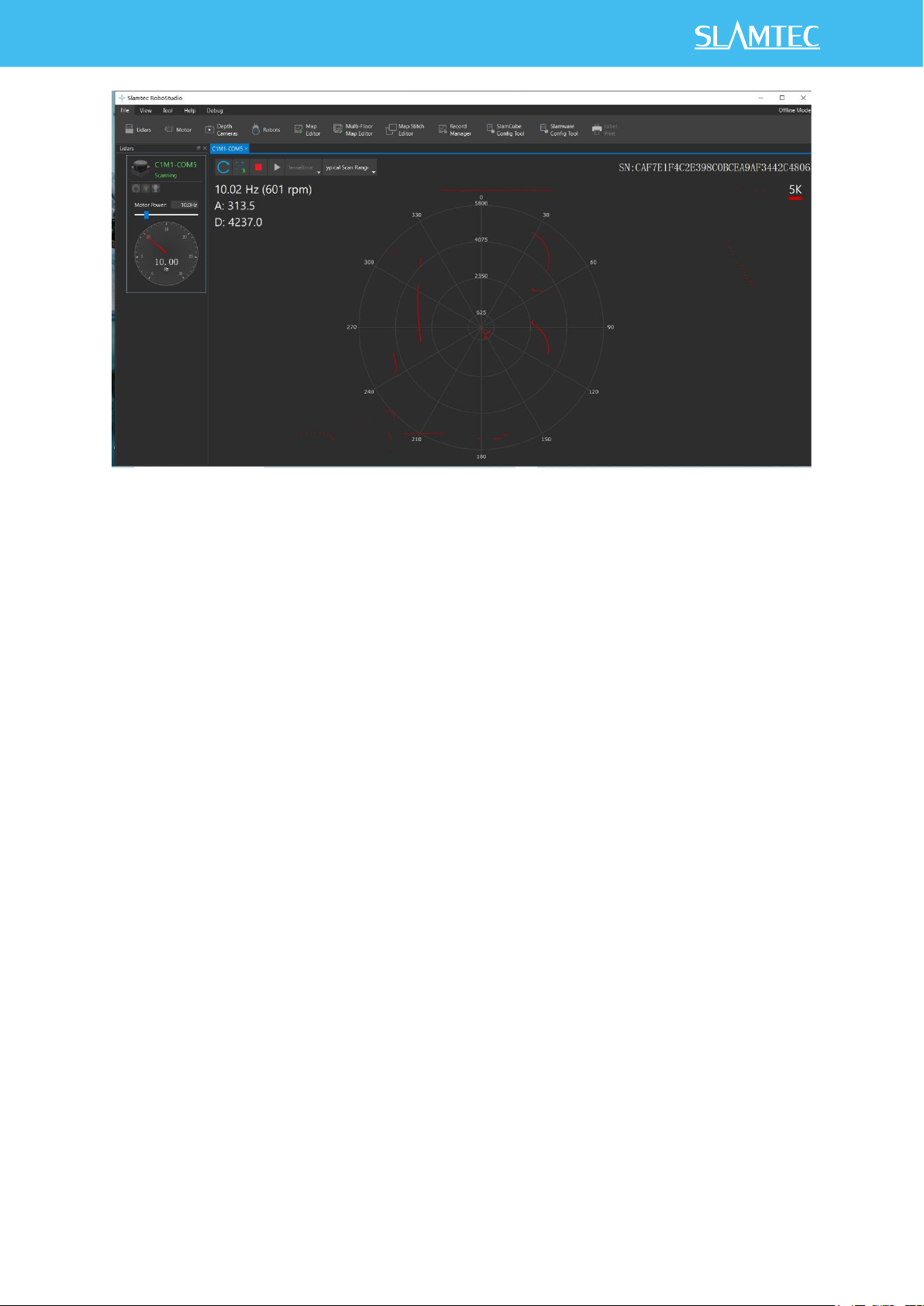

Figure 2-10 The Motor Speed Adjustment Dialogue of RPLIDAR in RoboStudio
