BEFORE YOU SET OFF
Owner's Manual - brief instructions
ŠKODA KODIAQ
This brochure is intended to quickly acquaint you with some vehicle functions.
This does not replace the vehicle Owner's Manual, because it does not provide information on operation, e.g. the safety notices. Therefore, when using our
vehicles, proceed in accordance with the vehicle Owner's Manual in the first instance.
There is a QR code in the title area of some of the functions described. Once these are scanned, a short animation with instructions will be
shown in relation to the relevant function.
›Overview of this brochure by topic
›Unlocking and opening 1
›Correct and safe seating position 2
›Use the second and third row of seats 4
›Lights and visibility 6
›Air conditioning system 8
›Instrument cluster 10
›Starting and stopping the engine 13
›Braking and parking 15
›Park Assist systems 16
›Driver assist systems 18
›OFF ROAD mode 22
›Hitch and trailer 23
›At the petrol station 25
›Telephone 27
›Radio 28
›Navigation 29
›Connectivity 30
›Care Connect 30
›Warning lights overview 31
This brochure is also available to download in each language version on the website http://go.skoda.eu/owners-manuals, see QR code.
Unlocking and opening
›Key
Locking the vehicle
Unlocking the boot
lid
Unlocking the vehicle
›KESSY
The KESSY system enables the vehicle to be unlocked and locked by
means of sensors in the two front door handles without actively using the
key.
›Grip the front door handle to unlock the door.
›Touch the sensor on the exterior of the front door handle to lock the ve-
hicle.
›Luggage compartment lid
Vehicles fitted with manual lid operation
›To open press the button Aand lift the flap.
›To close, grab the mount Band pull in the direction of the arrow.
Vehicles fitted with electric lid operation
›To open, press the button A, pull the button Bor hold the button
on the key.
›To close, press the button C, pull the button Band hold this or hold
the button on the key (applies to vehicles with KESSY).
›Operating boot lid without contact
Open/close
›Speedily swing a foot under the rear bumper.
Operating conditions
The ignition is switched off.
You must have the car keys with you.
Disabling/enabling can be carried out in Infotainment in the / →
Open and close
in progress.
Correct and safe seating position
›Correct seating position for the driver
For your safety, and to reduce the risk of injury in an accident, the steering
wheel, the seat and headrest must be adjusted as follows.
Distance A- at least 25 cm
Distance B- at least 6 cm
Line C- top of the headrest at the same level with the top of the head,
where possible
2
›Adjusting front seats manually
Adjusting a seat in a for-
ward/back direction
Adjusting height of seat
Adjusting the angle of the seat
backrest
Adjusting lumbar support
A
B
C
D
›Adjusting front seats electrically
Adjusting lumbar support
Seat adjustment
Adjusting the angle of the seat
backrest
A
B
C
›Adjusting the steering wheel position
Steering wheel locked
Steering wheel unlocked
The forward/back position and the height of the steering wheel can be ad-
justed.
3
›Adjusting exterior mirrors
The knob can be moved into the following positions.
Adjust the left mirror
Switch off mirror control
Adjust the right mirror
Fold mirrors
Mirror heater
By moving the knob in the direction of the arrows, the mirror surface can
be adjusted.
Use the second and third row of seats
›Operating second row of seats
›To adjust forward/back position, pull lever Ain the direction of arrow
1and move the seat to the desired position in the direction of arrow
2.
The Easy Entry function provides the access to the third row.
›To fold and slide the seat, pull the securing tab in the direction of arrow
1.
›Fold the seat forwards and slide the seat in the direction of arrow 2.
›To fold back flap, adjust the seat's forward/backward position and lift
the seat back.
›Check this by pulling on the seat and on the seat backrest.
4
›Operate the backrests of the third seat row
Before moving the seat backs, move the second row of seats forward and
remove the luggage compartment cover.
›To fold up, pull eyelet Ain direction of arrow 1.
The seat back must engage audibly after folding up.
›To fold down, press the securing tab Bin direction of arrow 2and fold
the seat backs forwards in the direction of arrow 3.
›Folding third-row seats up/down
Before moving the seats, unlock the buckle tongues of the seat belts (the
straps must be completely retracted).
›Fold the seat backs forwards.
›To fold up, pull the eyelets simultaneously in the direction of arrow 1.
The seats are raised in the direction of arrow 2.
›To fold down, press the seats in the direction of arrow 3.
5
Lights and visibility
›Operating light function
Using headlights - turn switch
Switch off lights (except daytime running lights)
Automatically switch lights on/off
Switch on parking lights
Switch on the low beam
Operating fog lights / rear fog lamp - pull switch
Switch on the front fog light
Switch on the rear fog light
Headlight range control
On vehicles with LED headlights, headlight range control takes place au-
tomatically.
On vehicles with Halogen headlights, headlight range control takes place
in Infotainment in the menu / → →
Lights
.
›Main beam
Switch on main beam (spring-tensioned position)
Switch off main beam / switch on headlight flasher (spring-tensioned
position)
›Turning signal system
Switch on the right turn signal
Switch on the left turn signal
6

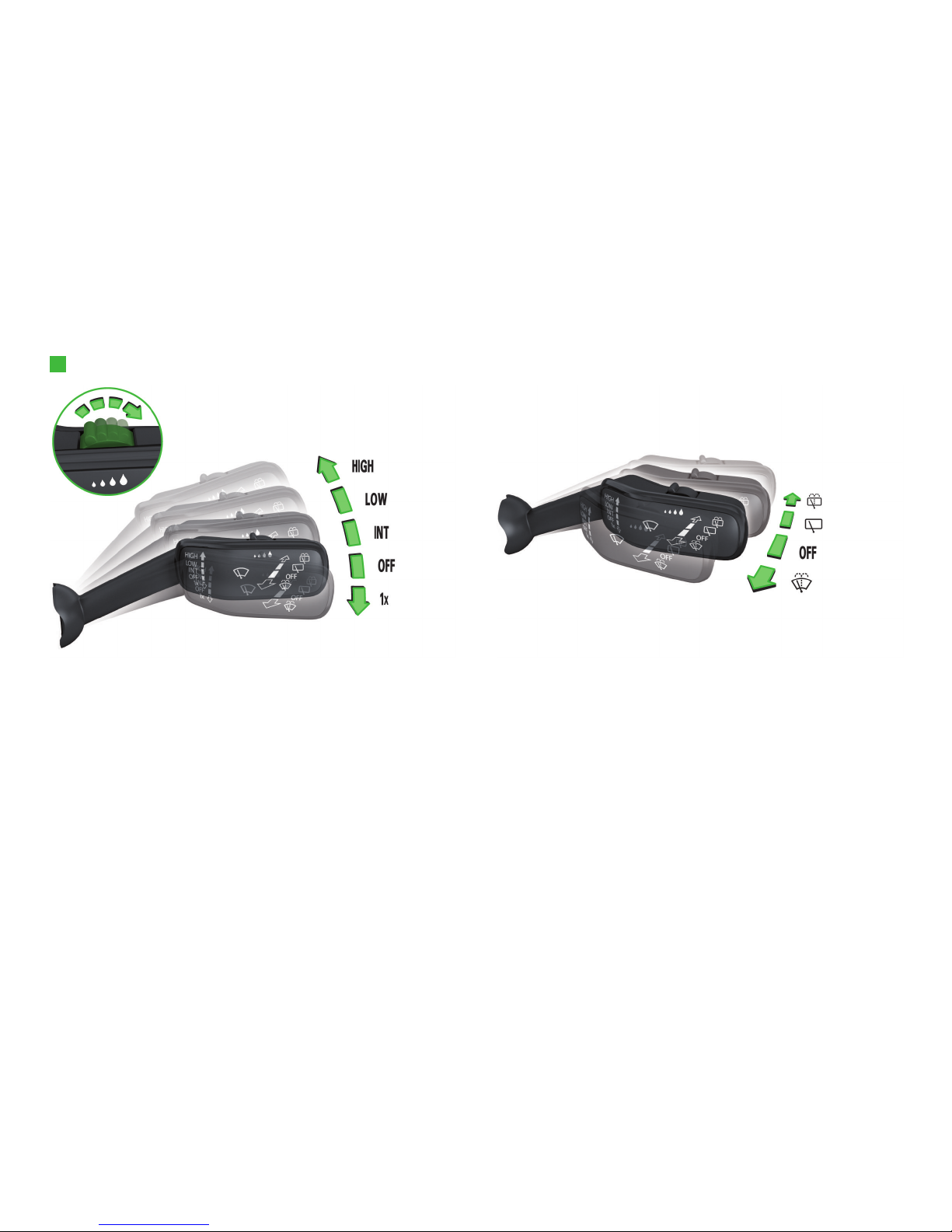

›Windscreen wipers and washers
Rapid windscreen wiping
Slow windscreen wiping
Depending on equipment fitted:
Periodic windscreen wiping / automatic wiping in rain
Setting the wiper interval by position
Wipers and washers off
Single windscreen wipe (spring-loaded position)
Spraying and wiping the rear window (spring-tensioned position)
Spraying the rear view camera (spring-tensioned position)
Wiping the rear window
Wipers and washers off
Spraying and wiping the windscreen (spring-tensioned position)
7
Air conditioning system
›Climatronic
Individual functions can be set or switched on by turning the rotary control
or by pressing the respective key. When the function is switched on, a
control light lights up inside or below the button.
Adjust the temperature for the left side
Adjust the blower speed
Adjust the temperature for the right side
Depending on equipment fitted:
Auxiliary heating
Heating of the passenger compartment using the residual heat of
the engine (after switching off the ignition)
Display the set temperature for the left side
Depending on equipment fitted:
Seat heater on the front left seat
Seat heating and ventilation for the left front seat
Depending on equipment fitted:
Seat heating for the front right seat
Seat heating and ventilation for the right front seat
Display the set temperature for the right side
Air flow to the windows
A
B
C
D
E
F
G
H
Air flow to the upper body
Air flow in the footwell
Recirculated air mode
Ventilation/defrosting of the windscreen
Heated rear window
Heated windscreen
Adjust Climatronic in the infotainment
Synchronise the temperature inside the entire vehicle according to
the temperature setting on the driver's side
Automatic mode
Cooling system
8
