Skil SHD77M Manual de usuario

Page 1

F 012 SD7 702

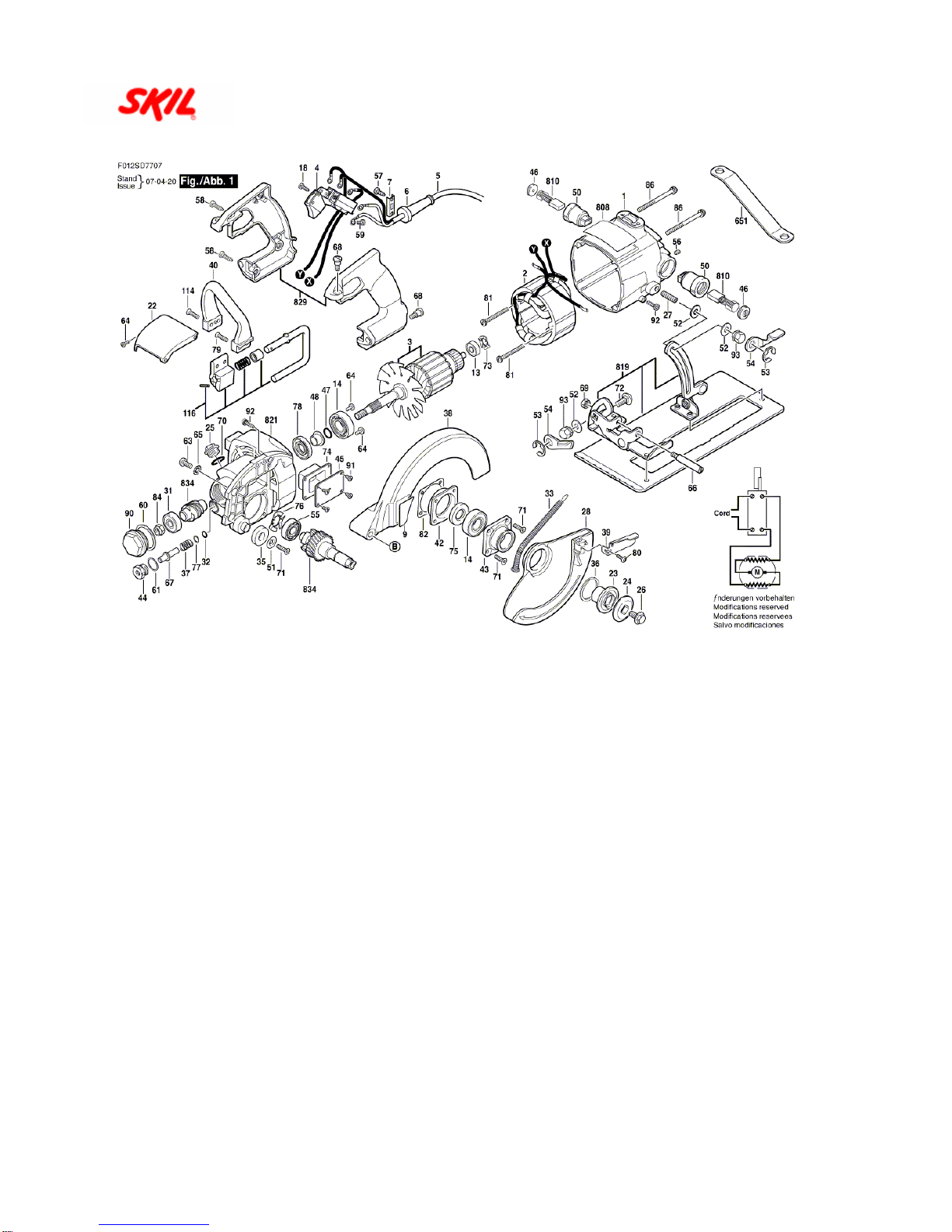

CIRCULAR SAW SHD77M

31.05.2007

22:39:06

e 1 of 4

5/31/2007htt

://le11288.le.de.bosch.com/sid/

rintdirect.as

?ID

PRODUCT=F012SD7702&ID

VE...

Item Quantity Order No. Designation Price group Page

1 1 1 619 X01 155 MOTOR HOUSING 1

2 1 1 619 P02 674 FIELD 1

3 1 2 610 931 892 ARMATURE 1

4 1 1 619 X01 273 ON-OFF SWITCH 1

5 1 1 619 X01 570 CORD 1

6 1 1 619 X00 943 GROMMET 1

7 1 1 619 X01 274 FASTENING CLAMP 1

9 1 1 619 X01 998 LABEL 1

13 12 610 017 348 DEEP-GROOVE BALL BEARING 1

14 22 610 024 748 BALL BEARING 1

18 12 610 901 971 SCREW 1

22 11 619 X01 208 HOOD 1

23 11 619 X01 249 WASHER 1

24 11 619 X01 251 WASHER 1

25 11 619 X01 259 OIL DRAIN PLUG 1

26 12 610 000 050 BOLT 1

27 11 619 X01 262 STUD 1

28 11 619 X01 182 PIVOTING BLADE GUARD 1

31 12 610 017 875 BALL BEARING 1

32 12 610 015 726 RING 1

33 12 610 911 148 SPRING 1

35 12 610 319 494 BUFFER 1

36 12 610 341 359 RETAINING RING 1

37 12 610 023 394 SPRING 1

38 11 619 X01 173 UPPER HOUSING 1

39 11 619 X01 237 LEVER 1

40 11 619 X01 205 HANDLE 1

42 11 619 X01 253 BEARING PLATE 1

43 11 619 X01 255 PLATE 1

44 11 619 X01 271 BUSHING 1

45 11 619 X01 228 COVER 1

46 21 619 X01 268 CAP 1

47 12 610 044 638 RING 1

48 11 619 X01 272 COLLAR 1

50 21 619 X01 267 BRUSH HOLDER 1

51 12 610 004 341 DISC 1

52 32 610 912 616 PLAIN WASHER 1

53 22 610 968 747 RETAINING RING 1

54 21 619 X01 235 LEVER 1

55 12 610 000 166 BALL BEARING 1

56 22 610 027 039 FITTING SCREW 1

57 22 610 315 299 SCREW 1

58 42 610 315 380 SCREW 1

59 11 619 P01 537 SCREW 1

60 12 610 023 331 WASHER 1

61 12 610 025 067 WASHER 1

63 22 610 329 955 SCREW 1

64 41 619 X01 786 CONTACT SCREW 1

65 22 610 306 355 WASHER 1

66 11 619 X01 263 SCREW 1

67 11 619 X01 298 BEARING BOLT 1

e 2 of 4

5/31/2007htt

://le11288.le.de.bosch.com/sid/

rintdirect.as

?ID

PRODUCT=F012SD7702&ID

VE...

68 42 610 932 332 SCREW 1

69 12 610 932 460 LOCK NUT 1

70 12 610 044 639 O-RING 1

71 52 610 027 002 SCREW 1

72 12 610 016 325 ADJUSTING BOLT 1

73 12 610 004 459 WASHER 1

74 11 619 X01 257 RUBBER GASKET 1

75 12 610 025 245 SEAL 1

76 12 610 931 237 SPRING WASHER 1

77 12 610 017 016 DISC 1

78 12 610 329 927 SNAP RING 1

79 22 610 993 549 SCREW 1

80 11 619 X00 939 SCREW 1

81 22 610 329 950 SELF-TAPPING SCREW 1

82 11 619 X01 258 GASKET 1

84 12 610 318 324 NUT 1

86 42 610 329 953 SELF-TAPPING SCREW 1

90 11 619 X01 260 BEARING COVER 1

91 42 610 353 289 SELF-TAPPING SCREW 1

92 22 610 932 218 SCREW 1

93 21 619 X01 283 CAP NUT 1

114 22 610 911 890 SCREW 1

116 11 619 X01 267 BRUSH HOLDER 1

651 12 610 000 266 SCREWDRIVER 1

808 11 619 X02 061 MANUFACTURER'S NAMEPLATE 1

810 11 619 X01 351 GEAR HOUSING 1

819 11 619 X01 356 BASE PLATE 1

821 12 610 906 401 HOUSING 1

829 11 619 X01 364 HANDLE 1

834 11 619 X02 374 SET OF GEARS 1

e 3 of 4

5/31/2007htt

://le11288.le.de.bosch.com/sid/

rintdirect.as

?ID

PRODUCT=F012SD7702&ID

VE...

e 4 of 4

5/31/2007htt

://le11288.le.de.bosch.com/sid/

rintdirect.as

?ID

PRODUCT=F012SD7702&ID

VE...
