Singer CONFIDENCE 7463 Manual de usuario

Service Manual

7463

7465

7467

7469

Confidence

104 72 89-26

16 Oct 2007

-2-

INDEX

Sec. 1 Disassembling of covers - - - - - - - - - - - - - - - - - - - - - - 4-9

Sec. 2 Test mode - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10-12

Sec. 3 Adjustment of feed dog height - - - - - - - - - - - - - - - - - - 13

Sec. 4 Needle bar height - - - - - - - - - - - - - - - - - - - - - - - - - - - 14

Sec. 5 Needle threader height - - - - - - - - - - - - - - - - - - - - - - - 15-16

Sec. 6 Presser foot height and direction - - - - - - - - - - - - - - - - 17

Sec. 7 Needle position at zigzag stitching - - - - - - - - - - - - - - - 18

Sec. 8 Clearance between needle and shuttle - - - - - - - - - - - - 19-20

Sec. 9 Needle timing to feed dog - - - - - - - - - - - - - - - - - - - - - 21

Sec. 10 Needle timing to shuttle hook - - - - - - - - - - - - - - - - - - 22

Sec. 11 Needle stopper at right position - - - - - - - - - - - - - - - - 23

Sec. 12 Adjustment of thread tension - - - - - - - - - - - - - - - - - - 24

Sec. 13 Zigzag bight & stitch balance - -- - - - - - - - - - - - - - - - - 25-38

Sec. 14 Needle stops at heighest position - - - - - - - - - - - - - - - 39

Sec. 15 Bobbin holder stopper spring- - - - - - - - - - - - - - - - - - 40-41

Sec. 16 Motor belt tension- - - - - - - - - - - - - - - - - - - - - - - - - - 42

Sec. 17 Timing belt tension- - - - - - - - - - - - - - - - - - - - - - - - - 43

Sec. 18 Bobbin holder thread tension- - - - - - - - - - - - - - - - - - 44

-3-

Sec. 19 Electrical parts area

AC power board - - - - - - - - - - - - - - - - - - - - - - - - - - - - 45

CPU board - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -46-48

Switch board - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 49-53

Wiring harness - - - - - - - - - - - - - - - - - - - - - - - - - - - - -54-56

-4-

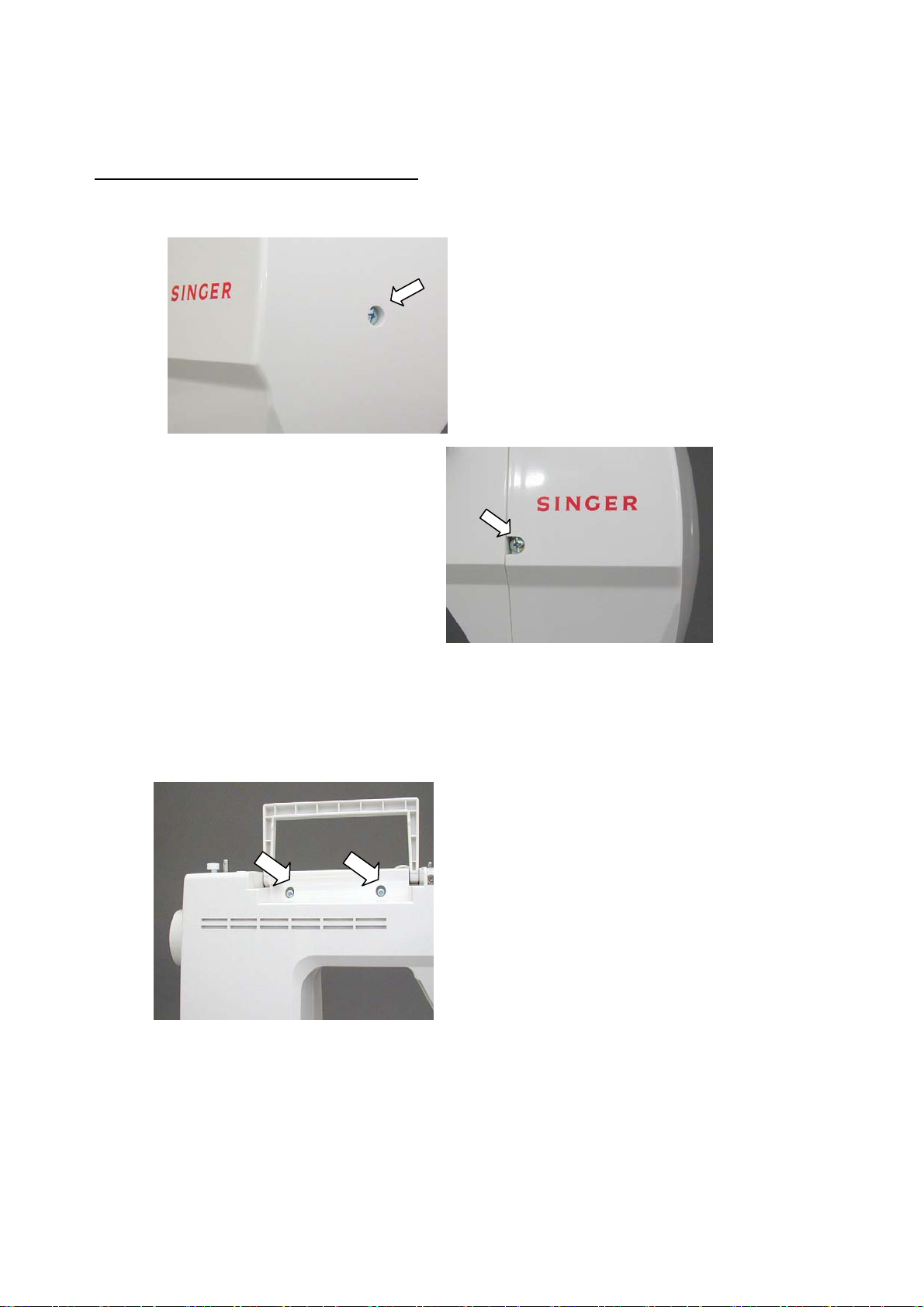

Sec.1 Disassembling of covers

(1) Face cover side

Remove screw A.

Removescrew Ｂ.

(2) Back cover side

Remove two self-tapping screws.

D E

-5-

Remove two screws F & G.

Remove screw H.

Loosen screw J with washer.

Remove screw K on bottom side.

F G

-6-

Remove screw L on bottom side.

Remove needle plate by loosening

two screws.

Push up front cove to open inserting

Small screw driver between front and

backcovers.

Open back and front covers.

-7-

Pull out front cover.

Open mating portion of front and back

covers using small screw driver.

Push back cover by small

screw driver.

Force front cover open by

small screw driver.

40mm

-8-

Lift up front cover as illustrated.

Lower presser foot lever to

removebackcovereasily.

-9-

Disassembling of covers for model 7422

An additional bottom cover is provided on model 7422.

Remove screws S for front cover and then 5 screws on the bottom cover.

Disassembling of covers for model 7424・7426・7428 *7436

An additional bottom cover is provided on model 7424, 7426 ,*7436 and 7428.

Remove screws S for front cover and then 6 screws on the bottom cover.

Bottom cover

- 10 -

Sec.2 Test mode

1. Push bobbin winder to the right

2. Push and hold reverse switch in place.

3. Turn on power switch.

4. Release bobbin winder while pushing reverse switch, just after power switch is turned on.

5. LED is lit at the top left corner.

7422, 7442,

7462

7424, 7444,

7464 and

others
