Singer CG-500 Commercial Grade Manual de usuario

REVISIONS

REV. DESCRIPTION APPROVAL DATE

ADOPT AUG, 2004

1ADDED CG-500 AND CG-550 FEB,2005

PAGES REF. DESCRIPTION

01 - 02 ATTACHMENT SET

03 - 04 ARM, BED, THROAT PLATE & BED SLIDE

05 - 06 ARM TOP COVER

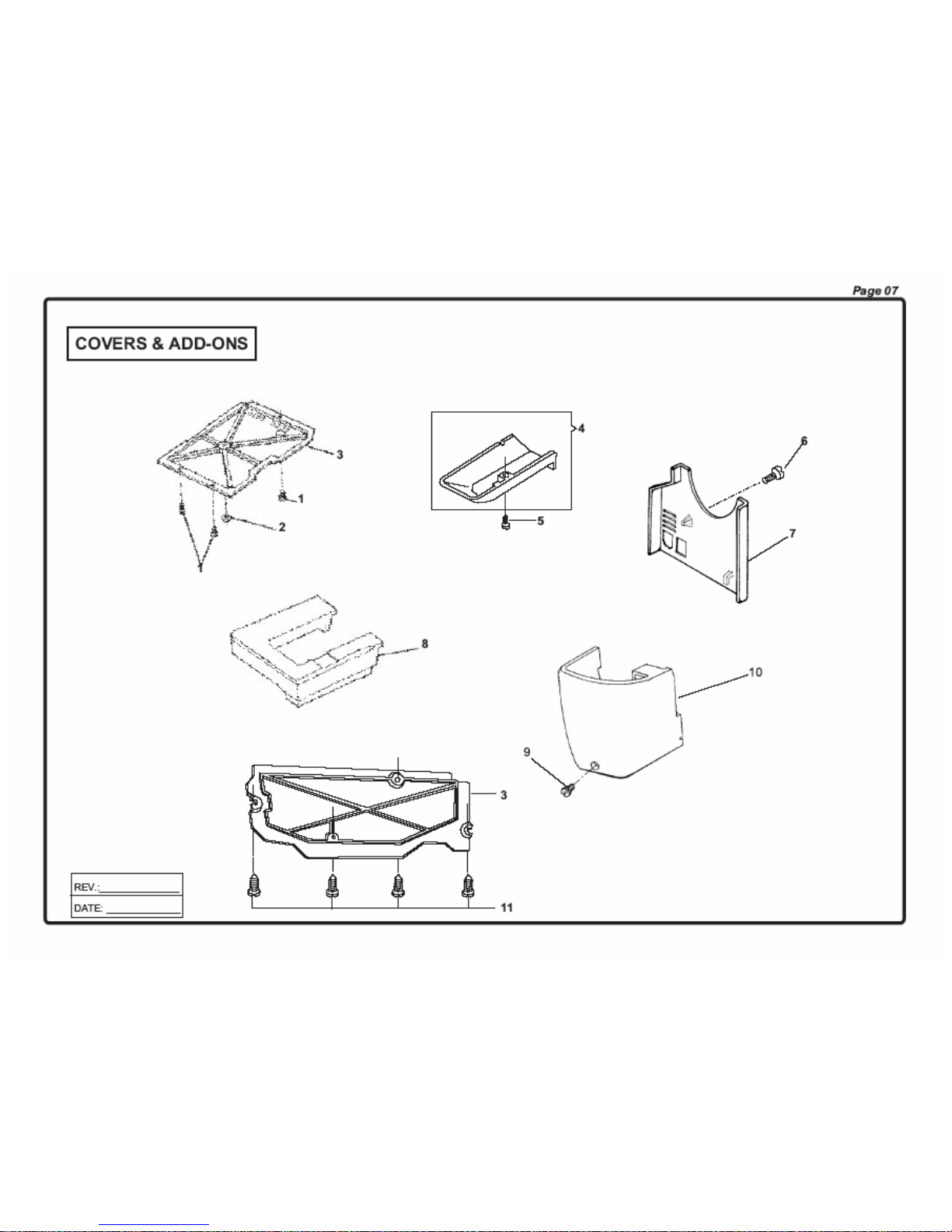

07 - 08 COVERS & ADD-ONS

09 - 15 NEEDLE BAR, PRESSER BAR, AUTOMATIC NEEDLE THREADER & THREAD TAKE-UP

16 - 17 ARM SHAFT DRIVE

18 - 19 HAND WHEEL

20 - 21 TENSION MECHANISM

22 - 23 HOOK SYSTEM

24 - 25 BIGHT AMPLITUDE

26 - 29 NEEDLE POSITION

30 - 31 DISC SELECTOR ASSEMBLY

32 - 33 CAM STACK

34 - 35 FEED REGULATOR CAM

36 - 37 BUTTONHOLER & FEED REGULATOR CAM

38 - 39 CAM CONTROLLED FEED

40 - 41 FEED SYSTEM

42- 43 OPTIONS

44-45 ELECTRICAL EQUIPMENT

SUB-ASSEMBLY

Page 02

H H H C C

D D D G G

1 1 1 5 5

0 0 1 0 5

REF. PART NUMBER DESCRIPTION 2 5 0 0 0

1358393-006 ATTACHMENT SET COMPLETE X X

1358386-001 ATTACHMENT SET COMPLETE X- -

1358393-001 ATTACHMENT SET COMPLETE -X-

1358393-002 ATTACHMENT SET COMPLETE X

2179967464 SPOOL PIN HOLDER (SMALL) - CINZA X X

2179967-463 SPOOL PIN HOLDER (SMALL) - CINZA X X X

3507664-470 ARM TOP COVER SPOOL PIN THREAD LEAD-OFF LARGE (PLASTIC) CINZA X X

3507664-469

ARM TOP COVER SPOOL PIN THREAD LEAD-OFF LARGE (PLASTIC) CINZA

X X X

4172336-000BUY BOBBIN (PLASTIC) X X X X X

5353364-000 NEEDLE PACK (N2020 SIZE 11/14/16 & N2045 SIZE 11/14) -X X X X

6313117-000BUY FEED COVER PLATE (PLASTIC) X X X X X

7446492-000 SPECIAL PURPOSE PRESSER FOOT PLATE (SNAP-ON) -X X X X

8358286-451 ACESSORY STORAGE X X X X X

9161927-000 BUTTONHOLE PRESSER FOOT X X

9161927-451BUY BUTTONHOLE PRESSER FOOT -X X

10 507836-000BUY ZIPPER FOOT -X X X X

11 356630-000BUY BLINDSTITCH HEM PRESSER FOOT -X X X X

12 8879-656 FELT - - X

13 356942-455 SPOOL PIN - - X

14 531868-000 TWIN NEEDLE - - X

15 358183-000 1/4 INCH FOOT - - X

16 358174-000 INVISIBLE ZIPPER FOOT - - X

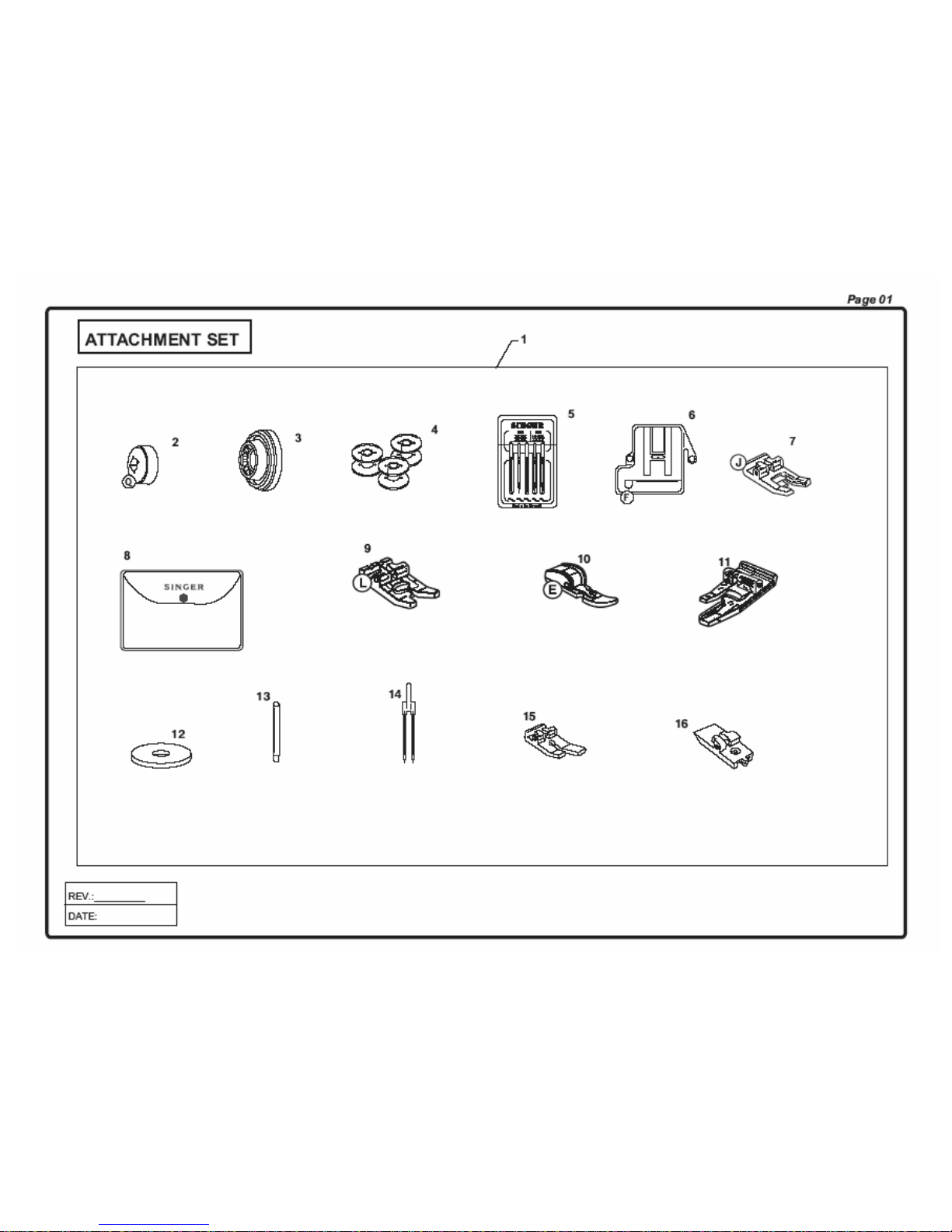

ATTACHMENT SET

Page 04

H H H C C

D D D G G

1 1 1 5 5

0 0 1 0 5

REF. PART NUMBER DESCRIPTION 2 5 0 0 0

1179926-000 THROAT PLATE CLAMP SPRING RETAINING RING X X X X X

2357611-000 THROAT PLATE CLAMP SPRING X X X X X

3353597-000 THROAT PLATE CLAMP X X X X X

4356713-000 THROAT PLATE FOR ZIG-ZAG SEWING X X X -X

5446482-000 BED SLIDE SPRING X X X -X

6356715-000 BED SLIDE PLATE X X X X X

7357020-451 ARM SHAFT (REAR) HOUSING MOUNTING SCREW X X X X X

8357017-002 ARM SHAFT (REAR) HOUSING ASSEMBLY X X X X X

9113455-006 ARM SHAFT (REAR) HOUSING MOUNTING SCREW X X X X X

10 357019-000 ARM TOP COVER MOUNTING STUD X X X X X

11 446375-000 THREAD TAKE-UP LEVER LINK HINGE STUD X X X X X

12 357438-001 TENSION RELEASING LEVER HINGE PIN X X X X X

13 353624-000 THROAT PLATE POSITION PIN (PLASTIC) X X X X X

14 359190-900 BED CUSHION X X X X -

15 514608-000 BED (BOTTOM) COVER & CABINET BOLT NUT X X X X X

16 179978-470 ARM & BED GRAY X- - X-

17 356070-465 ARM & BED GRAY -X X X X

18 353375-451 BED (BOTTOM) COVER & CABINET BOLT WASHER X X X -X

19 355250-451 BED (BOTTOM) COVER & CABINET BOLT X X X X X

20 353360-452 ARM INSERT (MOTOR VENT GRILL) X X X -X

21 357464-002 TENSION RELEASING LEVER HINGE PIN WASHER X X X X X

22 359172-451 BED EXTENSIBLE THROAT PLATE X X X -X

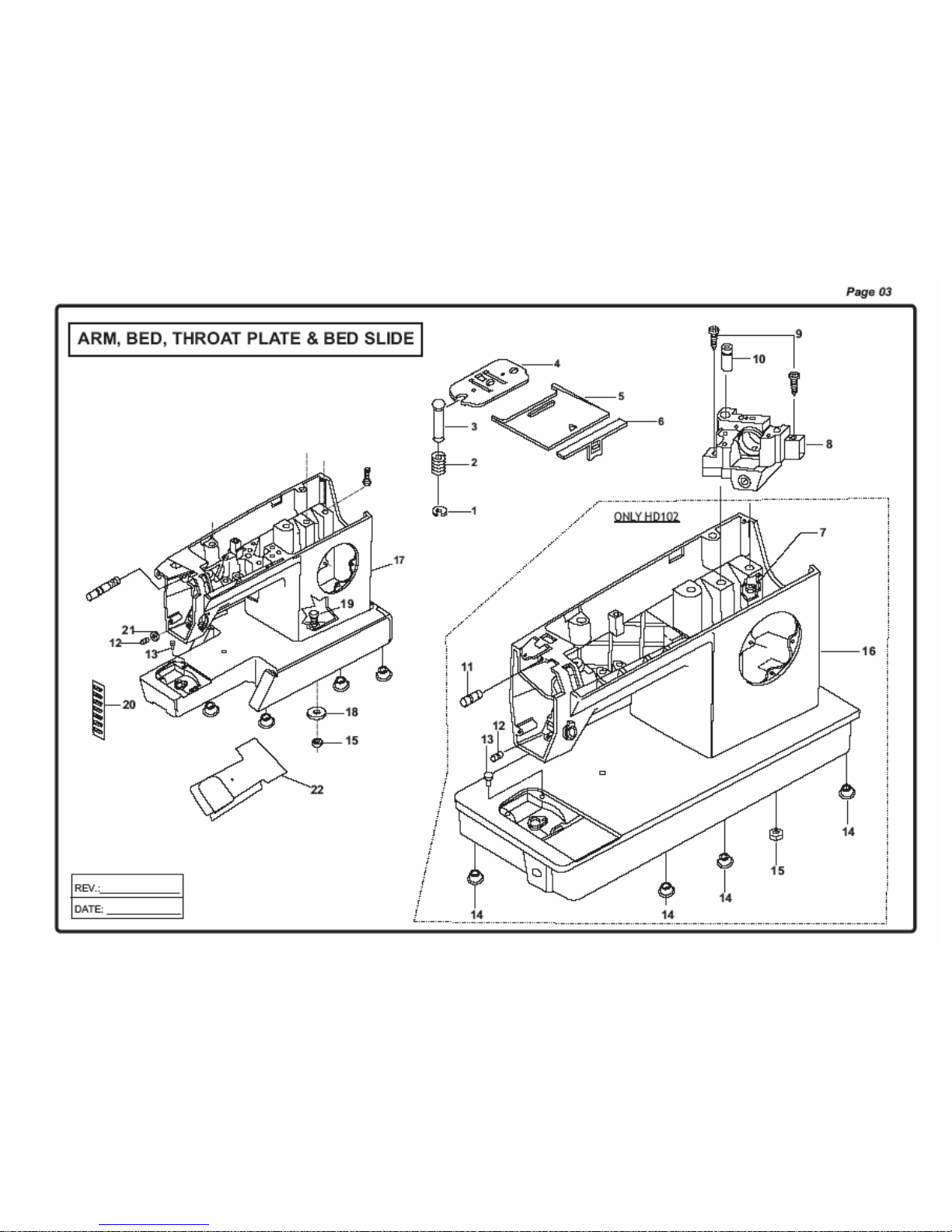

ARM, BED, THROAT PLATE & BED SLIDE

Page 6

H H H C C

D D D G G

1 1 1 5 5

0 0 1 0 5

REF. PART NUMBER DESCRIPTION 2 5 0 0 0

- ----

1358390-002 ARM TOP COVER COMPLETE - - - X

1358391002 ARM TOP COVER COMPLETE - - - - X

1358389-001 ARM TOP COVER COMPLETE X----

1358390-001 ARM TOP COVER COMPLETE -X---

1358391-001 ARM TOP COVER COMPLETE - - X- -

2507664-470 ARM TOP COVER SPOOL PIN THREAD LEAD-OFF - - - X X

2507664-469 ARM TOP COVER SPOOL PIN THREAD LEAD-OFF X X X X X

3357600-001 ARM TOP COVER PLUGGED HOLE RESIN X X X X X

4357325-900 ARM TOP COVER MACHINE HANDLE HINGE PIN X X X X X

5446138-000 ARM TOP COVER THREAD GUIDE SCREW WASHER X X X X X

6354975-451 ARM TOP COVER SCREW X X X X X

8356047-000 BOBBIN WINDER TENSION COMPLETE X X X X X

9354826-451 ARM TOP COVER MOUNTING BRACKET SCREW X X X X X

11 531765-000 ARM TOP COVER BRACKET (LEFT) X X X X X

12 356116-451 ARM TOP COVER THREAD GUIDE SCREW X X X X X

13 141936-833 BOBBIN WINDER TENSION BRACKET ADJUSTING SCREW X X X X X

14 44794-000

BOBBIN WINDER TENSION BRACKET ADJUSTING SCREW RETAINING CLIP

X X X X X

15 357329-902 ARM TOP COVER MACHINE HANDLE - - - X X

15 357329-901 ARM TOP COVER MACHINE HANDLE X X X

16 357084-453 ARM TOP COVER THREAD GUIDE - - - X X

16 357084-452 ARM TOP COVER THREAD GUIDE X XX- -

17 356843-454 ARM TOP COVER SHROUDER X X X X X

18 141920-455 BOBBIN WINDER STOP SCREW X X X X X

19 445924-000 BOBBIN WINDER STOP X X X X X

20 53640-819 BOBBIN WINDER STOP SCREW NUT X X X X X

21 531766-000 BOBBIN WINDER SPRING X X X X X

22 445486-000 BOBBIN WINDER RETAINING RING X X X X X

23 531767- 458 BOBBIN WINDER ASSEMBLY - - - X X

23 531767-457 BOBBIN WINDER ASSEMBLY X XX- -

24 356913-000 BOBBIN WINDER SPINDLE COMPLETE X X X X X

25 354633-453 ARM TOP COVER HANDLE BRACKET X X X X X

26 531770-452 BOBBIN WINDER FRAME X X X X X

27 15287-701 BOBBIN WINDER FRICTION RING X X X X X

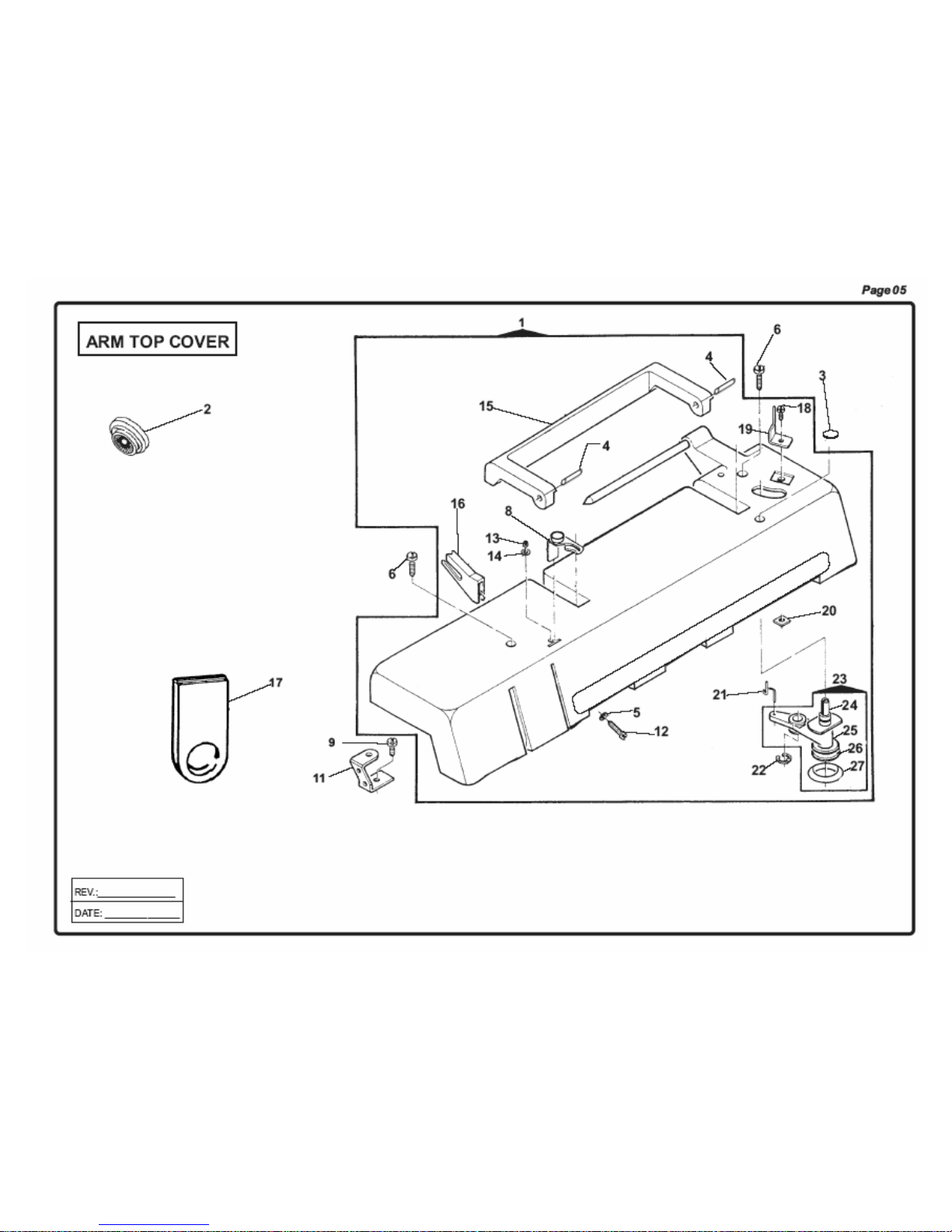

ARM TOP COVER
