PART NO. DESCRIPTIONREF NO QTY.

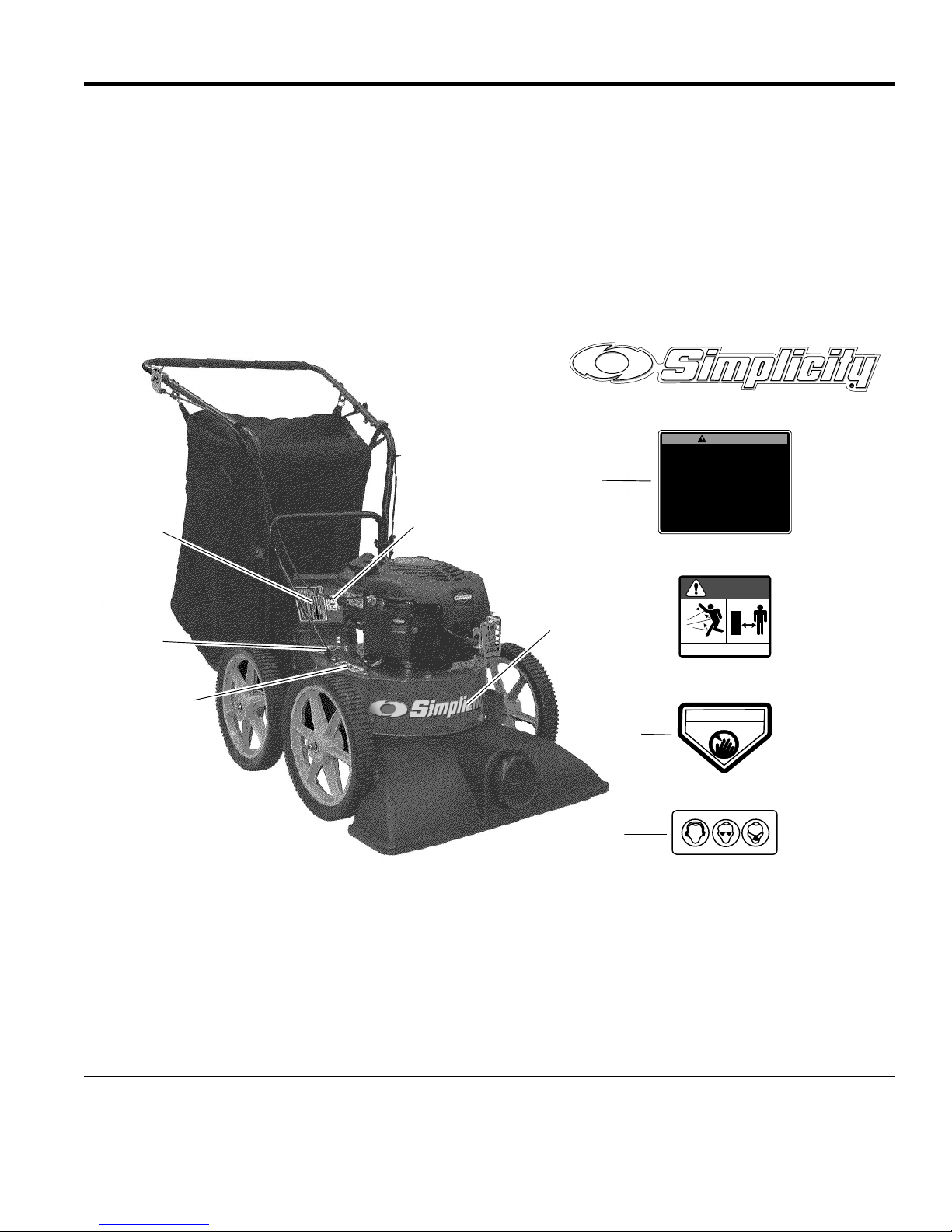

Engine, Impeller, Housing & Wheels Group
Footnotes
1 * 1 ENGINE, 6.5HP Briggs & Stratton Quantum Modular XRM, Recoil Start, Model
123K02, Type 0126-E1
2 3034902 1 PLATE, Engine Base Vacuum Universal (Replaces 3075793)
3 3044853 1 WELDMENT, Upper Housing
4 3075807 1 ASSEMBLY, Hinge Door
5 3091604 2 CARRIAGE BOLT, 1/4-20 x 1/2 Short Neck, GR5
6 3091584 2 NUT, 1/4-20 Hex Flange Lock
7 3091601 8 NUT, 5/16-18 Hex Flange Lock, GR5
8 3091318 6 CAPSCREW, 5/16-18 x 3/4 Hex Head, GR5
9 3091315 12 WASHER, 5/16 Split Lock
10 3090188 12 WASHER, 5/16 Flat
11 3026257 4 WASHER, 1/2 Wave
12 3058668 4 WHEEL ASSEMBLY, 14.00 x 2
13 3090122 4 WASHER, 3/8 SAE Flat
14 3091299 4 NUT, 3/8-16 Nyloc
15 3090324 3 SCREW, 3/8-16 x 1 Hex Washer Self-Tap
16 3023153 1 CLAMP, Casing
17 3023154 1 SCREW, #10-32 x 5/8 Hex Head Self-Tap
18 3025062 1 SPRING, Compression
19 3091193 1 HAIRPIN, 29/32 Cotter
20 3075802 1 PLATE, Reinforcing
21 3044886 1 WELDMENT, Cable Anchor
22 3058271 4 CARRIAGE BOLT, 5/16-18 x 3-1/2 Short Neck, GR5
23 3044885 1 AXLE ASSEMBLY, Drag Link
24 3075836 1 HOUSING, Lower
25 3075806 1 PLUG, Hose Port
26 3026247 1 WIRE HARNESS, Interlock
27 3045218 1 IMPELLER
28 3012315 1 KEY, 1/4 Square x 1-7/16 long
29 3091962 1 WASHER, .468 I.D. x 1-5/8 O.D. x 1/4 thick
30 3012063 1 WASHER,Cone
31 3090167 1 CAPSCREW, 3/8-24 x 2 Hex Head, GR5
32 3032416 1 BRACKET, Interlock
33 3032417 1 SPRING, Interlock
34 3090539 2 CAPSCREW, 1/4-20 x 1/2 Hex Washer Self-Tap
35 3012048 1 INSULATOR
36 3090379 1 SCREW,# 8-18 x 3/4 Sheet Metal
37 3091298 4 NUT, 5/16-18 Hex Nyloc
38 3091315 12 WASHER, 5/16 Split Lock
39 3091540 4 CAPSCREW, 5/16-18 x 1-1/2 Hex Head, GR5
* See your local Briggs & Stratton distributor for parts and service.
The above parts group applies to the following Mfg. Nos.:
2004 5
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694489 - Leaf Vacuum
TP 400-4082-00-YV-SMA
