Simplicity 2373 Guía de configuración

Rev. 10/2001

TP 400-2373-01-AT-SMA

Attachment

Illustrated

Parts List

MANUFACTURING, INC.

500 N Spring Street / PO Box 997

Port Washington, WI 53074-0997 USA

ATTACHMENT

Mfg. No. Description

1691978 36” Tiller

1693578 36” Tiller

TP 400-2373-01-AT-SMA

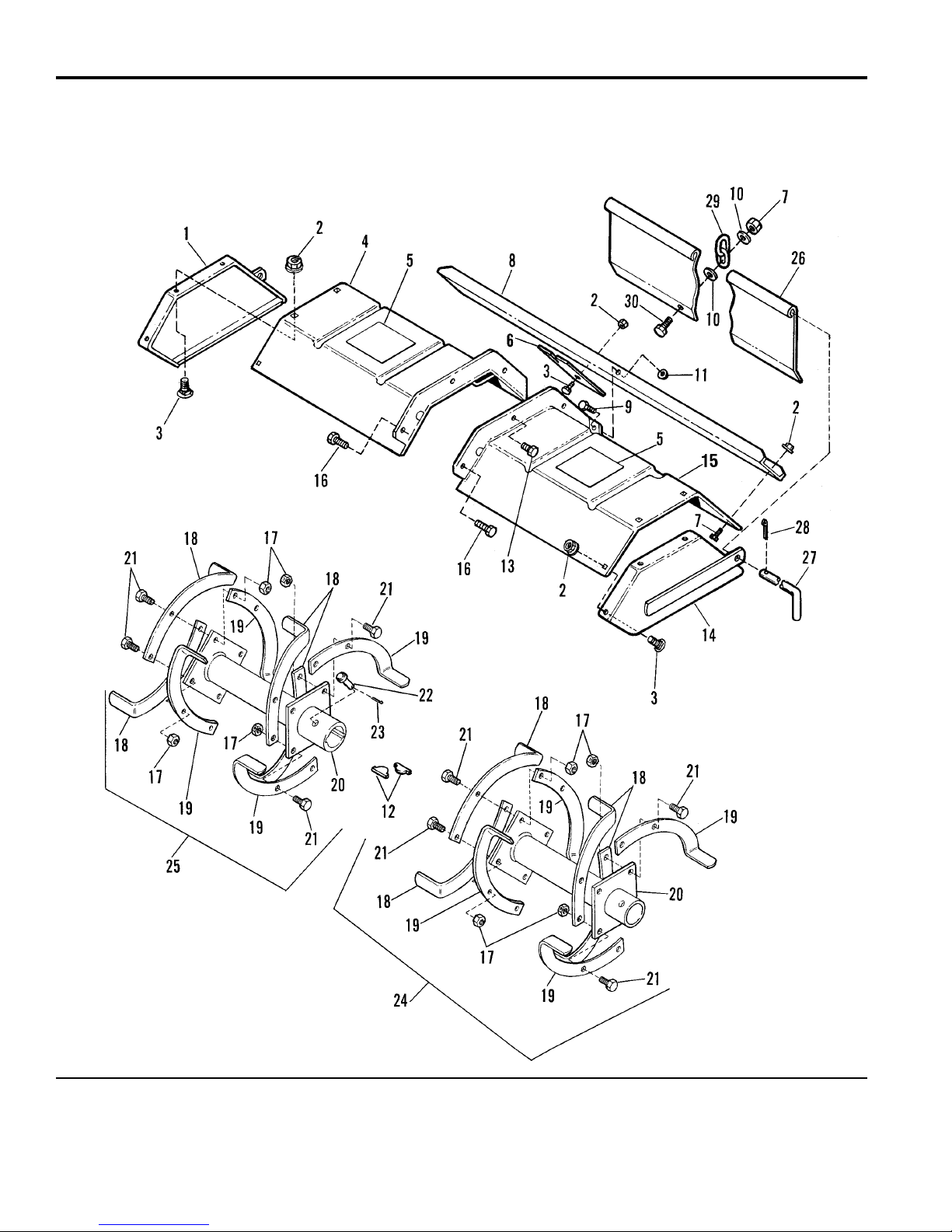

36” Tine & Deflector Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

984363

The above parts group applies to the following Mfg. Nos.:

1691978 36” Tiller

1693578 36” Tiller

TP 400-2373-01-AT-SMA

36” Tine & Deflector Group

1 1707990 1 PLATE, End, R.H.

2 1927557 15 LOCKNUT, Flange, 5/16-18

3 1931332 8 CARRIAGE BOLT, 5/16-18 x 5/8

4 105369 1 DEFLECTOR ASSEMBLY, R.H.

5 1679700 2 DECAL, Safety

6 105354 1 SHIELD

7 1930642 1 NUT, Hex Head, Flange, 1/4-20

8 1707938 1 CHANNEL

9 1921210 2 CAPSCREW, Hex Head, 3/8-16 x 1

10 1960353 2 WASHER

11 1930645 2 NUT, Hex, Flange, 3/8-16

12 105337 4 KEY

13 1933260 2 SCREW, Hex, Whizlock, 3/8-16 x 3/4

14 1707991 1 PLATE, End, L.H.

15 105370 1 DEFLECTOR ASSEMBLY, L.H.

16 1934654 4 CAPSCREW, Hex, Whizlock, 3/8-16 x 1

17 1928867 16 LOCKNUT, 7/16-20

18 105376 8 BLADE, Tine, R.H.

19 105375 8 BLADE, Tine, L.H.

20 1651504 2 HUB & PLATE ASSEMBLY

21 1920353 16 CAPSCREW, Hex Head, 7/16-20 x 1-1/2

22 105249 2 PIN

23 1918451 2 PIN, Cotter

24 1650461 1 BLADE ASSEMBLY, L.H.

25 1650460 1 BLADE ASSEMBLY, R.H.

26 1707945 1 DEFLECTOR

27 1707939 1 ROD

28 1918448 1 PIN, Cotter

29 1707951 1 CHAIN

30 1924009 1 CAPSCREW, Hex Head, 1/4-20 x 7/8

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1691978 36” Tiller

1693578 36” Tiller

TP 400-2373-01-AT-SMA

36” Housing Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

984364

The above parts group applies to the following Mfg. Nos.:

1691978 36” Tiller

1693578 36” Tiller

TP 400-2373-01-AT-SMA

1 105336 2 CHAIN, # 40

2 178174 1 CHAIN, # 50

3 1650841 1 TRANSMISSION SUB ASSEMBLY (Incl. Ref. Nos. 1-16, 18-38 on this page)

& Incls. Ref. Nos. 1-5,7,11,17,18,19,34,36 & 38 in the 36” Tiller Drive Group)

4 915019 2 FITTING, Grease

5 105132 2 BOLT, Hex Head, Drilled & Tapped

6 1916966 4 LOCKWASHER, 1/2

7 105320 2 BAR, Side

8 1917372 4 NUT, Hex, 5/16-1

9 1917356 4 LOCKWASHER, 5/16

10 1669337 2 BEARING

11 1923362 13 LOCKNUT, 5/16-18

12 105366 1 CASE ASSEMBLY, Half, R.H.

13 105365 2 SEAL

14 1669338 2 PLATE ASSEMBLY, Upper Bearing

15 927320 4 RING, Retaining

16 960208 4 WASHER, 1

17 105195 4 BEARING, Roller

18 105192 1 SPACER, Inter.

19 105298 1 SHAFT ASSEMBLY, Pulley

20 1650975 1 SPROCKET & BEARING ASSEMBLY, (Incl. Ref. Nos. 17 & 21)

21 * 1 SPROCKET ASSEMBLY, (See Ref. No. 20)

22 105360 2 SPACER

23 178177 1 SHAFT ASSEMBLY, Tine

24 * 1 SPROCKET (See Ref. No. 25)

25 1650976 1 SPROCKET & BEARING ASSEMBLY, (Incl. Ref. Nos. 17 & 24)

26 105292 1 SPACER, Internal

27 1930651 6 LOCKNUT, Hex, Jam, 3/8-16

28 1669298 2 PLATE ASSEMBLY

29 105357 2 SEAL

30 105309 2 BEARING

31 105363 2 CAP, Grease

32 1930644 2 LOCKNUT, Flange, 1/2-13

33 105367 1 CASE ASSEMBLY, Half, L.H.

34 1925205 13 CAPSCREW, Hex Head, 5/16-18 x 5/8

35 1918431 1 WASHER, 1/2

36 1926158 1 CAPSCREW, Hex Head, 1/2-13 x 4

37 1929528 2 CAPSCREW, Hex Head, 1/2-20 x 1

38 105373 1 GASKET

39 1921977 1 CAPSCREW, Hex Head, 5/16-1 8 x 1-1 /4

40 1924940 2 WASHER, 3/8

41 1935048 2 LOCKNUT, Flange, 5/16-18

42 1707985 1 HOOK, “S”

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

* Not a servicable part.

The above parts group applies to the following Mfg. Nos.:

1691978 36” Tiller

1693578 36” Tiller

36” Housing Group

TP 400-2373-01-AT-SMA

36” Drive Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

984262

The above parts group applies to the following Mfg. Nos.:

1691978 36” Tiller

1693578 36” Tiller

TP 400-2373-01-AT-SMA

36” Drive Group

1 923471 1 CAPSCREW, Hex Head, 7/16-14 x 1-1/4

2 1925125 2 WASHER, 3/8

3 105346 2 SPACER

4 1930650 2 LOCKNUT, Flange, 7/16-14

5 105359 2 SUPPORT

6 105339 1 SPACER

7 1707593 1 SPRING, Torsion

8 1923141 1 CAPSCREW, Hex Head, 5/16-18 x 2-3/4

9 1704716 2 SPACER

10 960171 1 WASHER, Nylon

11 1666106 1 BUSHING

12 1919326 1 WASHER, 5/16

13 176012 5 RETAINER PIN

14 1917356 1 LOCKWASHER, 5/16

15 1707564 1 GUARD, Belt

16 1917372 1 NUT, Hex, 5/16-18

17 1657562 1 ROD, Pivot

18 1930585 1 CAPSCREW, Hex Head, 7/16-14 x 3-1/2

19 916950 6 NUT, Hex, 3/8-16

20 916965 7 LOCKWASHER, 3/8

21 1924940 10 WASHER, 3/8

22 1708298 1 PIN

23 1708961 1 ARM SUPPORT ASSEMBLY

24 1923362 1 NUT, Hex, Centerlock, 5/16-18

25 1669999 1 SPACER

26 1708352 1 GUARD, Spring

27 157427 1 KEY

28 1960474 1 SETSCREW, 3/8-16 x 1/2

29 1706342 1 PULLEY

30 1721133 1 PULLEY, Idler

31 1706511 2 PULLEY, Idler

32 1921973 1 CAPSCREW, Hex Head, 3/8-16 x 2-3/4

33 1921971 2 CAPSCREW, Hex Head, 3/8-16 x 1-3/4

34 1706510 1 PULLEY, Idler

35 1920415 1 CAPSCREW, Hex Head, 3/8-16 x 1-1/4

36 1706512 1 V-BELT

37 1921210 2 CAPSCREW, Hex Head, 3/8-16 x 1

38 1707265 1 ANCHOR, Jackshaft

39 1960033 1 CLIP

40 1706344 1 ANCHOR ASSEMBLY

41 1960116 1 PIN

42 1921333 1 CAPSCREW, Hex Head, 5/16-18 x 1

43 1706362 1 PULLEY ASSEMBLY

44 1960160 4 WASHER, 3/4

45 1611789 2 SEAL

REF NO. PART NO. QTY. DESCRIPTION

Footnotes: Item 31 only used with gear models.

The above parts group applies to the following Mfg. Nos.:

1691978 36” Tiller

1693578 36” Tiller

TP 400-2373-01-AT-SMA

36” Drive Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

984262

The above parts group applies to the following Mfg. Nos.:

1691978 36” Tiller

1693578 36” Tiller

TP 400-2373-01-AT-SMA

36” Drive Group

46 171186 2 BEARING

47 1708180 1 CLEVIS ASSEMBLY, w/Bearings (incl. Ref. Nos. 48 & 46)

48 * 1 CLEVIS ASSEMBLY, (See Ref. No. 47)

49 912808 1 FITTING, Lube

50 159159 1 SPRING, Extension

51 1960251 2 NUT, Hex, Centerlock, 3/8-16

52 1706508 1 ARM ASSEMBLY, Idler

53 1657712 1 PULLEY, Idler

54 1923701 1 CAPSCREW, Hex Head, 3/8-16 x 2

55 1700059 1 V-BELT

56 960403 1 KEY

57 1928721 1 SETSCREW, 5/16-18

58 1706343 1 PULLEY ASSEMBLY

59 155037 2 PIN

60 1651844 1 FRAME ASSEMBLY

61 1926159 1 CAPSCREW, Hex Head, 1/2-13 x 5

62 105386 2 SPACER

63 1924361 4 WASHER, 1/2

64 1930644 1 LOCKNUT, 1/2-13

65 1707599 1 ANCHOR, Spring

66 105295 1 LEVER ASSEMBLY, Clutch

67 118053 1 PIN

68 1707569 1 LIFT ASSEMBLY

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

* Not a servicable part.

The above parts group applies to the following Mfg. Nos.:

1691978 36” Tiller

1693578 36” Tiller

Torque Specification Chart

FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)

Hardware

Grade

SAE Grade 2 SAE Grade 5 SAE Grade 8

Size Of

in/lbs in/lbs

in/lbs

Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.

8-32

2.1

3.4

4.6

8-36

2.3

3.5

4.9

10-24

3.1

4.9

6.8

10-32

3.5

5.5

7.7

1/4-20

7.6 810.9 12 16.3

1/4-28

8.6 10 13.6 14 19.0

5/16-18 11 15.0 17 23.1 25 34.0

5/16-24 12 16.3 19 25.8 27 34.0

3/8-16 20 27.2 30 40.8 45 61.2

3/8-24 23 31.3 35 47.6 50 68.0

7/16-14 30 40.8 50 68.0 70 95.2

7/16-20 35 47.6 55 74.8 80 108.8

1/2-13 50 68.0 75 102.0 110 149.6

1/2-20 55 74.8 90 122.4 120 163.2

9/16-12 65 88.4 110 149.6 150 204.0

9/16-18 75 102.0 120 163.2 170 231.2

5/8-11 90 122.4 150 204.0 220 299.2

5/8-18 100 136 180 244.8 240 326.4

3/4-10 160 217.6 260 353.6 386 525.0

3/4-16 180 244.8 300 408.0 420 571.2

7/8-9 140 190.4 400 544.0 600 816.0

7/8-14 155 210.8 440 598.4 660 897.6

1-8 220 299.2 580 788.8 900 1,244.0

1-12 240 326.4 640 870.4 1,000 1,360.0

Hex Head Capscrew

Hex Nut

Lockwasher

Washer

Carriage Bolt

NOTES

1. These torque values are to be used for all hardware

excluding: locknuts, self-tapping screws, thread forming

screws, sheet metal screws and socket head setscrews.

2. Recommended seating torque values for locknuts:

a. for prevailing torque locknuts - use 65% of grade 5

torques.

b. for flange whizlock nuts and screws - use 135% of

grade 5 torques.

3. Unless otherwise noted on assembly drawings, all torque

values must meet this specification.

Hardware Identification & Torque Specifications

Common Hardware Types

Screw, 1/2 x 2

Body

Diameter

Body

Length

Inside

Diameter

Nut, 1/2”

Marks

3/8” Bolt or Nut

Wrench—9/16”

3/8

5/16” Bolt or Nut

Wrench—1/2”

5/16

1/4” Bolt or Nut

Wrench—7/16”

1/4

1/2” Bolt or Nut

Wrench—3/4”

1/2

DIA.

7/16

DIA.

7/16” Bolt or Nut

Wrench (Bolt)—5/8”

Wrench (Nut)—11/16”

Wrench & Fastener Size Guide

Standard Hardware Sizing

When a washer or nut is identified as 1/2”, this is the

Nominal size

, meaning the

inside diameter

is 1/2 inch; if a

second number is present it represent the

threads per inch

When bolt or capscrew is identified as 1/2 - 16 x 2”, this

means the

Nominal size

, or

body diameter

is 1/2 inch; the

second number represents the

threads per inch

(16 in this

example, and the final number is the

body length

of the

bolt or screw (in this example 2 inches long).

The guides and ruler furnished below are designed to

help you select the appropriate hardware and tools.

01/4 3/4

1/2 11/4 3/4

1/2 21/4 3/4

1/2 31/4 3/4

1/2 4

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Caña del timón de Simplicity

Simplicity

Simplicity 1695764 Manual de usuario

Simplicity

Simplicity 702 Manual de usuario

Simplicity

Simplicity 1690114 Manual de usuario

Simplicity

Simplicity 1623 Manual de usuario

Simplicity

Simplicity 174 Manual de usuario

Simplicity

Simplicity 9108 Manual de usuario

Simplicity

Simplicity 209 Manual de usuario

Simplicity

Simplicity 990021 Hoja de datos

Simplicity

Simplicity 392 Manual de usuario

Simplicity

Simplicity 4808 Guía de configuración

Simplicity

Simplicity 1693847 Manual de usuario

Simplicity

Simplicity 5 H.P Roticul Manual de usuario

Simplicity

Simplicity 1693207 Manual de usuario

Simplicity

Simplicity 514RT Manual de usuario

Simplicity

Simplicity 455 Manual de usuario

Simplicity

Simplicity System 9000 Manual de usuario

Simplicity

Simplicity System 1003 Manual de usuario

Simplicity

Simplicity Deluxe Roticul 163016 Manual de usuario

Simplicity

Simplicity Snapper Manual de usuario

Simplicity

Simplicity 1690989 Manual de usuario

Simplicity

Simplicity 6HP 120492 Manual de usuario

Simplicity

Simplicity 107 Manual de usuario

Simplicity

Simplicity 1694405 Manual de usuario

Simplicity

Simplicity System 1005 Manual de usuario

Manuales populares de Caña del timón de otras marcas

MTD

MTD 410R Manual de usuario

Craftsman

Craftsman 247.29931 Manual de usuario

MTD

MTD FRT Series Manual de usuario

Craftsman

Craftsman 917.298353 Manual de usuario

Troy-Bilt

Troy-Bilt Colt FT Manual de usuario

Ryobi

Ryobi 510r Manual de usuario

MTD

MTD OHV Series Manual de usuario

YAT

YAT YT5601-01 Manual de mantenimiento

Craftsman

Craftsman 917.296010 Manual de usuario

Troy-Bilt

Troy-Bilt OEM-290-260 Manual de usuario

Scheppach

Scheppach MTP560 Instrucciones de montaje

GARDEN WAY

GARDEN WAY 12194 Manual de usuario

Classen

Classen STAND-AER SA-25 Instrucciones de instalación y mantenimiento

Craftsman

Craftsman 850 Series Manual de usuario

DR PILOT 2 Guía de inicio rápido

Altrad

Altrad ATIKA BH 1400 N Guía

WIL-RICH

WIL-RICH 2500 Manual de usuario

Viking

Viking HB 685 Manual de usuario
