Simplicity CORONET Coronet / 2400 Manual de usuario

Parts Manual

Rev. 11/2005

Coronet / 2400

Series Riders & Mower Decks RMO

TP 400-4207-00-CO-SM

. No. Descri

tion

HP Product

1694610 Coronet, 13HP Hydro RMO

1694612 Coronet, 13HP Hydro RMO (CE)

1694613 2413H, 13HP Hydro RMO

1694614 2413H, 13HP Hydro RMO (CE)

2690244 Coronet, 13HP Hydro RMO and 30" Mower Deck

2690246 Coronet, 13HP Hydro RMO and 30" Mower Deck (CE)

2690247 2413H, 13HP Hydro RMO and 30" Mower Deck

2690248 2413H, 13HP Hydro RMO and 30" Mower Deck (CE)

. No. Descri

tion

HP Product

1694611 Coronet, 16HP Hydro RMO

2690245 Coronet, 16HP Hydro RMO and 34" Mower Deck

. No. Descri

tion

Mower Decks

1692543 30" Mower Deck

1694053 30" Mower Deck

1694511 30" Mower Deck (CE)

1694537 30" Mower Deck

1692545 34" Mower Deck

1731175

Part No.:

Table Of Content

Torque Specification Chart ..................................................................... Inside Back Cover

PRODUCT COMPONENTS PAGES

Frame & Fuel System Group ............................................................................................................................... 4

Steering & Lift Group ............................................................................................................................................ 8

Engine & Electric Clutch Group - 13HP Briggs & Stratton Models ...................................................................... 10

Engine & Electric Clutch Group - 16HP Kohler Models ....................................................................................... 12

Transmission Group - Hydro-Gear 340-0510 ...................................................................................................... 14

Transmission SERVICE PARTS - Hydro-Gear 340-0510 ................................................................................... 18

Electrical Group .................................................................................................................................................... 24

Electrical Group .................................................................................................................................................... 26

Front Column & Dash Group ............................................................................................................................... 28

Wheels & Tires Group .......................................................................................................................................... 32

Decals Group - Brand & Model ............................................................................................................................ 34

Decals Group - Common & Safety ...................................................................................................................... 36

30" Mower Deck - Drive & Arbor .......................................................................................................................... 38

30" Mower Deck - Housing & Height Adjustment (CE) ........................................................................................ 40

30" Mower Deck - Housing, Hitch & Height Adjustment ...................................................................................... 44

34" Mower Deck - Drive & Arbor .......................................................................................................................... 48

34" Mower Deck - Height Adjustment .................................................................................................................. 50

34" Mower Deck - Housing, Hitch & Deflector ..................................................................................................... 52

Frame & Fuel System Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986408

The above parts group applies to the following Mfg. Nos.:

2005 4

1694610 - Coronet

1694611 - Coronet

1694612 - Coronet

1694613 - 2413H

1694614 - 2413H

TP 400-4207-00-CO-SM

PART NO. DESCRIPTIONREF NO QTY.

Frame & Fuel System Group

Footnotes

1 1921333 2 CAPSCREW, Hex Head, 5/16-18 x 1

2 1925003 8 CAPSCREW, Hex Head, Taptite, 1/4-20 x 1/2

3 1715962A 1 SHROUD, Rear

4 1931277 5 NUT, Hex, Flange, Whizlock, 5/16-18

5 1726558A 1 SUPPORT, Fuel Tank

6 1931333 1 CARRIAGE BOLT, 5/16-18 x 3/4

7 1708362A 1 STRAP, Fuel Tank, Brace

8 1714020 1 CAP, Fuel Tank, Vented

9 1726635 1 TANK, Fuel

10 1710437 1 SPACER, 21/64 x 1/2 x 21/64

11 1924940 1 WASHER, Plain, 13/32 x 7/8 x 5/64

12 1931202 1 CAPSCREW, Taptite, 5/16-18 x 1-1/ (16HP Models)

12 1960373 1 CAPSCREW, Hex, Taptite, 5/16-18 x 1 (13 HP Models)

13 1726400 1 BUSHING, Rubber

14 1674792 1 ELBOW

15 1960112 2 CLAMP, Hose

16 1666272 1 HOSE, Fuel Line

17 1960044 2 WASHER, Plain

18 1933988 2 PUSH NUT, 5/16

19 1930591 10 CAPSCREW, Hex Head, Whizlock, 5/16-18 x 3/4

20 1708525 1 PAD, Foot Rest, LH

21 1727222 1 FRAME ASSEMBLY

22 1708524 1 PAD, Foot Rest, RH

23 1704351 14 FASTENER

24 1727685A 1 PANEL, Front

25 1935255 4 PAL NUT, 5/16-18

26 1726566A 1 SUPPORT, "U", Seat (16 HP Models)

26 1726563A 1 SUPPORT, "U", Seat (13 HP Models)

27 1715970 2 BUMPER, Rubber

28 1924856 1 CAPSCREW, Hex Head, Taptite, 5/16 x 1/2

29 1708725A 1 DUCT, Air Inlet (13 HP Models)

29 1726971A 1 DUCT, Air Inlet (16 HP Models)

30 1704626 2 SPACER, Plastic

31 1705249 2 SPACER

32 1704628 2 PIN, Quick

33 1705248 2 PIVOT, Hood

35 1919381 4 WASHER

36 1921221 1 CAPSCREW, Hex Head, 5/16-18 x 1-1/2

37 1917372 1 NUT, Hex, 5/16-18

38 1921977 1 CAPSCREW, 5/16-18 x 1-1/4

39 1703900 1 SPACER

40 2860208 2 WASHER, 1"

41 1708881 1 CAP, Black, Vinyl

The above parts group applies to the following Mfg. Nos.:

2005 5

1694610 - Coronet

1694611 - Coronet

1694612 - Coronet

1694613 - 2413H

1694614 - 2413H

TP 400-4207-00-CO-SM

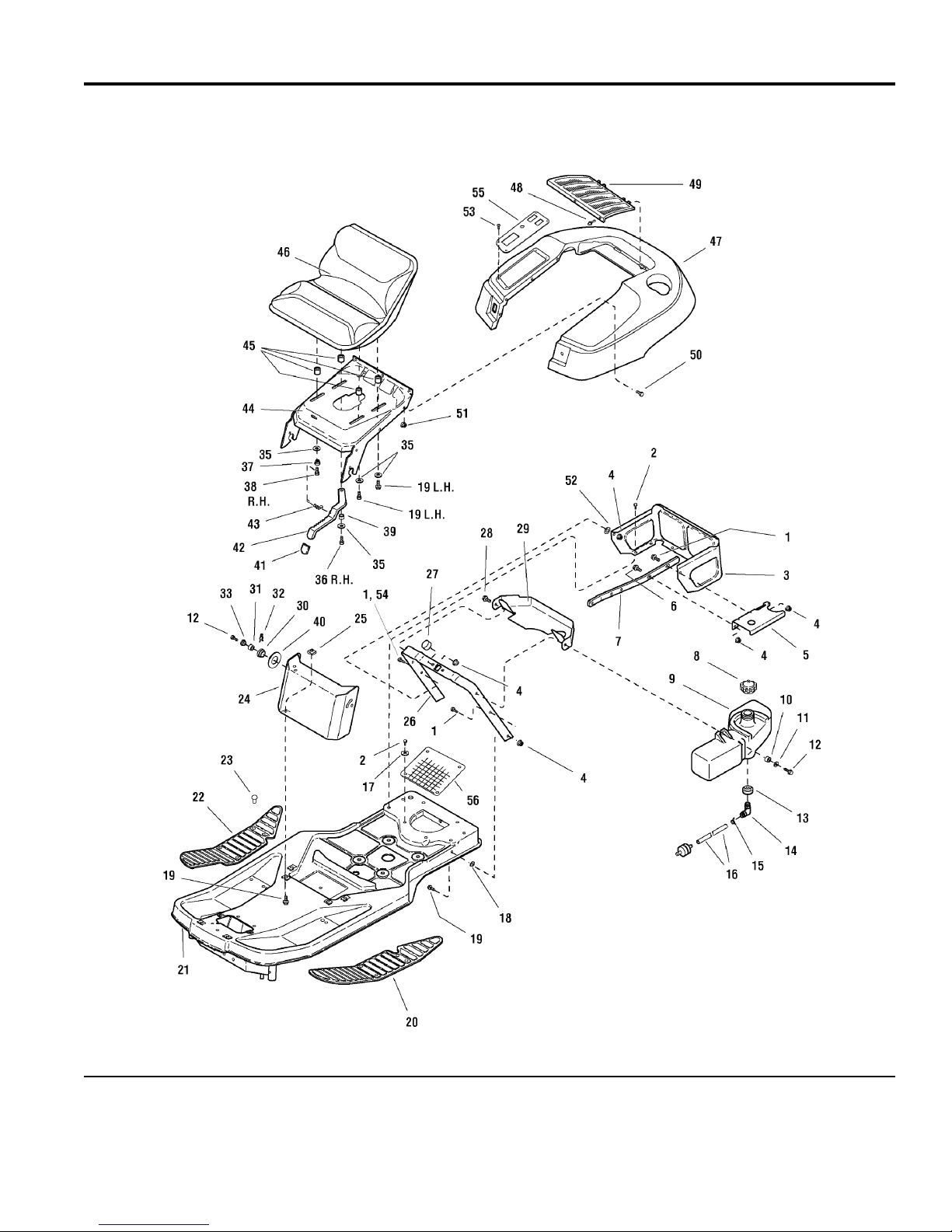

Frame & Fuel System Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986408

The above parts group applies to the following Mfg. Nos.:

2005 6

1694610 - Coronet

1694611 - Coronet

1694612 - Coronet

1694613 - 2413H

1694614 - 2413H

TP 400-4207-00-CO-SM

PART NO. DESCRIPTIONREF NO QTY.

Frame & Fuel System Group

Footnotes

42 1725532A 1 ADJUSTER, Seat

43 1667286 1 SPRING, Extension

44 1725531A 1 SUPPORT, Seat

45 1708511 4 SPACER

46 1725486 1 SEAT ASSEMBLY

47 1726648 1 DECK, Seat, Orange Simplicity

47 1726649 1 DECK, Seat, Red

47 1714027 1 DECK, Seat, Orange Agco Allis

48 1673320 3 RIVET

49 1708504 1 SCREEN, Seat Deck Top

50 1960295 7 CAPSCREW, Hex Head, Whizlock, 1/4-20 x 5/8

51 1930642 7 NUT, Hex, Flange Lock, 1/4-20

52 1919381 1 WASHER, 5/16

53 1960715 4 SCREW, Truss Head, 1/4-20 x 3/4

54 1922127 1 CAPSCREW, Hex Head, 5/16-18 x 1-3/4 (16 HP Models)

55 1726836A 1 PLATE, Control

56 1724598 1 SCREEN

The above parts group applies to the following Mfg. Nos.:

2005 7

1694610 - Coronet

1694611 - Coronet

1694612 - Coronet

1694613 - 2413H

1694614 - 2413H

TP 400-4207-00-CO-SM

Steering & Lift Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

984685SL

The above parts group applies to the following Mfg. Nos.:

2005 8

1694610 - Coronet

1694611 - Coronet

1694612 - Coronet

1694613 - 2413H

1694614 - 2413H

TP 400-4207-00-CO-SM

PART NO. DESCRIPTIONREF NO QTY.

Steering & Lift Group

Footnotes

1 1930651 1 NUT, Hex, 3/8-16

2 2108512 1 PIVOT

3 1708955A 1 ARM ASSEMBLY, Lift

4 1708966 1 GRIP, Lever

5 1708557A 1 LEVER, Lift

6 1708884 1 SPRING, Compression

7 1924940 3 WASHER, Plain, 13/32 x 7/8 x 5/64

8 1918447 3 COTTER PIN, 3/32 x 3/4

9 1708556 1 CABLE ASSEMBLY, Lift

10 1919439 1 NUT, Hex, Esna Lock, 3/8-16

11 1708559 1 PULLEY, Lift

12 1708973 1 SPACER

13 1924356 1 WASHER, Plain, 13/32 x 1-1/2 x 1/8

14 1921969 1 CAPSCREW, Hex Head, 3/8-16 x 1-1/2

15 1930645 1 NUT, Hex, Flange Lock, 3/8-16

16 1708514 1 ECCENTRIC

17 1922755 1 WASHER, 13/32 x 7/8 x 1/8

18 1921971 1 CAPSCREW, Hex Head, 3/8-16 x 1-3/4

19 1706011 1 SPINDLE ASSEMBLY, LH

20 1935048 3 NUT, Hex, Flange Lock, 5/16-18

21 1960236 2 SPACER

22 1704420 2 KLIP RING

23 1931335 2 CARRIAGE BOLT, 5/16-18 x 1

24 1708501A 1 TIE ROD, LH

25 1919381 1 WASHER

26 1710703 1 SPACER, 21/64 x 1/2 x 5/8

27 1960170 2 WASHER

28 1708516A 1 LEVER

29 1708521 1 ROD, Hitch

30 1920328 2 CAPSCREW, Hex Head, 1/2-13 x 1-1/2

31 1709237A 1 HITCH, Hook

32 1709235 2 SPACER

33 1930644 2 NUT, Hex, Flange Lock, 1/2-13

34 1706019 1 SPINDLE ASSEMBLY, RH

35 1708500A 1 TIE ROD, RH

The above parts group applies to the following Mfg. Nos.:

2005 9

1694610 - Coronet

1694611 - Coronet

1694612 - Coronet

1694613 - 2413H

1694614 - 2413H

TP 400-4207-00-CO-SM

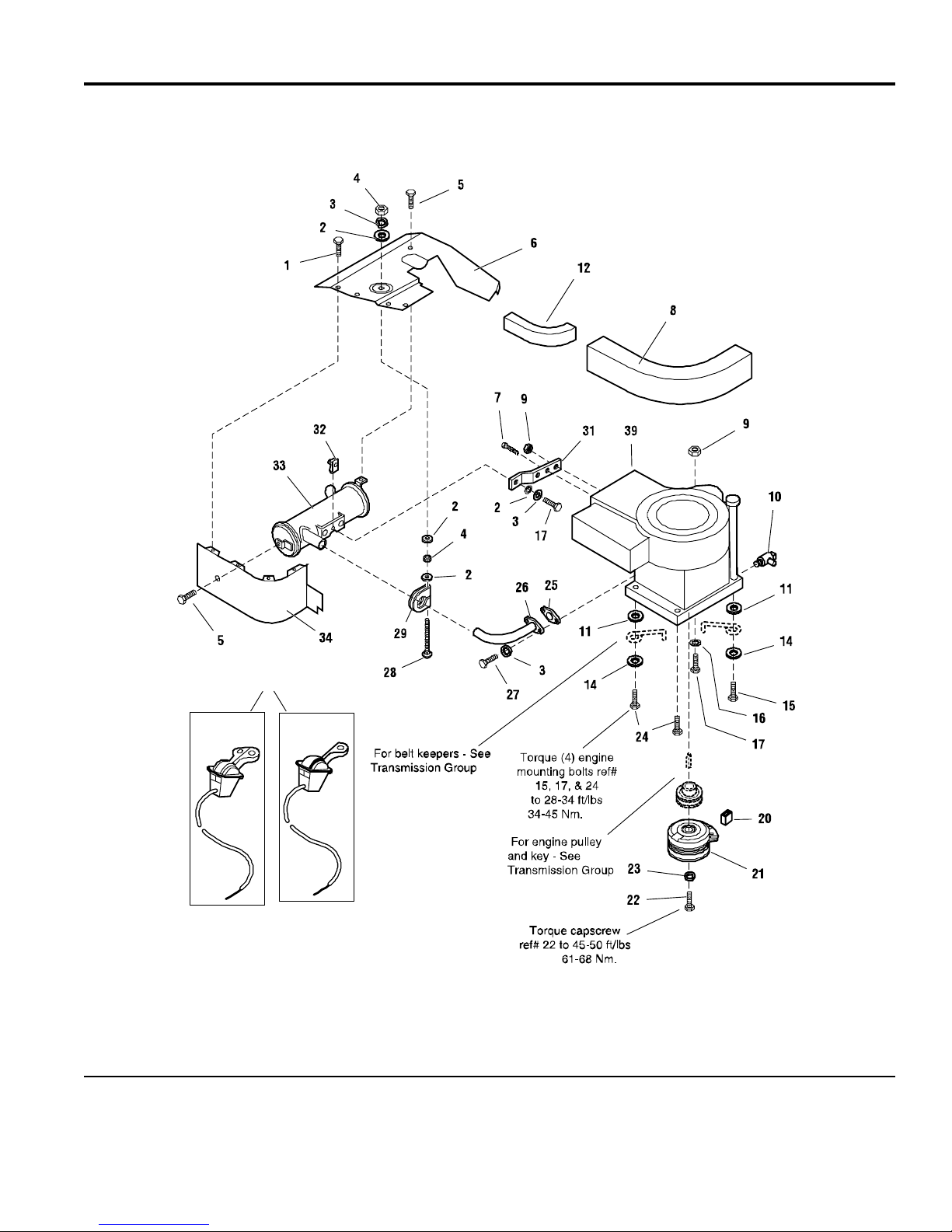

Engine & Electric Clutch Group - 13HP Briggs & Stratton Models

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Single

Control

Dual

Control

986646

The above parts group applies to the following Mfg. Nos.:

2005 10

1694610 - Coronet

1694612 - Coronet

1694613 - 2413H

1694614 - 2413H

TP 400-4207-00-CO-SM
