Simplicity Conquest Garden Tractor & Mower Deck Manual de usuario

Parts Manual

Rev. 04/2007

Conquest

Series Garden Tractor & Mower Deck

TP 400-4598-00-CQ-S

. No. Descri

tion

23HP Product

1695208 Conquest, 23HP B&S Hydro w/4wd

2690638 Conquest, 23HP B&S Hydro w/4wd and 50" Mower Deck

. No. Descri

tion

Mower Decks

1695213 50" Mower Deck

1734978

Part No.:

Table Of Content

Torque Specification Chart ..................................................................... Inside Back Cover

PRODUCT COMPONENTS PAGES

Frame & Front Axle Group - 4WD ....................................................................................................................... 4

Power Steering & Hydraulic Lift Group ................................................................................................................ 8

Steering Group - Power Steering ......................................................................................................................... 10

Engine Group - 22HP & 23HP Briggs & Stratton, Vanguard Twin ...................................................................... 12

Transmission Group ............................................................................................................................................. 14

Controls Group ..................................................................................................................................................... 18

Cruise Control Group ........................................................................................................................................... 20

Electrical Group .................................................................................................................................................... 22

Hood, Grille & Dash Group .................................................................................................................................. 26

Seat & Seat Deck Group ...................................................................................................................................... 28

Lift Group - Manual Lift ........................................................................................................................................ 30

Wheels & Tires Group .......................................................................................................................................... 32

Decals Group ....................................................................................................................................................... 34

44" & 50" Mower Deck - Clutch & Support Group ............................................................................................... 36

50" Mower Deck - Height Adjustment & Roller Bar ............................................................................................. 38

50" Mower Deck - Housing, Arbors & Blades ...................................................................................................... 42

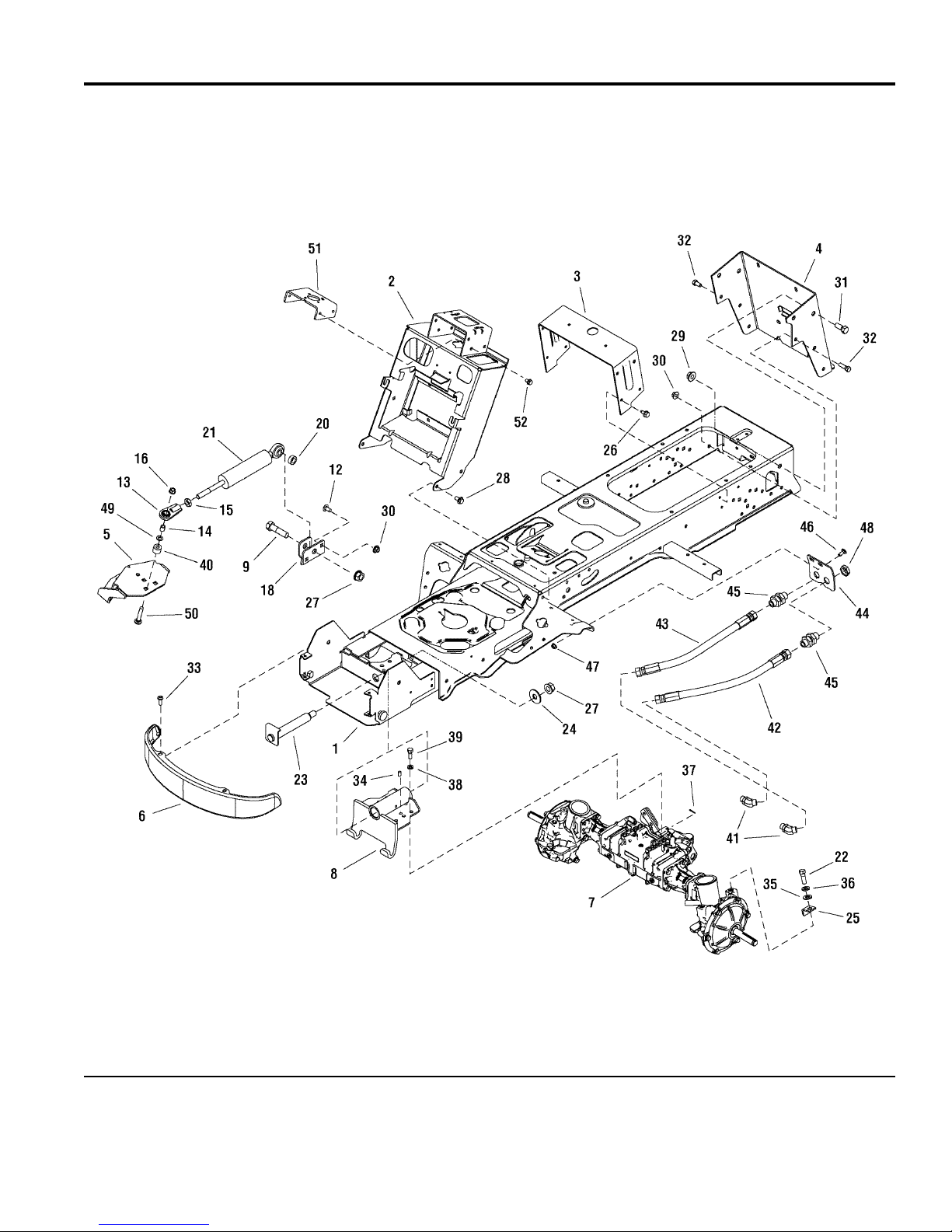

Frame & Front Axle Group - 4WD

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

987590

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1695208 - Conquest

2690638 - Conquest

TP 400-4598-00-CQ-S

PART NO. DESCRIPTIONREF NO QTY.

Frame & Front Axle Group - 4WD

Footnotes

FRAME ASSEMBLY, Front & Rear 4WD1 1734731ASM 1

TOWER & SUPPORT ASSEMBLY2 1733139ASM 1

SUPPORT, Seat Deck3 1723528ASM 1

BACKPLATE, Hitch4 1722602ASM 1

BRACKET ASSEMBLY, Steering 4WD5 1733918ASM 1

BUMPER, 4GA6 1721805ASM 1

AXLE ASSEMBLY, Front7 1733480SM 1

PIVOT ASSEMBLY, Axle w/Bushings8 1734241ASM 1

CAPSCREW, Hex Head, 5/8-11 x 2-1/2 G59 1960755SM 1

CARRIAGE BOLT, 3/9-16 x 3/4 G512 1931348SM 2

JOINT, Ball 1/2-2013 1702779SM 1

SPACER14 1708236SM 1

NUT, Hex Jam, 1/2-2015 1919262SM 1

NUT, Hex Flange, 3/8-16 Two-Way Lock16 1930645SM 1

BRACKET, Cylinder Mounting18 1733166ASM 1

SPACER20 2172914SM 1

CYLINDER, Hydraulic Steering21 1733759SM 1

CAPSCREW, Hex Head, M12-1-3/4 x 3522 197487SM 3

SHAFT & BRACKET ASSEMBLY, Axle Pivot23 1733863SM 1

WASHER, 5/824 1960035SM 2

STOP, "L" Steering25 1734511ASM 1

SCREW, Hex Washer Head Taptite, 5/16-18 x 3/426 1664847SM 4

NUT, Hex Flange 5/8-11 Two-Way Lock27 2860646SM 2

SCREW, Hex Washer head, Taptite, 3/8-16 x 3/428 1923683SM 4

NUT, Hex Flange 1/2-13 Whiz Lock29 2860668SM 2

NUT, Hex Flange 3/8-16 Whiz Lock30 1928352SM 4

CAPSCREW, Hex Head 1/2-13 x 1 G531 1923114SM 2

CAPSCREW, Hex Head 3/8-16 x 1 G532 1921210SM 2

SCREW, Truss Head Torx Drive 5/16-18 x 7/833 1960086SM 4

PIN, Dowel34 1733581SM 2

WASHER, 1/235 1960170SM 3

LOCKWASHER, Spring36 1916966SM 3

PIN, Cotter37 1923360SM 1

LOCKWASHER, Spring38 1960754SM 6

CAPSCREW, Hex Head39 1950036SM 6

SPACER, Powdered Metal40 1667812SM 1

FITTING, Hose Elbow, 45 Degrees, 13/16-16 x 3/4-1641 1733403SM 2

HOSE ASSEMBLY, Hydraulic42 1733400SM 1

HOSE ASSEMBLY, Hydraulic43 1733891SM 1

BRACKET, Hose Mounting 10GA44 1733501ASM 1

FITTING, Bulkhead Union 13/16-1645 1733402SM 2

CARRIAGE BOLT, 5/16-18 x 3/4 G546 1931333SM 2

NUT, Hex KEPS, 5/16-1847 1960636SM 2

NUT, Jam 13/16-1648 1733947SM 2

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1695208 - Conquest

2690638 - Conquest

TP 400-4598-00-CQ-S

Frame & Front Axle Group - 4WD

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

987590

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1695208 - Conquest

2690638 - Conquest

TP 400-4598-00-CQ-S

PART NO. DESCRIPTIONREF NO QTY.

Frame & Front Axle Group - 4WD

Footnotes

WASHER, 3/849 1960103SM 1

CARRIAGE BOLT, 3/8-16 x 2-1/4 G550 1931355SM 1

SUPPORT, Steering Unit 7GA51 1733044ASM 1

SCREW, Hex Washer Head Taptite 5/16-18 x 1/252 1924856SM 4

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1695208 - Conquest

2690638 - Conquest

TP 400-4598-00-CQ-S

Power Steering & Hydraulic Lift Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

987528

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1695208 - Conquest

2690638 - Conquest

TP 400-4598-00-CQ-S

PART NO. DESCRIPTIONREF NO QTY.

Power Steering & Hydraulic Lift Group

Footnotes

POWER STEERING ASSEMBLY1 1733582SM 1

POWER STEERING ASSEMBLY (Used only on 4WD models)1 1733894SM 1

LOCKWASHER, Spring2 1916964SM 4

CAPSCREW, Hex Head3 2860444SM 4

TUBE, Hydraulic4 1722138SM 1

TIE, Self Locking5 2825094SM 2

TUBE, Hydraulic6 1733727SM 1

SCREW, Hex Whiz Lock Flange 1/4-20 x 1/27 1931646SM 2

FITTING, Straight8 1722123SM 4

FILTER, Oil9 1719168SM 1

BASE, Oil Filter10 1719169SM 1

TUBE, Hydraulic11 1722297SM 1

TUBE, Hydraulic (Used only on 4WD models)11 1733427SM 1

FITTING, Hose Elbow Perma Push 9/16-1812 1733230SM 2

SCREW, Round Head Plastite (Used only on 4WD models)13 1722607SM 1

COVER, Lift (Used only on 4WD models)14 1722285SM 1

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1695208 - Conquest

2690638 - Conquest

TP 400-4598-00-CQ-S

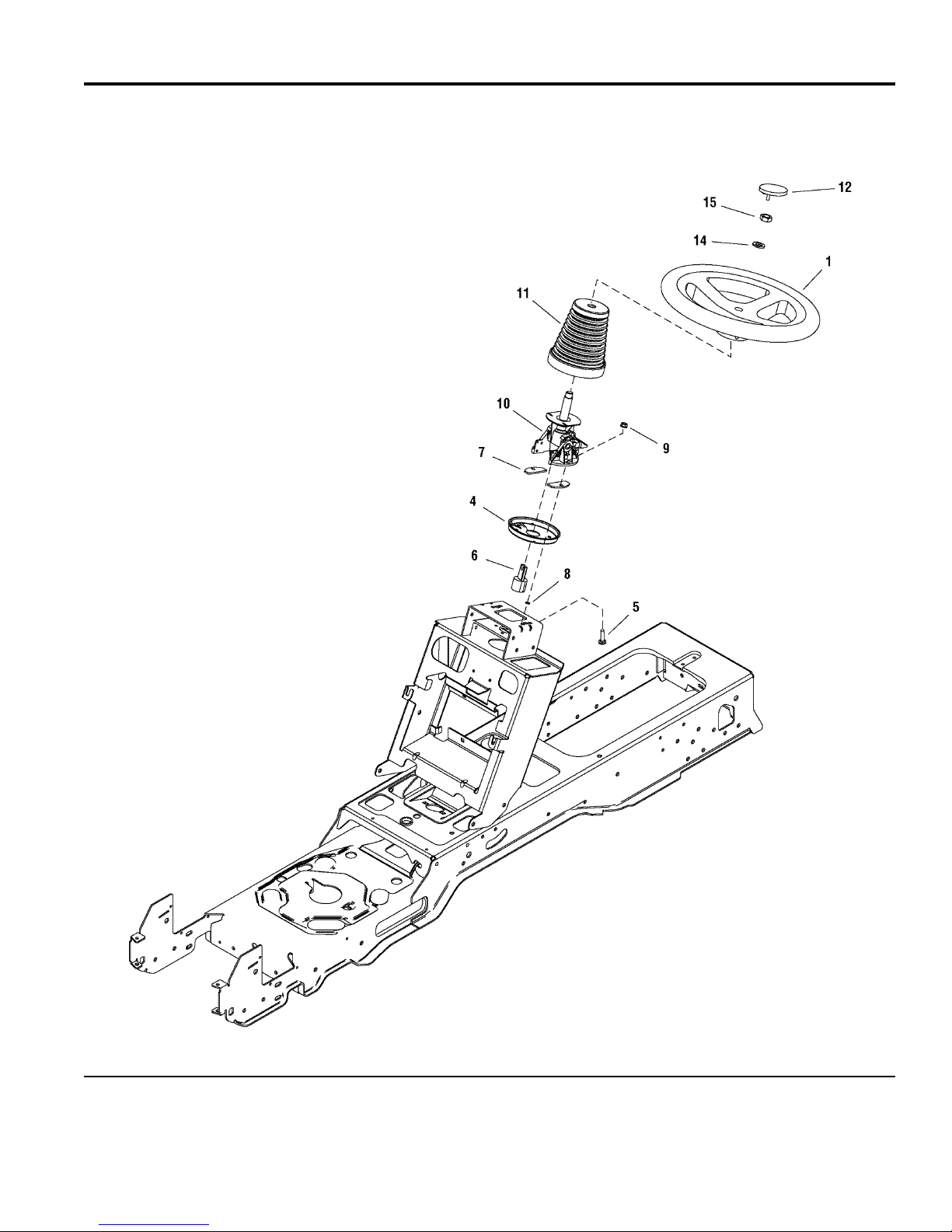

Steering Group - Power Steering

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

987424

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1695208 - Conquest

2690638 - Conquest

TP 400-4598-00-CQ-S
