Simplicity Baron XL Manual de usuario

Parts Manual

Rev. 03/205

Baron XL

Series Lawn Tractors & Mower Decks

TP 400-4198-00-BR-SM

. No. Descri

tion

HP Product

1694670 Baron XL, 18HP Hydro RMO (CE)

1694672 Baron XL, 18HP Hydro RMO (CE)

. No. Descri

tion

20HP Product

1694671 Baron XL, 20HP Hydro RMO (CE)

1694673 Baron XL, 20HP Hydro RMO (CE)

. No. Descri

tion

Mower Decks

1694790 40" Mower Deck (CE)

1694796 40" Mower Deck (CE)

Table Of Content

Torque Specification Chart ..................................................................... Inside Back Cover

PRODUCT COMPONENTS PAGES

Frame & Front Axle Group ................................................................................................................................... 4

Steering Group ..................................................................................................................................................... 8

Engine Group - 18HP & 20HP Briggs & Stratton, VANGUARD Twin ................................................................. 10

Engine Group - 18HP Briggs & Stratton, INTEK Single ...................................................................................... 12

Transmission Group - Tuff Torq K-46BF ............................................................................................................. 14

Lift Group .............................................................................................................................................................. 18

Controls Group ..................................................................................................................................................... 20

Cruise Control Group ........................................................................................................................................... 24

Electrical Group .................................................................................................................................................... 26

Hood, Grille & Dash Group .................................................................................................................................. 30

Seat Deck & Fuel Tank Group ............................................................................................................................. 32

Hopper Group ...................................................................................................................................................... 34

Deflector Group .................................................................................................................................................... 38

Wheels & Tires Group .......................................................................................................................................... 40

Decals Group - Brand & Model ............................................................................................................................ 42

Decals Group - Safety & Common ...................................................................................................................... 44

40" Mower Deck - Belt, Idle Arm & Hitch ............................................................................................................. 46

40" Mower Deck - Height Adjustment & Roller Bar ............................................................................................. 48

40" Mower Deck - Housing, Arbors & Blade ........................................................................................................ 52

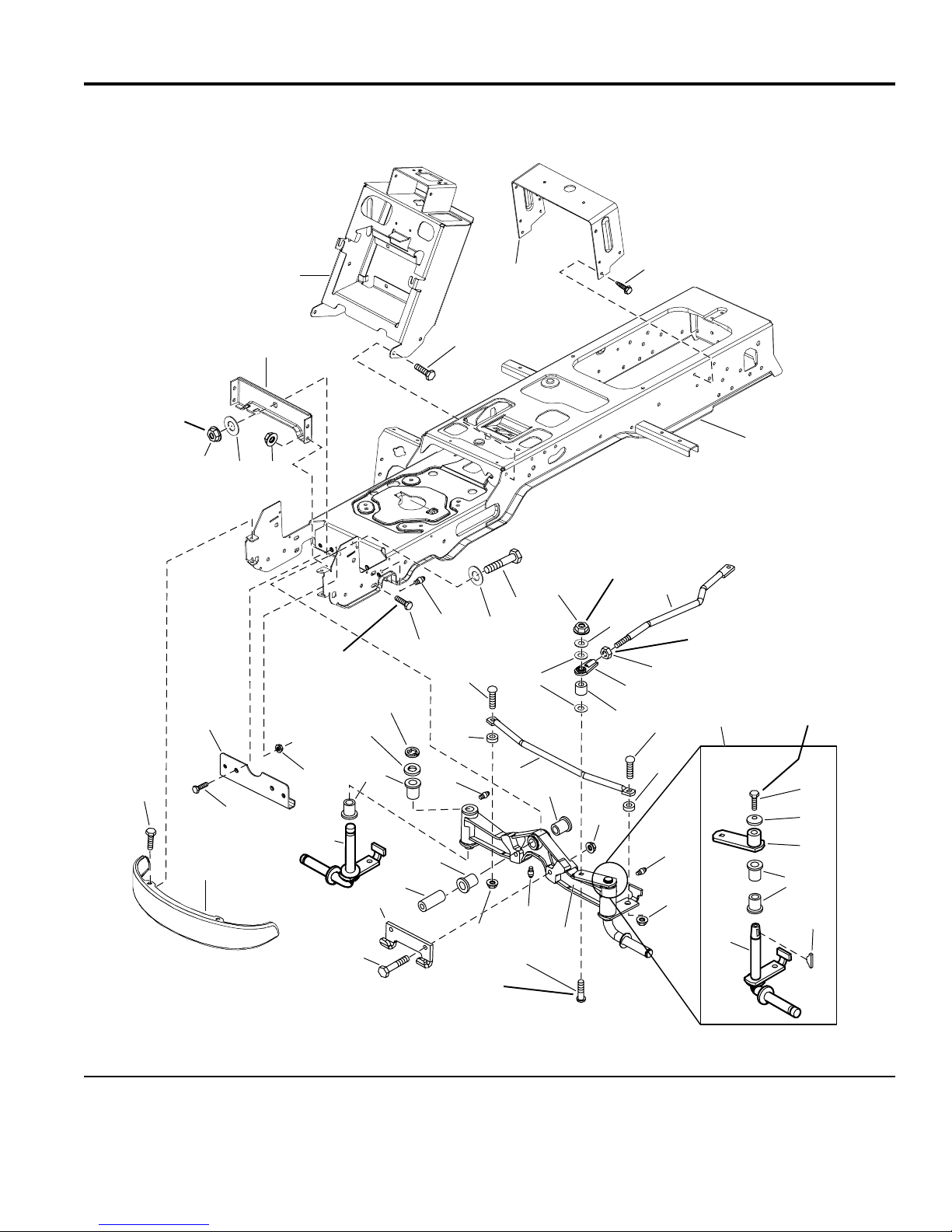

Frame & Front Axle Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Torque to

150 ft. lbs.

(202 Nm)

Torque to

22-40 ft. lbs.

(30-54 Nm)

Torque to

13 ft. lbs.

Service Kit

1686985

Torque to

50-57 ft. lbs.

(48-56 Nm)

Torque to

22-40 ft. lbs.

(30-54 Nm)

Torque to

55-60 ft. lbs.

(74-81 Nm)

1515

986818

The above parts group applies to the following Mfg. Nos.:

2005 4

1694670 - Baron XL

1694671 - Baron XL

1694672 - Baron XL

1694673 - Baron XL

TP 400-4198-00-BR-SM

PART NO. DESCRIPTIONREF NO QTY.

Frame & Front Axle Group

Footnotes

1 1930645 7 NUT, Hex Flange Lock, 3/8-16

2 1960035 2 WASHER

3 960646 1 NUT, Hex Flange, 5/8-11

4 1722212 1 PLATE, Axle

5 1724081 1 TOWER & SUPPORT ASSEMBLY

6 1923683 4 CAPSCREW, Hex Head Taptite, 3/8-16 x 3/4

7 1723528 1 SUPPORT

8 1664847 4 CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4

9 1727396 1 FRAME ASSEMBLY

10 960645 1 CAPSCREW, 5/8-11 x 3-1/2

11 1704314 2 FITTING, Grease for Wear Plate, 1/4-20, with Ball

12 1933260 4 CAPSCREW, Hex Head, Flange Lock, 3/8-16 x 3/4

13 1722541 1 LINK, Drag

14 1922755 1 WASHER

15 1960103 2 WASHER

16 1919262 1 NUT, Hex Jam, 1/2-20

17 1702779 1 JOINT, Ball

18 1708236 1 SPACER

19 1931350 2 CARRIAGE BOLT, 3/8-16 x 1

20 1611705 2 SPACER

21 1722626 1 ROD, Tie

22 1721682 6 BUSHING

23 1930650 2 NUT, Hex Flange Lock, 7/16-14

24 1704314 3 FITTING, Lube

25 1686985 1 SPINDLE REPLACEMENT KIT, LH (Includes Ref. Nos. 22, 26, 27, 28, 29 & 30)

26 923485 1 CAPSCREW, 3/8-16 x 7/8, GR8

27 1663151 1 WASHER, Spring, 3/8

28 1725112 1 HUB & ARM ASSEMBLY

29 930671 1 KEY, Woodruff

30 1724264 1 SPINDLE, LH

31 1722200 1 AXLE ASSEMBLY, w/ LH Spindle, Complete (Includes Ref. Nos. 22, 24, 41, 42 & 43)

32 1931352 1 CARRIAGE BOLT, 3/8-16 x 1-1/2

33 1927531 2 CAPSCREW, Hex Head, 7/16-14 x 2, GR8

34 1721918 1 HOOK, "J"

35 1721752 1 SPACER

36 1960086 4 SCREW, Torx Head, 5/16-18 x 7/8

37 1721805 1 BUMPER, Black, Steel, Standard

37 1723502 1 BUMPER, Chrome, Optional

38 1930591 2 CAPSCREW, Hex Whiz Lock, 5/16-18 x 3/4

39 1724801 1 PLATE, Axle Wear

40 1931277 2 NUT, Hex Falnge Whiz Lock, 5/16-18

41 1722199 1 SPINDLE, RH

The above parts group applies to the following Mfg. Nos.:

2005 5

1694670 - Baron XL

1694671 - Baron XL

1694672 - Baron XL

1694673 - Baron XL

TP 400-4198-00-BR-SM

Frame & Front Axle Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Torque to

150 ft. lbs.

(202 Nm)

Torque to

22-40 ft. lbs.

(30-54 Nm)

Torque to

13 ft. lbs.

Service Kit

1686985

Torque to

50-57 ft. lbs.

(48-56 Nm)

Torque to

22-40 ft. lbs.

(30-54 Nm)

Torque to

55-60 ft. lbs.

(74-81 Nm)

1515

986818

The above parts group applies to the following Mfg. Nos.:

2005 6

1694670 - Baron XL

1694671 - Baron XL

1694672 - Baron XL

1694673 - Baron XL

TP 400-4198-00-BR-SM

PART NO. DESCRIPTIONREF NO QTY.

Frame & Front Axle Group

Footnotes

42 1919394 1 WASHER

43 932577 1 RETAINING RING

The above parts group applies to the following Mfg. Nos.:

2005 7

1694670 - Baron XL

1694671 - Baron XL

1694672 - Baron XL

1694673 - Baron XL

TP 400-4198-00-BR-SM

Steering Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Torque to

36-44 ft/lbs

(49-59 Nm.)

Bearing mounts

below frame.

Slide pinion into

gear before

tightening nuts.

Steering cap

snaps over

steering wheel.

Torque to

19.5 ft/lbs

(26 Nm.)

Torque to

11 ft/lbs

(15 Nm.)

10 7

986091

The above parts group applies to the following Mfg. Nos.:

2005 8

1694670 - Baron XL

1694671 - Baron XL

1694672 - Baron XL

1694673 - Baron XL

TP 400-4198-00-BR-SM

PART NO. DESCRIPTIONREF NO QTY.

Steering Group

Footnotes

1 1722318 1 STEERING WHEEL, Straight Shaft

2 1722319 1 CAP, Steering Wheel, Simplicity Logo

2 1725024 1 CAP, Steering Wheel, Plain

3 1960540 1 PIN, Spring

4 1722749 1 COVER, Black Rubber

5 176440 2 BUSHING

6 1721736 1 PLATE, Mounting Steering

7 1960114 5 WASHER

8 1933260 2 CAPSCREW, Hex Head Flange Lock, 3/8-16 x 3/4

9 1931211 2 NUT, Hex Whiz Lock, 3/8-16

10 1722459 1 BEARING, Flange

11 1722461 1 SPACER

12 1724470 1 GEAR & SHAFT ASSEMBLY

13 1960032 1 CAPSCREW, Hex Head, 3/8-16 x 1-1/4

14 1930645 1 NUT, Hex Flange Lock, 3/8-16

15 1664847 2 CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4

16 1723604 1 SHAFT ASSEMBLY

17 1919314 1 PIN, Cotter

18 1931317 2 CARRIAGE BOLT, 1/4-20 x 3/4

19 928372 2 NUT, Hex,1/4-20

20 1611710 1 RING, Clipring Extension

21 1960114 2 WASHER

22 1933988 2 NUT, Push, 5/16

The above parts group applies to the following Mfg. Nos.:

2005 9

1694670 - Baron XL

1694671 - Baron XL

1694672 - Baron XL

1694673 - Baron XL

TP 400-4198-00-BR-SM

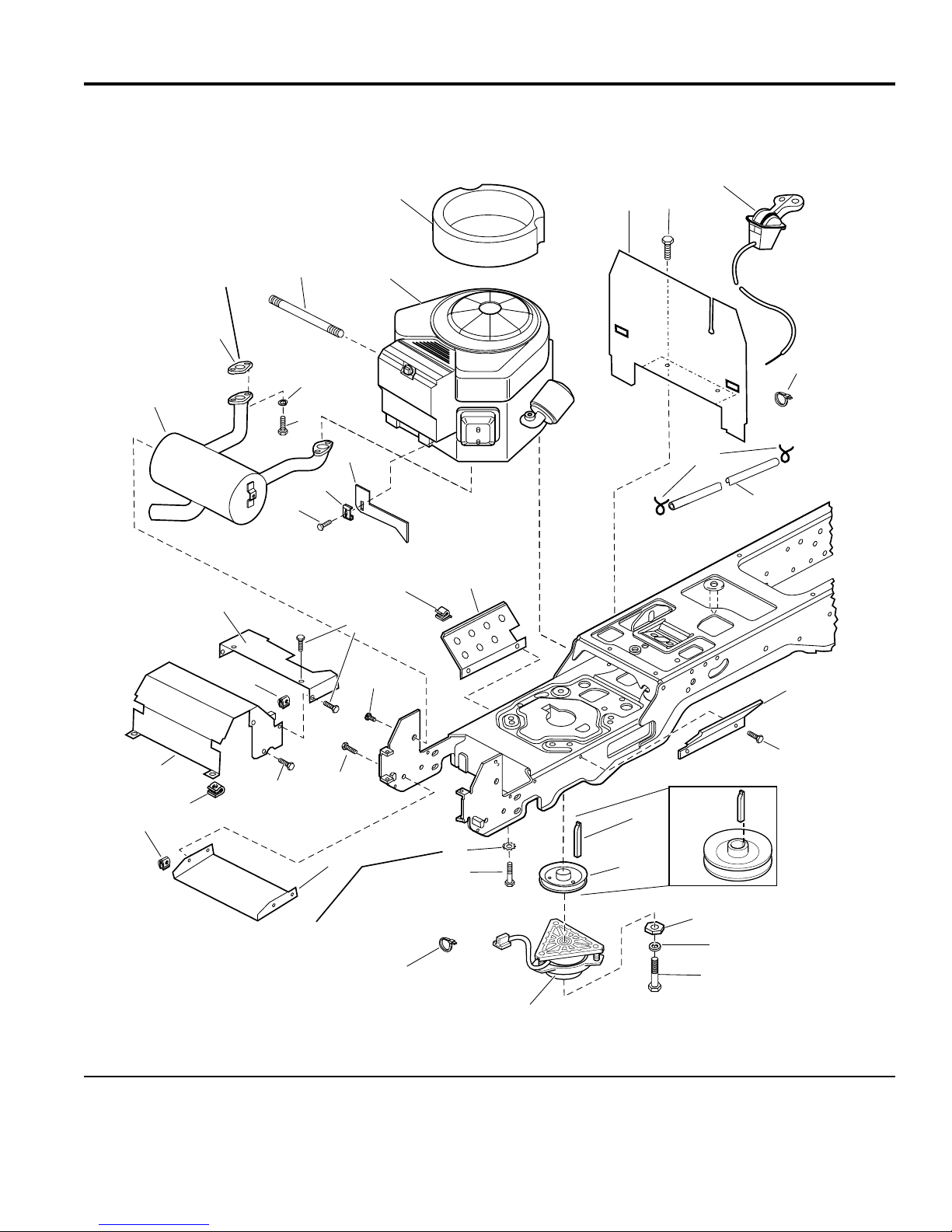

Engine Group - 18HP & 20HP Briggs & Stratton, VANGUARD Twin

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Engine Manufacturer

Gasket & Hardware,

Torque to 18 ft. lbs.

(25 Nm)

Tie clutch wire

to keep away

from pulley. Torque to

45-50 ft. lbs.

(61 - 68 Nm)

Torque to

19-23 ft. lbs.

(26 - 31 Nm)

Note:

Orientation

of All Keys

Install between Frame &

Ground cable on RH

rear engine capscrew.

Tie cables to Left

Hand side fo shield.

29 28

986833

The above parts group applies to the following Mfg. Nos.:

2005 10

1694671 - Baron XL

1694673 - Baron XL

TP 400-4198-00-BR-SM
