Simons Voss Technologies LSM Manual de usuario

MANUAL LSM–TRANSPONDERTERMINAL

Page 1

1.0 GENERAL INFORMATION

1.1. AREA OF USE

The transponder terminal is a combination between a wall-mounted reader and its

associated software application. This combination is used to re-programme trans-

ponders. It allows the administrator to prepare changes and updates to the trans-

ponder configuration which are implemented when the user activates the trans-

ponder, but the administrator does not need to present when the update actually

takes place.

1.2. PREREQUISITES

The following components are required to use the transponder terminal:

• LSM.BUSINESS an installed LSM Business Edition as a minimum

• LSM.ONLINE online module

• Installed and configured Comm Node server

• Server network connection

• Transponder terminal network connection

• Communication between server and transponder terminal;

you will need to take router and firewall configuration into account!

Note:

Please note that the program and its associated configuration tool are only available

in English.

Contact your IT department in advance regarding questions about setting up the in-

ternal network connection. System administrator rights are required for software in-

stallation and configuration.

Version: Juli 2012 v1.6

MANUAL LSM–TRANSPONDERTERMINAL

Page 2

2.0 INITIAL OPERATION OF TRANSPONDER TERMINAL

PROCEDURE

• Hardware configuration

• Software installation

• Configuration of software components

2.1. HARDWARE CONFIGURATION

To put the transponder terminal into operation, you need to connect it to an accessi-

ble IP network. We recommend using a DHCP server to ensure better availability.

The configuration can then be carried out either using the 'XTAdminXXL' program as

described in the next section or by entering the IP address in the browser (see Sec-

tion 2.1.5).

Note:

Any changes which differ from the configuration specified by SimonsVoss may

mean that the device switches to a non-defined status. This may result in the

device no longer being operable.

Version: Juli 2012 v1.6

MANUAL LSM–TRANSPONDERTERMINAL

Page 3

2.1.1 INSTALLATION OF THE XTADMINXXL APPLICATION

The XTAdminXXL tool can be used to configure the transponder terminal. This pro-

gram will enable you to look for the transponder terminal even if you do not know the

IP address. You can find the program at:

INFOCENTER – DOWNLOADS – ADDITIONAL DOWNLOADS

IINFOCENTER DOWNLOADSon the SimonsVoss internet site.

Launch for the installation routine:

Setup.exe

• Start the installation

• Process the individual steps

Note:

Please note that you need system administrator rights to install the trans-

ponder terminal.

Confirm by pressing Next

> to start installation.

Select the installation fold-

er and confirm by pressing

Next > to start installation

Version: Juli 2012 v1.6

MANUAL LSM–TRANSPONDERTERMINAL

Page 4

Confirm by pressing Next

> to start installation.

Installation has now been

successfully completed.

Finish the installation by

pressing Close.

2.1.2 SETTING THE IP ADDRESS ON THE TRANSPONDER TERMINAL

Launch the 'XTAdminXXL' application.

Once the application is

launched, you will see the

configuration tool as

shown on the left.

Select Scan, then enter

the required network seg-

ment, start the scan and

accept prompt by clicking

on Yes

Version: Juli 2012 v1.6

MANUAL LSM–TRANSPONDERTERMINAL

Page 5

Select SetIP, then enter

the required IP address

and confirm by clicking on

OK.

2.1.3 SETTING UP THE STANDARD GATEWAY

Launch the 'XTAdminXXL' application.

Select Telnet and enter the

password 'XT' to register

the components.

First change the login

password for security rea-

sons by entering 'A', con-

firm by pressing 'Enter'

and then type in '7=*****' in

the prompt, whereby '*****'

represents your own

password and confirm by

pressing 'Enter'.

Select "N" for NETWORK

MENU and then confirm by

pressing 'Enter'

Version: Juli 2012 v1.6

MANUAL LSM–TRANSPONDERTERMINAL

Page 6

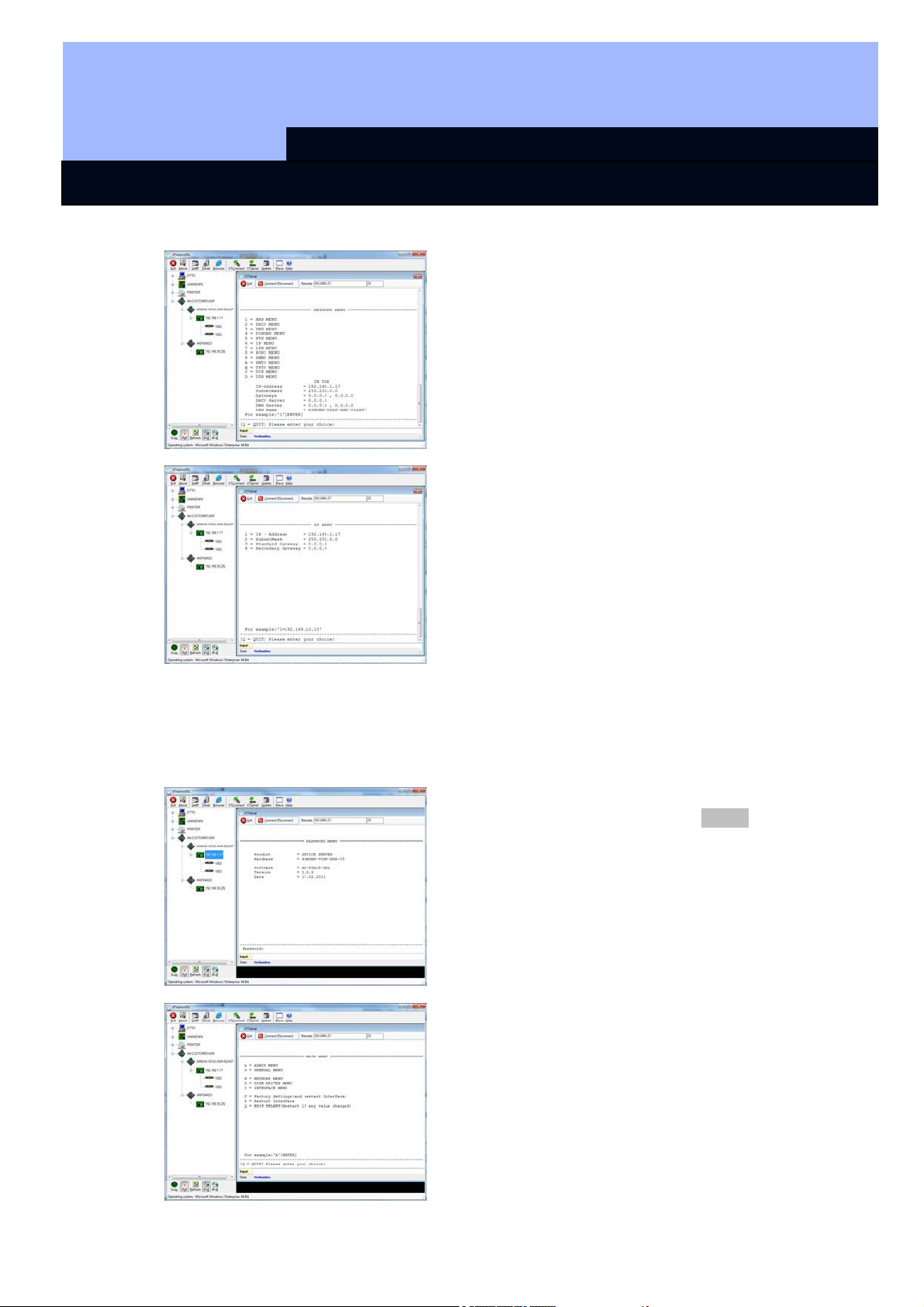

Select '6' for IP MENU and

then confirm by pressing

'Enter'

Please check the address

in Row 3. If necessary,

change the address by

entering

'3=XXX.XXX.XXX.XXX' in

the prompt and then con-

firm by pressing 'Enter'.

Then reboot the transponder terminal by pressing the button on the bottom, right-

hand side of the housing.

2.1.4 CONFIGURING THE SMART CD MODULE IN THE TRANSPONDER TERMINAL

Launch the 'XTAdminXXL' application.

Select Telnet, highlight the

IP address of the required

device in the left-hand tree

structure and then enter

the password 'XT' or the

new password that you

created to register the

components.

Select 'I' for INTERFACE

MENU and then confirm by

pressing 'Enter'

Version: Juli 2012 v1.6

MANUAL LSM–TRANSPONDERTERMINAL

Page 7

Select '1' for Smart CD

Settings MENU and then

confirm by pressing 'Enter'

Select '1' for Config Menu

and then confirm by press-

ing 'Enter'

Please check the value in

Row 'b=Emceed'. If neces-

sary, change the value in

'c000' by typing ‘b=c000’ in

the prompt and then con-

firm by pressing 'Enter'.

Then reboot the transponder terminal by pressing the button on the bottom, right-

hand side of the housing.

2.1.5 CONFIGURATION IN A BROWSER

Position the mouse in the

lower left-hand corner as

indicated. You can also

access the configuration

masks by clicking on the

link. The configuration pro-

cess is as described in the

previous section.

Version: Juli 2012 v1.6

MANUAL LSM–TRANSPONDERTERMINAL

Page 8

2.1.6 TESTING THE TRANSPONDER TERMINAL

The transponder terminal functions and settings can be tested using the 'TestTran-

sTerm.exe' software. You need to launch the software in the directory where the

TestTransTerm.exe file is saved.

This test enables you to check the readout from a G2 Lock (cylinder, Smart Relay re-

quired) and the event button function (right-hand side of the housing).

Possible launch parameters (prompt):

-h, --host <IP addr> : IP address of target host

--portUDP <port> : UDP communication port (default 1003)

--portTCP1 <port> : TCP1 communication port (default 1003)

--portTCP2 <port> : TCP2 communication port (default 1002)

-w, --waitCycle <millisec> : time interval between two test cycles(default 10000)

-c, --waitOnCD <millisec> : time interval for waiting of CD answer(default 7000)

-b, --waitOnButton <sec> : time interval for waiting of button press(default 5)

-r, --cycleCount <times> : the number of test cycles, "0" means undetermined workflow

(default: 0)

-?, --help : this message

Example:

D:\>TestTransTerm.exe -h 192.168.1.17 -w 4000 -c 3000 -b 5 -r 1

Version: Juli 2012 v1.6

MANUAL LSM–TRANSPONDERTERMINAL

Page 9

Example:

Example (everything written in a single row):

\TestTransTerm>TestTransTerm.exe -h

192.168.1.17 -w 4000 -c 3000 -b 5 -r 1

D:\>TestTransTerm.exe -h 192.168.1.17 -w 4000 -c 3000 -b 5 -r 1

2012/06/30 12:02:40: Sent: <STI>

2012/06/30 12:02:40: Recv: <00000 41>

2012/06/30 12:02:40: Sent: <STI>

2012/06/30 12:02:40: Recv: <11000 41>

2012/06/30 12:02:40: Sent: <TMP>

2012/06/30 12:02:40: Recv: < 41>

2012/06/30 12:02:40: Rear side temperature: 41

2012/06/30 12:02:41: Sent: <DP1>

2012/06/30 12:02:41: Recv: <DP1>

2012/06/30 12:02:41: Sent: <SM1>

2012/06/30 12:02:41: Recv: <SM1>

2012/06/30 12:02:41: Sent: <DPWOK 2012/06/30 12:02:41>

2012/06/30 12:02:41: Recv: <DPW>

2012/06/30 12:02:41: Sent: 10 02 0E 11 1E 00 0E F0 00 00 00 00 00 02 00 00 20 00

02 00 00 0A D5 10 03

2012/06/30 12:02:44: Recv: 0E 11 1E 00 20 DE 0A 20 16 00 1A 14 00 00 00 17 27

00 00 00 42 00 00 00 00 00 00 92 2F 09 88 00 65 95 30 8B 02 80 4A

2012/06/30 12:02:48: Now let's test the button...

2012/06/30 12:02:49: Button has been pressed OK!

Results:

Cycles : 1

Sockets : OK

Smart CD : OK

Button : OK

Temperature read : OK

Temperature value : 41 C

D:\>

Alternatively, you can also launch the software using a batch file (start.bat).

Version: Juli 2012 v1.6

MANUAL LSM–TRANSPONDERTERMINAL

Page 10

2.2. RESETTING TO ORIGINAL DELIVERY SETTINGS

Important:

Whenever you press this button, you will always need to re-configure the de-

vice. This may not be possible on site during installation.

The blue factory default reset button on the rear of the transponder terminal resets

the settings to their initial state. This will only function after a restart.

Procedure when switched off:

• Press and hold down factory default reset button

• Power on

• Wait until the message = 'Factory reset' appears

• Release factory default reset button

Procedure when switched on:

• Press and hold down factory default reset button

• Restart using the Telnet menu or the reset button on the lower wall of the

transponder terminal

• Wait until the message = 'Factory reset' appears

• Release factory default reset button

You should prevent this button being activated unintentionally.

2.3. SOFTWARE INSTALLATION

Two additional software components are required to use the transponder terminal:

• Service, which provides communication between the terminal and the data-

base

• Console, which is used to display status and configure the terminal

Launch for the installation routine:

TransTerm_setup_3_1.exe

• Start the installation

• Process the individual steps

Note:

Please note that you need system administrator rights to install the trans-

ponder terminal.

Version: Juli 2012 v1.6
