Silverline 3411 Instrucciones de instalación y funcionamiento

Read this operation manual and installation prior to use and operate the equipment.

3411

General view of the extractor hood

Fig. 1: Overview

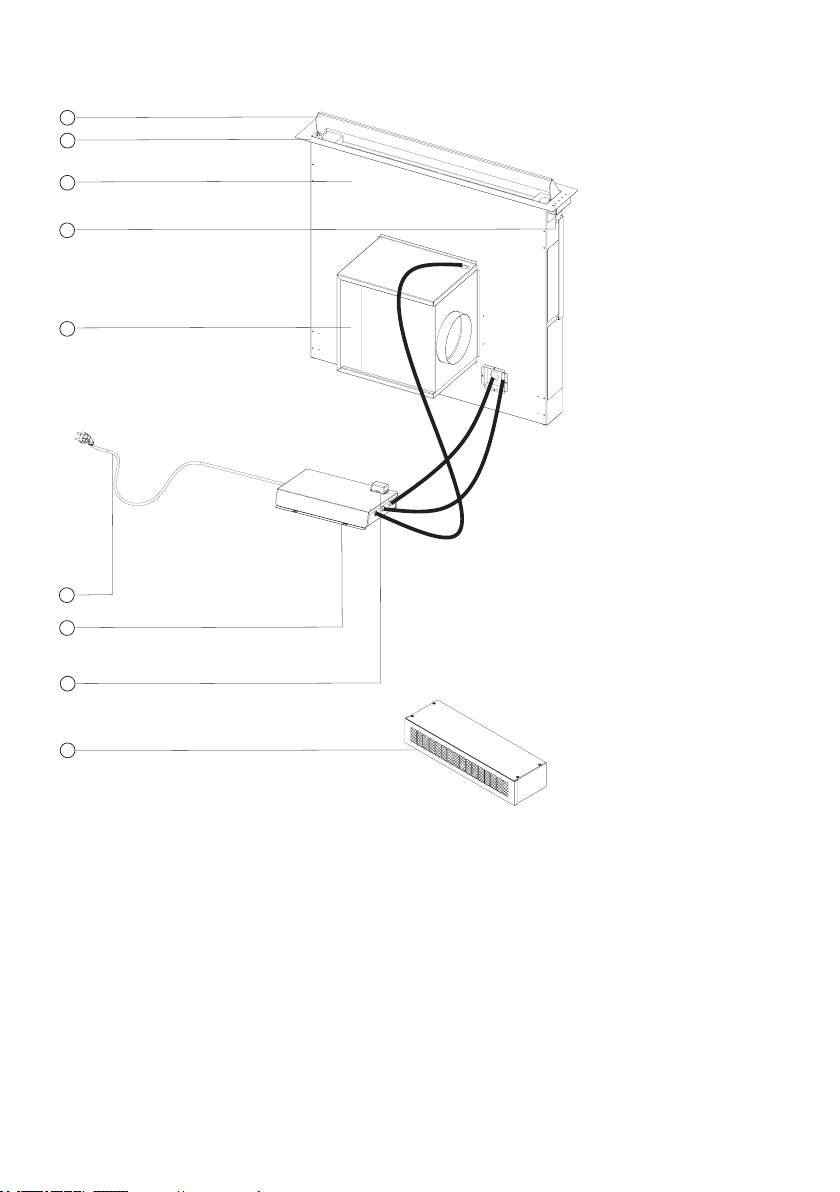

Drawing 1: General view

Closure ap

2 Closure frame

3 Control panel

4 Hood casing

5 Engine box

6 Power cord

7 Electronic box

8 Window switch box (optional - only for air recirculation operation)

9 Active charcoal lter box (optional - only for air recirculation operation)

Before using the hood, please read these

instructions completely.

Keep this instructions manual for future

reference. In case the device is handed

over to a third party, please forward the

instructions manual as well.

You should follow these instructions in

order to prevent injuries of people and

damages to the device.

The manufacturer rejects all responsibili-

ties for any damage due to non-complian-

ce with these instructions.

Information that is important for your sa-

fety is marked with special symbols. This

information must strictly be followed in

order to prevent any accident and damage

to the device.

WARNING !

Warning against hazards for health, it indica-

tes the risks of possible injuries.

CAUTION!

It draws attention to dangers for the device or

other objects.

CAUTION!

Avvertenza contro possibili rischi che potreb-

bero causare danni materiali se non vengono

adottate precauzioni.

INFORMATION!

It gives advice and information.

It refers to another chapter, paragraph or

information

1 Safety instructions

1.1 User Manual

1.2 The instructions used here

1 Safety instructions

Those (including children) who are unable to

use the device safely due to mental, physical

or motor abilities (specic individuals) should

not be allowed to use the device without

supervision, or can only use it following in-

structions by a responsible person.

Do not leave the device unattended. Use with

extreme caution when children or specic

individuals who are not able to properly under-

stand the hazards are nearby.

Packaging materials:

- should not be used as a toy. There is

a risk of suffocation.

- Dispose of the packaging materials in

accordance with the standards (=> spare parts

and evacuation)

This hood is exclusively designed for the

treatment of steam rising from a stove in the

kitchen and for private use only.

- The device is for home use only.

- The device is not intended for profes-

sional use.

- The device is only intended for use

with electric or

gas stoves.

- Any other use is considered to be

non-compliant and is therefore prohibited.

The followings are, in particular, prohibited:

- The use of the hood without metal

grease lter. The absence of the lter causes

large deposits of grease in the hood and the

exhaust ducts.

- Flaming under the hood. This may

cause to aming of grease deposits.

- The use of hobs (any kinds of gas,

electric, etc.) without pots, pans or stove.

1.3 Children, specic indivi-

duals

1.4 Intended use

1 Safety instructions

Any open ame may cause aming of the

hood.

- Cleaning of the hood with equipment

or utensils not provided for this purpose,

with a steam cleaner for example (=>

maintenance)

- Any repairing by unauthorized

personnel (=> after-sales service)

WARNING!

Risk of burns! Misuse of the hood can cause

burns.

- follow the Maintenance and Cleaning

Instructions carefully (=> 4.6 maintenance

intervals).

Strictly avoid:

- Cooking, roasting and grilling on open

ame, due to the risk of re

1.5 Fire hazard

WARNING !

Electrocution. The hood is electrically

operated. In case of incorrect installation,

handling and operation, there is a risk of

serious or fatal injury. Follow the safety

instructions

1.6 power supply

2 Opening of packaging and assembly

The packaging materials are recyclable.

Save on raw materials and reduce waste

accumulation. Put the packaging materials

into recycling points. A responsible individual

will collect them ( => 6.2 Disposal).

Follow the safety instructions (=> safety

instructions) during installation and electrical

connection. Before installation, read the

installation instructions completely.

Strictly follow the instructions in order to

prevent injuries of people and damages to

the device.

The manufacturer rejects all the

responsibility for damages caused by non-

compliance with this installation manual.

2.1 Opening of

packaging

2.2 Installation and electrical con-

nection

2.3.1 Controlling parts of the

extractor hood

It includes:

-he hood with the motor casing

Accessories

- 4 mounting brackets for the hood

housing

- screws and washers for the hood

housing and the motor casing

The warranty claims do not apply in case of

intervention by unauthorized personnel (=>

Warranty)

1.7 Failure of the device WARNING !

Do not mount or use a faulty hood. Repair

work must be carried out by an expert

authorized by the manufacturer (after-sales

service).

2.3.2. General information on

assembly

WARNING!!

Danger of death due to damaged supply lines.

When drilling, supply lines (electricity, gas and

/ or water) may be damaged. Before drilling,

you should be aware of the routing of the

supply lines (e.g. using a metal and voltage

detector).

2 Opening of packaging and assembly

The hood is installed in the worktop at the

level of the hob.

Min. 760

2.3.3 Assembly drawings

2 Opening of packaging and assembly

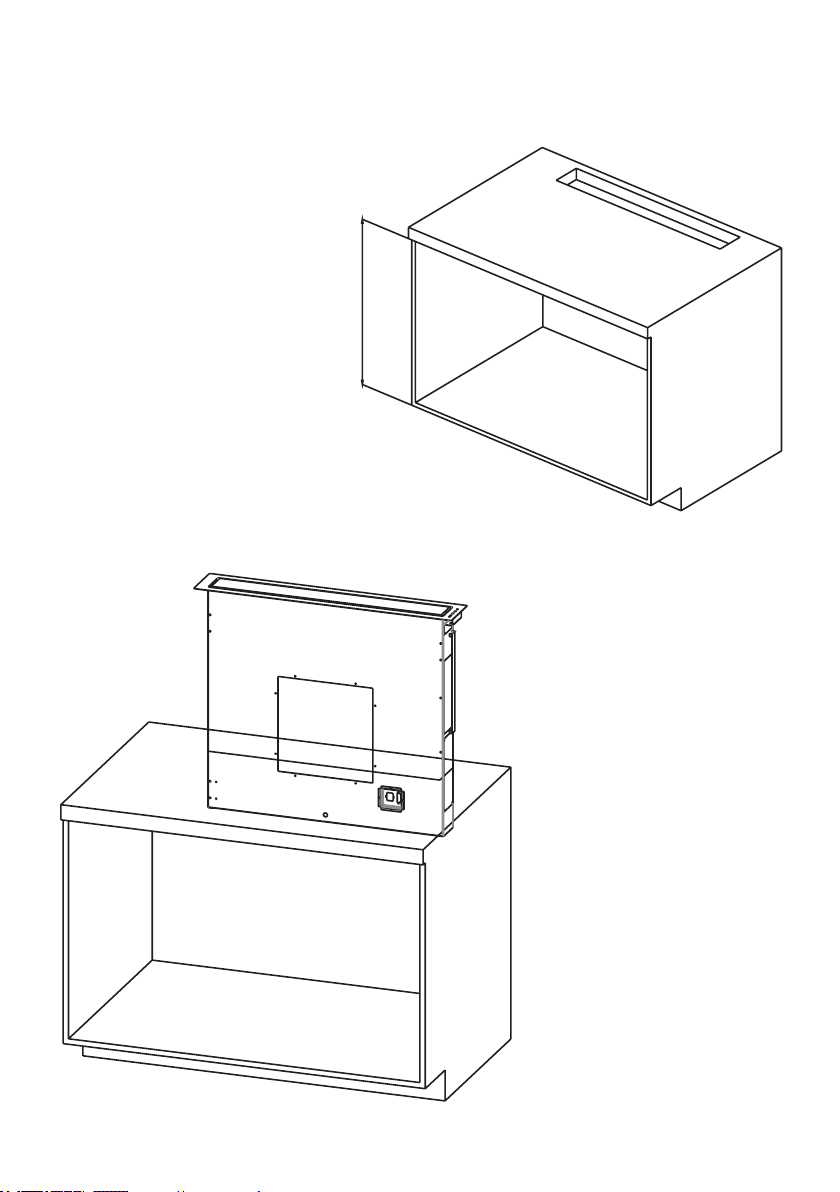

Drawing M2a

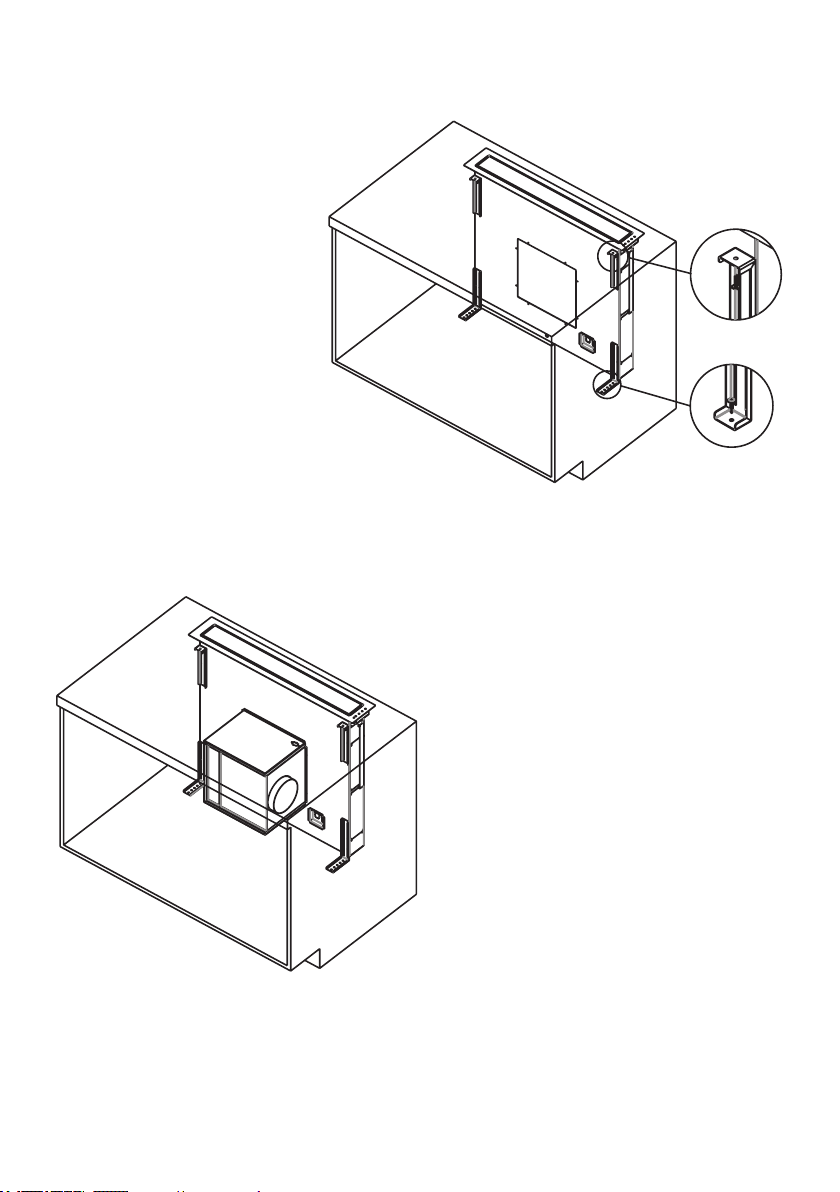

Drawing. M1

2 Opening of packaging and assembly

Drawing M2b

Drawing M3

2 Opening of packaging and assembly

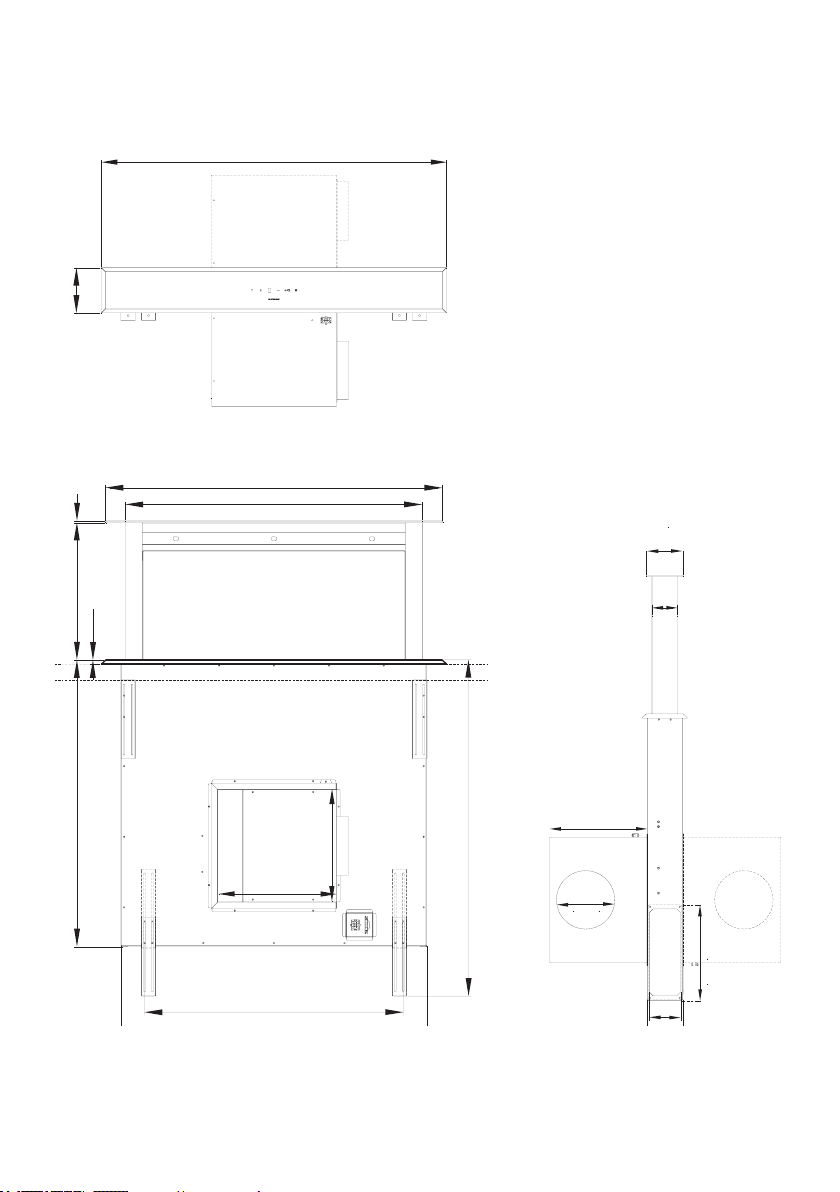

2.3.4 The dimensions of the device

580, 880

115

560, 860

458, 758

0 - 350 4

10,6

731

460, 660

480, 780

Max. 857 - Min. 735

250

320

150

222
