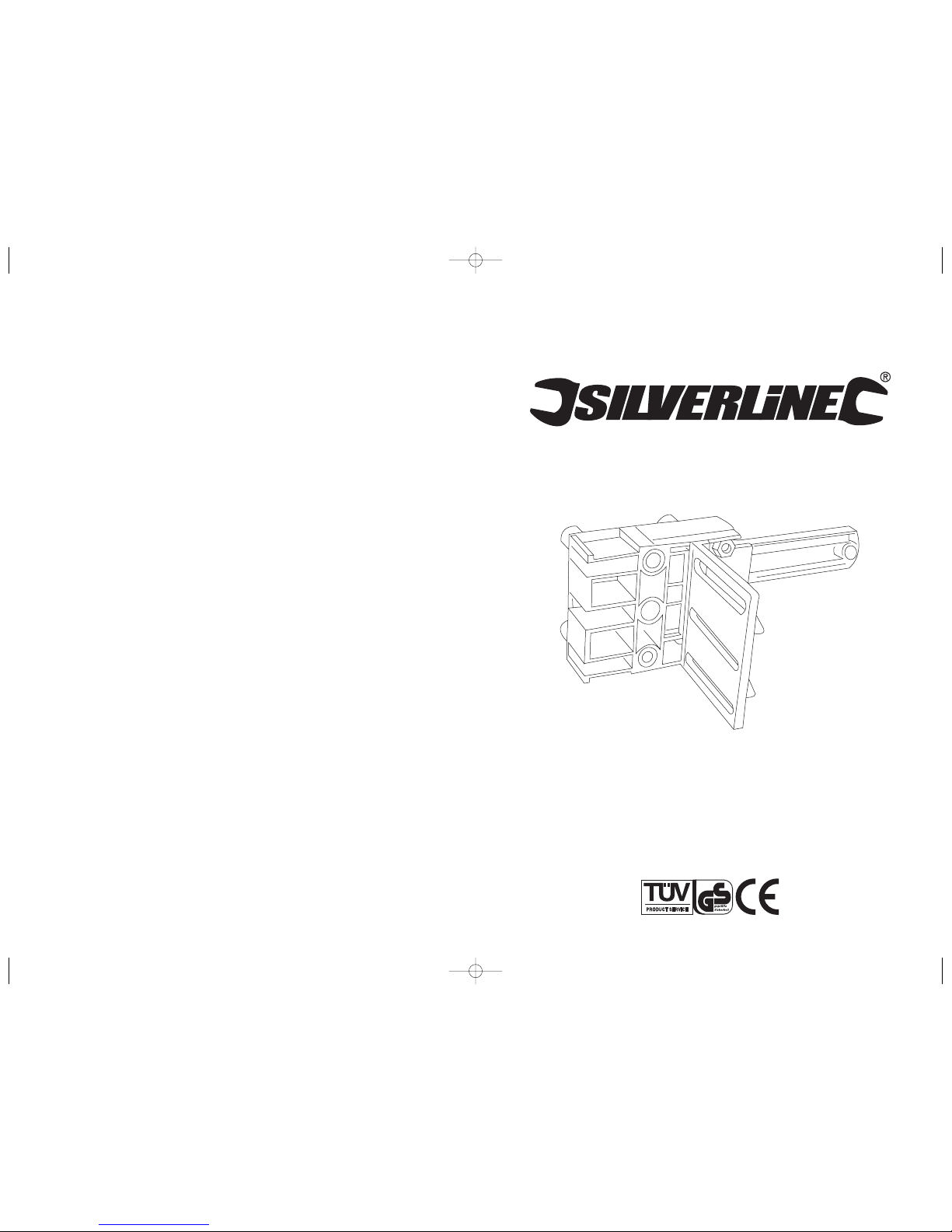

Silverline Dowelling Jig Manual de usuario

Users Manual

Dowelling Jig

Product Code 508819

Thank you for choosing this product.

Silverline Tools Ltd. guarantees this product to be free of defects in material & workmanship

forever. Any defective product returned, with original receipt, will be repaired, replaced or

refunded at our discretion. We do not refund carriage. This guarantee does not cover damage

caused by abuse, misuse, modification, accident or fair wear & tear.

Your statutoryrights are not affected.

If you experience a problem, return the product direct to us, with the original receipt at :

Silverline Tools Limited

PO Box 2988

Yeovil

BA21 1WU

We do not refund carriage. This guarantee is for Great Britain only and does not affect your

statutory rights. As you would expect fair wear and tear are not covered.

www.silverlinetools.co.uk

508819 Instructions.qxd 5/10/06 2:15 pm Page 1

OPERATING INSTRUCTIONS

Figure 1 & 2: Mark the positions of the board in relation to

each other (X) and identify the boards with letters A& B.

Figure 3 & 4: Work On Board Afor all dowel joints. Clamp

board Ato the workbench.

Figure 5: Adjusting the drilling depth on board A: Dowel

Lengths (Board thickness of B5mm). For end-grain joints

half the dowel length. Use a drill bit with a depth stop.

Figure 6, 7 & 8: Drill the holes in board A. Ensure that the

centre pin is pushed firmly against the board by pressing the

handle (see direction of arrow in Figure 8). Also ensure that

the manual dowel locator is placed level on the edge.

Important: First insert the drill bit in the drill bush and then

switch on the power drill.

Figure 12: Place the dowel locator on a dowel in board A.

Push the angle fence from the handle side into the guideway

until it rests firmly against the board. Finally tighten the

clamping screw.

6mm

Basic Dowelling Jig Operation

8mm

10mm

8mm

Max. 30mm

Max. 25mm

Max. 25mm 6mm

508819 Instructions.qxd 5/10/06 2:15 pm Page 2

Figure 16 & 17: Place the board B in the desired position on

board Aand clamp firmly. Draw a centre line for the dowel

holes on board B. Place the dowel locator with the side

centre marks on the centre line, push the angle fence

against board B and clamp. Then drill as shown in Figure

14.

Figure 18: T-Joint.

Figure 19 & 20: Draw a centre line for the dowel holes on

board B. Clamp board Aat a distance of 35mm from the

drawn line.

Important: The depth stop must be re-adjusted (board

thickness 5mm). Now place the dowel locator with the

corresponding guiding groove over the dowel. When drilling

ensure that the centre marks are aligned with the centre line.

Figure 21: End-grain joints.

Figure 22: Place the dowel locator on a dowel in board A.

Then push the angle fence from the handle side into the

guideway until it rests firmly against the board. Finally tighten

the clamping screw.

Figure 23 & 24: Clamp board A& Bin such a manner that

the marks are visible. Push the dowel locator with the

corresponding guiding groove over the dowel until the angle

fence rests firmly against the board and then drill.

Figure 13 & 14: Place board B in a desired position on

board Aand clamp to the workbench.

Important: The depth stop must be re-adjusted (board

thickness 5mm). Place the dowel locator over the

corresponding dowel of board Ain such a manner that the

angle fence rests firmly against the board and drill.

Figure 15: The distance of the dowel from the edge is

maximum 25mm.

25mm

35mm
