Silvercrest SV 60 A2 Especificaciones técnicas
PEDESTAL FAN SV 60 A2
PEDESTAL FAN SV 60 A2
Assembly, operating and safety instructions
STOJANOVÝ VENTILÁTOR
SV 60 A2
Pokyny pre montáž, obsluhu a bezpečnostné
pokyny
STANDVENTILATOR
SV 60 A2
Montage-, Bedienungs- und Sicherheitshinweise
IAN 353118_2007
GB Assembly, operating and safety instructions Page 5
SK Pokyny pre montáž, obsluhu a bezpečnostné pokyny Strana 17
DE/AT/CH Montage-, Bedienungs- und Sicherheitshinweise Seite 29
10
11
12
13
16
16a
15
24
28
27
26
25
29
24
23
20
30
23
22 21
20
19
18
17
14
9
876543
2
1
22
1
31
21
11
16
12
9
10
16
15
12
3 5
14
2 4
A
B
2 3
16
4
16
16a
View from front /
Pohľad spredu /
Ansicht von vorne
5
C D
1.
2.
62 7
2
7
8
13
8
30
31
E
G
F
H
5GB
List of pictograms and symbols used ......................................... Page 6
Introduction ................................................................. Page 6
Intended use................................................................ Page 6
Scope of delivery............................................................ Page 7
Description of parts .......................................................... Page 7
Technical data .............................................................. Page 7
Safety instructions........................................................... Page 8
Safety instructions for batteries / rechargeable batteries ............................. Page 11
Before use................................................................... Page 12
Unpacking ................................................................. Page 12
Inserting/Replacing the battery ................................................. Page 12
Assembly .................................................................. Page 12
Height adjustment ........................................................... Page 13
Operation................................................................... Page 13
Fan speed ................................................................. Page 13
Oscillation ................................................................. Page 13
Airflow modes .............................................................. Page 14
Timer (automatic switch off time) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 14
Cleaning and care ........................................................... Page 14
Cleaning the blade and the safety guard ......................................... Page 14
Storage ..................................................................... Page 15
Disposal..................................................................... Page 15
Warranty ................................................................... Page 16
6 GB

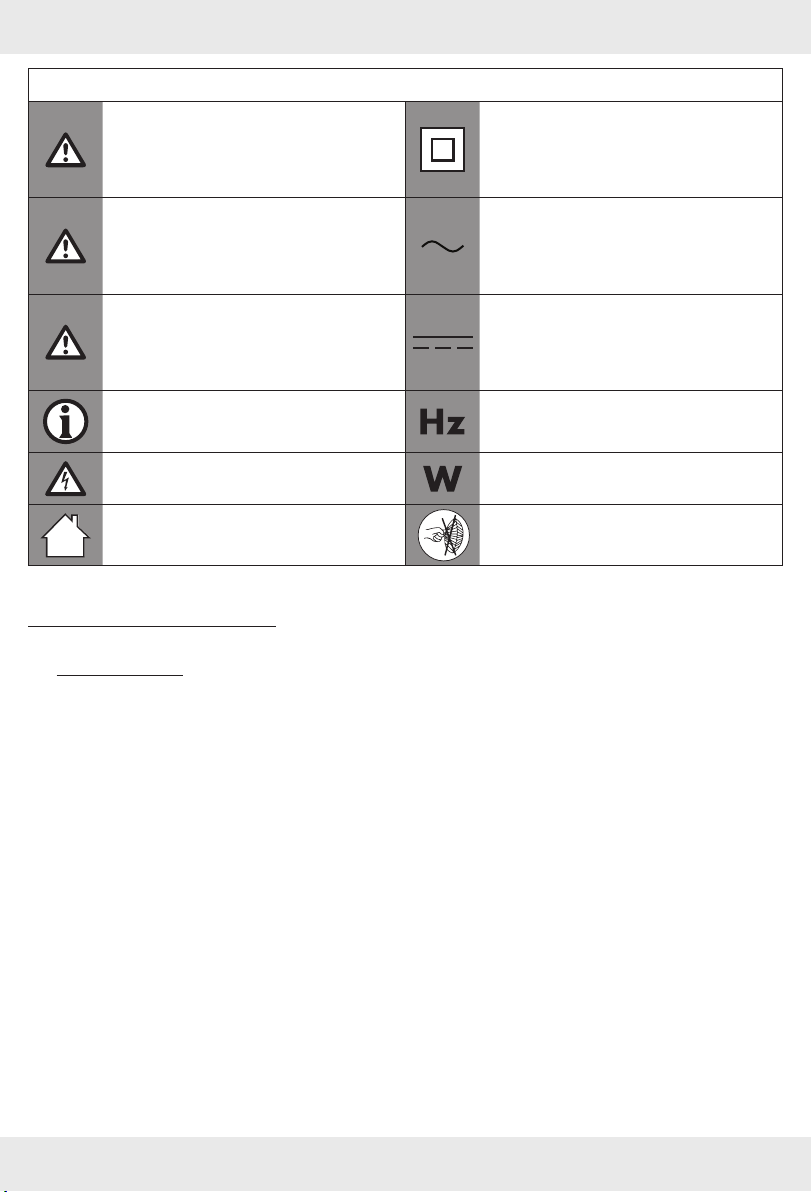

List of pictograms and symbols used
DANGER! This symbol with the signal
word indicates a hazard with a high level
of risk which, if not avoided, will result in
serious injury or death.
Protection class II
The product has a double insulation.
WARNING! This symbol with the signal
word indicates a hazard with a medium
level of risk which, if not avoided, could
result in serious injury or death.
Alternating current / voltage
CAUTION! This symbol with the signal
word indicates a hazard with a low level
of risk which, if not avoided, could result
in minor or moderate injury.
Direct current / voltage
NOTE: This symbol with the signal word
provides additional useful information. Hertz (mains frequency)
Danger – Risk of electric shock! Watts
Only use the product in dry indoor rooms. Do not put fingers through grille.
PEDESTAL FAN SV 60 A2
Introduction
We congratulate you on the purchase of your new
product. You have chosen a high quality product.
The instructions for use are part of the product. They
contain important information concerning safety,
use and disposal. Before using the product, please
familiarise yourself with all of the safety information
and instructions for use. Only use the product as
described and for the specified applications. If you
pass the product on to anyone else, please ensure
that you also pass on all the documentation with it.
Intended use
This product is intended to produce a cooling airflow.
Any other use not mentioned in these instructions may
cause a damage to the product or create a serious
risk of injury. This product is only intended for private
household use, not for commercial purposes.
The manufacturer accepts no liability for damages
caused by improper use.
7GB
Scope of delivery
After unpacking the product, check if the delivery
is complete and if all parts are in good condition.
Remove all packing materials before use.
1 Main unit
1 Round base
1 Stand post with L-shaped bolt and washer
1 Front grille with grille collar
1 Rear grille
1 Grille lock nut
1 Blade lock nut
1 Blade
1 Remote control
1 Battery (pre-installed)
Description of parts
1Control panel
2Rear grille
3Grille lock nut
4Blade
5Blade lock nut
6Front grille
7Grille collar
8Hinged clip
9Washer
10
L-shaped bolt
11
Round base
12
Stand post
13
Adjustment knob
14
Upper pole
15
Locking knob
16
Main unit
16a
Motor
17
Horizontal oscillation indicator
18
Vertical oscillation indicator
19
Multi-directional oscillation indicator
20
OSC button (oscillation)
21
SPEED button
22
MODE button
23
ON/OFF button
24
TIMER button
25
Soft mode indicator
26
Speed indicator
27
Sleep indicator
28
Natural indicator
29
Timer indicator
30
Battery compartment
31
Remote control
NOTE: The buttons on the remote control and
on the main unit‘s
16
control panel 1have the
same functions.
Technical data
Input voltage: 220–240 V∼, 50 Hz
Power consumption: 60 W
Protection class: II/
Remote control –
voltage supply: 1 x 3 V , CR2025
operating range: 5 metres
Description Symbol Value Unit
Maximum fan
flow rate F 57.73 m3/min
Fan power input P 56.24 W
Service value SV 1.03 (m3/min)/W
Standby power
consumption PSB 0.3 W
Fan sound power
level LWA 56.9 dB(A)
Maximum air
velocity c 3.33 meters/sec
Measurement
standard for
service value
IEC 60879:1986 (corr. 1992)
Contact details
for obtaining
more information
OWIM GmbH & Co. KG
Stiftsbergstraße 1
74167 Neckarsulm
GERMANY
www.owim.com
8 GB
Safety instructions
BEFORE USING THE PRODUCT,
PLEASE FAMILIARISE
YOURSELF WITH ALL OF THE
SAFETY INFORMATION AND
INSTRUCTIONS FOR USE! WHEN
PASSING THIS PRODUCT ON TO
OTHERS, PLEASE ALSO INCLUDE
ALL THE DOCUMENTS!
In the case of damage resulting
from non-compliance with these
operating instructions the warranty
claim becomes invalid! No liability is
accepted for consequential damage!
In the case of material damage or
personal injury caused by incorrect
handling or non-compliance with
the safety instructions, no liability is
accepted!
mWARNING! DANGER OF
DEATH AND ACCIDENTS
FOR TODDLERS AND
CHILDREN!
Never leave children unsupervised
with the packaging material. The
packaging material represents a
danger of suffocation. Children
frequently underestimate the
dangers. Always keep children away
from the packaging material.
mDANGER! Risk of electric
shock! Do not attempt to repair
the product yourself. In case of
malfunction, repairs are to be
conducted by qualified personnel
only.
mWARNING! Risk of electric
shock! Do not immerse the
electrical parts of the product in
water or other liquids. Never hold
the product under running water.
mCAUTION! Risk of electric
shock! Never use a damaged
product. Disconnect the product
from the power supply and
contact your retailer if it is
damaged.
mWARNING! Risk of injury!
Avoid contacting moving parts.
Wait until all components have
completely stopped before
touching them.
