Silvercrest SAB 160 A1 Manual de usuario

Bluetooth Car Radio SAB 160 A1

KOMPERNASS GMBH

BURGSTRASSE 21 · D-44867 BOCHUM

www.kompernass.com

ID-Nr.: SAB160A1-10/11-V2

IAN: 71024

Bluetooth Car Radio

Operating instructions

Radio samochodowe bluetooth

Instrukcja obsługi

Autorádio s bluetooth

Návod k obsluze

Bluetooth autórádió

Használati utasítás

Bluetooth avtoradio

Navodila za uporabo

Autorádio s funkciou Bluetooth

Návod na obsluhu

45 76 8

101112

30 31

32 32

394041

131415161718192021

48 49

SAB 160 A1

Index

Introduction . . . . . . . . . . . . . .2

Preface . . . . . . . . . . . . . . . . . . . . . . . 2

Information for these operating

instructions . . . . . . . . . . . . . . . . . . . . 2

Limited liability . . . . . . . . . . . . . . . . . 3

Warnings . . . . . . . . . . . . . . . . . . . . . 3

Proper use. . . . . . . . . . . . . . . . . . . . . 4

Safety . . . . . . . . . . . . . . . . . . . . . . . . 4

Basic Safety Instructions . . . . . . . . . . 4

Package contents and transport

inspection . . . . . . . . . . . . . . . . . . . . . 6

Disposal of the packaging . . . . . . . . 6

Operating components . . . . .7

Installation . . . . . . . . . . . . . . .9

Connection. . . . . . . . . . . . . . . . . . . . 9

Installation . . . . . . . . . . . . . . . . . . .11

Uninstalling the device . . . . . . . . . .13

Initial use. . . . . . . . . . . . . . . .14

Face plate. . . . . . . . . . . . . . . . . . . .14

Handling and operation . . .15

Switching On and Oﬀ . . . . . . . . . .15

Settings. . . . . . . . . . . . . . . . . . . . . .15

Radio reset (RESET) . . . . . . . . . . . .19

Radio functions. . . . . . . . . . . . . . . .19

General CD functions. . . . . . . . . . .23

MP3 CDs functions. . . . . . . . . . . . .25

USB port. . . . . . . . . . . . . . . . . . . . .26

Card reader (SD/MMC) . . . . . . . .27

Record function. . . . . . . . . . . . . . . .27

Connecting an external audio

device to the device . . . . . . . . . . . .29

Bluetooth operation . . . . . . . . . . . .29

Cleaning . . . . . . . . . . . . . . . .33

Safety instructions. . . . . . . . . . . . . .33

Display cleaning. . . . . . . . . . . . . . .33

Disposal. . . . . . . . . . . . . . . . .33

Disposal of the device . . . . . . . . . .33

Troubleshooting . . . . . . . . . .34

Safety instructions. . . . . . . . . . . . . .34

Malfunction causes and remedies .34

Appendix . . . . . . . . . . . . . . .36

Technical data . . . . . . . . . . . . . . . .36

Information regarding the

EG conformity declaration . . . . . . .37

Warranty . . . . . . . . . . . . . . . . . . . .37

Importer . . . . . . . . . . . . . . . . . . . . .37

Introduction

SAB 160 A1

GB Introduction

Preface

Dear customer,

by purchasing the Bluetooth car radio SAB 160 A1 you have decided on a quality

product from SilverCrest, which, in terms of technology and functionality, meets

the most up-to-date development standards.

Read the information included here so that you can quickly familiarize yourself

with your device and thus make full use of its functions.

We wish you a great deal of enjoyable use.

Information for these operating instructions

These operating instructions are a component of the Bluetooth car radio SAB 160 A1

(hereafter referred to as the device) and supplies you with important information

regarding proper use, safety, installation and connection as well as how to operate

the device.

The operating instructions must be constantly kept available close to the device.

They are to be read and used by anyone assigned to install, service and repair

faults in the device.

Keep these operating instructions and hand them over with the device to any future

owners.

This documentation is copyright protected.

All rights including those of photographic reproduction, duplication and distribution

by means of particular methods (for example data processing, data carriers and

data networks), wholly or partially as well as substantive and technical changes

are reserved.

Introduction

SAB 160 A1

Limited liability

All technical information, data and information for installation, connection and

operation contained in these operating instructions correspond to the latest at

time of printing and, to the best of our knowledge, take into account our previous

experience and know-how.

No claims can be derived from the details, illustrations and descriptions in these

instructions.

The manufacturer assumes no responsibility for damage caused by failure to

observe the instructions, improper use, inappropriate repairs, making unauthorized

changes or for using unapproved replacement parts.

Warnings

In the current operating instructions the following warnings are used:

WARNING

A warning of this danger level signiﬁes a possible dangerous

situation.

If the dangerous situation is not avoided it can lead to injuries.

The directives in this warning are there to avoid personal injuries.►

IMPORTANT

A warning of this danger level signiﬁes possible property

damage.

If the situation is not avoided it can lead to property damage.

The directives in this warning are there to avoid property damage.►

NOTICE

A notice signiﬁes additional information that assists in the handling of the►

device.

Introduction

SAB 160 A1

GB Proper use

This device is intended only for reception of FM/AM radio stations as well as

for the playback of audio and MP3 CDs, MP3 ﬁles from USB data carriers and

SD/MMC memory cards as well as audio signals of external audio devices. In

addition you can couple the device with a Bluetooth mobile phone and with the

microphone unit use the device as a hands free facility. The device is intended for

installation into a vehicle.

This device is not intended for any other use or for uses beyond those mentioned.

WARNING

Danger from unintended use!

Danger can come from the device if used for unintended purposes and/or

other types of use.

Use the device exclusively for intended purposes.►

Observe the procedures described in these operating instructions.►

Claims of any kind for damage resulting from unintended use will not be excepted.

The operator alone bears liability.

Safety

In this chapter you receive important safety information regarding handling of the

device.

This device complies with the statutory safety regulations. Incorrect usage can,

however, lead to personal injury and property damage.

Basic Safety Instructions

For safe handling of the device observe the following safety information:

Before use check the device for visible external damage. Do not put into■

operation a device that is damaged or has been dropped.

Damaged cables or connections should be replaced by authorized qualiﬁed■

persons or by the customer service department.

Persons who, due to their physical, intellectual or motor abilities, are incapable■

of operating the device safely may only use the device under supervision or

direction from a responsible person.

Only permit children to use the device under supervision.■

Introduction

SAB 160 A1

Repairs should only be carried out by authorized specialist companies or by■

the customer service department. Incorrect repairs can result in signiﬁcant

dangers for the user. In addition warranty claims become void.

A repair to the device during the warranty period may only be carried out■

by a customer service department authorized by the manufacturer otherwise

no additional warranty claims can be considered for subsequent damages.

Defective components may only be replaced with original replacement parts.■

Only by using original replacement parts can you guarantee that the safety

requirements are complied with.

Protect the device from moisture and liquid penetration.■

Danger from laser radiation

WARNING

The device is equipped with a class 1 laser.

Laser radiation is dangerous to the eyesight!

Observe the following safety instructions to avoid exposure

of yourself or others to laser radiation:

Never open the device.►

Have the device repaired only by a specialist.►

Do not make any modiﬁcations to the device.►

Traﬃc safety

WARNING

Safety in traﬃc has the highest priority!

Observe the following safety instructions so that you do not put yourself or

others in danger:

Before travel commencement familiarize yourself with the operation of the►

device.

Only operate the device when the traﬃc situation allows. Stop in a suitable►

place to carry out comprehensive operations.

Only remove or insert the face plate when the vehicle is parked.►

Set the volume to a moderate level so that acoustical signals from police►

vehicles, ﬁre trucks and other emergency services can be perceived in

good time.

Introduction

SAB 160 A1

GB Package contents and transport inspection

WARNING

Risk of suﬀocation!

Packaging material should not be used as a play thing.►

There is a risk of suﬀocation!

The device is delivered with the following components as standard:

Car radio (incl. face plate)▯

Installation bracket (Attached)▯

Bezel frame (Attached)▯

Fixture plate (incl. securing material)▯

Keys for installation frame (2x)▯

Case for face plate▯

Microphone unit with adhesive strip▯

Adapter cable for ISO-Block A▯

Operating instructions▯

NOTICE

Check the contents to make sure everything is there and for visible damage.►

If the contents are not complete or are damaged due to defective packaging►

or through transportation contact the service hotline (see warranty card).

Disposal of the packaging

The packaging protects the device from transport damage. The packaging materials

are selected from the point of view of their environmental friendliness and disposal

technology and are therefore recyclable.

The recirculation of packaging into the material circuit saves on raw material

and reduces generated waste. Dispose of packaging material that is no longer

needed according to the regionally established regulations.

NOTICE

If possible preserve the device's original packaging during the warranty►

period so that in the case of a warranty claim you can package the device

properly for return.

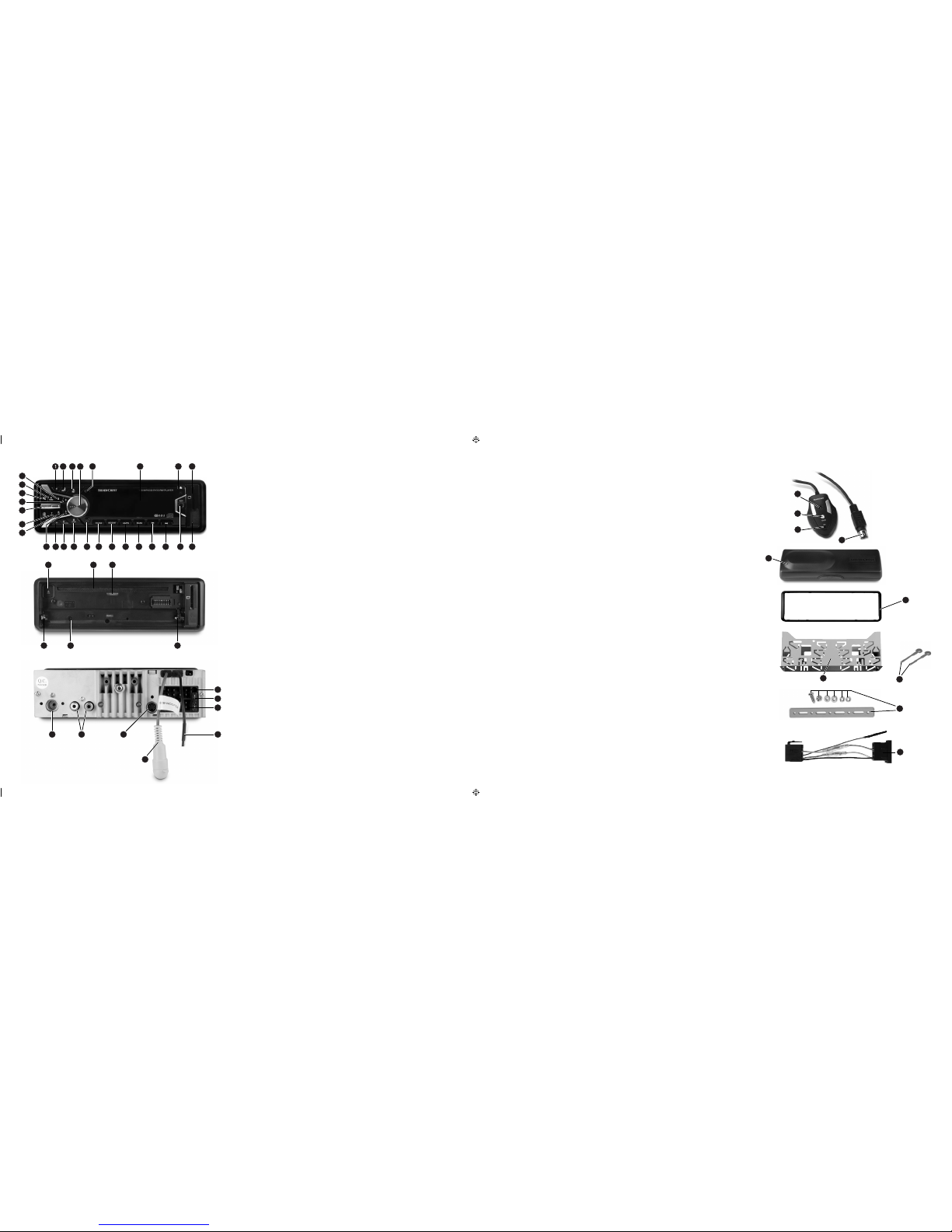

Operating components

SAB 160 A1

Operating components

Car radio (see front fold out ﬂap)

1: Number button 1

2RPT/2: Repeat function in the CD/MP3 operation mode, number button 2

3INT/3: Intro function in the CD/MP3 operation mode, number button 3

4Multi controller: Turn to set value/volume

5button: Accept call

6Display

7Unlocking the face plate

8Card slot for SD/MMC cards

9USB port

10 AUX : 3.5 mm stereo input socket for the connection of an external audio device

11 ▸▸I: Title / Station search forwards

12 I◂◂: Title / Station search backwards

13 SCAN/REC: Automatic station search/Record to a data carrier at the USB port

or the SD/MMC card slot

14 AS/PS: Automatic station saving

15 BD/ENT: Select band range/conﬁrm selection

16 PHONE: Access telephone function

17 button: End call

18 DISP/#: Show display information, # button

19 MODE/0: Set operational mode, number button 0

20 *: Button*

21 TA/9: Activate traﬃc radio station, number button 9

22 AF/8: Alternative Frequency search/regional programme activation, number

button 8

23 PTY/7: Station search by PTY group, number button 7

24 /DIM: Switch device on and oﬀ/dim display illumination

25 6: Number button 6

26 button: Switching oﬀ the sound

27 RDM/4: Random playback in the CD/MP3 operation mode, number button 4

28 5: Number button 5

29 button: Eject disc

30 CD compartment

Operating components

SAB 160 A1

31 Theft protection LED/ CD compartment position LED

32 Holder for the face plate

33 RESET: Resetting the device

34 ISO-Block connection B

35 Automotive blade type fuse 10 A

36 ISO block connection A

37 Bluetooth antenna

38 SUBWOOFER: Connection cable with cinch connector for subwoofer

39 Socket for microphone unit

40 LINE OUT: Audio cinch output L/R for ampliﬁer

41 Antenna connection for DIN antenna plug

Accessories (see rear fold out ﬂap)

42 Microphone unit plug

43 Microphone

44 TALK button

45 green LED for connection status

46 Case for face plate

47 Bezel frame

48 Installation bracket

49 Key for installation bracket

50 Fixture plate (incl. securing material)

51 Adapter cable for ISO-Block A

Otros manuales para SAB 160 A1

Tabla de contenidos

Idiomas:

Otros manuales de Receptor de coche de Silvercrest

Silvercrest

Silvercrest KH 2391 Manual de usuario

Silvercrest

Silvercrest KH 2381 Manual de usuario

Silvercrest

Silvercrest SAB 160 B2 Manual de usuario

Silvercrest

Silvercrest KH 2382 Manual de usuario

Silvercrest

Silvercrest BLUETOOTH KH 2376 Manual de usuario

Silvercrest

Silvercrest BLUETOOTH KH 2376 Manual de usuario

Silvercrest

Silvercrest CRB-531 Manual de usuario

Silvercrest

Silvercrest SAB 160 A1 Manual de usuario

Silvercrest

Silvercrest CRE-521 Manual de usuario

Silvercrest

Silvercrest KH 2382 Manual de usuario

Silvercrest

Silvercrest SAR 28 A1 Manual de usuario

Silvercrest

Silvercrest BLUETOOTH KH 2376 Manual de usuario

Silvercrest

Silvercrest SAR 28 A1 Manual de usuario

Silvercrest

Silvercrest KH 2375 Manual de usuario

Silvercrest

Silvercrest SKRI 2000 A1 Manual de usuario

Silvercrest

Silvercrest SAR 28 A1 Manual de usuario

Silvercrest

Silvercrest KH 2375 Manual de usuario

Silvercrest

Silvercrest BLUETOOTH KH 2376 Manual de usuario

Silvercrest

Silvercrest SAB 160 A1 Manual de usuario

Silvercrest

Silvercrest SAB 160 A1 Manual de usuario

Silvercrest

Silvercrest SAR 28 A1 Manual de usuario

Silvercrest

Silvercrest KH 2375 Manual de usuario

Silvercrest

Silvercrest KH 2381 Manual de usuario

Silvercrest

Silvercrest SAB 160 A1 Manual de usuario

Manuales populares de Receptor de coche de otras marcas

Motorola

Motorola VWA63 Manual de usuario

Nextar

Nextar D3201 Manual de usuario

Alpine

Alpine CDE-163BT Manual de usuario

Pioneer

Pioneer DEH-P645R Manual de usuario

Axxera

Axxera XDMA7600 Instrucciones de funcionamiento

XM OnyX Manual de usuario

Sound Storm

Sound Storm STM93R Manual de usuario

Soundstream

Soundstream VIR-5000 Manual de usuario

Avson

Avson MKT Platform Manual de usuario

Sony

Sony MEX-1HD - Audio Library System Manual de usuario

Pioneer

Pioneer DVH-P500UB Manual de usuario

JVC

JVC KD-AHD69 Manual de usuario

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manual de usuario

Sony

Sony CDX-4160 - Cd Receiver Manual de usuario

XFIRE AUDIO

XFIRE AUDIO BMW42S Manual de usuario

VDO

VDO CD 2253 Manual de usuario

Volvo

Volvo 13 84 580 Manual de usuario

ZENEC

ZENEC ZE-160DVD Manual de usuario
