Si4312-DB

Si4312 DEMO BOARD USER’SGUIDE

1. Overview

The Silicon Laboratories Si4312-DEMO board provides a complete OOK radio design with numerous selectable

features that demonstrate the capabilities of the Silicon Laboratories Si4312 OOK receiver. The Si4312-DEMO

board can be configured to receive OOK data from an SMA connector or wirelessly with an on-board printed circuit

board (PCB) antenna. The demodulated output data from the Si4312-DEMO board can be measured via an SMA

connector and/or observed with an LED and/or heard with an audio buzzer. The system is powered by a 9 V

battery or an external 3.3 V power supply.

2. Features

Single chip OOK receiver

Selectable 315/433.92 MHz carrier frequency

Selectable data rate, threshold hold time

3. Description

Figures 1 and 2 show the physical layout of the board with key components indicated.

Figure 1. Si4312 DEMO Board Top Side

Si4312-DB

2 Rev. 0.3

Figure 2. Si4312 DEMO Board Bottom Side with 9 V Battery

Power Supply Connector

J1: Jumper to select external 3.3 V supply. This is a solderable jumper and should be shorted when used.

J7: External 3.3 V supply connector: +3.3 V with the jumper on the right side and GND on the left side.

J3: 9 V battery supply connector: Power on with the jumper on the right side and power off with the jumper on the

left side.

J8: Jumper used to measure Si4311 current consumption.

Jumper connected (shorted) is normal operation.

Jumper connected with an ammeter in series to measure current.

D3: Power-on indicator. LED lights up when powered on.

RF Input

J4: SMA connector for an external RF input. Ensure inductor L3 is open to remove the PCB antenna when using

the SMA input.

Demodulated Data Output

J5: SMA connector for demodulated data output.

External Clock Driver

J9/J17: These solder jumpers should be shorted when an external clock driver is used.

J10: External clock connection point.

Ratio Setting

J11: Jumper used to select ratio setting.

Logic High (left side connection) for ratio = 10.

Logic Low (right side connection) for ratio = 5.

Carrier Frequency Selection

J12: Jumper used to select 315 or 433.92 MHz carrier frequency.

Logic High (left side connection) for 315 MHz.

Logic Low (right side connection) for 433.92 MHz.

Si4312-DB

Rev. 0.3 3

Bit Time Selection

J13/J14: Two jumpers used for bit time selection.

Frequency Deviation Selection

J15/J16: Two jumpers used for frequency deviation selection.

Key Components

U4: Si4312 single chip OOK receiver.

X1: 16 MHz crystal.

D1: LED lights up when data output present.

B2: Audio buzzer sounds when data output is present.

Table 1. Bit Time Selection

J13 J14 Bit Time [µs]

0 0 1000

01 500

10 200

11 100

Table 2. Frequency Deviation Selection

J13 J14 Threshold Hold Time [ms]

00 70

01 100

10 300

11 700

Si4312-DB

4 Rev. 0.3

4. Schematic

Figure 3. Si4312-DEMO Schematic

Si4312-DB

Rev. 0.3 5

5. PCB Layout

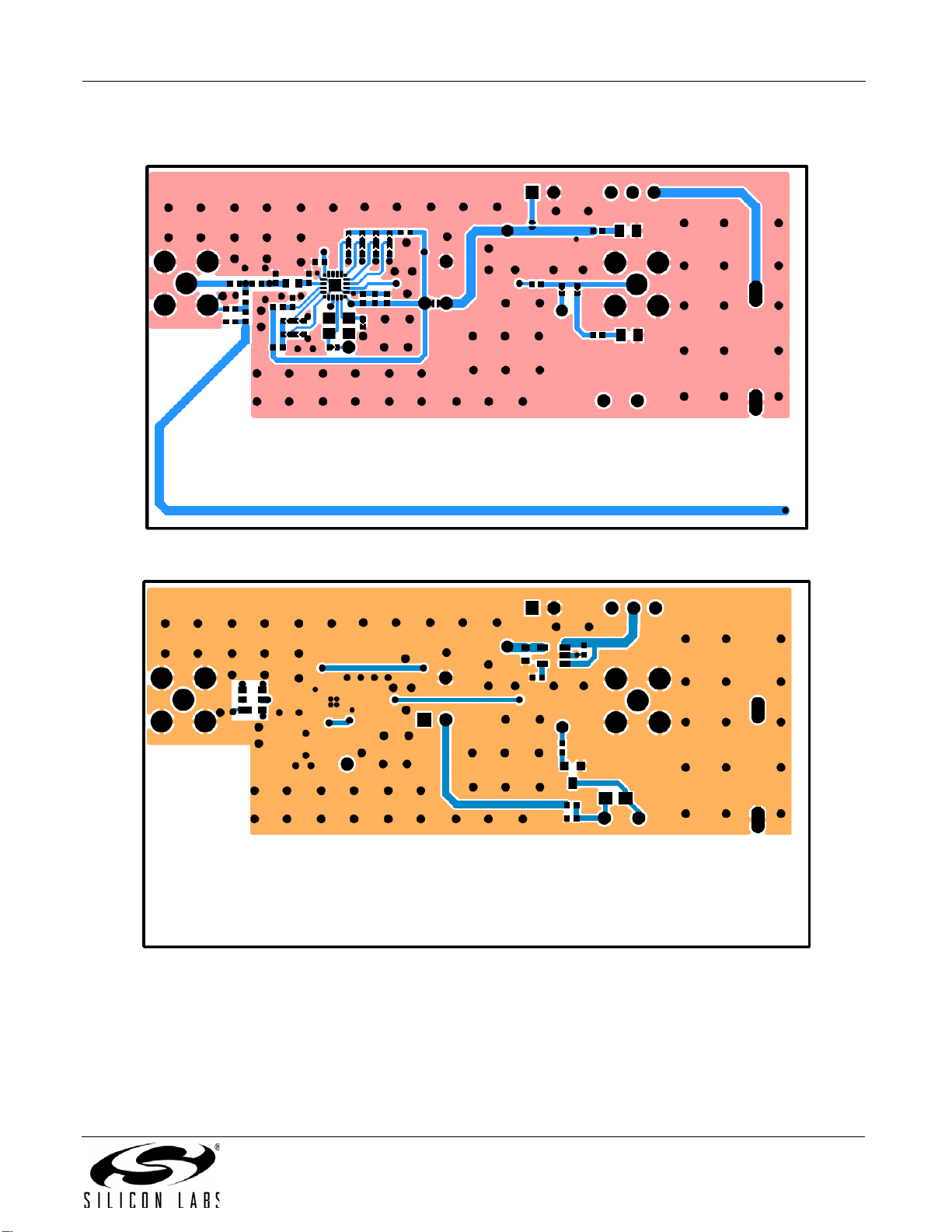

Figure 4. Si4312 PCB Top Layer

Figure 5. Si4312 PCB Bottom Layer

Si4312-DB

6 Rev. 0.3

Figure 6. Si4312 PCB Top Silkscreen

Figure 7. Si4312 PCB Bottom Silkscreen

Si4312-DB

Rev. 0.3 7

6. Bill of Materials

Reference Qty Package Value

B1 1 AA_BATTERY 9.0 V

B2 1 BUZZER2

C1,C7 2 CMS0402 22 nF

C2 1 CMS0603 15 pF

C3,C4 2 CMS0603 NC

C5,C9 2 CMS0402 1 µF

C6 1 CMS0402 NC

C8 1 CMS0402 0.1 µF

C10 1 CMS0402 10 nF

C11 1 CMS0603 2.2 µF

C13 1 CMS0402 220 pF

C14 1 CMS0603 TBD

D1,D3 2 CMS0805 LED

D2 1 CMS0805 IN4148

J3 1 DIP SWITCH

J4,J5 2 SMA

J7 1 HEADER2

L1 1 CMS0402 33 nH

L2 1 CMS0402 TBD

L3 1 CMS0402 0R/NC

Q1 1 SOT23 9013

R1 1 CMS0603 0R

R2 1 CMS0402 20 k

R3,R6 2 CMS0402 1 k

R4 1 CMS0402 330R

R5 1 CMS0402 10 k

R7 1 CMS0402 0R

R8 1 CMS0402 39R

R9 1 CMS0603 NC

U1 1 SOT-23-5 LP2985

U2 1 SC33 SAW filter

U3 1 ANT

U4 1 MLP20-3MM Si4312

X1 1 XTAL_32X25 16 MHz

Si4312-DB

8 Rev. 0.3

7. Receiving Data Status

8. References

Si4312 Data Sheet

Si4312-DB

Rev. 0.3 9
