SIIG 04-0680B Manual de usuario

Articulating Monitor Desk

Mount - 13" to 27"

Installation Instructions

04-0680B

Unpacking

• Carefully remove contents and lay out on

cardboard or other protective surface

• Check package contents against the parts

list to ensure that all components were

received undamaged. Do not use damaged

or defective parts

• Carefully read all instructions before

attempting installation

Safety Information

• Use proper safety equipment during

installation

• If you don't understand the installation

instructions, please consult an installation

specialist

• Do not use this product for any purpose or

in any configuration not explicitly specified

in these instructions

Parts List

a - (1x) 35mm

Tube Support

b - (1x) C Clamp c - (1x) Vesa

Plate with Arm

d - (4x) M4x12 Bolt e - (4x) M4x30 Bolt f - (8x) M4 Washer (4x) M4 Spacer

h - (2x) Wire Clip i - (2x) M10x15 Bolt j - (1x) Allen Key k - (2x) Spare

Plastic Cover

Tools Required

• Phillips screwdriver

Installation

Caution:Thismonitordeskmountmustbesecurly

attached to the horizontal desktop. If the mount

is not properly installed it may fall, resulting in

possible injury and/or damage.

1. Install the C Clamp (b) to the 35mm Tube

Support (a) according to the thickness of

the desktop. The thickness can be changed

in three positions. Connect it using 2

M10x15 Bolts (i) and tighten using the Allen

Key (j). Tighten the C Clamp to the desktop

using the 2 eye bolts.

2. Install the Vesa Plate with Arm (c) to the

tube support, make sure the wire clips are

on the bottom. Tighten the clamp bolt using

the Allen Key (j).

Caution: When installing the VESA Plate

with Arm (c), DO NOT over tighten the

clamp bolt. The VESA Plate with Arm is

intended to rotate (360 degrees) and is not

meant to be attached in a fixed position.

Tighten the bolt only tight enough to keep

the VESA Plate with Arm at the desired

height position. Over tightening the bolt

may result in damage to the clamp.

3. Mount the monitor to the Vesa plate.

3-1. For flat back monitors use M4x12 Bolt

(d) and M4 Washer (f).

Flat Back Monitor

3-2. For curved back monitors use M4

Spacer (g), M4x30 Bolt (e) and M4 Washer

(f).

Curved Back Monitor

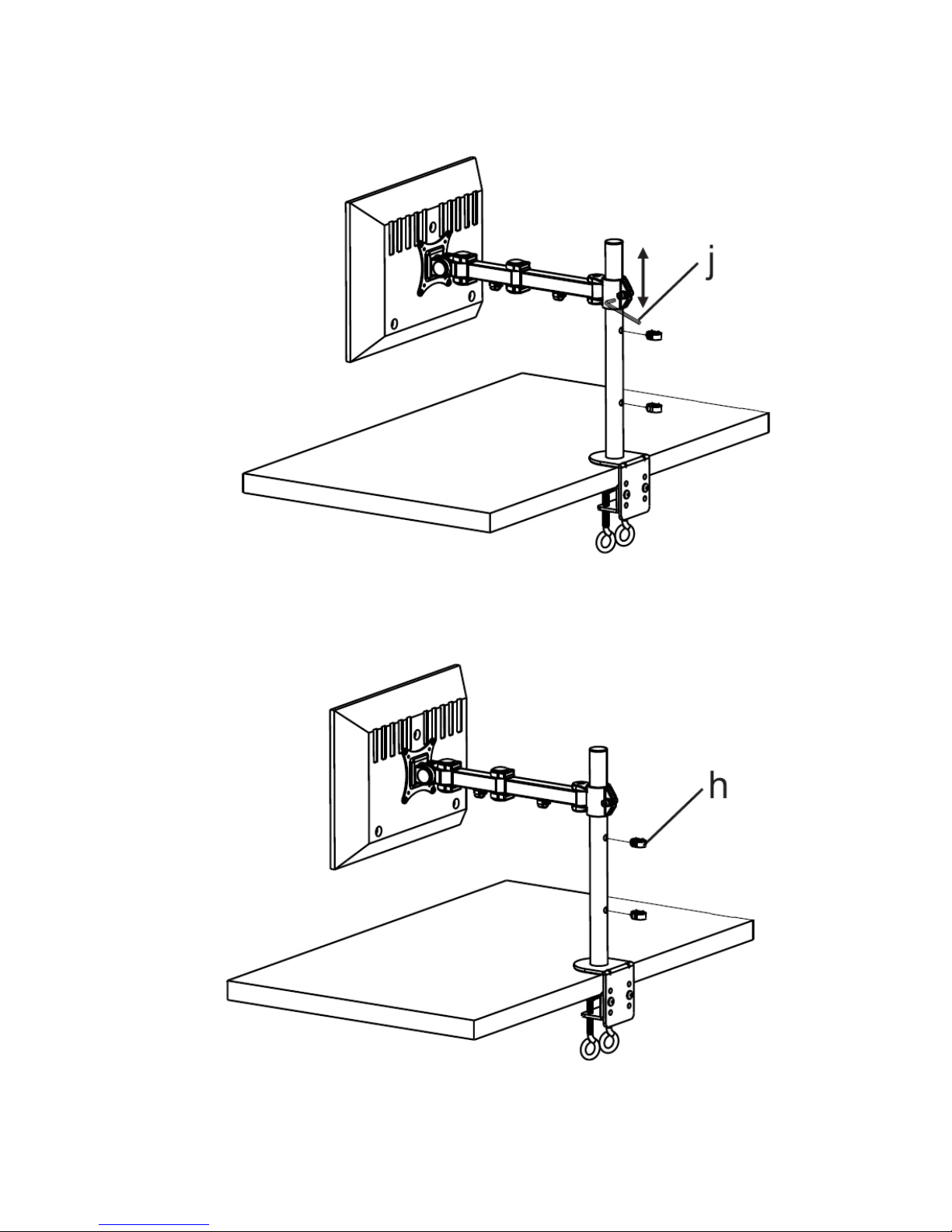

4. Adjust the height and install the Wire Clips

(h).

Adjust Height

Install Wire Clips

5. Check the tightness, arrange the cables

through the wire clips, and make any final

adjustments.

Check Tightness

Arrange Cables
