Siemens FDT181C Manual de usuario

Building Technologies

Fire safety and security products

FDT181C Collective Heat Detector

Product Manual

Overview

The heat detector FDT181C is a collective detector. It is used for fire detection inside a

building.

Characteristics

– Operation modes: A2 (Rate-of-rise and fixed temperature)

– Collective detector, no address setting, polarity free connection

– 360° visible alarm indicator

– Resistant to environment and interference factors such as humidity, corrosive and

vibration, with immunity against electro-magnetic interference.

Application

– Communication with FC18 controller via FDCI183 transponder, each FDCI183 can

connect max. 32 collective detectors.

– Communication with BC80 controller via BDS161 transponder, each BDS161 can

connect max. 10 collective detectors.

Building Technologies

A6V10361100_b_en_--

Fire safety and security products

07.2012

Indicator

The detector is provided with an internal alarm indicator to show its operating status.

Status

Indicator

Normal

Off

Alarm

Steady on

Installation

Easy and time-saving mounting

Install the base and finish the wiring during the construction phase.

1. Insert detector into base and turn it clockwisely until positioning pointer on base

align with positioning pointer on detector.(see below)

Uninstallation:

1. Turn it counterclockwisely and pull the detector out of base.

After all the construction is finished, the dust cap must be taken away!

No painting!

Dimensions

：

（

with base

）

Detector

Positioning pointer

Base

Positioning pointer

Building Technologies

A6V10361100_b_en_--

Fire safety and security products

07.2012

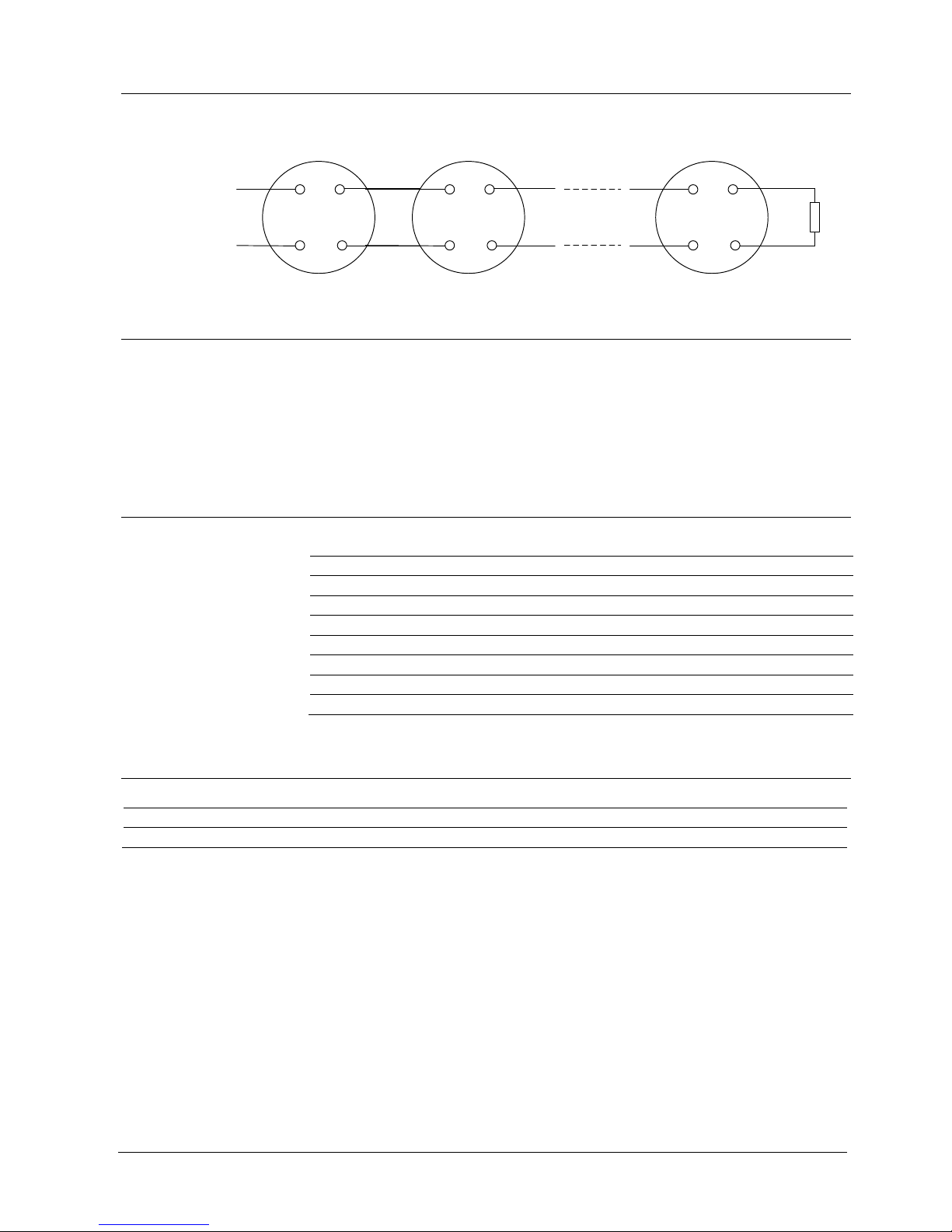

Connection diagram

Connect to

collective input

module

FDB181C

EOL1.5KE20CA

Maintenance

Performance test

Recommendation:

– Submit all detectors to an annual visual check. Detectors that are strongly soiled or

mechanically damaged must be replaced.

– Long term backup detectors should be stored with plastic bag.

– Carry out heat test each year.

Technical data

Operating voltage

10 … 28 VDC

Operating current (quiescent)

≤0.1 mA

Activation current

≤60.0 mA

Alarm temperature

61 °C±3 ℃

Operating temperature

–10 ... +50 °C

Storage temperature

–20 ... +70 °C

Humidity

≤96% (40

Color

White, RAL 9010

Protection category GB4208-93

IP40

Details for ordering

Type

Material No.

Part No.

Designation

Weight

FDT181C

S54320-F12-A2

101190983

Collective heat detector

0.065Kg

FDB181C

S54320-F9-A2

101190980

Collective detector base

0.038Kg

Beijing Siemens Cerberus Electronics Limited

No.1,Fengzhidonglu, Xibeiwang, HaiDian District,

Beijing, 100094, China

Tel: +10 6476 8806

Fax: +10 6476 8899

Doc No.

A6V10361100_b_en_--

Manual FD18

Edition

07.2012

101190971
