Installation Instruction

Document No. 538-663

Rev. 5, April, 2002

Trunk Interface II

Page 1 of 2

Product Description

The Trunk Interface II (Figure 1) conversely converts

RS-232 signals to PMD or LAN trunk signals.

NOTE: If you are connecting an MBC-based Open

Processor Driver, see Installation

Instructions (565-950).

Product Numbers

538-670 Trunk Interface II, 115 Vac power pack

538-675 Trunk Interface II, 230 Vac power pack

Required Tools

• Medium flat-blade screwdriver

• Medium Phillips screwdriver

• Wire strippers

Expected Installation Time

10 minutes (P2 Network)

15 minutes (P1 Network)

Figure 1. Trunk Interface II.

Prerequisites

The Trunk Interface II can be placed either on a

desk or inside a wall enclosure. For either

placement, the Trunk Interface II must be located

within four feet (1.2 m) of a power receptacle to

allow the power pack DC cable and earth ground

reference wire to reach the Trunk Interface II.

For desk placement

• Computer in place and RS-232 cable

assembled and connected to the computer’s

RS-232 port.

• All PMD trunk wiring installed and tested for

opens and shorts.

• Source of transient protected AC power

available.

For placement inside an enclosure

• Enclosure mounted.

• Transient protected outlet installed, (529-804).

(All standard APOGEE field panels contain

transient protected outlets.)

• All BLN trunk wiring installed and tested for

opens and shorts.

NOTE: To comply with installations requiring

Class 1 conduit connections, place the

Trunk Interface II in the field panel

enclosure.

Installation

P1 Trunk Applications

1. Unscrew the two Phillips screws on the front of

the Trunk Interface II enclosure and remove the

enclosure cover.

2. To change to an RCU or RPU P1 trunk

application, install jumpers one and two so that

they short their respective pins. The jumpers

are factory installed in a non-shorting position.

See Figure 2 for the location of the jumpers.

3. Replace the Trunk Interface II cover and attach

with the 2 Phillips screws removed in Step 2.

Document No. 538-663

Installation Instructions

Rev. 5, April, 2002

Information in this publication is based on current specifications. The company reserves the right to make changes in specifications and

models as design improvements are introduced. Other product or company names mentioned herein may be trademarks of their respective

Siemens Building Technologies, Inc.

1000 Deerfield Parkway

Buffalo Grove, IL 60089-4513

U.S.A.

Your feedback is important to us. If you have

comments about this document, please send

them to technical.editor@sbt.siemens.com

Document No. 538-663

Printed in the U.S.A

Page 2 of 2

P1 and P2 Trunk Applications

NOTE: For PC applications, do not disable pin 7

from being earth grounded on the RS-232

device that is connected to the Trunk

Interface II. The Trunk Interface II obtains an

earth ground reference for the shield

through the computer’s RS-232 port.

1. Attach the PMD trunk wires to the three-position

trunk connector as indicated on the rear panel

of the Trunk Interface II. The shield should be

taped back or connected as required to obtain a

single-ended earth grounded shield.

2. Connect the stripped end of the earth ground

wire to the shield position of the PMD Trunk

Connector and connect the other end (ring

terminal) to earth ground (for example,

mounting plate screw of outlet, field panel

chassis mounting screw, or other suitable earth

ground location).

3. Connect the RS-232 cable between the Trunk

Interface II and the computer’s RS-232 port.

4. Plug the DC power cord into the transformer

connector on the Trunk Interface II, then plug

the power pack into the appropriate power

source (Figure 3).

Installation is now complete.

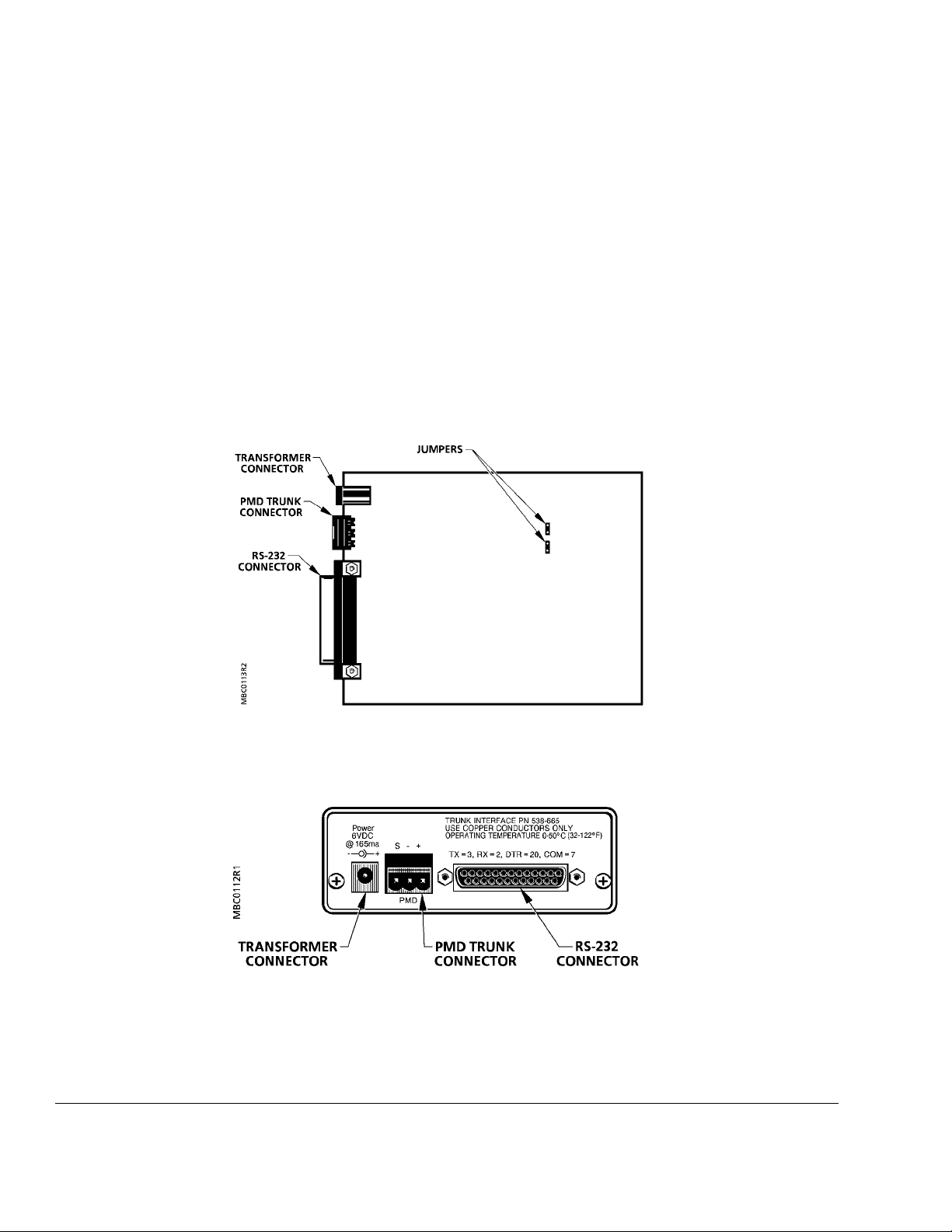

Figure 2. Trunk Interface II Jumper Locations.

Figure 3. Rear Panel of Trunk Interface II.
