Siemens ISlide HB30S51UC Manual de usuario

Built-in Oven

Installation Manual

Models:

HB30S51UC, HB30D51UC

Table of Contents

Questions?

866-44SIEMENS (447-4363)

www.siemens-home.com

We look forward to hearing from you!

This Siemens Appliance is made by

BSH Home Appliances Corporation

5551 McFadden Ave.

Huntington Beach, CA 92649

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Before you Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Tools and Parts Needed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Parts Included . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

30” Appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Removing Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Preparing Oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Electrical Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Oven Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Testing Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Before Calling Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

English 1

Safety

WARNING:

If the information in this manual is not followed exactly, fire or shock may result

causing property damage or personal injury.

WARNING:

Do not repair or replace any part of the appliance unless specifically recommended

in the manuals. Improper installation, service or maintenance can cause injury or

property damage. Refer to this manual for guidance. All other servicing should be

done by a qualified technician.

Appliance Handling Safety Do not lift appliance by door handle. Remove the door for easier handling and

installation. See instructions in Use and Care Manual.

Unit is heavy and requires at least two people or proper equipment to move.

Hidden surfaces may have sharp edges. Use caution when reaching behind or

under appliance.

Safety Codes and Standards This appliance complies with one or more of the following Standards:

• UL 858, The Standard for the Safety of Household Electric Ranges

• UL 923, The Standard for the Safety of Microwave Cooking Appliances

• UL 507, The Standard for the Safety of Electric Fans

• ANSI Z21.1, The American National Standard for Household Cooking Gas

Appliances

• CAN/CSA-C22.2 No. 113-M1984 Fans and Ventilators

• CAN/CSA-C22.2 No. 61-M89 Household Cooking Ranges

It is the responsibility of the owner and the installer to determine if additional

requirements and/or standards apply to specific installations.

Electric Safety Before you plug in an electrical cord, be sure all controls are in the OFF position.

If required by the National Electrical Code (or Canadian Electrical Code), this

appliance must be installed on a separate branch circuit.

Installer - show the owner the location of the circuit breaker or fuse. Mark it for easy

reference.

Important - Save these instructions for the local electrical inspector's use.

Before installing, turn power OFF at the service panel. Lock service panel to prevent

power from being turned ON accidentally.

Refer to data plate for more information. See "Data Plate" under "Service" for data

plate location.

mImportant Safety Instructions

READ AND SAVE THESE INSTRUCTIONS

English 2

Be sure your appliance is properly installed and grounded by a qualified technician.

Installation, electrical connections and grounding must comply with all applicable

codes.

Related Equipment Safety Remove all tape and packaging before using the appliance. Destroy the packaging

after unpacking the appliance. Never allow children to play with packaging material.

Never modify or alter the construction of the appliance. For example, do not remove

leveling legs, panels, wire covers or anti-tip brackets/screws.

Transport To avoid damage to the oven vent, use the transport method shown in the picture

below.

mImportant Safety Instructions

READ AND SAVE THESE INSTRUCTIONS

English 3

Preparation

Before you Begin

Tools and Parts Needed • Phillips head screwdriver

• Measuring tape

• Drill with bit (1/8")

Parts Included • Phillips head screws (6)

30” Appliances

Dimensions for 30” Wall-Mounted Units

281/2"

(724mm)

281/4"

(718mm)

27"

(686mm)

2713/16"

(706mm)

min. 43/4" (121mm)

max. 313/8" (797mm)

24"

(610mm)

237/8" (606mm)

22" (559mm)

291/16"

(738mm)

293/4"

(755mm)

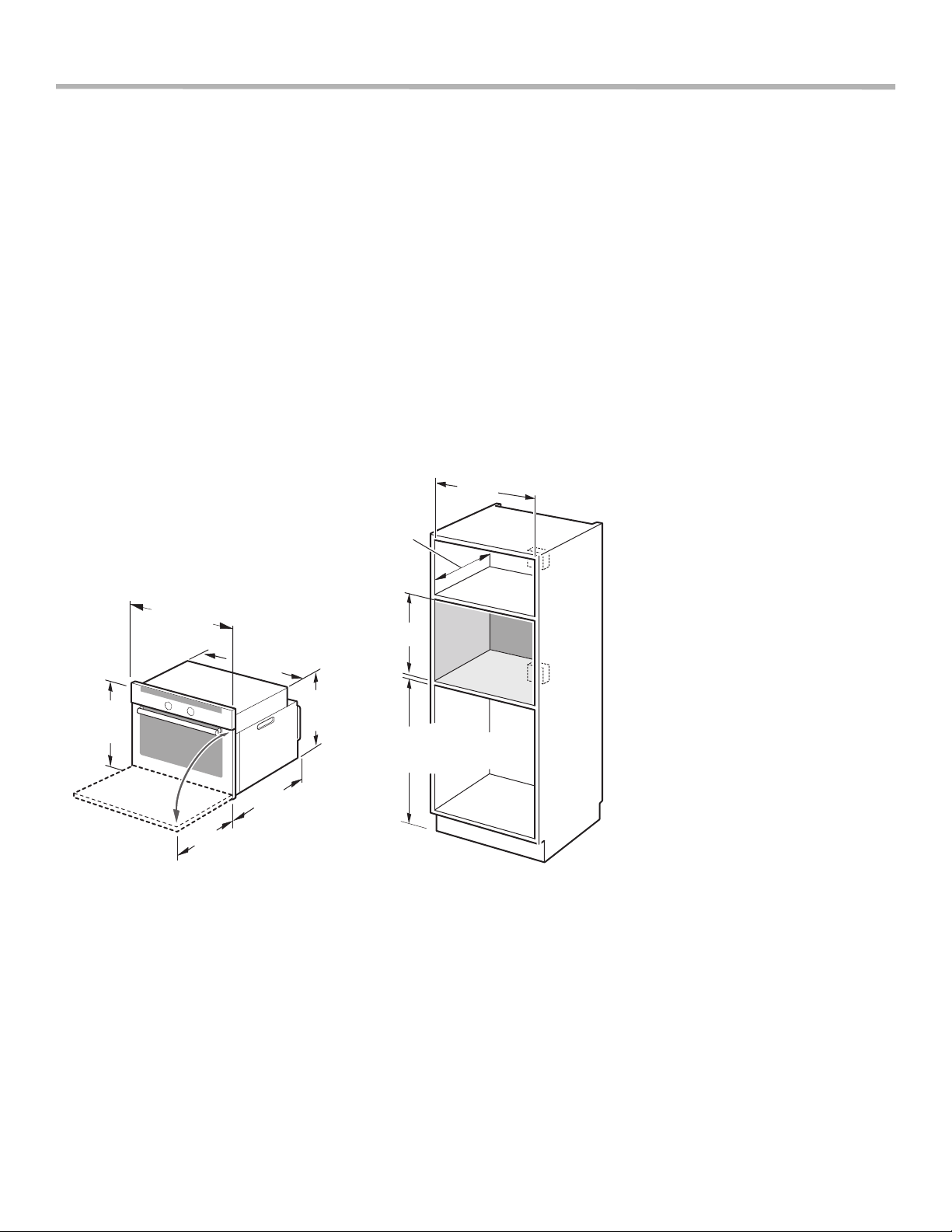

Single Oven 30”

It is good practice, when oven is

installed at the end of a cabinet run,

adjacent to a perpendicular wall or

cabinet door, to allow at least 1/4”

space between the side of the oven

and the wall/door.

For oven support, install 2x4’s

extending front to back flush with the

bottom and the side of the opening.

The supporting base must be well

secured to the floor/cabinet and level.

Note: The conduit box must be

installed either above or below the

unit. If the conduit box is installed

below the unit, a 2” diameter hole or

space is required between the back

wall and the right rear of the 2x4

supports.

The cabinet base must be flat and

capable of supporting a weight of at

least 190 lbs (86 kg).

English 4

281/2"

(724mm)

24"

(610mm)

511/8"

(1299mm)

93/4"

(248mm)

513/4"

(1314mm)

293/4"

(755mm)

237/8" (606mm)

22" (559mm)

493/4"

(1264mm)

2713/16"

(706mm)

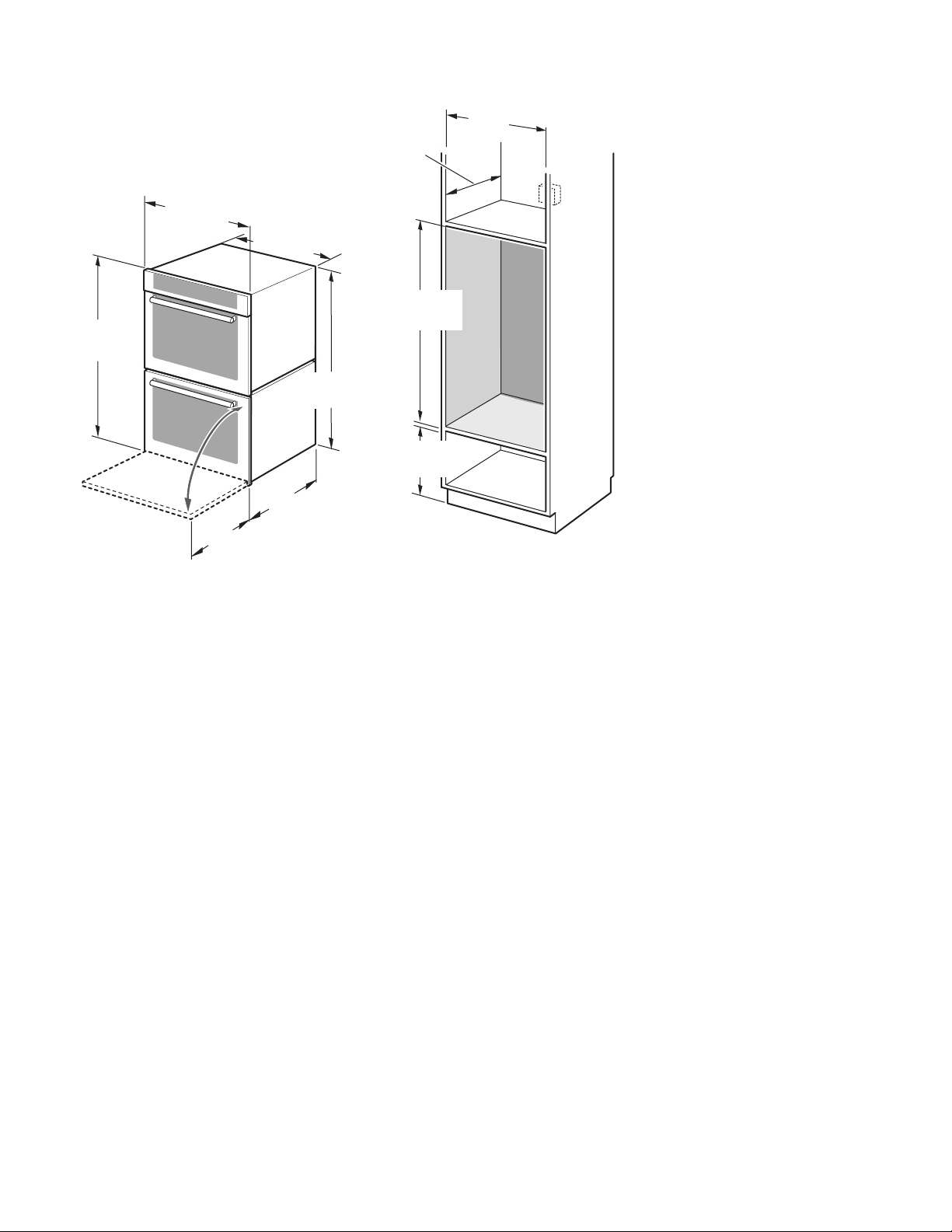

Double Oven 30”

It is good practice, when oven is

installed at the end of a cabinet run,

adjacent to a perpendicular wall or

cabinet door, to allow at least 1/4”

space between the side of the oven

and the wall/door.

For oven support, install 2x4’s

extending front to back flush with the

bottom and the side of the opening.

The supporting base must be well

secured to the floor/cabinet and level.

Note: The conduit box must be located

above the unit to facilitate connecting

and servicing.

The cabinet base must be flat and

capable of supporting a weight of at

least 330 lbs (150 kg).

English 5

Removing Packaging

• Cut foil wrap in the area of corner posts.

• Remove foil completely.

• Remove top cardboard.

• Remove all top and side cardboard and Styrofoam braces.

• Place oven in front of cabinets where it is to be installed.

• Unscrew unit from Left and Right Brackets as show in “Left and Right

Packaging Bracket Removal.”

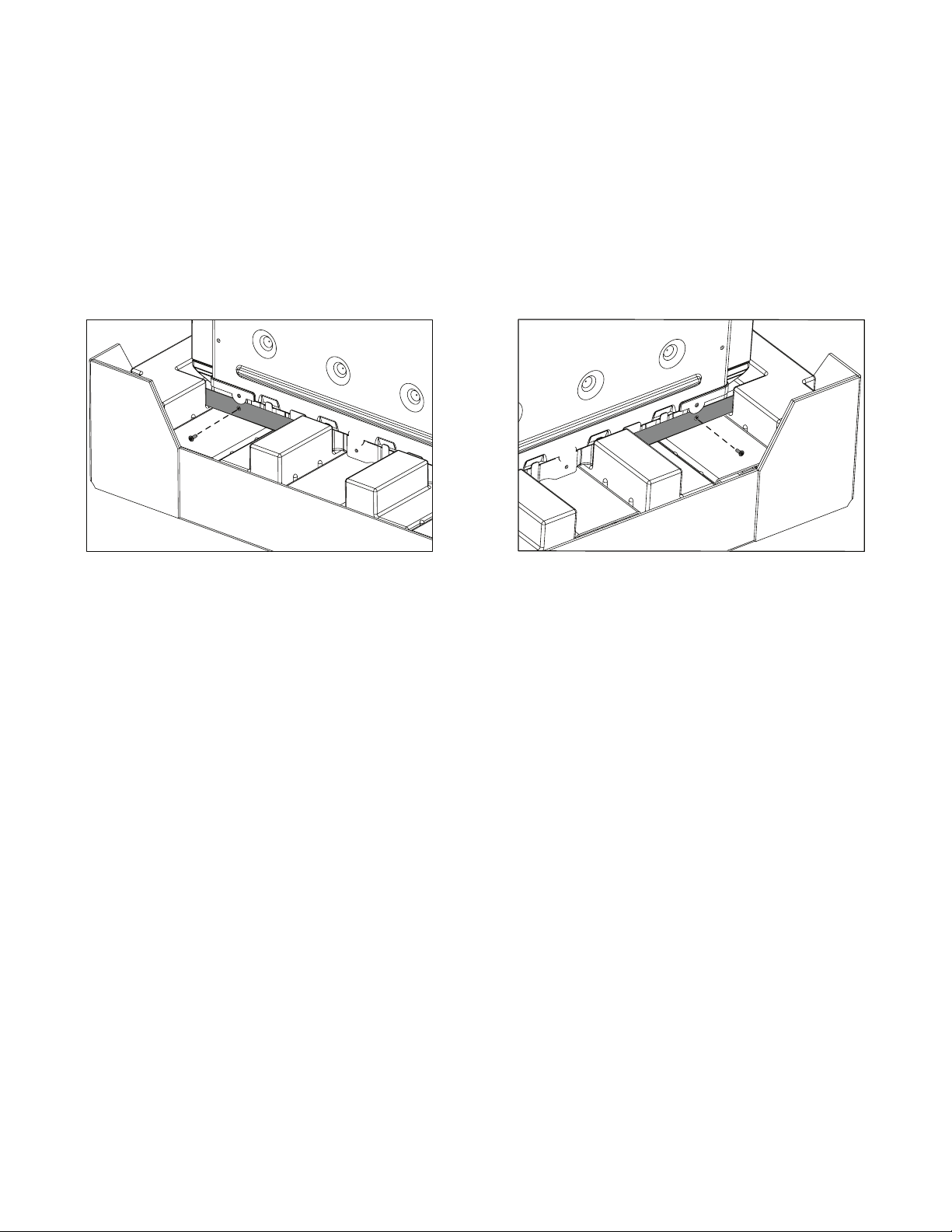

Left and Right Packaging Bracket Removal

Note: Bracket remains in packaging base. Unit should stay in packaging base plate until

ready to be lifted into cabinet cutout.

Preparing Oven Place oven in front of cabinets where it is to be installed. Rest it on a jack or other

sturdy support so that it is in line with the cabinet cutout.

English 6

Installation

Electrical Installation

All model ovens on the front cover are dual rated, designed to be connected to

either 208/240V AC, 60 Hz, 4 wire, single-phase power supply.

The electrical supply should be a 4-wire single-phase AC. Install a suitable conduit

box (not furnished).

Important: Local Codes may vary, installation, electrical connections and

grounding must comply with all applicable local codes.

If local codes permit grounding through the electrical supply neutral, connect both

the white neutral wire and the bare ground wire from the oven to the white neutral

electrical supply wire.

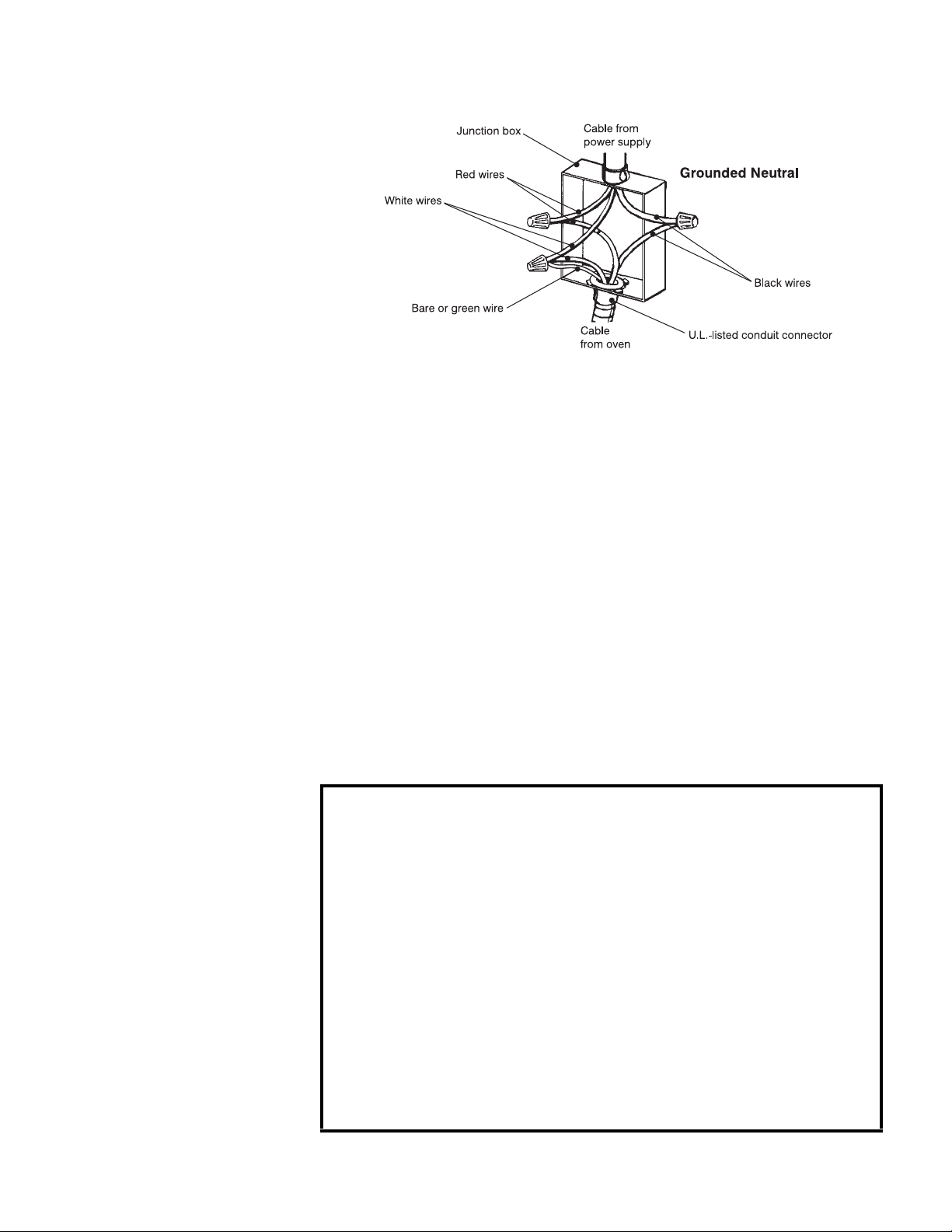

Electrical Connection The four-wire connection is preferred, but where local codes permit, the three wire

connection is also acceptable.

Four-wire Connection

• Connect the red oven wire to the red electrical supply wire (hot wire).

• Connect the black oven wire to the black electrical supply wire (hot wire).

• Connect the white neutral oven wire to the white neutral (not bare ground)

electrical supply wire.

• Connect the bare ground oven wire to the bare ground electrical supply wire.

Model Circuit Required

208V, 60 Hz 240V, 60 Hz

HB30S51UC 30 AMP 30 AMP

HB30D51UC 40 or 50 Amp circuit. Refer to local electrical codes

for de-rating requirements.

English 7

Three-wire Connection

• Connect red wire from oven to red wire injunction box.

• Connect black wire from oven to black wire in junction box.

• Connect both green ground wire and white wire from oven to white (or gray)

neutral wire in junction box.

The conduit cable, where connected at the oven, swivels. Rotate conduit cable

upward (or downward) and direct through hole prepared in cabinet to attach to J-

Box.

To maintain serviceability, the flex conduit must not be shortened and should be

routed to permit temporary removal of the oven.

Oven Installation

Note: Before installing the oven be sure to verify the cabinet dimensions and electrical

connections.

Removing the Oven Door For ease of installation, some oven doors may be removed to reduce the weight of

the oven by 30 lbs (14 kg) per door, before installing into the cabinet. See “To

remove the oven door.”

mCAUTION:

When removing the door:

• Make sure oven is cool and power to the oven has been turned

off before removing the door. Failure to do so could result in

electrical shock or burns.

• The oven door is heavy and fragile. Use both hands to remove

the oven door. The door front is glass. Handle carefully to avoid

breaking.

• Grasp only the sides of the oven door. Do not grasp the handle

as it may swing in your hand and cause damage or injury.

• Failure to grasp the oven door firmly and properly could result in

personal injury or product damage.

• To avoid injury from hinge bracket snapping closed, be sure that

both levers are securely in place before removing the door. Also,

do not force door open or closed - the hinge could be damaged

and injury could result.

English 8

To remove the oven door:

Installing the Oven 1. Lift or slide unit into cabinet cutout. Do not lift appliance by door handle.

2. Push straight in until oven trim is flush with cabinet wall, being careful not to

crimp flexible conduit between oven and cabinet back wall. The oven should be

straight and level, not crooked.

3. Install supplied screws through tap holes in trim. (2 screws for single ovens, 4

screws for double/combo ovens)

To replace the oven door:

1. Be sure to read the above CAUTION

before attempting to remove the door.

2. Open the door completely.

3. Flip levers on hinges toward you.

4. Close door carefully until it stops. It will

be about half way closed.

5. Holding the door firmly on both sides

using both hands, pull the door up and

out of the hinge slots. Hold firmly; the

door is heavy.

6. Place the door in a convenient and

stable location.

1. Holding the door firmly in both hands,

place hinges in hinge slots.

2. Open door all the way to expose

hinges and slots.

3. Push lever down and away from you

until flush with the bracket.

4. Close and open door slowly to be sure

it is correctly and securely in place.

Door must be straight, not crooked.

Otros manuales para iSlide HB30S51UC

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Horno de Siemens

Siemens

Siemens iQ700 HM776G1 1B Series Manual de usuario

Siemens

Siemens HM736G1 1S Series Manual de usuario

Siemens

Siemens HB 78 6B Series Manual de usuario

Siemens

Siemens HB33CB550 Manual de usuario

Siemens

Siemens HR876G8B6A Manual de usuario

Siemens

Siemens HN678GE.6B Manual de usuario

Siemens

Siemens HB 78 B Series Manual de usuario

Siemens

Siemens HM633GN 1 Series Manual de usuario

Siemens

Siemens CM633GB 1S Series Manual de usuario

Siemens

Siemens HB674GB 1 Series Instrucciones de funcionamiento y mantenimiento

Siemens

Siemens HB556AB.0 Manual de usuario

Siemens

Siemens HB 380.60 Manual de usuario

Siemens

Siemens HB732G1 1 Series Manual de usuario

Siemens

Siemens HB78AB 90 Series Manual de usuario

Siemens

Siemens CM756G1 1 Series Manual de usuario

Siemens

Siemens HB632GC 1S Series Manual de usuario

Siemens

Siemens CS858GR 7B Series Manual de usuario

Siemens

Siemens HB55MB551B Manual de usuario

Siemens

Siemens HS736G3 1I Series Manual de usuario

Siemens

Siemens HB86P575 Manual de usuario

Siemens

Siemens HB78GB.70B Manual de usuario

Siemens

Siemens HB274AB 0S Series Manual de usuario

Siemens

Siemens HB655GB 1 Series Manual de usuario

Siemens

Siemens HB 770.60 B Manual de usuario

Manuales populares de Horno de otras marcas

Bosch

Bosch HVA531NS0 Manual de usuario

Electrolux

Electrolux EOF6P46X Manual de usuario

NEFF

NEFF B44S32 5GB Series Manual de usuario

Combi

Combi BLODGETT BC142GDS Manual de usuario

AEG

AEG COMPETENCE 311704300 Manual de usuario

Falcon

Falcon DOMINATOR PLUS G3106 Series Guía del usuario

Rational

Rational SCC WE 61G Manual de usuario

Smeg

Smeg DOSPA38X Manual de instalación y operación

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manual de usuario

Miele

Miele HR 1954-2 Manual de usuario

KHIND

KHIND OT50 Manual de usuario

Henny Penny

Henny Penny Smoker Box Manual de usuario

Lang

Lang ECOD-AP Manual de usuario

AEG

AEG BEK455310M Manual de usuario

Frigidaire

Frigidaire FNGE90JGR Manual de usuario

Hotpoint

Hotpoint FE9 S831 JSH IX Manual de usuario

GE Advantium SCB2000 Manual de usuario

AEG

AEG DE401301DM Manual de usuario

Siemens iSlide HB30S51UC Manual de usuario

Manuales populares de Horno de otras marcas
