Dear customer,

Congratulations on your choice. Thank you for purchasing one of our

appliances. This practical, modern and functional appliance is manufactured

using materials of the highest quality which are subject to strict Quality

Control checks throughout the entire manufacturing process. The appliance

is meticulously tested to ensure that it meets your demands and produces

perfect cooking results.

Do not remove the appliance from its protective packaging until it is installed

in the unit.

Please read these instructions carefully before proceeding to install and use

the appliance. The information contained in these instructions is essential for

the correct operation of the appliance and, more importantly, for your safety.

The packaging of your appliance has been manufactured using only the

materials which are strictly necessary to guarantee efficient protection

during transport. These materials are 100% recyclable, thus reducing the

environmental impact. You can also contribute to caring for the environment,

by following the advice below:

- dispose of the packaging in the appropriate recycling bin,

- before you get rid of an old appliance, make sure you disable it. Contact

your local authority to find out the address of your nearest recycling centre

to dispose of your appliance,

- do not pour used oil down the sink. Collect it in a sealed container and

take it to an appropriate collection point or, failing that, place it in the rubbish

bin (it will end up in a controlled dump; this is probably not the best option,

but it will avoid contaminating ground water).

IMPORTANT:

In the unlikely event that the appliance should arrive damaged or not meet

your expectations in terms of quality, please inform us as soon as possible.

For the warranty to be valid, the appliance must not have been tampered

with, or used inappropriately.

Safety precautions

Read these instructions carefully. Reading these

instructions will enable you to use your appliance safely

and effectively.

All operations relating to installation, regulation and

conversion to other types of gas must be carried

out by an authorised installation engineer, respecting

applicable regulations, standards and the specifications

of the gas and electricity providers.

You are recommended to contact the Technical

Assistance Service to convert to another type of gas.

Before installing your new hob, ensure that it is being

installed according to the assembly instructions.

This appliance can only be installed in a well ventilated

place in accordance with existing regulations and

ventilation specifications. The appliance must not be

connected to a combustion product removal device.

The place in which the appliance is installed must have

fully-functioning ventilation, in accordance with the

regulations.

Do not subject the appliance to draughts. These might

This appliance leaves the factory set to the type of gas

Do not tamper with the appliance’s interior.

If necessary, call our Technical Assistance Service.

These operating and installation instructions should be

retained, and passed onto the buyer if the appliance is

sold.

Do not switch on the appliance if it is damaged in any

way. Contact our Technical Assistance Service.

that is indicated on the specifications plate. If this must

blow out the burners.

be changed, read the Assembly instructions.

This appliance has been designed for home use only,

not for commercial or professional use. This appliance

cannot be installed on yachts or in caravans. The

warranty will only be valid if the appliance is used for the

purpose for which it was designed.

The surfaces of cooking appliances heat up during

use. Care must be taken when using these appliances.

Keep children well away from the appliance.

This appliance is only intended for cooking purposes,

not as a heating system.

Fat or oil which is overheated can catch fire easily. Do

not leave oil or fats to heat up unattended. If oil or fats

do catch fire, never use water to put the fire out. Risk

of burns! Put the fire out by covering the pan with a lid

and switch off the hotplate.

In the event of a malfunction, turn off the appliance’s

gas and electricity supply. For repairs, call our Technical

Assistance Service.

If one of the controls will not turn, do not force it. Call

the Technical Assistance Service immediately, so that

they can repair or replace it.

Never place unstable pans on the hob or the burners,

as they may accidentally tip over.

This appliance is class 3 type, according to the EN 30-

1-1 regulation for gas appliances: built-in appliance.

Do not store or use corrosive chemicals, products

which produce fumes, flammable materials or non-food

products below or near this domestic appliance.

The graphics in this instruction manual are given as a

guide only.

The manufacturer is exempt from all responsibility if this

the requirements of this manual are not complied with.

This appliance is not intended for use by persons

(including children) with reduced physical, sensory or

mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or

instruction concerning use of the appliance by a person

responsible for their safety.

kÉîÉê=äÉ~îÉ=íÜÉ=~ééäá~åÅÉ=ìå~ííÉåÇÉÇ=ÇìêáåÖ=çéÉê~íáçåK=

Do not clean the hob using a steam cleaner.

Risk of electrocution!

Your new appliance

Pan support

burner (up to

Burner (up to

1.1 kW)

Burner (up to

1.9 kW)

2.8 kW)

6 kW)

Burner (up to

Control knob

Dual double flame

1. Press the chosen burner control and turn it

anticlockwise to the required setting.

2. Use any type of lighter or flame (cigarette lighter,

matches, etc.) and bring it close to the burner.

There are indications to show which burner each

control knob operates. Fig. 1.

The gas burners

Switching on manually

It is essential to ensure that all the burner parts

and the pan supports are correctly installed for the

Operation

Fig. 4

Fig. 1

Fig. 2

Fig. 3

appliance to work correctly. Fig. 2-3-4-5.

Fig. 5

Power levels

Turn the corresponding control clockwise to the 0

setting.

Switching off a burner

If your hob features the automatic ON function

(ignition sparkers):

1. Press the chosen burner control and turn it

anticlockwise to the maximum power setting.

While the control is still pressed down, sparks are

produced on all burners. The flame ignites (it is no

longer necessary to press down the control).

2. Turn the control to the required setting.

If it does not come on, turn the control to the off

setting and repeat the steps above. This time,

press and hold the control for longer (up to 10

seconds).

Warning! If after 15 seconds have elapsed, the

flame does not ignite, switch off the burner and

open a nearby window or door. Wait at least one

minute before trying to switch the burner back on.

Switching on

automatically

The progressive controls can be used to control

the power needed, from minimum to maximum

power.

Depending on the model, your hob may have a

safety system (termopar) that prevents the flow of

gas if the burners accidentally switch off. To ensure

that this device is active, switch on the burner as

usual and, without releasing the control, press and

hold it down firmly for 4 seconds after lighting the

flame.

Safety system

Termopar Ignition sparker

Setting

Large flame

Economy

flame

Control off

Maximum capacity or

aperture and electricity

Minimum capacity or

aperture

It is normal to hear a whistling noise while the burner

is operating.

When it is first used, it is normal for the burner to give

off fumes; this does not pose any risk and does not

indicate a malfunction; they will disappear in time.

Keep the burner as clean as possible. If the ignition

sparkers are dirty, they will not light properly. Clean

them periodically using a small non-wire brush. Bear

in mind that the ignition sparkers must not suffer any

serious impacts.

An orange-coloured flame is normal. This is caused

by the presence of dust in the atmosphere, spilt

liquids, etc.

Warnings

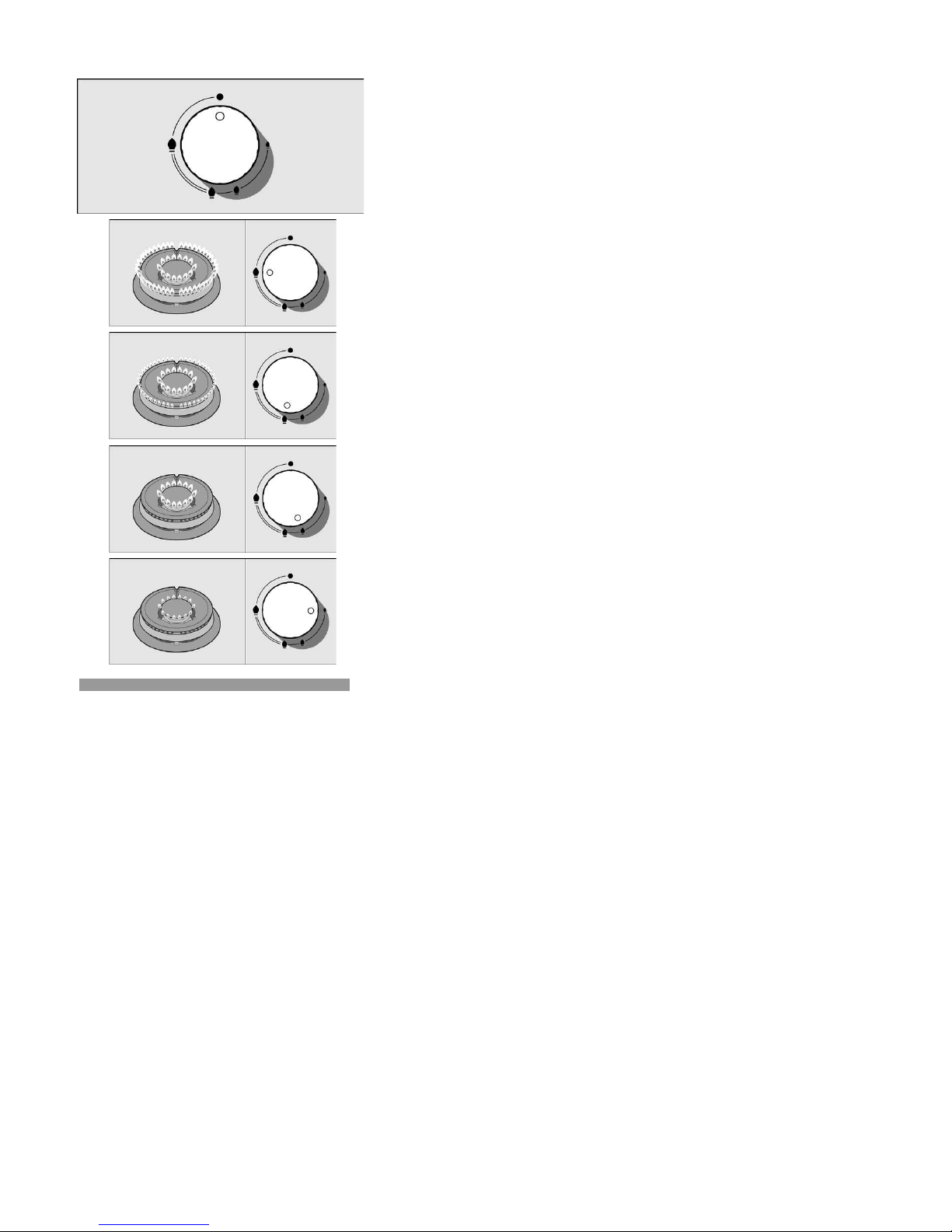

For dual double flame burners, the inner and outer

flames can be controlled separately.

The available power levels are as follows:

Inner and outer flame on full power.

Outer flame on minimum, inner flame on full power.

Inner flame on full power.

Inner flame on minimum.

means that the safety device is no longer operating.

sound (thud) will be produced. This is not a fault- this

A few seconds after the burner is switched off, a

Suitable pans

The kitchen will become hot and humid when this

gas appliance is used. You must therefore ensure that

the kitchen is well-ventilated. Either keep the natural

ventilation apertures open, or install an extractor

hood.

If using the appliance intensively for prolonged periods

additional ventilation may be required, for example,

by opening a window; more effective ventilation may

also be required, for example, by increasing the hob’s

ventilation, if possible.

If the burner flames are accidentally blown out, switch

off the burner operating control and do not try to

relight it for at least one minute.

Wok pan

Burner

Minimum

pan diameter

Maximum

pan diameter

Double flame

burner 22 cm

Rapid burner 22 cm 26 cm

Semi-rapid

burner 14 cm 20 cm

Auxiliary burner 12 cm 16 cm

Food can be prepared in various ways in a wok: it can

be stewed, stir fried, cooked on a low heat, pan-fried,

or steamed. It could be said that woks serve as both

as a saucepan and a frying pan and, owing to their

shape and size, they can be used to cook quite large

ingredients.

When cooking with a wok, heat is diffused more

uniformly and gently; the intense heat which

accumulates means that food takes less time to

cook and also requires less oil, making it one of the

quickest and healthiest ways of cooking. Always

follow the manufacturer’s instructions when cooking

with a wok.

A wok is a cooking vessel originating in China; it is

a kind of deep, round, lightweight pan with handles

and a flat or concave base.

Otros manuales para Hobs

Tabla de contenidos

Idiomas:

Otros manuales de Quemador de Siemens

Siemens

Siemens Domino ER3 B Series Manual de usuario

Siemens

Siemens EH9 MD Series Manual de usuario

Siemens

Siemens ET 790 Series Manual de usuario

Siemens

Siemens EA6**GN Series Manual de usuario

Siemens

Siemens EX NX Series Hoja de especificaciones

Siemens

Siemens EX8 NY Series Hoja de especificaciones

Siemens

Siemens EX HXC Series Hoja de especificaciones

Siemens

Siemens ET8..LCP1 Manual de usuario

Siemens

Siemens iQ700 ER3A6AD70 Series Hoja de especificaciones

Siemens

Siemens EX8 LV Series Hoja de especificaciones

Siemens

Siemens ET8 MK Series Manual de usuario

Siemens

Siemens ET6..MD.. Manual de usuario

Siemens

Siemens EH HEB Series Hoja de especificaciones

Siemens

Siemens ER326C1W Manual de usuario

Siemens

Siemens EH.85M.11E Manual de usuario

Siemens

Siemens EX YJ Series Manual de usuario

Siemens

Siemens EO6..P.8 Series Manual de usuario

Siemens

Siemens EF 887 Series Manual de usuario

Siemens

Siemens EA8 Series Manual de usuario

Siemens

Siemens EU FE Series Hoja de especificaciones

Siemens

Siemens EL75263TH Manual del propietario

Siemens

Siemens EB6C.P... Manual de usuario

Siemens

Siemens ET39 CEA1 Series Manual de usuario

Siemens

Siemens EF 775 Series Manual de usuario

Manuales populares de Quemador de otras marcas

AEG

AEG CERAMIC HOB 6010 K Manual de usuario

VALERA

VALERA CT 70A Manual de usuario

Zanussi

Zanussi ZGF 6420 Manual de usuario

Gaggenau

Gaggenau CI 273 Manual de usuario

G3 Ferrari

G3 Ferrari Energy Manual de usuario

Pkm

Pkm IN4B Manual de usuario

Award

Award H903BG Manual de usuario

Zanussi

Zanussi VCH 5005 RZ Manual de usuario

Miele

Miele KM 523 Manual de usuario

Hotpoint

Hotpoint IS67V8CCXT/E Manual de usuario

AEG

AEG HK854870XB Manual de usuario

Cookology

Cookology SEP600BK Manual de usuario

Bauknecht

Bauknecht Hob Manual de usuario

Zanussi

Zanussi ZGM 782 Manual de usuario

dipo INDUCTION

dipo INDUCTION DIBK218S Manual de usuario

Miele

Miele KM 5987 Manual de usuario

Miele

Miele KM 360 G Manual de usuario

Blomberg

Blomberg MKN 24201 W Manual de usuario
