INSTALLATION INSTRUCTIONS

Model FHD2012-U1

Inner Door for Remote Terminal Display Module

INTRODUCTION

The model FHD2012-U1 Inner Door for Terminal Display Modules from Siemens Industry, Inc. is used

with theFHB2001-U1/R1 Backbox. The FHD2012-U1 Inner Door has an indentation and opening to allow

the FT2014 or FT2015 Remote Display Terminal to be installed in the FHB2001-U1/R1 Backbox in order

to meet the regulatory requirements for Canadian Applications. This inner door is black, and for indoor use

only in a dry and protected environment.

Figure 1: FHD2012-U1 Inner Door for the Remote Terminal Display Module

The following hardware kit is provided with FHD2012-U1:

Qty ITEM USE

4 Pan Philips semi-square screws Used to mount the inner door to the enclosure

1 Ground Strap Used to ground the inner door with the enclosure

Install the Remote Terminal Display Module on the Inner Door:

1. Separate the front panel from the back panel, making sure not to damage the ground strap “A”.

The four screws will be reused, but disregard the back panel since it is no longer needed.

P/N A6V10385202_a_en_-- 2

Figure 2: FHD2012-U1 with RDT

2. Follow the installation instructions of the FT2014 or FT2001, P/N A6V10315046, giving

consideration on its wiring and electrical requirements.

Install the Inner Door:

1. Place three of the four #8-32 x 5/16” screws provided in the bottom three holes for the door on the

left side of the enclosure and tighten them a few turns.

2. Slide the inner door into position under the screws.

3. Close the door andmake certain that the spring-loaded fastener fits in the hole on the right side of

the enclosure. Screw down the fastener to secure it in place.

4. Place one more #8-32 x 5/16” screw in the top hole and tighten all four screws securely.

Figure 3: FHD2012-U1 in FHD2001-U1 with FT2014

P/N A6V10385202_a_en_-- 3

Install the Ground Straps:

1. Install ground strap “A” between the two nuts “B” located on the inner door.

2. Install ground strap “C” between the two nuts “D” located on the enclosure.

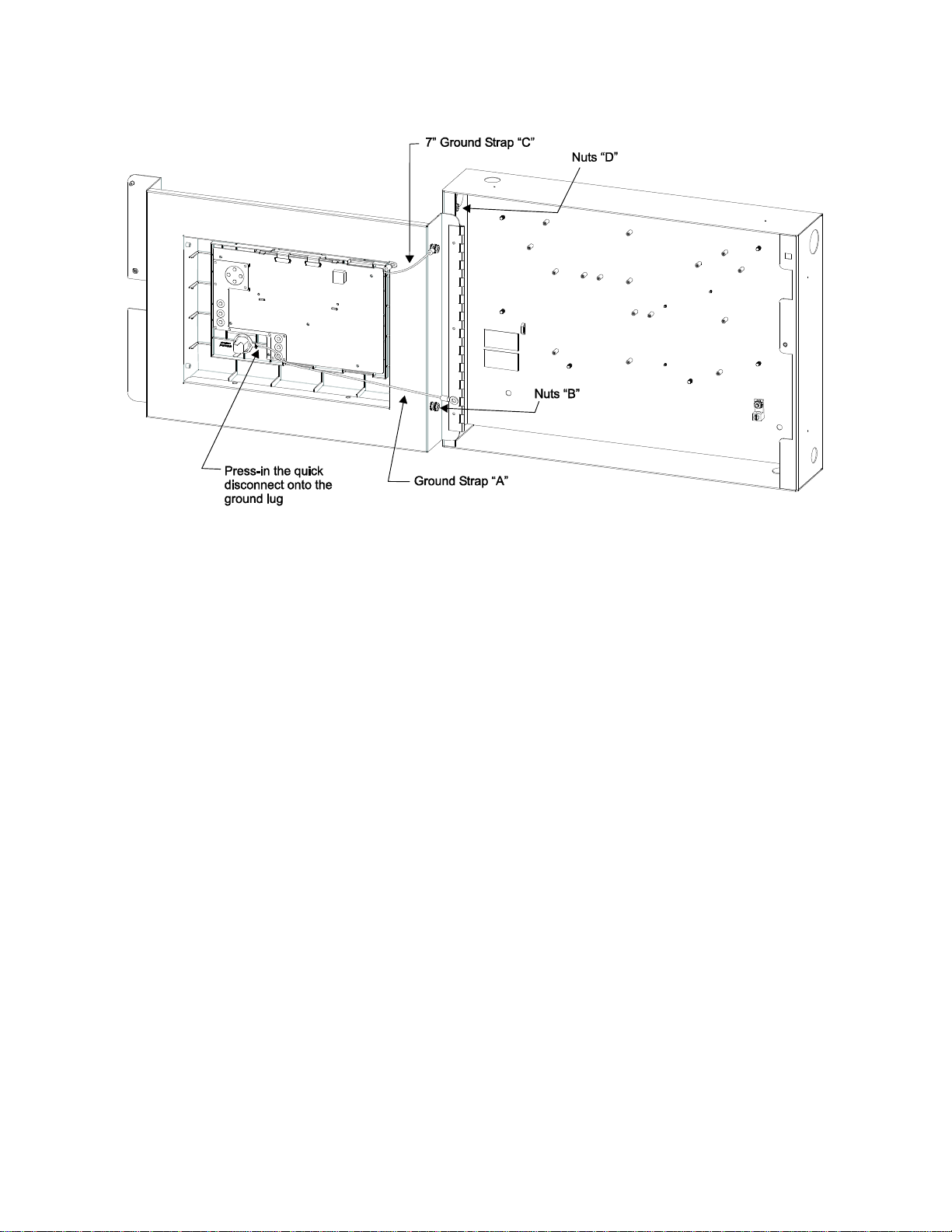

Figure 4: Installing the Ground Straps

COMPATIBILITY

FHD2012-U1 is an inner door that can be used with the FHB2001-U1/R1 backbox only.

TECHNICAL DATA

FHD2012-U1: 20-3/8”W x 2-1/4”D x 13-1/4”L

P/N A6V10385202_a_en_-- P/N A5Q00054386
