MICROMASTER 420

Getting Started Guide

This Getting Started Guide allows easy and efficient commissioning of the

MICROMASTER 420 inverter. For further technical information, please refer to

the Operating Instructions and the Reference Manual on the CD-ROM

supplied with the MICROMASTER 420 inverter.

Contents

1 Mechanical Installation 3

2 Electrical Installation 4

3 Avoiding Electro-Magnetic Interference 5

4 Commissioning the MICROMASTER 420 Inverter 6

4.1 Default Settings 6

4.2 Commissioning with Getting Started Guide 7

4.3 Commissioning with the Status Display Panel 7

4.4 Commissioning with the Basic Operator Panel 8

4.5 Changing parameters and settings using a ‘BOP’ / ‘AOP’ 9

5 Quick Commissioning 10

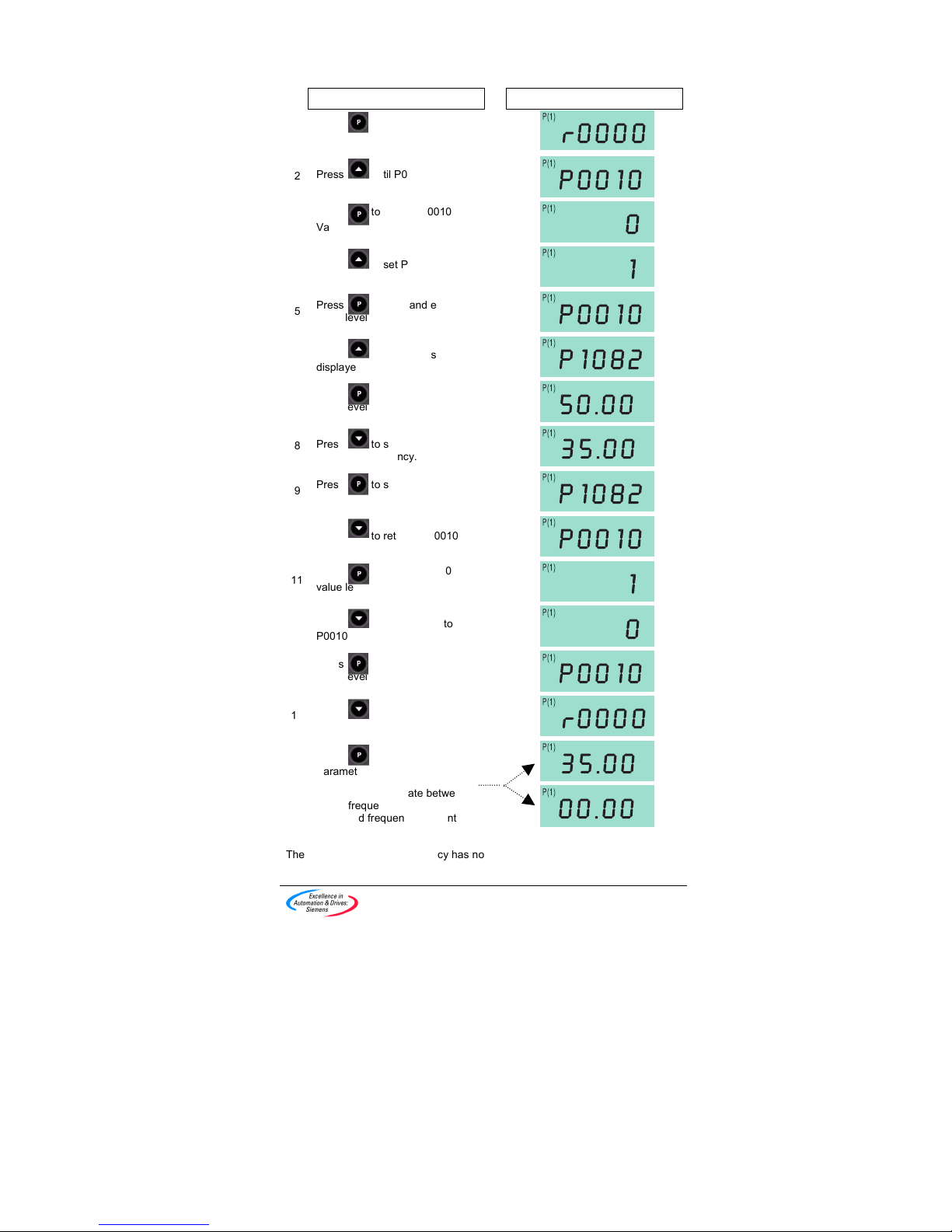

5.1 RESET Using P0010 & P0970 10

5.2 Motor Data for "Quick Commissioning" 11

5.3 Starting/Stopping the motor using a ‘BOP’ (P0700 = 1) 11

5.4 Commissioning with the Advanced Operator Panel (AOP) 11

5.5 Additional Control Applications 11

5.6 Further information ... 11

6 Changing the Display / Operator Panel 12

6.1 Changing single digits in Parameter values 12

7 Troubleshooting 13

7.1 With the Status Display Panel 13

7.2 With Operator Panels (BOP & AOP) 13

8 Parameterization of the Inverter Overview 14

8.1 Parameter Structure 15

2Getting Started Guide – September 2000

6SE6400-5AB00-0BP0

Warnings, Cautions and Notes

The following Warnings, Cautions and Notes are provided for your safety and as

a means of preventing damage to the product or components in the machines

connected.

Specific Warnings, Cautions and Notes that apply to particular activities are

listed at the beginning of the relevant sections.

Please read the information carefully, since it is provided for your personal

safety and will also help prolong the service life of your MICROMASTER 420

inverter and the equipment you connect to it.

!Warnings

This equipment contains dangerous voltages and controls

potentially dangerous rotating mechanical parts. Non-compliance

with Warnings or failure to follow the instructions contained in this

manual can result in loss of life, severe personal injury or serious

damage to property.

Only suitably qualified personnel should work on this equipment,

and only after becoming familiar with all safety notices,

installation, operation and maintenance procedures contained in

this manual. The successful and safe operation of this equipment

is dependent upon its proper handling, installation, operation and

maintenance.

The DC link of all MICROMASTER modules remains at a

hazardous voltage level for 5 minutes after all voltages have been

disconnected. Therefore always wait for 5 minutes after

disconnecting the inverter from the power supply before carrying

out work on any MICROMASTER modules.

This equipment is capable of providing internal motor overload

protection in accordance with UL508C section 42. Refer to P0610

(level 3) and P0335. Motor overload protection can also be

provided using an external PTC via a digital input.

This equipment is suitable for use in a circuit capable of delivering

not more than 10,000 symmetrical amperes (rms), for a maximum

voltage of 230/460V when protected by a time delay fuse (see

Table on Page 93 of the Operating Instructions).

Class 1 60/75° copper wire only.

Refer to the Operating Instructions for tightening torques.

!Caution

Children and the general public must be prevented from accessing

or approaching the equipment!

This equipment may only be used for the purpose specified by the

manufacturer. Unauthorized modifications and the use of spare

parts and accessories that are not sold or recommended by the

manufacturer of the equipment can cause fires, electric shocks

and injuries.

Notes

Keep this Getting Started Guide within easy reach of the

equipment and make them available to all users.

Whenever measuring or testing has to be performed on live

equipment, the regulations of Safety Code VBG 4.0 must be

observed, in particular § 8 ‘Permissible Deviations when Working

on Live Parts’. Suitable electronic tools should be used.

Before carrying out any installation and commissioning

procedures, you must read all safety instructions and warnings,

including all warning labels attached to the equipment. Make sure

that the warning labels are kept in a legible condition and ensure

missing or damaged labels are replaced.

Getting Started Guide – September 2000

6SE6400-5AB00-0BP0

1 Mechanical Installation

!Warning

THIS EQUIPMENT MUST BE GROUNDED.

To ensure the safe operation of the inverter, it must be installed

and commissioned by qualified personnel in full compliance with

the warnings laid down in the MICROMASTER 420 operating

instructions.

Take particular note of the general and regional installation and

safety regulations regarding work on dangerous voltage

installations (e.g. EN 50178), as well as the relevant regulations

regarding the correct use of tools and personal protective gear.

The mains input, DC and motor terminals carry dangerous

voltages even if the inverter is inoperative, wait 5 minutes to allow

the unit to discharge after switching off before carrying out any

installation work.

Frame Size A Frame Size B Frame Size C

Drill pattern for MICROMASTER 420

Overall Dimensions

Frame-

Size Height Width Depth

Fixing Method Tightening

Torque

A 173mm 73mm 149mm 2 x M4 Bolts

2 x M4 Nuts

2 x M4 Washers

Connecting to

DIN rail

2.5Nm

with washers

fitted

B 202mm 149mm 172mm 4 x M4 Bolts

4 x M4 Nuts

4 x M4 Washers

2.5Nm

with washers

fitted

C 245mm 185mm 195mm 4 x M5 Bolts

4 x M5 Nuts

4 x M5 Washers

3.0Nm

with washers

fitted

Frame Size measurements and fixing methods

4Getting Started Guide – September 2000

6SE6400-5AB00-0BP0

2 Electrical Installation

!Warning

Before electrical installation, set the power supply frequency for

Europe or North America. For operation on the North American

Power Supply, set the DIP-Switch (2) to 60 Hz (up). For operation

on the European Power Supply, leave the DIP-Switch (2) in the

default position 50 Hz (down).

When installing the inverter after a period of storage please refer to

Section 2 of the Operating Instructions

DIP-Switch 1 is not used.

230V 400 V / 230 V (North America)

Single Phase Three Phase

UVW

ooo

ooo



ooo

UVW

ooo

ooo



ooo

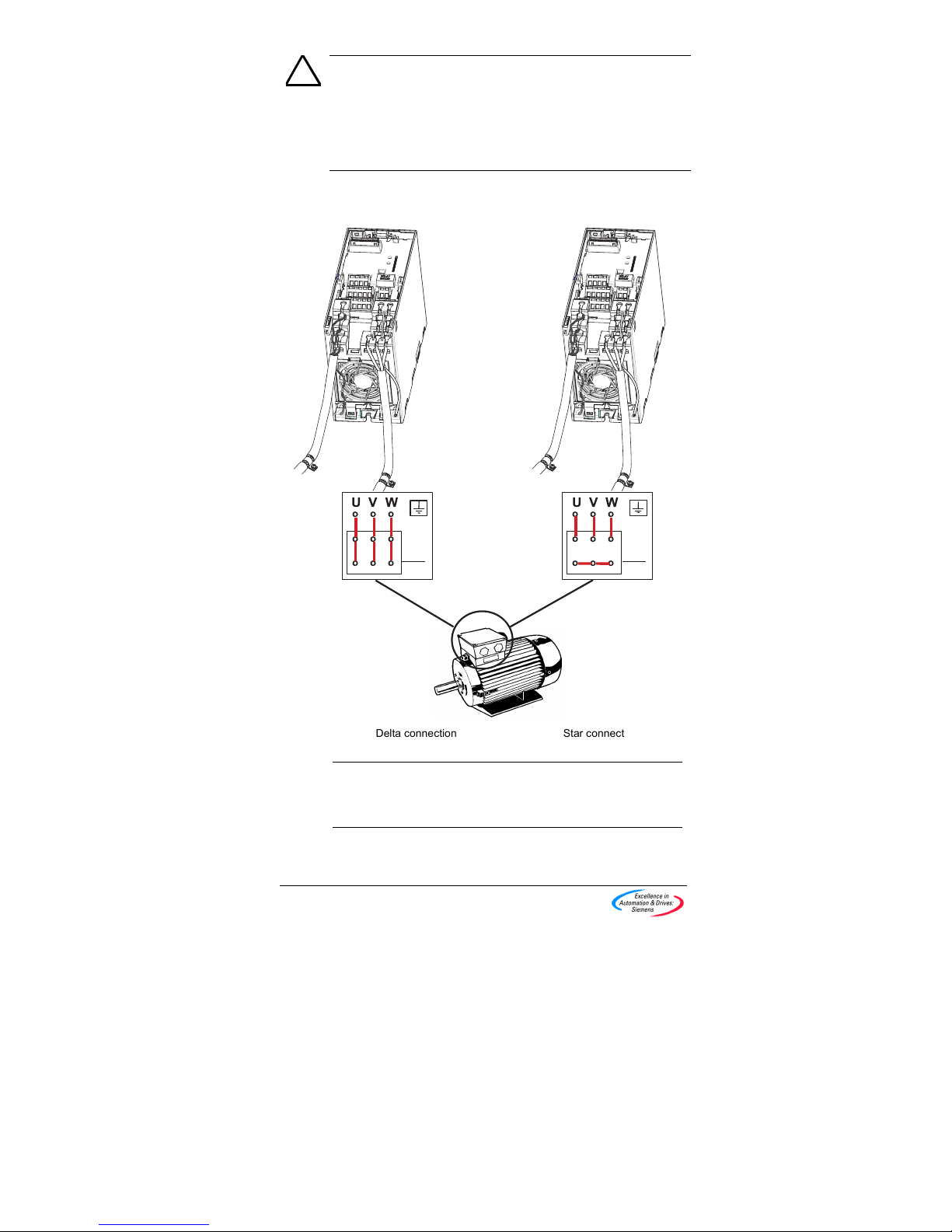

Delta connection Star connection

230 V single phase 400 V / 230 V three phase

Note

Motors above 11kW are normally configured 400V Delta or 690 V

Star. Motor should be connected appropriately according to the

output voltage of the inverter. For further information refer to the

Operating Instructions of the motor.

Getting Started Guide – September 2000

6SE6400-5AB00-0BP0

3 Avoiding Electro-Magnetic Interference

The inverters are designed to operate in an industrial environment where a high

level of EMI can be expected. Usually, good installation practices will ensure

safe and trouble-free operation. If you encounter problems, follow the guidelines

stated below.

Actions to Take

Ensure that all equipment in the cubicle is well grounded using short, thick

grounding cable connected to a common star point or busbar

Make sure that any control equipment connected to the inverter (such as a

PLC) is connected to the same ground or star point as the inverter via a

short, thick link

Connect the return ground from the motors, directly to the ground connection

(PE) on the associated inverter

Flat conductors are preferred as they have lower impedance at higher

frequencies

Terminate the ends of the cable neatly, ensuring that unscreened wires are

as short as possible

Separate the control cables from the power connections as much as

possible, using separate trunking, if necessary at 900right angles.

Whenever possible, use screened leads for the connections to the control

circuitry

Ensure that contactors inside the cubicle are suppressed, either with R-C

suppressors for AC contactors or 'flywheel' diodes for DC contactors fitted to

the coils. Varistor suppressors are also effective. This is important when the

contactors are controlled from the inverter relay

Use screened or armored connections for the motor connections and ground

the screen at both ends using cable clamps

Warning

Safety regulations must not be compromised when

installing inverters!

6Getting Started Guide – September 2000

6SE6400-5AB00-0BP0

4 Commissioning the MICROMASTER 420 Inverter

The MM420 is supplied with a Status Display Panel (SDP). Default parameter

settings cover the following requirements:

The motor rating data, Voltage, Current and Frequency are all compatable

with the inverter data. (A standard Siemens motor is recommended).

Linear V/f motor speed, controlled by an analogue potentiometer.

Maximum speed 3000 min-1 with 50 Hz (3600 min-1 with 60 Hz),

Controllable using a potentiometer via the inverter’s analogue inputs

Ramp-up time / Ramp-down time = 10 s

If more complex application settings are required, please refer to the parameter

listing in the Operating Instructions.

For changing parameters you need one of the optional modules "Basic Operator

Panel" (BOP), "Advanced Operator Panel" (AOP) or communication options.

See Operating Instructions and Reference Manual.

In this Guide, Commissioning with SDP and "Quick Commissioning" with

the BOP (including the neccessary parameters) are explained.

For replacing the SDP by an Operator Panel see Section 6

Note:

Frequency setting: The inverter is delivered as follows:

DIP switch 2:

♦Off position: European defaults (50Hz, kW etc.)

♦On position: North American defaults (60Hz, hp etc.)

DIP switch 1: Not for customer use.

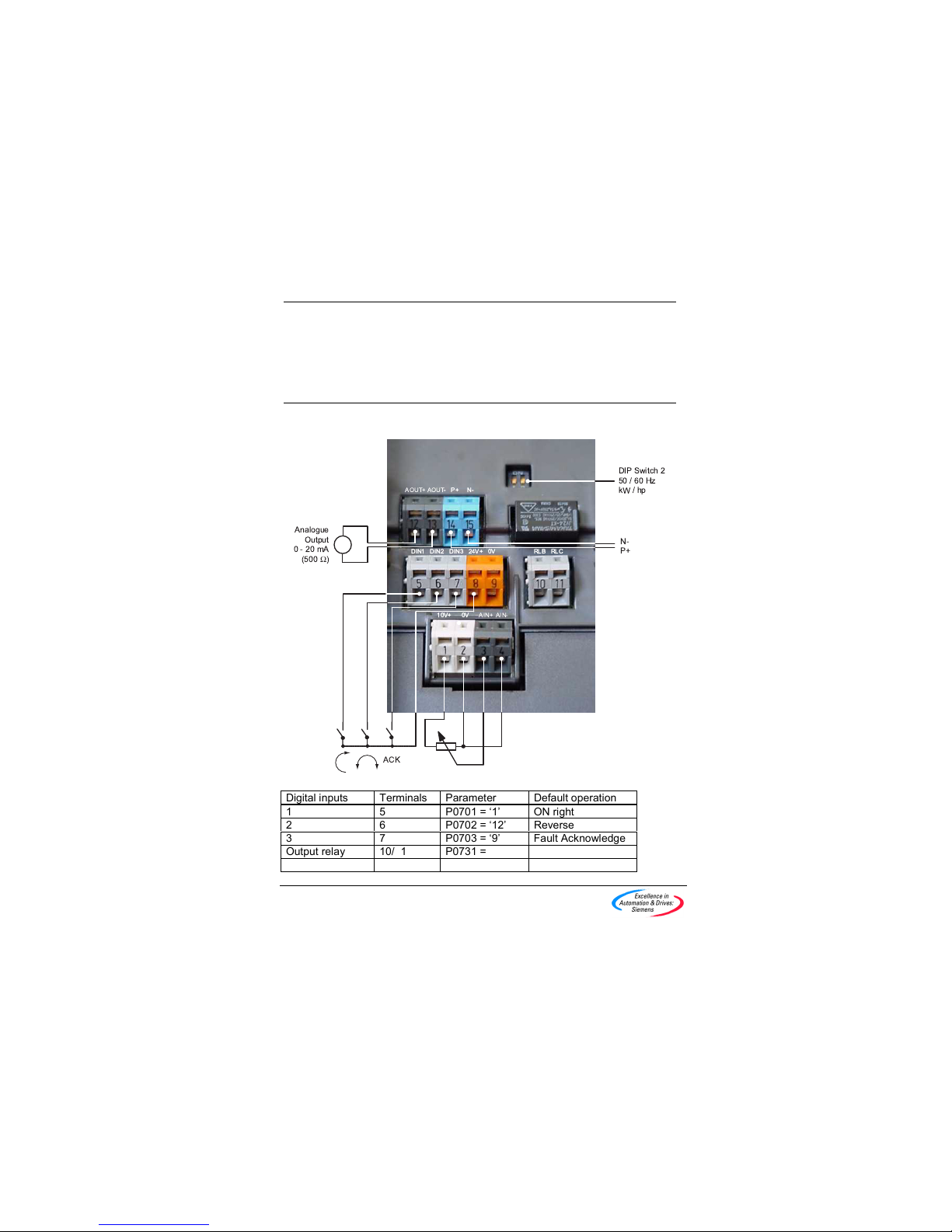

4.1 Default Settings

AOUT+ AOUT-P+ N-- P+ N-

DIN1 DIN2 DIN3 24V+ 0VDIN1 DIN2 DIN3 24V+ 0V RLB RLCRLB RLC

10V+ 0V10V+ 0V AIN+ AIN-

DIP Switch 2

50 / 60 Hz

kW / hp

Analogue

Output

0-20mA

(500

Ω

)

ACK

N-

P+

Digital inputs Terminals Parameter Default operation

1 5 P0701 = ‘1’ ON right

2 6 P0702 = ‘12’ Reverse

3 7 P0703 = ‘9’ Fault Acknowledge

Output relay 10/11 P0731 = ’52.3’ Fault Indication

Analogue Output 12/13 P0771 = ’21’ Output Frequency

Getting Started Guide – September 2000

6SE6400-5AB00-0BP0

4.2 Commissioning with Getting Started Guide

Electrical Installation

Page 4

Mechanical Installation

Page 3

Commissioning with

SDP

Page 7

Commissioning with

BOP

Page 8

Connecting an On/Off Switch

Connecting a Potentiometer for Speed setting

Connecting a Switch for reversing

Starting the motor via

The ‘BOP’

Command Source:

Default (P0700 = 2)

Command Source:

BOP (P0700 = 1)

Starting the motor using an

external ON / OFF switch

4.3 Commissioning with the Status Display Panel

When commissioning the MICROMASTER 420 with the Status Display Panel

(SDP), the drive application must be covered by the default settings of your

MICROMASTER 420.

Connect On/Off Switch to the terminals 5 and 8

Connect Switch for reversing direction to the terminals 6 and 8 (Optional)

Connect Switch for fault reset to the terminals 7 and 8 (Optional)

Connect analog frequency display to the terminals 12 and 13 (Optional)

Connect Output relay to the terminals 10 and 11 (Optional)

Connect a 5.0 kΩPotentiometer for speed control to the terminals 1 to 4

The Inverter is now ready for starting.

8Getting Started Guide – September 2000

6SE6400-5AB00-0BP0

4.4 Commissioning with the Basic Operator Panel

With the Basic Operator Panel, which is available as an option, the user can

change the default settings of the MM420 to meet particular application

requirements. Using the BOP it is possible to access level one, two and three

parameter sets. The BOP hosts the following features:

Speed, frequency, motor direction and current etc displayed as required

For direct control, the BOP is mounted directly onto the front panel of the

inverter

For “Quick Commissioning” of the inverter the Getting Started Guide should be

used. For other methods of commissioning, see the Operating Instructions or

Reference Manual.

Jog

150.00

1. Change Direction Changes the direction of rotation of the motor.

Reverse is indicated by a minus (-) sign.

2. Start Inverter This button starts the inverter. This button is

disabled by default. To enable this button set

P0700 to 1.

3. Stop Inverter This button stops the motor in the time set in

P1121 (Ramp-down time).

4. Jog Motor While the inverter has no output this button

causes the motor to start and run at the preset

jog frequency. The inverter stops when the

button is released.

5. Access Parameters Pressing this button allows the user to access

the parameters in the selected user access

level.

6. Decrease Value Pressing this button decreases the displayed

value. To change the frequency setpoint via the

BOP set P1000 = 1 (when P0700 = 1).

7. Increase Value Pressing this button increases the displayed

value. To change the frequency setpoint via the

BOP set P1000 =1 (when P0700 = 1).

8. Functions This button can be used to view additional

information. See Section 5.1.2 on page 42 of

the MICROMASTER 420 Operating

Instructions.

Getting Started Guide – September 2000

6SE6400-5AB00-0BP0

4.5 Changing parameters and settings using a ‘BOP’ / ‘AOP’

The following description shows how to change the parameter P1082. Use this

description as a guide for setting any parameters using the ‘BOP’.

Step ♦Result on display

1 Press to access parameters

P(1)

r0000

2Press until P0010 is

displayed

P(1)

P0010

3Press to access P0010

Value level

P(1)

4Press to set P0010 = 1

P(1)

5Press to save and exit

value level

P(1)

P0010

6Press until P1082 is

displayed

P(1)

P1082

7Press to access P1082

value level

P(1)

50.00

8Press to select desired

maximum frequency.

P(1)

35.00

9Press to save and exit

value level

P(1)

P1082

10 Press to return to P0010

P(1)

P0010

11 Press to access P0010

value level

P(1)

12 Press to return value to

P0010 = 0

P(1)

13 Press to save and exit

value level

P(1)

P0010

14 Press to return to r0000

P(1)

r0000

15 Press to exit

Parameterization

P(1)

35.00

The LCD will alternate between

actual frequency and the

requested frequency setpoint

P(1)

.00

The required maximum frequency has now been stored.

10 Getting Started Guide – September 2000

6SE6400-5AB00-0BP0

5 Quick Commissioning

The following parameters must be followed through in their entirety to ensure

optimised and efficient operation of the inverter. Please note that P0010 must

be set to ‘1 = Quick Commissioning’ to allow this procedure to be carried out.

For information on how to change parameter settings, please refer to section

4.5 of this guide.

P0010 Start Quick

Commissioning

0 = Ready to Run

1 = Quick Commissioning

30 = Factory Setting

Please note that P0010 must always be

set back to ‘0’ before operating the motor.

However if P3900 = 1 is set after

commissioning this is done automatically

P0700 Selection of Command

Source §

(on / off / reverse)

0 = Factory Setting

1 = Basic Operator Panel

2 = Terminal / Digital Inputs

P0100 Operation for Europe /

N. America

0 = Power in kW; ƒ default 50 Hz

1 = Power in hp; ƒ default 60 Hz

2 = Power in kW; ƒ default 60 Hz

Note: settings 0 & 1 should be changed

using the DIP switches to allow

permenant setting.

P1000 Selection of Frequency

Setpoint §

0 = No frequency setpoint

1 = BOP frequency control

2 = Analogue Setpoint

P0304 *Rated Motor Voltage

10 – 2000 V

Nominal motor voltage (V) from rating plate

P1080 Min. Motor Frequency

Sets minimum motor frequency (0-650Hz)

at which the motor will run irrespective of

the frequency setpoint. The value set here

is valid for both clockwise and anti-

clockwise rotation

P0305 *Rated Motor Current

0 – 2 x inverter rated current (A)

Nominal motor current (A) from rating plate

P1082 Max. Motor Frequency

Sets maximum motor frequency (0-650Hz)

at which the motor will run at irrespective of

the frequency setpoint. The value set here

is valid for both clockwise and anti-

clockwise rotation

P0307 *Rated Motor Power

0 – 2000 kW

Nominal motor power (kW) from rating

plate. If P0100 = 1, values will be in hp

P1120 Ramp-Up Time

0 – 650 s

Time taken for the motor to accelerate from

standstill up to maximum motor frequency.

P0310 *Rated Motor

Frequency

12 – 650 Hz

Nominal motor frequency (Hz) from rating

plate

P1121 Ramp-Down Time

0 – 650 s

Time taken for motor to decelerate from

maximum motor frequency down to

standstill

P0311 *Rated Motor Speed

0 – 40000 1 / min

Nominal motor speed (rpm) from rating

plate

P3900 End Quick

Commissioning

0 = End Quick Commissioning without

motor calculation or factory reset.

1 = End Quick Commissioning with motor

calculation and factory reset

(Recommended)

2 = End Quick Commissioning with motor

calculation and with I/O reset

3= End Quick Commissioning with motor

calculation but without I/O reset

5.1 RESET Using P0010 & P0970

When resetting the inverter P0010 must be set to 30 (Factory Setting), it is

then possible to set P0970 to ‘1’. The inverter will automatically reset all its

parameters to their default settings. This can prove beneficial if you

experience problems during parameter setup and wish to start again.

§Denotes parameters that contain more detailed lists of possible settings for use in specific

applications. Please refer to the Reference Manual and Operating Instructions on the CD

*Motor related parameters–please refer to motor rating plate drawing.

Otros manuales para MICROMASTER 420

Tabla de contenidos

Otros manuales de Accionamiento de CC de Siemens

Siemens

Siemens SINAMICS PERFECT HARMONY GH150 Instrucciones de funcionamiento

Siemens

Siemens SIDOOR ATD400K Manual de usuario

Siemens

Siemens SKB62 Series Manual de usuario

Siemens

Siemens 3RV1 Series Manual de usuario

Siemens

Siemens SINAMICS G115D Manual de usuario

Siemens

Siemens SINAMICS S120 Manual de usuario

Siemens

Siemens SINAMICS S120 Documento técnico

Siemens

Siemens SINAMICS PERFECT HARMONY GH180 Manual de lista de piezas

Siemens

Siemens PERFECT HARMONY GENIII/E Series Manual de usuario

Siemens

Siemens SINAMICS PERFECT HARMONY GH180 Manual de lista de piezas

Siemens

Siemens SINAMICS DCM Manual de usuario

Siemens

Siemens SINAMICS S120 Manual de lista de piezas

Siemens

Siemens SIMOVERT SLP Manual de usuario

Siemens

Siemens 3RV1986-0BA0 Manual de usuario

Siemens

Siemens MICRO MASTER Junior Manual de usuario

Siemens

Siemens SINUMERIK 810D Manual de instalación y operación

Siemens

Siemens MXL Manual de usuario

Siemens

Siemens PXC00-PE96.A Manual de usuario

Siemens

Siemens SINAMICS S110 Manual de lista de piezas

Siemens

Siemens SINAMICS G130 Manual de instalación y operación

Siemens

Siemens SINAMICS SL150 6SL39616RC100AA02 Instrucciones de funcionamiento

Siemens

Siemens SINAMICS S120 Manual de lista de piezas

Siemens

Siemens SINAMICS GL150 Instrucciones de funcionamiento

Siemens

Siemens 3TL60 Manual de usuario

Manuales populares de Accionamiento de CC de otras marcas

Vincent Associates

Vincent Associates UNIBLITZ ED12DSS Manual de usuario

EKSMA OPTICS

EKSMA OPTICS DQ-100-4 Manual de lista de piezas

Chamberlain Garog

Chamberlain Garog D Series Manual de usuario

Parker

Parker PDS Series Manual de usuario

Festo

Festo DGC G Series Guía de configuración

Binks

Binks QS-5012-1-CE Manual de usuario

Danfoss

Danfoss VLT 2800 Series Hoja de especificaciones

ABB

ABB ACQ580-01 Series Manual de instalación

YASKAWA

YASKAWA CANopen SI-S3 Manual de usuario

GE D20A6 Manual de usuario

Unex

Unex MC-D-250-1000-050W-TW Manual de usuario

Geckodrive

Geckodrive G213V Manual de usuario

ABB

ABB RSYC-01 Manual de usuario

Rockwell Automation

Rockwell Automation PowerFlex 700S Manual del propietario

WEG

WEG DeviceNet CFW500 Manual de usuario

SOMFY

SOMFY JR RU 30 Manual de usuario

Beckhoff

Beckhoff AX8911 Manual del operador

Minarik

Minarik MM300 Series Manual de usuario
