Local Service Organization Service Manual

BE INSPIRED

V 1.2

Version Date Department Notes to change

1.0 14 July 2004 ICM MP CCQ SLI RHQ New Document

1.1 08.09.2004 ICM MP CCQ GRM T SW update section

changed,

other minor changes

1.2 04.04.2005 ICM MP CCQ GRM T SP65 included

Our innovation shapes the future

SIEMENS PTE LTD

S65 Level 2 Service Manual

ICM MP CCQ SLI RHQ Page 2 of 35 Internal Use Only

Table of Contents

1GPRS (GENERAL PACKET RADIO SERVICE) 3

2 K-JAVA APPLICATION 4

3 KEY FEATURES 5

4 COMPARISON WITH PREVIOUS PRODUCT 7

5ACCESSORIES 9

5.1 S65 / SP65 Interface to accessories 10

6UNIT DESCRIPTION OF S65 / SP65 11

6.1 Exploded View of S65 / SP65 12

7DISASSEMBLY OF S65 / SP65 14

8REASSEMBLY OF S65 / SP65 18

9MOBILE SOFTWARE PROGRAMMING 19

9.1 Mobile Software Updating 20

10 SIEMENS SERVICE EQUIPMENT USER MANUAL 21

Introduction 21

Siemens Mobile Service Equipment 21

11 JPICS 22

12 INTERNATIONAL MOBILE EQUIPMENT IDENTITY, IMEI 28

13 GENERAL TESTING INFORMATION 29

ANNEX 1 34

ANNEX 2 35

SIEMENS PTE LTD

S65 Level 2 Service Manual

ICM MP CCQ SLI RHQ Page 3 of 35 Internal Use Only

1 GPRS (General Packet Radio Service)

GPRS is a new non-voice value added services that allows information to be sent

and received across a GSM mobile telephone network. It supplements today’s Circuit

Switched Data (CSD) and Short Message Services (SMS). GPRS involves overlaying

a packet based air interface on the existing circuit switched GSM network. This gives

the option to use a packet-based data service. The information is split into separated

but related “packets” before being transmitted and reassembled at the receiving end.

Theoretically, maximum speeds of up to 171.2 kilobits per second (kbps) are

achievable with GPRS using all eight timeslots at the same time. This is about 3

times as fast as the data transmission speed possible over today’s fixed

telecommunications networks and 10 times as fast as current Circuit Switched Data

services on GSM networks.

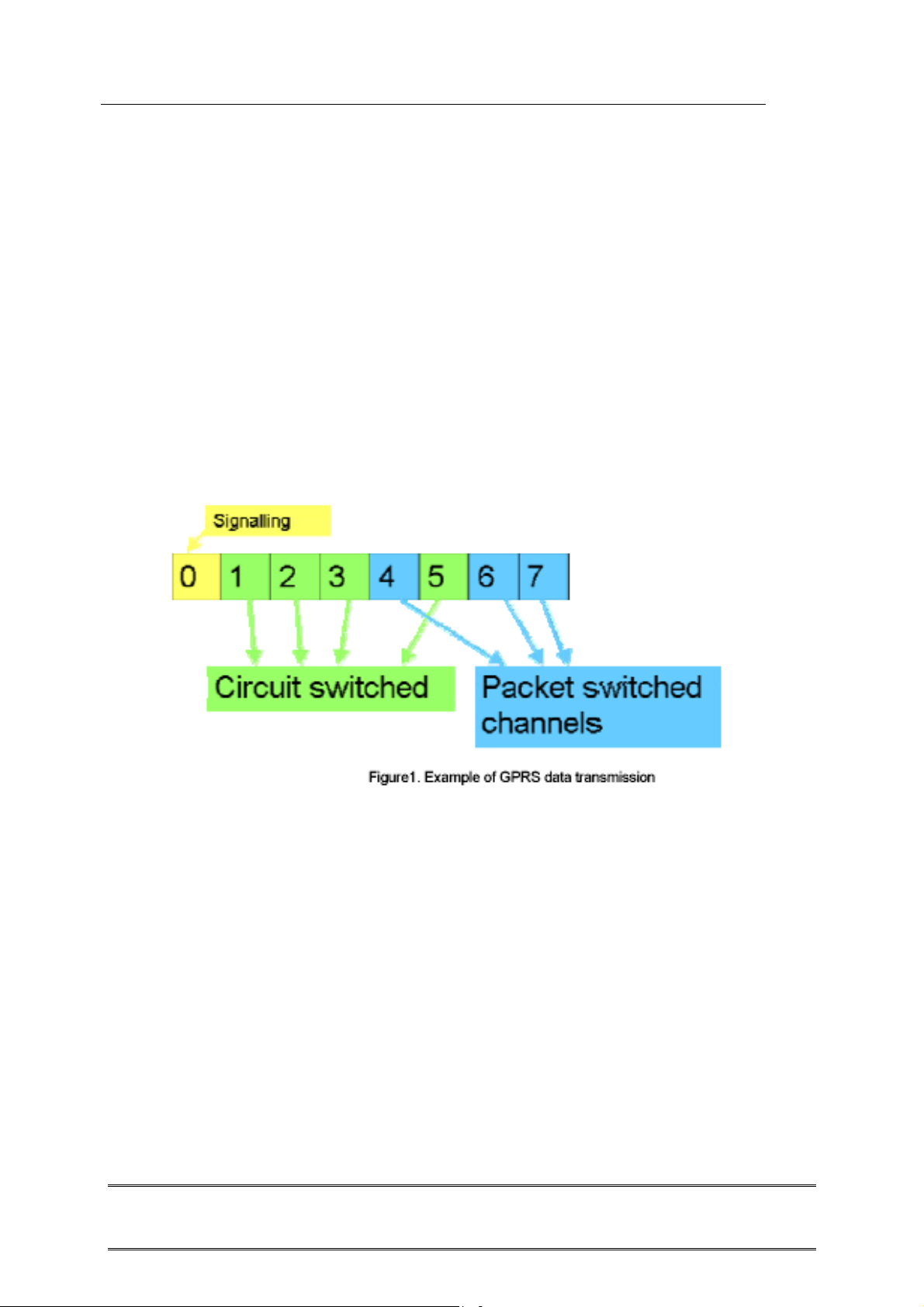

Example: Cell with 1 Frequency channel:

1 physical channel for signaling, 4 physical channels for Circuit switched and 3 physical

channels for Packet switched.

SIEMENS PTE LTD

S65 Level 2 Service Manual

ICM MP CCQ SLI RHQ Page 4 of 35 Internal Use Only

2 K-Java Application

Java-based game system

Java Application Manager

(JAM)

Application launcher and

download manager.

Supports HTTP-based OTA

download of applications over

GPRS and CSD.

yes

RAM for Java applications Available RAM for Java

applications (i.e. Program code

and data) during application

runtime:

Minimum 100 Kbytes (Has to be

taken as working assumption

for application development).

Goal: 145 Kbytes as SL45i (not

committed)

yes

MIDP 1.0, CLDC 1.0 As SL45i, including

performance optimizations from

SL45i-Infusio.

yes

‘OEM extensions’ Proprietary API extension as

SL45i. Including ‘Siemens

Game API’

yes

HTTP API over GPRS Sl45i: only CSD yes

SIEMENS PTE LTD

S65 Level 2 Service Manual

ICM MP CCQ SLI RHQ Page 5 of 35 Internal Use Only

3 Key Features

Bands • Triple Band E-GSM 900 / GSM 1800 / GSM 1900

• GPRS Multi Class 10

Battery • Li-Ion Battery Pack

• Nominal Voltage : 3.7V

• Nominal Capacity : 780 mAh

• GSM Capacity : 750 mAh

• Power Input : 2.0A (0.6 ms) / 0.25A (4 ms)

• Cut-off Threshold : 3.2V

Stand-by Time ≥Approx. 250 h / Li-Ion

Talk Time ≥5 hrs (approx. 150 mA for lowest Tx power level

SIM Card

• Small (”Plug In”) 1.8 or 3V SIM card (Phase II)

• To insert the SIM card, the battery pack must be

removed.

Speech Codec

• Triple Rate (HR/FR/EFR) and Adaptive Multi Rate are

available as standard

Temperature

Range

• -100C to +550C (Normal operation)

• -300C to +850C (Storage capability)

Display • Type: Full Graphic

• Resolution: 132 x 176 Pixel

• Color depth: 65K

• Technology: TFT (Sharp) and TFD (Epson)

• Active area / mm: 31.284 x 41.712

• Illumination: White LED

• Contrast: Adjustable

• Frame rate: maximum 15 frames/seconds

• Pixel size per mm: 0.079mm x 0.237mm ( 1 pixel

consist of 3 sub pixels in red, green and blue)

SIEMENS PTE LTD

S65 Level 2 Service Manual

ICM MP CCQ SLI RHQ Page 6 of 35 Internal Use Only

Keypad • Hard caps back side printed

• Bridgeless

• 12-digit block (0-9, #, *) and two function keys (SEND,

END) in one block with small letters.

• ON/OFF key combined with the END key; the symbol _

(I inside O) is used as a symbol for ON/OFF.

• 2 soft keys

• 5 way joystick with design cap

• Illumination color : White LED

• 6 amber LEDs for keypad

• tactile finder on key ”5”

• Operator key

Acoustics

• 3 in 1 earpiece for Handset, Hands-free, and Ring tones

• Omni-directional microphone

• Loud signal emitter (sound ringer) (>100 dBA) SPL @

5cm (Hong Kong spec)

• Polyphonic ring tone

• Hands-free mode

• Different selectable volume levels for Handset, Hands-

free, and Ringer mode

Camera • Integrated 1.3 Mega pixel

External Memory • Reduced Size (RS) MMC

Multimedia • Video recording and encoding

Wireless

Connectivity

• Bluetooth

• Infrared

SIEMENS PTE LTD

S65 Level 2 Service Manual

ICM MP CCQ SLI RHQ Page 7 of 35 Internal Use Only

4 Comparison with Previous Product

Feature S55 Marlin S65 / SP65

PENELOPE Delta

Supported Systems Triple band

EGSM

900/GSM1800/

GSM1900

Triple Band

EGSM

900/GSM1800/

GSM1900 (EMEA,

APAC)

No GSM 850

Stand-by Time Up to 250 h ≥250h

(approx. 3mA

quiescent current)

Talk Time Up to 6 h ≥5 h

(approx. 150mA

average current for

lowest TX-power

level)

Battery Technology

Battery Capacity

LI-Ion Battery Pack

Nominal Cap.:

750 mAh

Li-Ion Battery Pack

Nominal Cap.: 780

mAh

Weight Approx. 83 g Approx. 90 g

Volume Approx. 76 cm3Approx. 89 cm3+18% volume

increase

Length 101 mm 108,9 mm 8 mm longer

Width 46 mm 48 mm 2 mm wider

Thickness 18 mm 19 mm 1 mm thicker

SIM Plug-In 1.8V/3V Plug-In 1.8V/3V

Antenna Integrated Integrated

Antenna

performance in

comparison

29 dB @ 900 MHz

25,5 dB @ 1800

MHz

26 dB @ 1900 MHz

(3-Band-Antenna)

~28 dB @ 900 MHz

~24,5 dB @ 1800

MHz

~23,5 dB @ 1900

MHz

(2,7-Band-Antenna)

-1db @ 900 MHz

-1db @ 1800 MHz

-2,5db @ 1900 MHz

Half Rate Yes Yes

Enhanced Full Rate Yes Yes

AMR Yes Yes

Fax/Data Yes Yes

GPRS Class 10 Class 10

Keypad Illumination White LED White LED

SIEMENS PTE LTD

S65 Level 2 Service Manual

ICM MP CCQ SLI RHQ Page 8 of 35 Internal Use Only

Display /

Display Illumination

CSTN full dot

matrix, 6

lines graphic + icons

white (256 colour)

TFT/TFD

132 x 176 Pixel

65k colour

Higher Resolution

Colour

Exchangeable

Memory

No Yes

(RS-MMC Card)

Higher Memory

Camera

Not for SP65

VGA (clip on) Mega pixel camera

(integrated)

Higher Resolution

NEW feature

Ringer volume level Min. 95 dB(A) @

5cm

Typ. >100 dB(A) @

5cm

Max. 125 dB(A) @

human ear

Min. 95 dB(A) @

5cm

Typ. ≥98dB(A) @

5cm

(for dedicated

Siemens-standard

melodies)

Min. 100dB(A) @

5cm

(only for rectangular

sound signals)

SIEMENS PTE LTD

S65 Level 2 Service Manual

ICM MP CCQ SLI RHQ Page 9 of 35 Internal Use Only

5 Accessories

For S65 / SP65, the following accessories will be available.

Description Part number

Belt Case FCL-600 L36880-N7101-A120

Car Charger Plus ECC-600 L36880-N7101-A109

Car Kit Bluetooth HKW-600 L36880-N6551-A100

Car Kit Comfort Data HKC-675 L36880-N7401-A121

Car Kit Comfort HKC-670 L36880-N7401-A116

Car Kit Easy HKP-600 L36880-N7101-A100

Car Kit Portable HKP-500 L36880-N5601-A109

Car Kit Upgrade HKO-650 L36880-N7401-A120

Charger Adapter ECA-500 L36880-N7401-A104

Data Cable DCA-500 L36880-N5601-A110

Data Cable USB DCA-510 L36880-N5601-A111

Data Cable USB DCA-540 L36880-N6501-A102

Flash IFL-600 L36880-N7101-A400

Headset BluetoothTM AUS HHB-620 L36880-N7401-A102

Headset BluetoothTM EU HHB-600 L36880-N7401-A100

Headset BluetoothTM UK HHB-610 L36880-N7401-A101

Headset HHS-500 L36880-N5601-A107

Headset PTT HHS-510 L36880-N5601-A108

Headset Purestyle HHS-610 L36880-N7101-A500

Leather Case FCL-610 L36880-N7101-A121

Li-Ion Battery 750mAh EBA-660 L36880-N7101-A111

Mobile Holder Antenna HMH-670 L36880-N7401-A115

Tour Case FCT-650 L36880-N5601-A149

Travel Charger ETC-500 EU L36880-N5601-A104

Travel Charger ETC-510 UK L36880-N5601-A105

Upgrade Kit HKO-620 L36880-N7101-A103

Note: Visit the Communication Market for updated accessories:

https://communication-market.siemens.de/

SIEMENS PTE LTD

S65 Level 2 Service Manual

ICM MP CCQ SLI RHQ Page 10 of 35 Internal Use Only

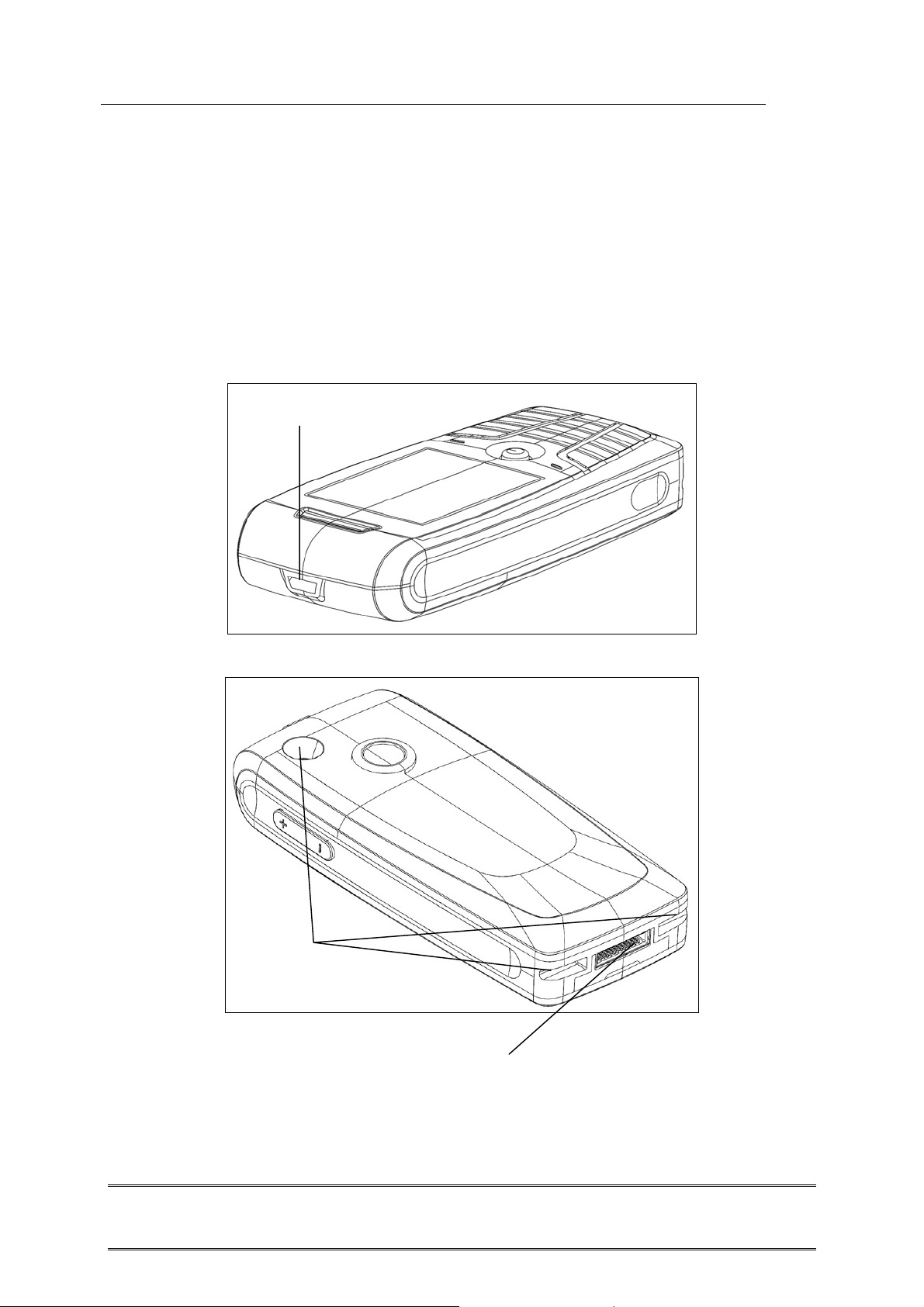

5.1 S65 / SP65 Interface to accessories

The phone has got a full compatible interface to accessories. The I/O-Connector

(Lumberg-(slim)-connector) and RF-Connector is in the same position as in the R65

Ulysses (and also R65 X-Cite). Because of the Penelope design it’s not possible to

use the same car holder as R65 Ulysses.

All shown interfaces are for car-cradle. Interfaces for Belt-Clip will not be necessary

Slim Lumberg I/O Connector

Accessory-Interfaces
