1 General safety notes

■Read the operating instructions before commissioning.

■

Connection, mounting, and configuration may only be performed by trained

specialists.

■

2006/42/EC

SAFETY

Not a safety component in accordance with the EU Machinery Directive.

■

Do not install the sensor at locations that are exposed to direct UV radiation

(sunlight) or other weather influences, unless this is expressly permitted in the

operating instructions.

■When commissioning, protect the device from moisture and contamination.

■These operating instructions contain information required during the life cycle of

the sensor.

2 Notes on UL approval

The device shall be supplied from an isolating transformer having a secondary overcur‐

rent protective device that complies with UL 248 to be installed in the field rated either:

a) max 5 amps for voltages 0 ~ 20 V (0 ~ 28.3 V peak), or

b) 100 / Vp for voltages of 20 ~ 30 V (28.3 ~ 42.4 V peak).

Alternatively, they can be supplied from a Class 2 power supply.

UL Environmental Rating: Enclosure type 1

3 Product description

3.1 Intended use

The WSE4F is an opto-electronic through-beam photoelectric sensor (referred to as

“sensor” in the following) for the optical, non-contact detection of objects, animals, and

persons. A sender (WS) and a receiver (WE) are required for operation. If the product is

used for any other purpose or modified in any way, any warranty claim against SICK AG

shall become void.

3.2 Operating elements and status indicators

WSO4Fx-xxxxxxA0 WEO4Fx-xxxxxx30A00 WEO4Fx-xxxxxx00A00

4 3

GENERAL SAFETY NOTES 1

8025304 / 2021-05-12 | SICK

Subject to change without notice 5

1BluePilot blue: alignment aid

2Teach-Button: adjusting the sensitivity

3LED indicator yellow: status of received light beam

4LED indicator green: supply voltage active

4 Mounting

Mount sensors (sender and receiver) using suitable mounting brackets (see the SICK

range of accessories). Align the sender and receiver with each other.

NOTE

When mounting multiple through-beam photoelectric sensors next each other, swap

the arrangement of the sender (WSO4F) and receiver (WEO4F) for every second pair.

Also maintain a sufficiently large distance between the pairs based on the light spot

diameter of the sender (WSO4F). See figure 1 and figure 2.

Receiver (WE)

Sender (WS)

Receiver (WE)

Figure 1: Arrangement of multiple through-beam photoelectric sensors

Distance in m (feet)

Dimensions in mm (inch)

100

(3.94)

200

(7.87)

–200

(–7.87)

–100

(–3.94)

(6.56)

(19.69)

(26.25)

(13.12)

(32.81) 10

(32.81)

(3.28)

Recommended sensing range for the best

performance

Figure 2: Light beam diameter

Note the sensor’s maximum permissible tightening torque of < 0,4 Nm.

5Electrical installation

Operation in standard I/O mode:

4 MOUNTING

68025304 / 2021-05-12 | SICK

Subject to change without notice

The sensors must be connected in a voltage-free state. The following information must

be observed, depending on the connection type:

– Male connector connection: Pin assignment

– Cable: Wire color

Only apply voltage/switch on the voltage supply once all electrical connections have

been established.

Operation in IO-Link mode: Connect the device to a suitable IO-Link master and inte‐

grate in the master or control via IODD/function block. The green LED flashes on the

sensor. IODD and function block are available to download from www.sick.com under

the part number.

Explanations on connection diagram.

BN = brown

WH = white

BU = blue

BK = black

MF (pin 2 configuration) = external input, teach-in, switching signal

QL1/C = switching output, IO-Link communication

Test = Test input

UB: 10 ... 30 V DC

Table 1: Electrical connection

WSE4Fx- x4 x2 xH x1 -xG

1 = BN

2 = WH

3 = BU

4 = BK

4 3

0.14 mm2

AWG26

0.14 mm2

AWG26

Table 2: DC

WSO4Fx- xx1ZZxZZZ xx2ZZxZZZ Xx3ZZxZZZ

1 = BN + (L+)

2 = WH -

3 = BU - (M)

4 = BK Test → L+ Test → M

Table 3: DC

WEO4Fx-

Push-pull xx162xxA

xx161xxA

xx163xxA

xx165xxA

xx16AxxA

xx16NxxA

xx16x

xxxA01-A99

PNP xx862xxA

xx861xxA

xx863xxA

xx865xxA

xx86AxxA

xx86NxxA

xx86xxxxA0

1-A99

1 = BN + (L+)

2 = WH MF

3 = BU - (M)

4 = BK QL1/C

Default:

QQ Alarm Alarm no func‐

tion

no func‐

tion

www.sick.co

m 8025304

Default:

QL1/C

QQ Q Q Q Qwww.sick.co

m 8025304

ELECTRICAL INSTALLATION 5

8025304 / 2021-05-12 | SICK

Subject to change without notice 7

Table 4: DC

WSO4F- xx1ZZxZZZ xx2ZZxZZZ Xx3ZZxZZZ

1 = BN + (L+)

3 = BU - (M)

4 = BK Test → L+ Test → M

Table 5: DC

WEO4Fx- xx312x xx311x

1 = BN + (L+)

3 = BU - (M)

4 = BK QQ

Table 6: Push-pull, PNP, NPN

Push-pull

PNP

NPN

+ (L+)

Q ≤ 100 mA

‒ (M)

Push-pull

PNP

NPN

+ (L+)

Q ≤ 100 mA

‒ (M)

Push-pull

PNP

NPN

+ (L+)

Q≤ 100 mA

‒ (M)

Push-pull

PNP

NPN

+ (L+)

Q≤ 100 mA

‒ (M)

6 Additional functions

Alarm: Operation with borderline light reception

Alarm output: The sensor (WSE4F) features a pre-failure notification output (“Alarm”

in the connection diagram), which issues a notification if the sensor is only ready for

operation to a limited extent. The LED flashes in this case. Possible causes: Sensor

is contaminated, sensor is out of alignment. In the good state: LOW (0), if excessively

contaminated HIGH (1).

Health

Health output: The sensor (WSE4F) features a pre-failure notification output (“Health”

in the connection diagram), which issues a notification if the sensor is only ready for

operation to a limited extent or the cable has been interrupted. Possible causes: Sensor

6 ADDITIONAL FUNCTIONS

88025304 / 2021-05-12 | SICK

Subject to change without notice

is contaminated, sensor is out of alignment, cable is damaged. In the good state: HIGH

(1), if excessively contaminated or in the event of cable interruption LOW (0). The yellow

LED indicator flashes in this case.

Table 7: Alarm / Health

Alarm (≤ 100 mA) Health (≤100 mA)

+ (L+)

Alarm

‒ (M)

+ (L+)

Health

‒ (M)

+ (L+)

Alarm

‒ (M)

+ (L+)

Health

‒ (M)

Test input

Test input: The WSE4F sensors feature a test input (“Test” on the connection diagram

[see table 2, page 7]), which can be used to switch the sender off and, therefore, check

that the sensor is functioning correctly: If female cable connectors with LED indicators

are used, you must ensure that the TI is assigned accordingly.

It is important that there is no object between the sender and receiver, activate the test

input (see the connection diagram [see table 2, page 7]).

The send LED is shut down or the detection of an object is simulated. Refer to table 8

to check the function. If the switching output fails to behave in accordance with the

following table, check the application conditions, see "Troubleshooting", page 12.

Table 8: Test

Test → M Test → L+

+ (L+)

Test

‒ (M)

+ (L+)

Test

– (M)

+ (L+)

Test

‒ (M)

+ (L+)

Test

– (M)

7 Commissioning

7.1 Alignment

WSO4FP: Align the sender (WSO4F) with the receiver (WEO4F). Select the position so

that the red emitted light beam hits the receiver. Tip: Use white paper or a reflector as

an alignment aid. The sender must have a clear view of the receiver, with no object in

the path of the beam [see figure 3]. You must ensure that the optical openings (front

screen) of the sensors are completely clear.

ADDITIONAL FUNCTIONS 6

8025304 / 2021-05-12 | SICK

Subject to change without notice 9

WSO4FI: Align the sender (WSO4F) with the receiver (WEO4F). Select the position so

that the infrared light (not visible) hits the receiver. The correct alignment can only be

detected via the LEDs. See figure 3 and table 6. The sender must have a clear view of

the receiver, with no object in the path of the beam. You must ensure that the optical

openings (front screen) of the sensors are completely clear.

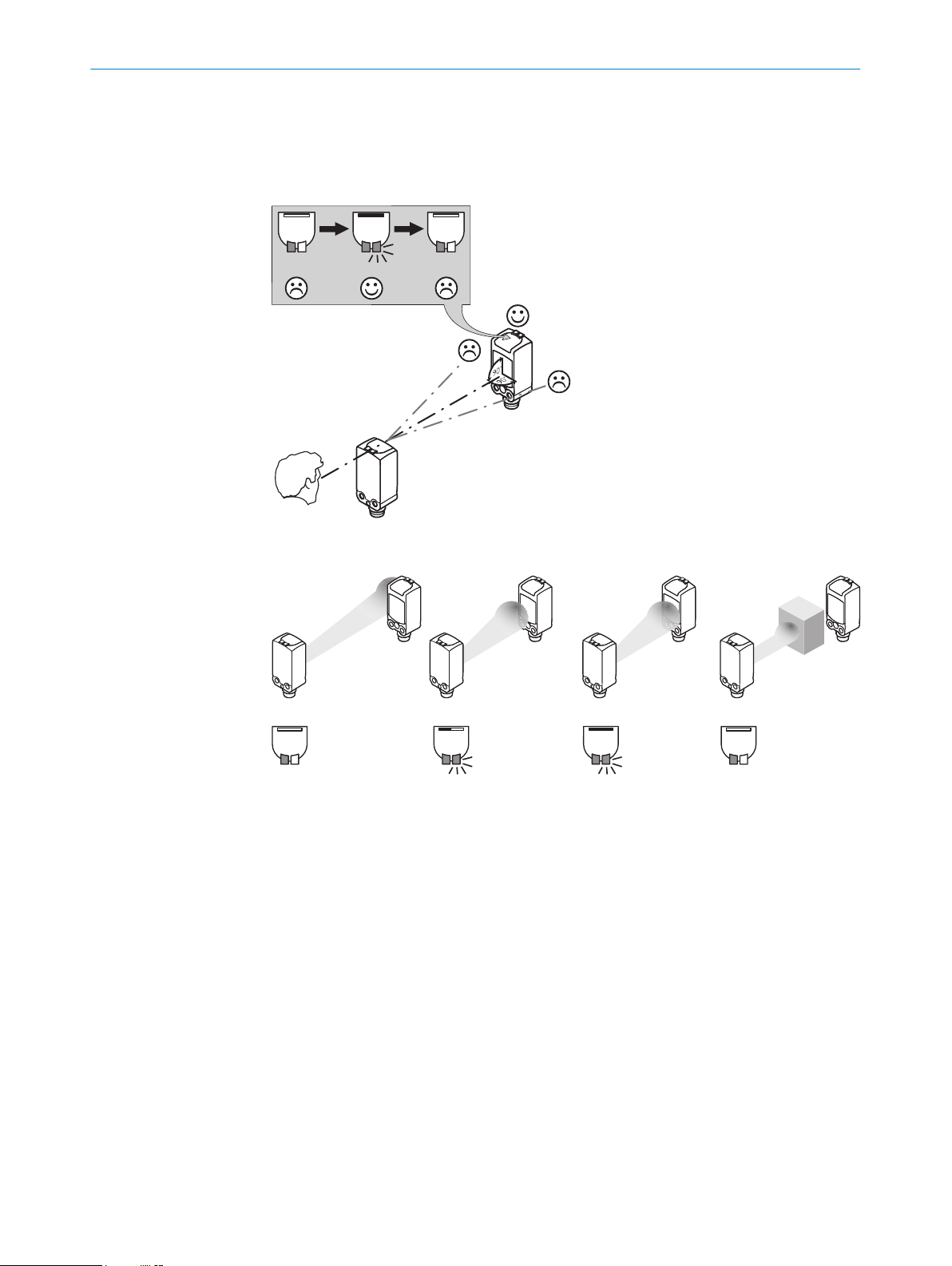

Figure 3: Alignment

WEO

WSO

Figure 4: Alignment aid BluePilot

7.2 Check the application conditions:

Sensing range

WSE4F are through-beam photoelectric sensors that can be used at shorter distances,

in particular due to the large sensing range or the very high operating reserve.

Observe the application conditions: Adjust the distance between the sender and the

receiver according to the corresponding diagram [see figure 6 and see figure 5,

page 11] (x = sensing range, y = operating reserve).

If several through-beam photoelectric sensors which are installed next to one another

are to be used, we recommend swapping the sender/receiver arrangement at every

second through-beam photoelectric sensor and ensuring that there is sufficient dis‐

tance between the through-beam photoelectric sensors. By doing this, mutual interfer‐

ence can be prevented [see figure 1].

Check the function as described in table 6. If the switching output fails to behave as

described in table 6, check the application conditions.

7 COMMISSIONING

10 8025304 / 2021-05-12 | SICK

Subject to change without notice

Otros manuales para WSE4F

Tabla de contenidos

Idiomas:

Otros manuales de Accesorios de SICK

SICK

SICK KTS Manual de usuario

SICK

SICK Profiler 2 Manual de usuario

SICK

SICK SureSense HTF18L Manual de usuario

SICK

SICK PowerProx Micro WTT2SL Series Manual de usuario

SICK

SICK WSE16 Series Manual de usuario

SICK

SICK GRTE18V Manual de usuario

SICK

SICK WL34 Manual de usuario

SICK

SICK PowerProx WTT12L Manual de usuario

SICK

SICK GSE6L Series Manual de usuario

SICK

SICK SFU Series Manual de usuario

SICK

SICK HTE18 Series Manual de usuario

SICK

SICK T-EASIC FTS Manual de usuario

SICK

SICK LBV 320 Manual de usuario

SICK

SICK GTB6V Manual de usuario

SICK

SICK WTF26 Manual de usuario

SICK

SICK WTB4F Manual de usuario

SICK

SICK C30-21 163 Series Manual de usuario

SICK

SICK TiM3 Series Manual de usuario

SICK

SICK GTB20 Manual de usuario

SICK

SICK PowerProx WTT12L Manual de usuario

SICK

SICK GLS621 Manual de usuario

SICK

SICK T-EASIC FTS Manual de usuario

SICK

SICK AR60 Manual de usuario

SICK

SICK D 35 Series Manual de usuario

Manuales populares de Accesorios de otras marcas

Hillco

Hillco 2810 Manual de usuario

Siemens

Siemens QSA2700D Manual del operador

Contours

Contours ZY024 Manual de usuario

Saivod

Saivod VS621 Manual de usuario

Virtuox

Virtuox VirtuCLEAN 2.0 Manual de usuario

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manual de usuario

Z-Wave

Z-Wave HSD-200Z Manual de usuario

turck

turck FMX-IM-2UPLI63FX Manual de usuario

Decagon Devices

Decagon Devices 10HS Manual de usuario

UPPAbaby

UPPAbaby Cup Holder Manual de usuario

Elko

Elko SmartSensor Leakage Wireless Manual de usuario

Grizzly

Grizzly H8371 Manual de usuario

Panasonic

Panasonic HG-T Series Manual de usuario

IFM Electronic

IFM Electronic Efector 250 Series Guía de referencia

DigiDesign

DigiDesign 888/24 I/O Manual de usuario

PROZIS

PROZIS QUAY Manual de usuario

patagonia

patagonia PSI Vest Manual de usuario

SFC Energy

SFC Energy EFOY GO! Manual de usuario
