Shure Array Microphone Setup Tips

for Lumens CamConenct

Copyright © Lumens. All rights reserved.

Purpose

•Help users quickly install Lumens CamConnenct Pro

and Shure Array Microphones.

•Especially focus on the setting tips of Shure array

microphone.

•These setting tips are the sharing of the key steps

summarized after we have installed this system many

times.

Copyright © Lumens. All rights reserved.

Prepare

•This document uses Shure MXA920 as an example of setting.

•Please install Shure array microphone, Lumens CamConnect

processor and Lumens PTZ cameras on the same LAN (same

class C network).

•For the first installation, you need to prepare a router or

Switcher with DHCP server function.

•Shure MXA920 installed in the ceiling above the center of a

conference table

Copyright © Lumens. All rights reserved.

Device Discovery

1. Download “Shure Web Device

Discovery“ software from below hyperlink.

https://www.shure.com/en-

US/products/software/shure_web_device_discover

y_application

2. Install and run this software.

3. You will get the IP address for the Shure ceiling

microphone.

4. Open the web browser and enter the webpage of

MXA920.

Copyright © Lumens. All rights reserved.

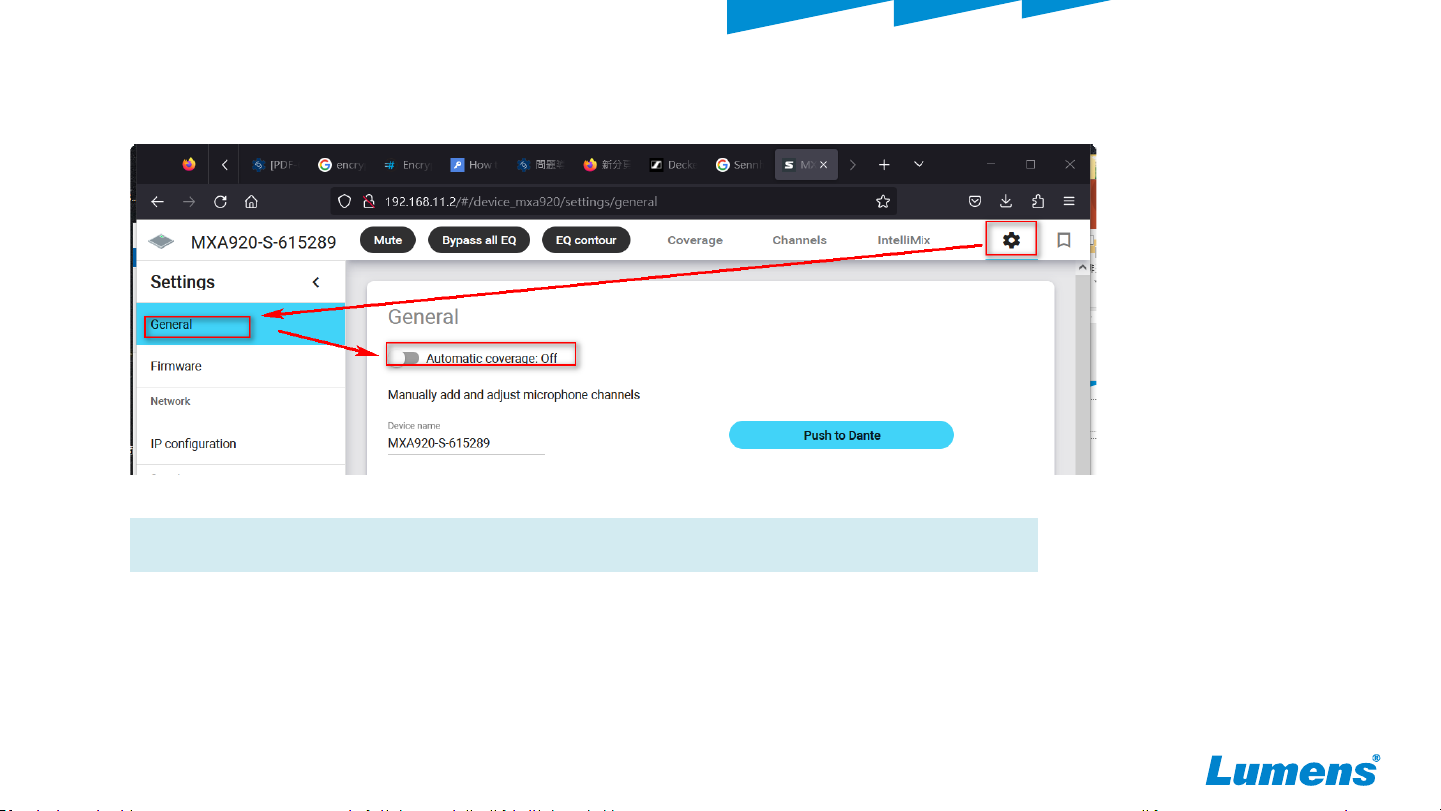

Automatic coverage: off

It is recommended to set “Automatic coverage” to off

Copyright © Lumens. All rights reserved.

Coverage

1. Go to the “Coverage” page.

2. If someone has set other channels before, please remove all channels first. Only

keep channel 1.

Copyright © Lumens. All rights reserved.

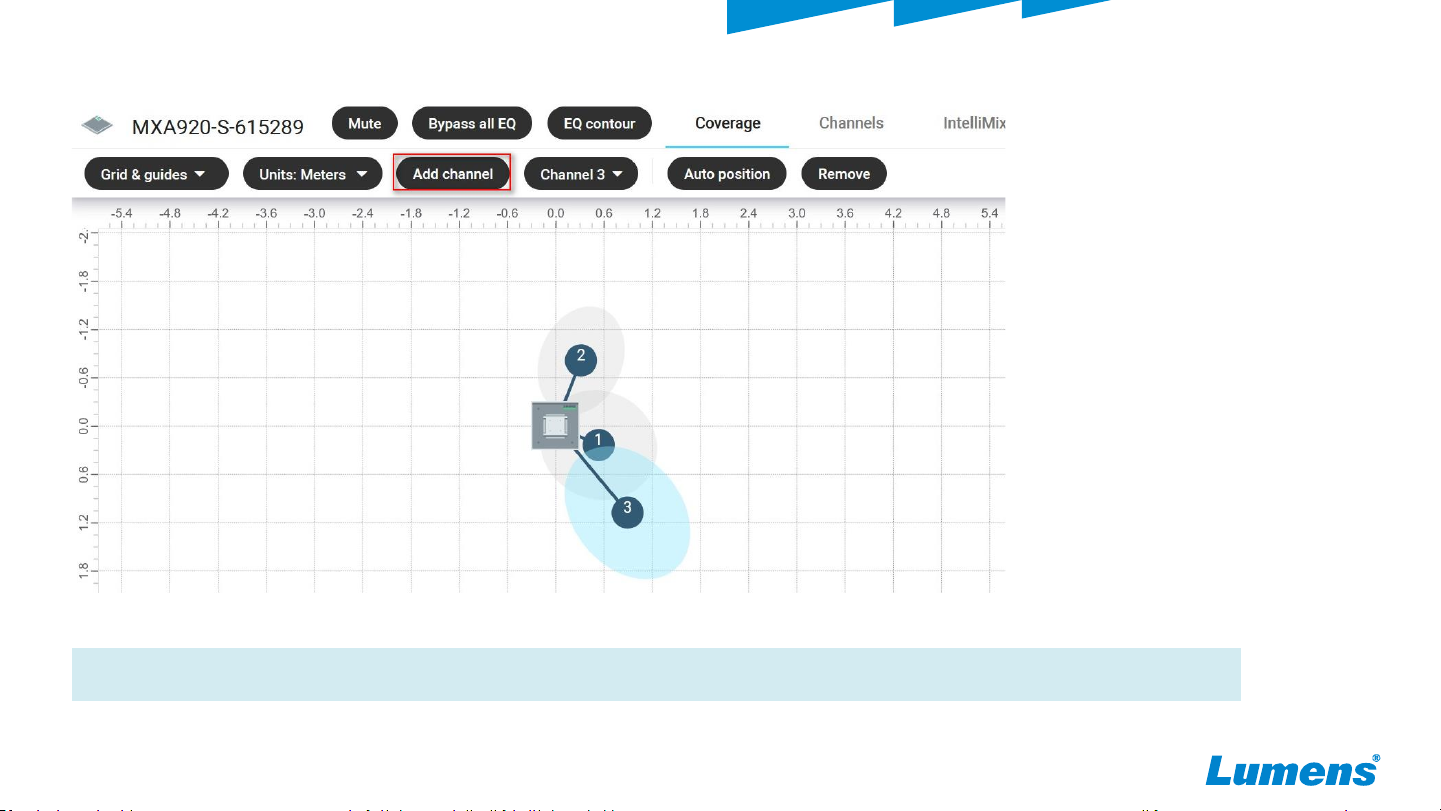

Add channel

Manually add the channel

Copyright © Lumens. All rights reserved.

Auto position

1. Need to find someone to speak at this seat position in the conference room

2. Select channel N, then press “Auto positon” button.

3. Press “Listen” button in Auto position windows.

4. Then the position of channel N will be found automatically.

Copyright © Lumens. All rights reserved.

Lobe width for the channel

Set the lobe width of each channel as “Narrow” or “Medium”.

This will reduce the area covered by each lobe and increase the accuracy of

voice tracking.

Copyright © Lumens. All rights reserved.

IntelliMix

Please go to the “IntelliMix” page.

There are also some settings here that will affect the tracking results of

CamConenct.
