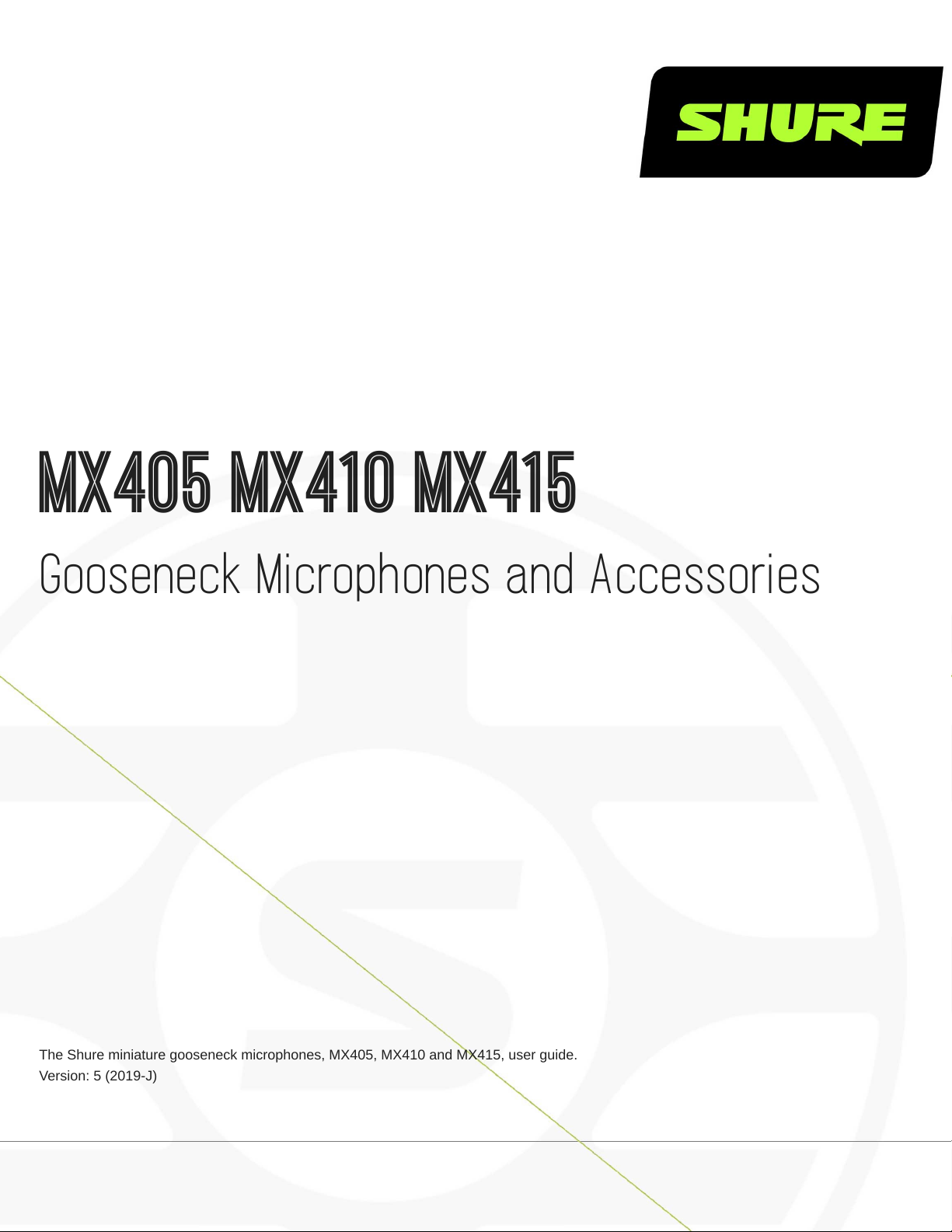

Shure Microflex MX405 Manual de usuario

MX405 MX410 MX415

Gooseneck Microphones and Accessories

The Shure miniature gooseneck microphones, MX405, MX410 and MX415, user guide.

Version: 5 (2019-J)

Shure Incorporated

2/25

Table of Contents

MX405 MX410 MX415Gooseneck Microphones and Ac

cessories 3

General Description 3

Features 3

Model Variations 3

Snap-Fit Windscreen 8

Interchangeable Cartridges 9

MX400SMP Surface Mount Preamp 9

Accessories 10

Installation 11

MX400SMP Pin Assignments 12

DIP Switches 12

LED Logic 13

MX400DP Desktop Base 14

Installation 15

Cable 15

MX400DP DIP Switches 16

Local Mute Control 17

Logic Mute Control (Automatic Mixing) 18

Specifications 19

Certifications 25

Shure Incorporated

3/25

•

MX405 MX410 MX415

Gooseneck Microphones and Accessories

General Description

Shure MX405, MX410, and MX415 miniature gooseneck microphones are suitable for boardrooms and other sites where aes

thetics are important. Permanently mount them at conference tables or lecterns using the MX400SMP surface mount, or use

the MX400DP moveable desktop base, which includes a configurable mute button with logic output. Also compatible with the

MX890 wireless desktop base and the ULXD8 wireless base.

Features

Low profile, aesthetic design

Choice of bi-color indicator or light ring

Wide dynamic range and smooth frequency response

RF filtering with CommShield technology

Logic input for external LED control

Model Variations

These gooseneck microphones are available in different lengths with a cardioid, supercardioid, or mini-shotgun cartridge and

either a bi-color LED status indicator or a light ring. The 10 and 15 inch models are also available with a dualflex neck.

Shure Incorporated

4/25

Shure Incorporated

5/25

Shure Incorporated

6/25

Gooseneck Microphones

5" Cardioid Gooseneck Microphone MX405LP/C

5" Supercardioid Gooseneck Microphone MX405LP/S

5" Mini-shotgun Gooseneck Microphone MX405LP/MS

5" Gooseneck with Red Top LED (no cartridge) MX405RLP/N

10" Cardioid Gooseneck Microphone MX410LP/C

10" Supercardioid Gooseneck Microphone MX410LP/S

10" Gooseneck with Red Top LED (no cartridge) MX410RLP/N

10" Cardioid Dualflex Gooseneck Microphone MX410LPDF/C

10" Supercardioid Dualflex Gooseneck Microphone MX410LPDF/S

10" Dualflex Gooseneck with Red Top LED (no cartridge) MX410RLPDF/N

10" Cardioid Dualflex Gooseneck Microphone with Red Top LED MX410RLPDF/C

10" Supercardioid Dualflex Gooseneck Microphone with Red Top LED MX410RLPDF/S

15" Cardioid Gooseneck Microphone MX415LP/C

15" Supercardioid Gooseneck Microphone MX415LP/S

Shure Incorporated

7/25

•

15" Gooseneck with Red Top LED (no cartridge) MX415RLP/N

15" Cardioid Dualflex Gooseneck Microphone MX415LPDF/C

15" Supercardioid Dualflex Gooseneck Microphone MX415LPDF/S

15" Dualflex Gooseneck with Red Top LED (no cartridge) MX415RLPDF/N

15" Cardioid Dualflex Gooseneck Microphone with Red Top LED MX415RLPDF/C

15" Supercardioid Dualflex Gooseneck Microphone with Red Top LED MX415RLPDF/S

5" White Gooseneck Microphone (no cartridge) MX405WLP/N

5" White Gooseneck Microphone with Red Top LED (no cartridge) MX405WRLP/N

10" White Gooseneck Microphone (no cartridge) MX410WLP/N

10" White Gooseneck Microphone with Red Top LED (no cartridge) MX410WRLP/N

15" White Gooseneck Microphone (no cartridge) MX415WLP/N

15" White Gooseneck Microphone with Red Top LED (no cartridge) MX415WRLP/N

10" White Dualflex Gooseneck Microphone (no cartridge) MX410WLPDF/N

10" White Dualflex Gooseneck Microphone with Red Top LED (no cartridge) MX410WRLPDF/N

15" White Dualflex Gooseneck Microphone (no cartridge) MX415WLPDF/N

15" White Dualflex Gooseneck Microphone with Red Top LED (no cartridge) MX415WRLPDF/N

Coverage and Placement

Cardioid: One microphone for one or two people.

Supercardioid: One microphone for each person.

Mini-shotgun: One microphone for each person.

Cardioid

Supercardioid

Shure Incorporated

8/25

•

Mini-shotgun

Mic Placement

Snap-Fit Windscreen

Snap into the groove below the cartridge.

To remove, spread the gap with a screwdriver or thumbnail.

Provides 30 dB of "pop" protection.

Shure Incorporated

9/25

Interchangeable Cartridges

Microflex microphones use interchangeable cartridges that allow you to choose the polar pattern for different installations.

Cartridge Polar Patterns

MX400SMP Surface Mount Preamp

Permanent mount for conference tables or lecterns. Includes LED logic input.

Shure Incorporated

10/25

Accessories

Furnished Accessories

MX400SMP Surface Mount Kit
