Shure Microflex MX200 Series Manual de usuario

MX200 Series

Overhead Microphones

Online user guide for Shure Microflex MX200 Series overhead microphones.

Version: 4 (2019-J)

Shure Incorporated

2/16

Table of Contents

MX200 SeriesOverhead Microphones 3

General Description 3

Model Variations 3

Interchangeable Cartridges 3

Snap-Fit Windscreen 4

Preamp Gain 4

RFI Filtering 4

Microphone Placement 4

Permanent Installation 6

Installing the In-Line Preamp 6

Ceiling Tile Installation 7

Plate Mount Preamp Installation 9

Specifications 10

Furnished Accessories 12

Replacement Parts 12

Wiring Diagram 12

Certifications 16

Shure Incorporated

3/16

•

MX200 Series

Overhead Microphones

General Description

Shure Microflex MX200 Series microphones are miniature electret condenser microphones designed for miking choirs and

performance groups. They are typically suspended over the heads of the performers. Their high sensitivity and wide frequency

range make them suitable for recording, as well as sound reinforcement applications. An attached 101 mm (4 in.) gooseneck

allows them to be easily aimed at the sound source.

Wide dynamic range and frequency response for accurate sound reproduction

Interchangeable cartridges that provide a choice of polar pattern for each application

White or black finish that blends unobtrusively with most surroundings

RF filtering

Model Variations

Microflex MX202 microphones are available in black or white with a choice of in-line preamplifier or plate-mount preamplifier.

The polar pattern of the included cartridge is indicated by a model number suffix:

/C Cardioid

/S Supercardioid

/MS Mini-shotgun

Interchangeable Cartridges

Microflex microphones use interchangeable cartridges that allow you to choose the polar pattern for different installations.

Shure Incorporated

4/16

•

Cartridge Polar Patterns

Snap-Fit Windscreen

Snap into the groove below the cartridge.

To remove, spread the gap with a screwdriver or thumbnail.

Provides 30 dB of "pop" protection.

Preamp Gain

If necessary, the preamplifier gain can be reduced by 12 dB. Contact an authorized Shure service center for information.

RFI Filtering

Important: Microphones must be used with the RK100PK or RK202PK plate-mounted preamp to optimize RF immunity.

Microphone Placement

The microphone is most stable when the gooseneck is bent into a "lazy S" shape. Use the supplied hanging clip and heavy

thread or monofilament fishing line to suspend the microphone at a specific location.

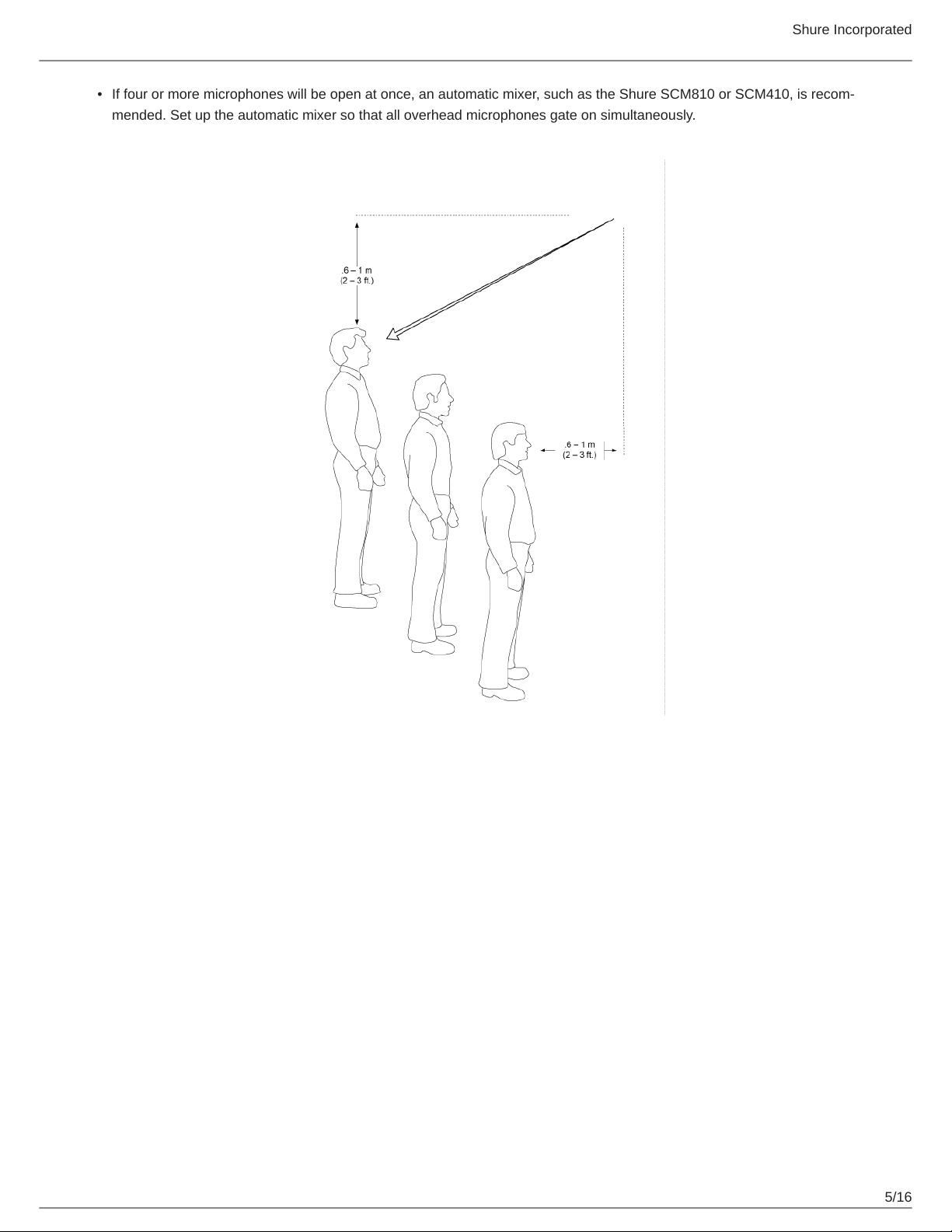

For choir installations, hang a microphone 0.6 to 0.9m (2 to 3 ft.) in front of the first row, and 0.6 to 0.9m (2 to 3 ft.) over

the heads of the singers in the last row. Aim the microphone at the back row.

When miking groups that move or vary in size, use a boom stand and the supplied stand adapter.

Shure Incorporated

5/16

• If four or more microphones will be open at once, an automatic mixer, such as the Shure SCM810 or SCM410, is recom

mended. Set up the automatic mixer so that all overhead microphones gate on simultaneously.

Shure Incorporated

6/16

Permanent Installation

Installing the In-Line Preamp

Use the two supplied mounting clamps to hold the preamp in place on a wall or ceiling.

Shure Incorporated

7/16

Ceiling Tile Installation

Drill a 1/2 in. hole into the ceiling tile. CAUTION: To avoid tile damage, use a 1/2 in. augur bit and drill very slowly.

Unplug the mini 4-pin connector from the preamp and feed the cable through the hole.

Place the rubber grommet, tip down, over the cable and position it to suspend the microphone at the appropriate height.

Fit the grommet securely into the hole. For 5/8 in. ceiling tile, use the suppled washer.

Reconnect the preamp.

Shure Incorporated

8/16

Shure Incorporated

9/16

Plate Mount Preamp Installation

The plate-mounted preamp allows you to mount the preamp in an electical box and use conduit to run cable through ceilings

and walls.

Remove preamp housing by removing two phillips head screws.

Remove knock-out from the hole in the center of the cover plate (if present).

Cut cable to desired hanging length, allowing for a 76 to 101 mm (3 to 4 in.) service loop.

Clamp strain relief around cable and insert strain relief into hole in plate.

Connect cable leads to input terminal block (B = Black, R = Red, S = Shield).

Using professional-quality, two-conductor, shielded microphone cable, thread output cable from outside of preamp

through hole with black bushing.

Connect cable to output terminal block (Pin 2 = +, Pin 3 = –, Shield = S).

Reattach the preamplifier housing.

Shure Incorporated

10/16

Specifications

Type

Electret Condenser

Frequency Response

50–17000 Hz
