Shure 520DX Manual de usuario

Shure Brothers Incorporated

222 Hartrey Avenue

Evanston IL 60202-3696 U.S.A.

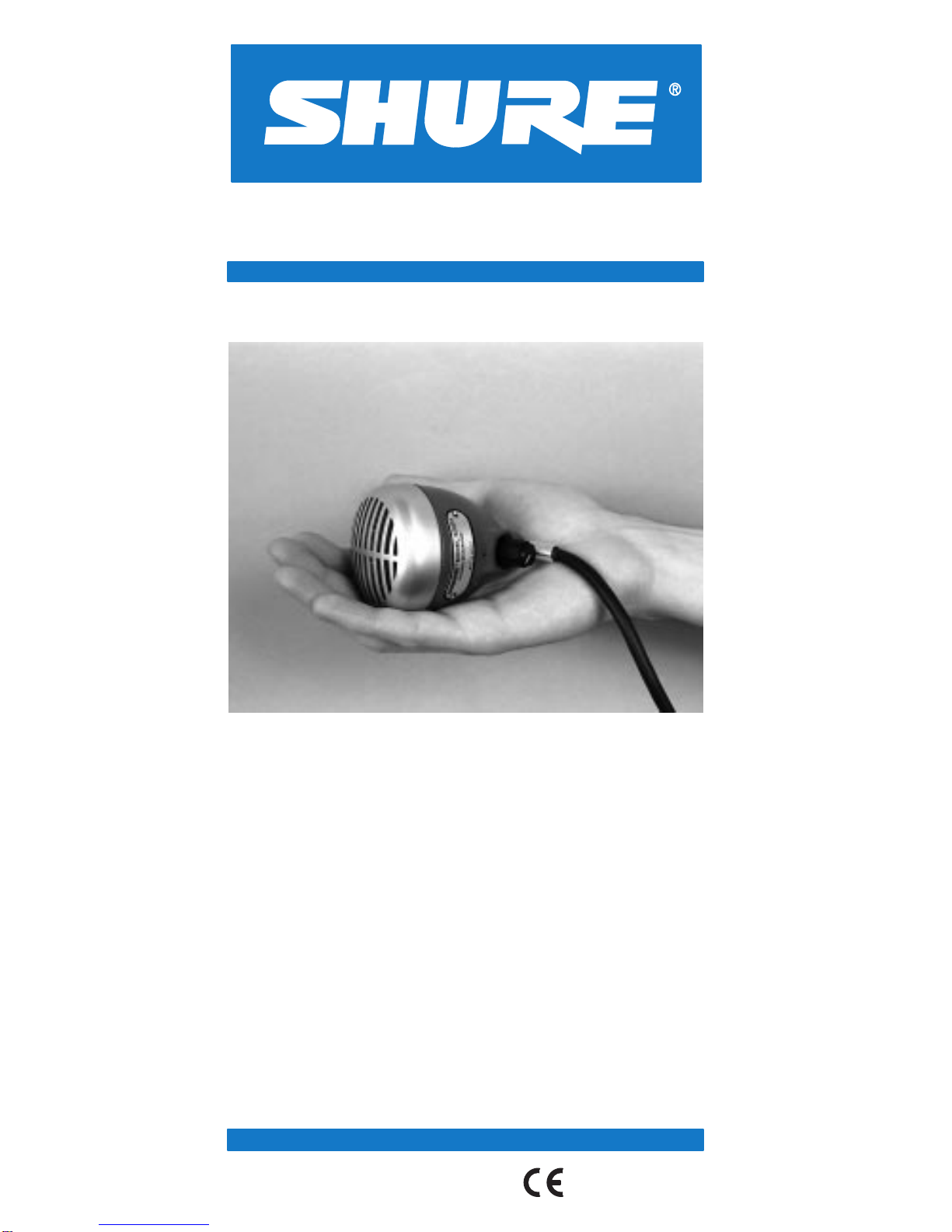

520DX Harmonica Microphone (”Green Bullet”)

User’s Guide

27A3015 (QG)

E1997, Shure Brothers Incorporated Printed in U.S.A.

MICROPHONE POUR HARMONICA 520DX

(«GREEN BULLET»)

GUIDE DE L’UTILISATEUR

HARMONIKA–MIKROFON 520DX

(„GREEN BULLET“)

BEDIENUNGSANLEITUNG

MICROFONO 520DX PARA ARMONICA

(“GREEN BULLET”)

GUIA DEL USUARIO

MICROFONO DA ARMONICA 520DX

(”GREEN BULLET”)

GUIDA D’USO

GENERAL

Contoured to fit comfortably in the palm of your hand,

the Model 520DX “Green Bullet” microphone produces the

unique sound that has made it a legend among harmonica

players.

The 520DX features a volume control knob at the base

of the microphone (see Figure 1) that allows musicians to

make adjustments to suit their needs during a live perfor-

mance. An attached cable with a standard 1/4-inch phone

plugallowsthemicrophonetobeconnectedtoahigh-imped-

ance device.

APPLICATIONS

Connect the 520DX directly into a guitar amplifier to

produce the classic blues harp sound. Use the following

guidelines:

SThevolumecontrolonthemicrophoneshouldbeturned

down before plugging it into an amplifier. As you move

away from the amplifier, the volume can be turned up.

SAdjust the microphone’s volume control knob during

performances as needed. For example, when switching

from playing rhythm to lead or to place the microphone

on standby between sets.

STo avoid feedback, maintain as much distance as pos-

sible from monitors or loudspeakers. Adjust the volume

of monitors or loudspeakers at the mixing console so

that no feedback is present when the volume control

knob on the harmonica microphone is at its maximum

setting.

NOTE: The volume setting of the guitar amplifier may have

asignificanteffectontheoveralltone produced. Experiment

with different microphone and amplifier volume settings to

achieve the desired effect.

VOLUME CONTROL

OFF

VOLUME CONTROL KNOB

FIGURE 1

LOW IMPEDANCE

Toconnectthe520DXtoalowimpedancedevice,such

as a mixer, use a low-to-high impedance-matching line

transformer, such as the Shure model A95U.

NOTE: The 520DX can be rewired for low impedance, but

this disables the volume control. Contact the Shure Applica-

tions Group at (847) 866-2525 for more information.

SPECIFICATIONS

Type

Dynamic

Frequency Response

100 to 5,000 Hz (Figure 2)

TYPICAL FREQUENCY RESPONSE

FIGURE 2

Polar Pattern

Omnidirectional

Impedance

High, unbalanced

Load Impedance Range

Minimum: 100 kΩ

Output Level (at 1,000 Hz)

Open Circuit Voltage –34.0 dBV/Pa (20 mV)*. . . . . .

*1 Pa = 94 dB SPL

Polarity

Positive sound pressure on diaphragm produces posi-

tive voltage on tip with respect to sleeve (ground) of mi-

crophone output phone plug connector

Cable

6.1 m (20 ft) two conductor shielded with standard

1/4-inch phone plug attached (supplied wired for high-

impedance, unbalanced connection)

Case

Green and chrome finished die casting

Dimensions

63 mm (2.5 in.) max diameter, 82.6 mm (31/4in.) long

Net Weight (with cable)

737 grams (26 oz)

Certification

Conforms to European Union directives, eligible to bear

CEmarking;meetsEuropeanUnionEMCImmunity Re-

quirements (EN 50 082–1, 1992); RF radiated (IEC

801–3); ESD (IEC 801–2); EFT (IEC 801–4).

CONNECTIONS

The RED lead is the high-impedance audio output; the

SHIELD is the audio return and case ground.

TheModel520DXGreenBulletMicrophoneissupplied

wired for high-impedance, unbalanced operation with the

1/4-inch phone plug (Figure 3).

RED

WHITE TIP

SHIELD

BLUE

YELLOW

BLACK BROWN

ORANGE

BLACK BLACK

GRAY

RED

INTERNAL CONNECTIONS:

UNBALANCED HIGH-IMPEDANCE OUTPUT

FIGURE 3

REPLACEMENT PARTS

Cartridge R198. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cable and Plug 90A4486. . . . . . . . . . . . . . . . . . . . . . .

Volume Control Knob 95A2073. . . . . . . . . . . . . . . . . .

Volume Control Pot 90A4487. . . . . . . . . . . . . . . . . . . .

For additional service or parts information, please con-

tact Shure’s Service department at 1-800-516-2525. Out-

sidetheUnitedStates,pleasecontactyourauthorizedShure

Service Center.
