33-44 Series -- Phono Cartridge

General Description

Shure cartridges can be used in DJ or Hi-Fi applications.

The M70BX is not recommended for heavy scratching.

Install Your Cartridge

1. Carefully remove the stylus from the cartridge. See Figure 1.

2. Use needle-nose pliers to connect the colored wires from the tonearm headshell to the corresponding pins on

the cartridge. See Table 1 and Figure 2.

Table 1. Cartridge Wiring

HEADSHELL WIRE COLOR PIN

RIGHT "HOT" RED R

RIGHT GROUND GREEN RG

LEFT "HOT" WHITE L

LEFT GROUND BLUE LG

Figure 1

Shure Incorporated

2/5

Figure 2

Figure 3

1. Attach the cartridge to the headshell using the screws supplied. See Figure 3. Tighten the screws after posi

tioning the cartridge (and headshell weight, if desired) according to one of the methods described below.

2. Carefully insert the stylus into the cartridge.

Choose a Method for Cartridge Positioning

HI-FI Setup: For maximum fidelity and minimal record wear, position the cartridge using an alignment protractor or

the overhang gauge supplied with your turntable. Level your tonearm (See Figure 7). Use Table 2 and "Setting a

Precise Tracking Force", below, to set the typical tracking force for your cartridge. Set the anti-skate control to the

same number as the tracking force.

Shure Incorporated

3/5

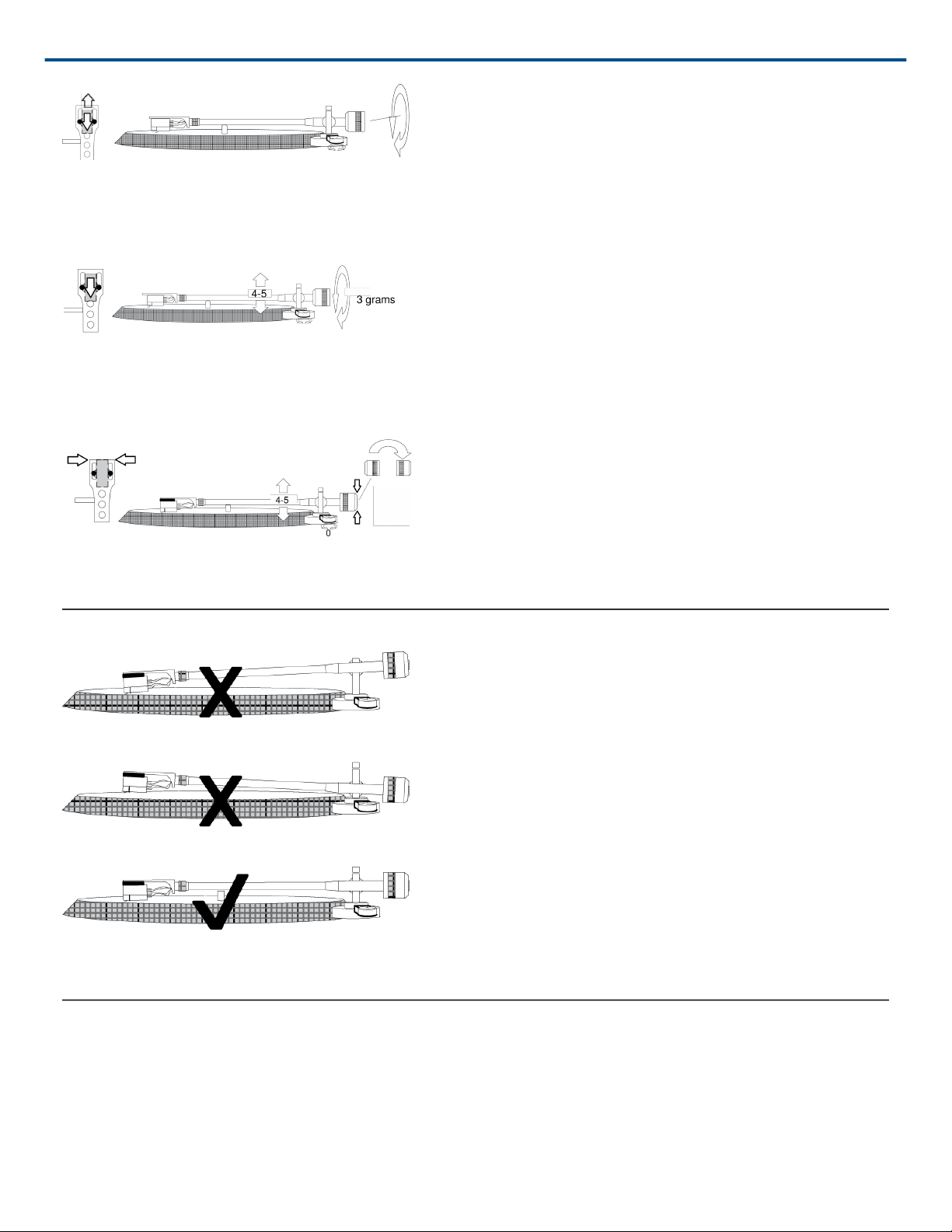

Figure 4

Standard DJ Setup: Mount cartridge at rear of headshell. Set tonearm height to 4-5. Set tracking force to 3

grams. Set anti-skate control to 0.

Figure 5

Unorthodox DJ Setup: Reverse the counterweight and mount it flush with the end of the tonearm. Mount car

tridge (with headshell weight) flush with the front edge of the headshell. Set anti-skate control to 0.

Figure 6

Level Your Tonearm

Figure 7

Extra Skip Resistance for DJ's:

Mount the cartridge at a 23 degree angle as shown, so that the cartridge points to the tonearm pivot. Set anti-skate

to 0.

Shure Incorporated

4/5

Setting a Precise Tracking Force

1. After mounting the cartridge on the tonearm, rotate the circular weight at the back of the tonearm until the nee

dle floats evenly above the record.

2. Hold the circular weight in place and rotate the calibration ring to read zero. The tonearm should still float even

ly above the record.

3. Rotate the weight until the calibration ring indicates the desired tracking force.

Care and Cleaning

•DJs: Don't use more tracking force than necessary to prevent skipping. Excess force will burn records, damage

needles, and reduce sound quality.

•Clean the stylus with the supplied cleaning brush.

Brush from the back to the front only, as shown in Figure 9.

Figure 9

Cartridge Specifications

Table 2. Cartridge Specifications

Shure Incorporated

5/5

Car

tridge

Replace

ment Sty

lus

Stylus

Color

Stereo Output (1 KHz

at 5 cm/sec peak

recorded velocity)

Frequency

Response in

Tracking

Force Range

(grams)

Typical

Tracking

Force

(grams)

M44-7 N44-7 White 9.5 mV 20 to 20,000 1-3 3

M44G N44G Gray 6.2 mV 20 to 20,000 .75-1.5 1.5

M35S N35S Char

treuse

5.0 mV 20 to 20,000 3-5 4

35X N35X White 6.0 mV 20 to 20,000 1.5-3 3

M70BX N70BX Beige .0 mV 20 to 18,000 1.5-3 3

SC35C SS35S Light

Blue

5.0 mV 20 to 20,000 4-5 4.5

All Cartridges and Styli

•Standard ½ inch mount for DJ turntables

•Wide diameter styli for reduced record wear

•Optimum Load:

◦47 K Ohms, M44: 400-500 pF

◦M35, M70BX, SC35C: 200-300 pF

•Inductance:

◦M44: 720 Mh, M35

◦SC35C: 425 mH

◦M70BX: 600 mH

•Channel Separation: 20 dB at 1KHz
