ULX-D Dual and Quad

Wireless Microphone System

User guide for Shure ULXD Dual and Quad wireless system. Includes setup instructions, specifications, and troubleshooting.

Version: 4 (2020-E)

Shure Incorporated
2/70
Table of Contents
ULX-D Dual and Quad Wireless Microphone System 4
IMPORTANT SAFETY INSTRUCTIONS 4
WARNING 5
Important Product Information 5
LICENSING INFORMATION 6
Information to the user 6
Australia Warning for Wireless 6
Quickstart Instructions 6
General Description 7
Dual and Quad Receiver Models 8
Hardware Interface 8
Receiver 9
Receiver Home Screen 11
Transmitters 12
Boundary and Gooseneck Base Transmitters 14
Advanced Transmitter Features 15
Locking Controls and Settings 16
Home Screen Display Options 16
Menu Screens 17
Transmitter IR Presets 23
Creating a System Preset 24
Batteries 24
Battery Runtime Charts 25
Shure SB900 Rechargeable Battery 25
Shure SB900 Runtime 26
Important Tips for Care and Storage of Shure Recharge
able Batteries 26
Installing the Battery Contact Cover 26
Setting Receiver Gain 26
Receiver Gain Controls 26
Reading the Audio Meter 27
Muting a Receiver Channel Audio Output 27
Transmitter Input Clip 27
Audio Summing 28
Receiver Output Level 29
Scan and Sync 29
Multiple System Setup 30
Manual Frequency Selection 31
RF 31
Transmitter RF Power 31
Interference Detection 31
High Density Mode 32
Frequency Diversity 32
Setting Regional TV Format 33
Custom Groups 33
Audio Signal Encryption 34
RF Cascade Ports 34
Antenna Bias 34
Networking ULX-D Receivers 35
Network Control Software 35
IP Address Configuration 36
Networking Acronyms 36
Overview of Dante Network Modes 37
Network Connection and Configuration Examples 37
Assigning Network Device IDs for Shure Control and
Dante Control 43
Configuring Audio Routes with the Dante Controller 44
Network Troubleshooting 46
Restoring Dante Factory Settings 46

Shure Incorporated
3/70
System Reset 47
Firmware 47
Firmware Versioning 47
Updating the Receiver 47
Updating the Transmitter 48
Connecting to an External Control System 48
Setting the Gateway to Allow Cross Subnet Routing 48
Managing Your System with Shure Software 48
Troubleshooting 49
Power 49
Gain 49
Cables 49
Interface Locks 49
Encryption Mismatch 49
Firmware Mismatch 50
Radio Frequency (RF) 50
Accessories 51
Furnished Accessories 51
Optional Accessories 53
Specifications 54
ULXD4D & ULXD4Q 55
ULXD1 57
ULXD2 58
Tables and Diagrams 59
Batteries 60
Frequency Range and Transmitter Output Power 61
Certifications 68
Information to the user 69

Shure Incorporated

4/70

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

ULX-D Dual and Quad

Wireless Microphone System

IMPORTANT SAFETY INSTRUCTIONS

READ these instructions.

KEEP these instructions.

HEED all warnings.

FOLLOW all instructions.

DO NOT use this apparatus near water.

CLEAN ONLY with dry cloth.

DO NOT block any ventilation openings. Allow sufficient distances for adequate ventilation and install in accordance

with the manufacturer’s instructions.

DO NOT install near any heat sources such as open flames, radiators, heat registers, stoves, or other apparatus (in

cluding amplifiers) that produce heat. Do not place any open flame sources on the product.

DO NOT defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one

wider than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third

prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replace

ment of the obsolete outlet.

PROTECT the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the

point where they exit from the apparatus.

ONLY USE attachments/accessories specified by the manufacturer.

USE only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a

cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

UNPLUG this apparatus during lightning storms or when unused for long periods of time.

REFER all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any

way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,

the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

DO NOT expose the apparatus to dripping and splashing. DO NOT put objects filled with liquids, such as vases, on the

apparatus.

The MAINS plug or an appliance coupler shall remain readily operable.

The airborne noise of the Apparatus does not exceed 70dB (A).

Apparatus with CLASS I construction shall be connected to a MAINS socket outlet with a protective earthing connec

tion.

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Do not attempt to modify this product. Doing so could result in personal injury and/or product failure.

Operate this product within its specified operating temperature range.

Explanation of Symbols

Shure Incorporated

5/70

•

Caution: risk of electric shock

Caution: risk of danger (See note.)

Direct current

Alternating current

On (Supply)

Equipment protected throughout by DOUBLE INSULATION or REINFORCED INSULATION

Stand-by

Equipment should not be disposed of in the normal waste stream

WARNING: Voltages in this equipment are hazardous to life. No user-serviceable parts inside. Refer all servicing to qualified

service personnel. The safety certifications do not apply when the operating voltage is changed from the factory setting.

WARNING: Danger of explosion if incorrect battery replaced. Operate only with AA batteries.

Note: Use only with the included power supply or a Shure-approved equivalent.

WARNING

Battery packs may explode or release toxic materials. Risk of fire or burns. Do not open, crush, modify, disassemble, heat

above 140°F (60°C), or incinerate.

Follow instructions from manufacturer

Only use Shure charger to recharge Shure rechargeable batteries

WARNING: Danger of explosion if battery incorrectly replaced. Replace only with same or equivalent type.

Never put batteries in mouth. If swallowed, contact your physician or local poison control center

Do not short circuit; may cause burns or catch fire

Do not charge or use battery packs other than Shure rechargeable batteries

Dispose of battery packs properly. Check with local vendor for proper disposal of used battery packs.

Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like

Do not immerse the battery in liquid such as water, beverages, or other fluids.

Do not attach or insert battery with polarity reversed.

Keep away from small children.

Do not use abnormal batteries.

Pack the battery securely for transport.

Shure Incorporated

6/70

•

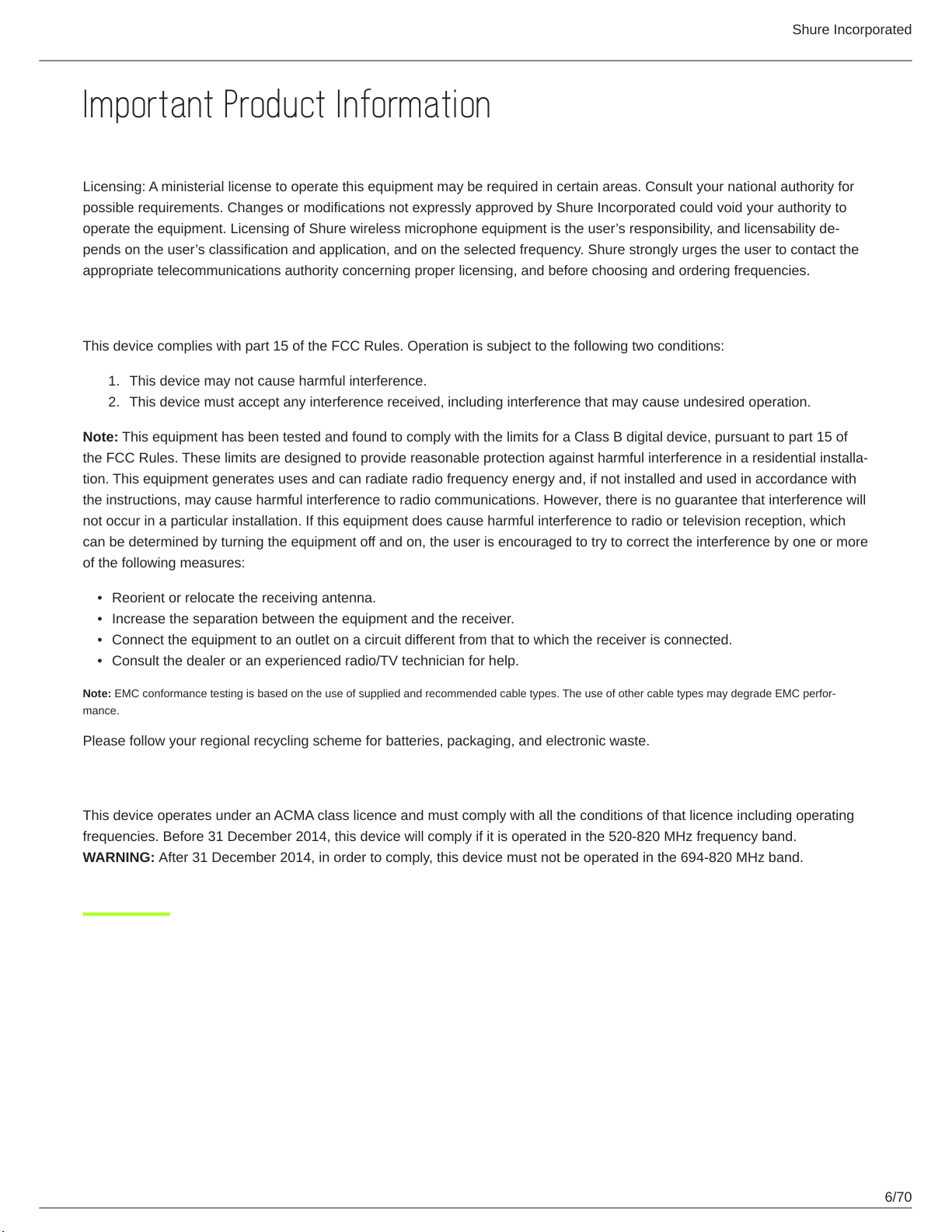

Important Product Information

LICENSING INFORMATION

Licensing: A ministerial license to operate this equipment may be required in certain areas. Consult your national authority for

possible requirements. Changes or modifications not expressly approved by Shure Incorporated could void your authority to

operate the equipment. Licensing of Shure wireless microphone equipment is the user’s responsibility, and licensability de

pends on the user’s classification and application, and on the selected frequency. Shure strongly urges the user to contact the

appropriate telecommunications authority concerning proper licensing, and before choosing and ordering frequencies.

Information to the user

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

This device may not cause harmful interference.

This device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of

the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa

tion. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more

of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and the receiver.

Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Note: EMC conformance testing is based on the use of supplied and recommended cable types. The use of other cable types may degrade EMC perfor

mance.

Please follow your regional recycling scheme for batteries, packaging, and electronic waste.

Australia Warning for Wireless

This device operates under an ACMA class licence and must comply with all the conditions of that licence including operating

frequencies. Before 31 December 2014, this device will comply if it is operated in the 520-820 MHz frequency band.

WARNING: After 31 December 2014, in order to comply, this device must not be operated in the 694-820 MHz band.

Shure Incorporated

7/70

Quickstart Instructions

General Description

Shure ULX-D Digital Wireless offers uncompromising 24bit audio quality and RF performance, with intelligent, encryptionen

abled hardware, flexible receiver options, and advanced rechargeability options for professional sound reinforcement.

A breakthrough in wireless audio quality, Shure digital processing enables ULX-D to deliver the purest reproduction of source

material ever available in a wireless system, with a wide selection of trusted Shure microphones to choose from. Extended 20

Hz – 20 kHz frequency range and flat response captures every detail with clarity, presence, and incredibly accurate low end

™

Shure Incorporated

8/70

and transient response. With greater than 120 dB, ULXD delivers wide dynamic range for excellent signaltonoise perfor

mance. Optimized for any input source, ULX-D eliminates the need for transmitter gain adjustments.

ULX-D sets a new and unprecedented standard for spectral efficiency and signal stability. The intermodulation performance of

ULXD is an incredible advancement in wireless performance, enabling a dramatic increase in the number of simultaneous ac

tive transmitters on one TV channel. Rocksolid RF signal with zero audio artifacts extends over the entire range. For applica

tions where secure wireless transmission is required, ULX-D offers Advanced Encryption Standard (AES) 256-bit encrypted

signal for unbreakable privacy.

For scalability and modular flexibility, ULX-D receivers come in single, dual, and even quad channel versions. The dual and

quad channel receivers offer conveniences such as RF cascade, internal power supply, bodypack frequency diversity, audio

output channel summing, and Dante digital networking for multi-channel audio over Ethernet. All receivers offer High-Density

mode for applications where high channel counts are needed, greatly increasing the amount of simultaneous channels possi

ble over one frequency band.

Advanced Lithium-ion rechargeability provides extended transmitter battery life over alkaline batteries, battery life metering in

hours and minutes accurate to within 15 minutes, and detailed tracking of battery health status.

Generations ahead of any other available system in its class, ULX-D brings a new level of performance to professional sound

reinforcement.

Dual and Quad Receiver Models

The ULXD4 receiver is available in dual channel and quad channel models. Both models share the same feature set and func

tionality, but differ in the number of channels available and the number of audio outputs.

The descriptions and procedures in this guide are applicable to either the dual or the quad receiver.

ULXD4D Dual Receiver

Supports 2 channels of wireless audio.

ULXD4Q Quad Receiver

Supports 4 channels of wireless audio.

™

Shure Incorporated

9/70

◦

Hardware Interface

Receiver

Front Panel

①Infrared (IR) Sync Window

Sends IR signal to the transmitter for sync.

②Network Icon

Illuminates when the receiver is connected with other Shure devices on the network. IP Address must be valid to enable

networked control.

③Encryption Icon

Illuminates when AES-256 encryption is activated.

④LCD Panel

Displays settings and parameters.

⑤Scan Button

Press to find the best channel or group.

⑥Menu Navigation Buttons

Use to navigate and select parameter menus.

⑦Control Wheel

Push to select a channel or menu item

Turn to scroll through menu items or to edit a parameter value

⑧Channel Select Button

Press to select a channel.

⑨Sync Button

Press the sync button while the receiver and transmitter IR windows are aligned to transfer settings from the receiver to the

transmitter.

⑩RF Diversity LEDs

Shure Incorporated

10/70

◦

Indicate antenna status:

Blue = normal RF signal between the receiver and transmitter

Red = interference detected

Off = No RF connection between the receiver and transmitter

Note: the receiver will not output audio unless one blue LED is illuminated.

⑪RF Signal Strength LEDs

Indicate the RF signal strength from the transmitter:

Amber = Normal (-90 to -70 dBm)

Red = Overload (greater than -25 dBm)

⑫Audio LEDs

Indicate average and peak audio levels:

LED Audio Signal Level Description

Red (6) -0.1 dBFS Overload/ limiter

Yellow (5) -6 dBFS

Normal peaks

Yellow (4) -12 dBFS

Green (3) -20 dBFS

Signal PresentGreen (2) -30 dBFS

Green (1) -40 dBFS

Note: In Frequency Diversity mode, simultaneous blinking of the red and yellow audio LEDs indicates that diversity audio has been routed to this channel.

⑬Gain Buttons

Press the ▲▼ gain buttons on the front of the receiver to incrementally adjust gain from -18 to +42 dB.

⑭Power Switch

Powers the unit on or off.

Back Panel

①AC Power Input

IEC Connector, 100 - 240 V AC.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Sistema de micrófono de Shure

Shure

Shure PSM1000 Manual de usuario

Shure

Shure AXU Series Manual de usuario

Shure

Shure BLX Wireless System Manual de usuario

Shure

Shure UP4 Manual de usuario

Shure

Shure MXCIC Manual de usuario

Shure

Shure T series Manual de usuario

Shure

Shure SC Manual de usuario

Shure

Shure UHF MD Manual del propietario

Shure

Shure T series Manual de usuario

Shure

Shure ULX-D Manual de usuario

Shure

Shure ULXD1-V50 Manual de usuario

Shure

Shure ULXS4 Manual de usuario

Shure

Shure BLX Wireless System Manual de usuario

Shure

Shure M4 Manual del propietario

Shure

Shure UC1 Manual del propietario

Shure

Shure 404B Manual de usuario

Shure

Shure SVX Wireless Manual de usuario

Shure

Shure ULX-D Manual de usuario

Shure

Shure UHF-R Wireless Manual de usuario

Shure

Shure ULX-D Manual de programación

Shure

Shure SLX Wireless System Manual de usuario

Shure

Shure Performance Gear Manual de usuario

Shure

Shure ULX-D Manual de usuario

Shure

Shure R175 Manual técnico

Manuales populares de Sistema de micrófono de otras marcas

Paso

Paso R824 Manual de usuario

Naxa

Naxa NAM-982 Manual de usuario

Motorola

Motorola PMNN4461 Manual de usuario

Xvive

Xvive U3 Manual de usuario

Tekon

Tekon DUOS Manual de usuario

Heyuan Intelligence

Heyuan Intelligence IOT-G2S-01 Manual de usuario

Devine

Devine WMD-IE Manual de usuario

LG LF-D7150 Manual de usuario

GE S768DAV Manual de usuario

LD U305 HBH 2 Manual de usuario

Chainway

Chainway URA8 Manual de usuario

ORATOR

ORATOR D860TD Manual de usuario

Sennheiser

Sennheiser Evolution Wireless Digital EW-DX EM 2 Manual de usuario

Alpha Technologies

Alpha Technologies RBMS Manual de usuario

SWIT Electronics Co.,LTD.

SWIT Electronics Co.,LTD. CW-S150 Manual de usuario

Panasonic

Panasonic SHFX70 - DVD HOME THEATER WIRELESS SYSTEM Manual de usuario

Pyle

Pyle PDWM5000 Manual de usuario

Airspan

Airspan AS4000 Guía
