Shure SLX-D Digital Wireless

Shure SLX-D Digital Wireless quick start guide.

Version: 5.0 (2020-G)

Shure Incorporated

2/15

Table of Contents

SLX-D Shure SLX-D Digital Wireless 3

IMPORTANT SAFETY INSTRUCTIONS 3

WARNING 4

Important Product Information 4

LICENSING INFORMATION 4

Australia Warning for Wireless 4

System Components 5

Set Up the Receiver 8

Install Transmitter Batteries 9

What are Groups and Channels? 10

Using the Guided Frequency Setup 11

Manual Frequency Selection 13

Sound Check and Gain Adjustment 13

More Information Available Online 13

Certifications 13

Information to the user 13

Shure Incorporated

3/15

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

SLX-D 

Shure SLX-D Digital Wireless

IMPORTANT SAFETY INSTRUCTIONS

READ these instructions.

KEEP these instructions.

HEED all warnings.

FOLLOW all instructions.

DO NOT use this apparatus near water.

CLEAN ONLY with dry cloth.

DO NOT block any ventilation openings. Allow sufficient distances for adequate ventilation and install in accordance

withthemanufacturer’sinstructions.

DONOTinstallnearanyheatsourcessuchasopenflames,radiators,heatregisters,stoves,orotherapparatus(in

cluding amplifiers) that produce heat. Do not place any open flame sources on the product.

DO NOT defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one

wider than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third

prongareprovidedforyoursafety.Iftheprovidedplugdoesnotfitintoyouroutlet,consultanelectricianforreplace

ment of the obsolete outlet.

PROTECT the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the

point where they exit from the apparatus.

ONLY USE attachments/accessories specified by the manufacturer.

USE only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a

cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

UNPLUG this apparatus during lightning storms or when unused for long periods of time.

REFER all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any

way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,

the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

DO NOT expose the apparatus to dripping and splashing. DO NOT put objects filled with liquids, such as vases, on the

apparatus.

The MAINS plug or an appliance coupler shall remain readily operable.

The airborne noise of the Apparatus does not exceed 70dB (A).

ApparatuswithCLASSIconstructionshallbeconnectedtoaMAINSsocketoutletwithaprotectiveearthingconnec

tion.

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Do not attempt to modify this product. Doing so could result in personal injury and/or product failure.

Operate this product within its specified operating temperature range.

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit.

Shure Incorporated

4/15

•

Thissymbolindicatesthatthereareimportantoperatingandmaintenanceinstructionsintheliteratureaccom

panying this unit.

WARNING

Battery packs may explode or release toxic materials. Risk of fire or burns. Do not open, crush, modify, disassemble, heat

above 140°F (60°C), or incinerate.

Follow instructions from manufacturer

Only use Shure charger to recharge Shure rechargeable batteries

WARNING: Danger of explosion if battery incorrectly replaced. Replace only with same or equivalent type.

Never put batteries in mouth. If swallowed, contact your physician or local poison control center

Do not short circuit; may cause burns or catch fire

Do not charge or use battery packs other than Shure rechargeable batteries

Dispose of battery packs properly. Check with local vendor for proper disposal of used battery packs.

Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like

Do not immerse the battery in liquid such as water, beverages, or other fluids.

Do not attach or insert battery with polarity reversed.

Keep away from small children.

Do not use abnormal batteries.

Pack the battery securely for transport.

Important Product Information

LICENSING INFORMATION

Licensing: A ministerial license to operate this equipment may be required in certain areas. Consult your national authority for

possible requirements. Changes or modifications not expressly approved by Shure Incorporated could void your authority to

operatetheequipment.LicensingofShurewirelessmicrophoneequipmentistheuser’sresponsibility,andlicensabilityde

pendsontheuser’sclassificationandapplication,andontheselectedfrequency.Shurestronglyurgestheusertocontactthe

appropriate telecommunications authority concerning proper licensing, and before choosing and ordering frequencies.

低功率電波輻射性電機管理辦法

第十二條

經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功

能。第十四條

低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使

用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機

設備之干擾。

Australia Warning for Wireless

This device operates under an ACMA class licence and must comply with all the conditions of that licence including operating

frequencies. Before 31 December 2014, this device will comply if it is operated in the 520-820 MHz frequency band.

WARNING: After 31 December 2014, in order to comply, this device must not be operated in the 694-820 MHz band.

Shure Incorporated

5/15

Canada Warning for Wireless

Thisdeviceoperatesonanoprotection,nointerferencebasis.Shouldtheuserseektoobtainprotectionfromotherradioser

vicesoperatinginthesameTVbands,aradiolicenceisrequired.Forfurtherdetails,consultInnovation,ScienceandEconom

icDevelopmentCanada’sdocumentClientProceduresCircularCPC2128,VoluntaryLicensingofLicenceExemptLowPow

er Radio Apparatus in the TV Bands.

Ce dispositif fonctionne selon un régime de non‑brouillage et de non‑protection.Sil’utilisateurdevaitchercheràobtenirune

certaineprotectioncontred’autresservicesradiofonctionnantdanslesmêmesbandesdetélévision,unelicenceradioserait

requise. Pour en savoir plus, veuillez consulter la Circulaire des procédures concernant les clients CPC‑2‑1‑28, Délivrance de

licences sur une base volontaire pour les appareils radio de faible puissance exempts de licence et exploités dans les bandes

detélévisiond’Innovation,SciencesetDéveloppementéconomiqueCanada.

เครื่องโทรคมนาคมและอุปกรณ์นี้มีความสอดคล้องตามมาตรฐานหรือข้อกำหนดทางเทคนิคของ กสทช.

System Components

All systems include:

①

Rack mounting hardware

②

¼-wave antennas (2)

③

Power supply

④

1.5V AA batteries (2)

⑤

SLXD4 or SLXD4D receiver

Shure Incorporated

6/15

Guitar system includes:

⑥

¼" to mini 4-pin guitar cable

⑦

SLXD1 bodypack transmitter

Vocal system includes:

⑧

Shure Incorporated

7/15

Microphone clip

⑨

SLXD2 handheld transmitter with microphone cartridge (choice of SM58 , SM86, Beta 58A , Beta 87A , Beta 87C , or

KSM8/B*)

*KSM8/B availability depends on region.

Lavalier, Headworn, and Instrument systems include bodypack transmitter (⑦) and one of the following:

⑩

WL183/WL185 lavalier microphone

⑪

WL93 miniature lavalier microphone

⑫

SM35 headset microphone

⑬

Beta 98H/C instrument microphone

⑭

MX153 earset headworn microphone

® ® ™ ™

™

Shure Incorporated

8/15

Combo system includes:

⑦

SLXD1 bodypack transmitter

⑨

Handheld transmitter with SM58 microphone head

⑪

WL185 lavalier microphone

Set Up the Receiver

Attach the included antennas to the back of the receiver.

Connect the power supply to the receiver and plug the cord into an AC power source.

Shure Incorporated

9/15

Connect the audio output to an amplifier or mixer.

Press the power button on the receiver. Use the menu to set the system to microphone (mic) or instrument (line) level

as appropriate.

Install Transmitter Batteries

Important: To avoid damaging transmitters, only use Shure SB903 Li-ion rechargeable batteries or 1.5V AA batteries.

Bodypack:

Push the tab up and open the battery door to access the battery compartment.

Place a Shure SB903 Li-ion rechargeable battery or 2 AA batteries in the compartment.

Close the battery door.

Shure Incorporated

10/15

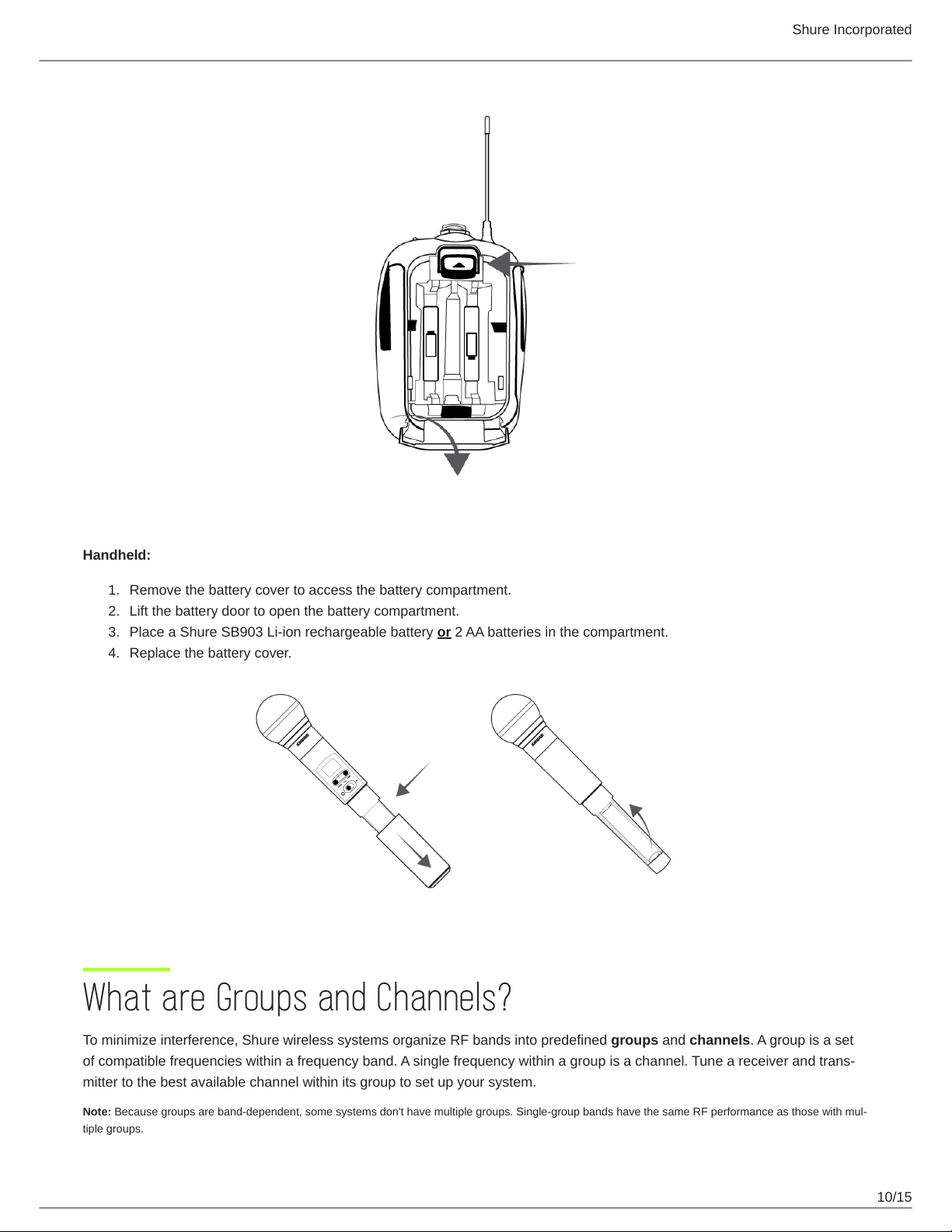

Handheld:

Remove the battery cover to access the battery compartment.

Lift the battery door to open the battery compartment.

Place a Shure SB903 Li-ion rechargeable battery or 2 AA batteries in the compartment.

Replace the battery cover.

What are Groups and Channels?

To minimize interference, Shure wireless systems organize RF bands into predefined groups and channels. A group is a set

ofcompatiblefrequencieswithinafrequencyband.Asinglefrequencywithinagroupisachannel.Tuneareceiverandtrans

mitter to the best available channel within its group to set up your system.

Note: Becausegroupsarebanddependent,somesystemsdon'thavemultiplegroups.SinglegroupbandshavethesameRFperformanceasthosewithmul

tiple groups.
