Shure DuraPlex DH5 Manual de usuario

DH5

DuraPlex Omnidirectional Headset

™

The Shure Omnidirectional DuraPlex Headset user guide.

Version: 1.1 (2022-D)

Shure Incorporated

2/14

Table of Contents

DH5 DuraPlex™ Omnidirectional Headset 3

General Description 3

Features 3

Care and Maintenance 3

Adjusting the Headband and Microphone 4

Reversing the Boom 5

Presence Cap 6

Frequency Response 7

Attaching the Windscreen 7

Using the Collar Clip 7

Accessories 8

Furnished Accessories 8

Optional Accessories 8

Replacement Parts 8

Threaded Mount Instructions 9

Wiring and Termination 9

Typical Wiring Table 10

TA5F Wiring for Lectrosonics Bodypacks (Servo Biased

Wiring) 10

MTQG Connector Assembly 11

Specifications 11

Certifications 13

Shure Incorporated

3/14

•

DH5 

DuraPlex Omnidirectional Headset

General Description

The DuraPlex DH5 omnidirectional headset microphone is ideal for both speech and performance applications that require

durability and minimal visibility. The bendable lightweight headset features switchable boom mounting placement and a neutral

cleardesigntobeusedwithanyDH5colorvariant.ThecertifiedIP57ratedheadsetcanwithstandchallengingconditionsin

volving sweat and dust for use in theater, corporate events, and TV broadcast applications. Each microphone is supplied with a

storage pouch, single tie clip, vocal presence frequency response cap, snap fit windscreen, foam windscreen, and TA4F

threaded adapter.

Features

IP57 Certified dust resistant and waterproof/sweatproof headset

5mm omnidirectional subminiature design for discrete placement and improved gain before feedback

1.6mm PLEX Cable technology, paintable cable, and no memory effect

Professional sound quality for speech and performance applications

High RF immunity, compatible with digital wireless systems without RF interference

Attachable Presence Cap included for tailored frequency response in speech applications

Included furnished accessories for storage, mounting options, and wind protection

TA4F and LEMO terminations for variable wireless system connectivity

Universal clear headset frame with switchable boom mount placement

Available in Black, Tan, Cocoa finishes

Care and Maintenance

The DuraPlex omnidirectional microphone has been IP57 dust-protected, waterproof rated by extensive internal tests, so you

can clean it using distilled water and a mild detergent when necessary.

™

Shure Incorporated

4/14

Adjusting the Headband and Microphone

➀Adjust headband width.

➁Adjust the earhooks,

slide the boom arm in the

boom pivot, and twist the

pivot to adjust height and

length.

➂Bend boom arm into

place. Adjust position.

Shure Incorporated

5/14

➃Use presence cap or

leave off.

Important:

Use slide-fit windscreen

with the presence cap

Use snap-fit windscreen

without the presence cap

Reversing the Boom

The microphone boom can be positioned on the left or right side of the head.

Shure Incorporated

6/14

Squeeze the earpiece towards the headband.

Push out the boom arm and boom pivot.

On the other side, repeat the steps to remove the boom pivot.

Move the boom arm to the preferred side, ensuring that the boom arm is placed in the slot in the boom pivot.

Squeeze each earpiece towards the headband to push boom pivots back into place.

Presence Cap

Shure Incorporated

7/14

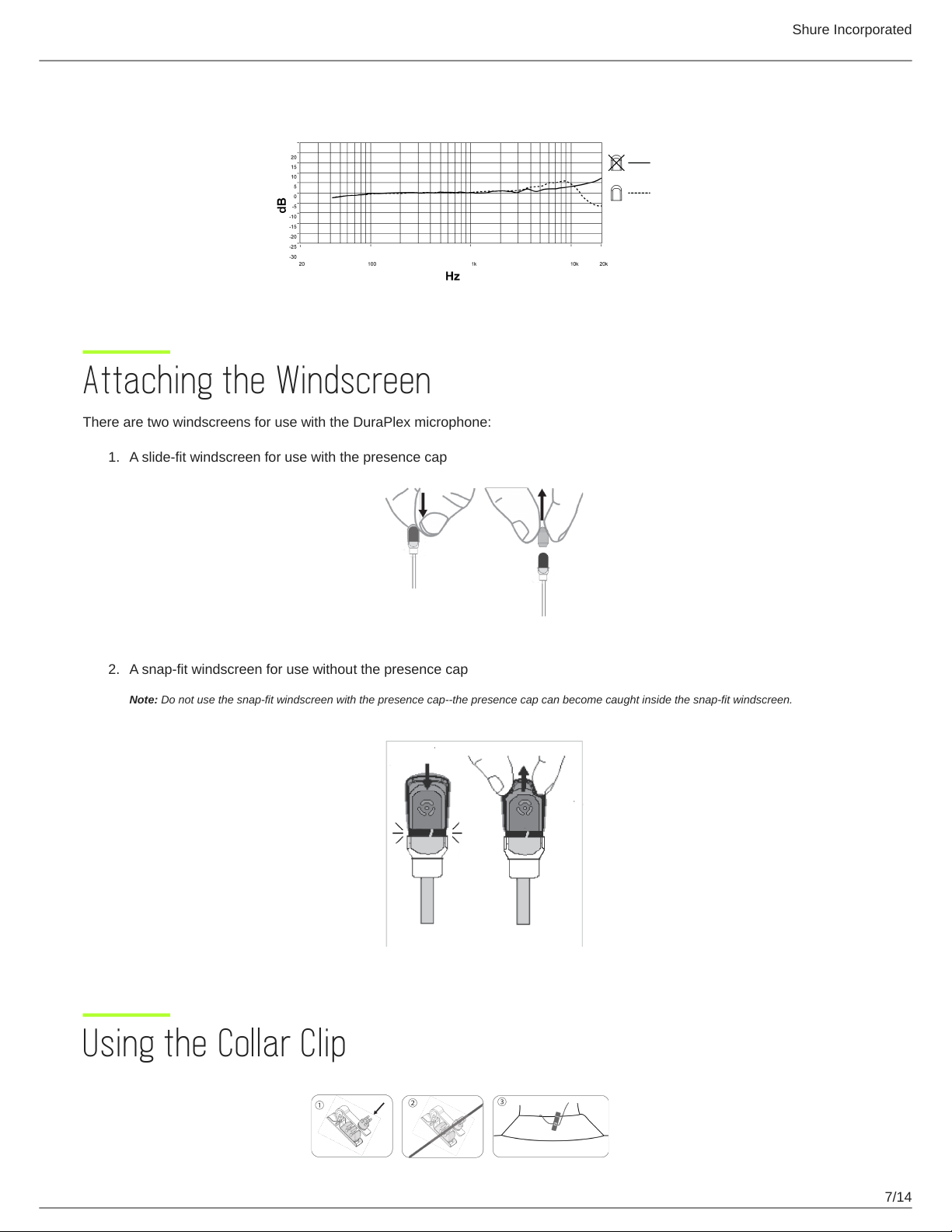

Frequency Response

Attaching the Windscreen

There are two windscreens for use with the DuraPlex microphone:

A slide-fit windscreen for use with the presence cap

A snap-fit windscreen for use without the presence cap

Note: Do not use the snap-fit windscreen with the presence cap--the presence cap can become caught inside the snap-fit windscreen.

Using the Collar Clip

Shure Incorporated

8/14

Accessories

Furnished Accessories

Furnished Accessories DH5 Black DH5 Tan DH5 Cocoa

Single Tie Clip RPMDL4STC/B (1) RPMDL4STC/T (1) RPMDL4STC/C (1)

Presence Cap RPMDL4FC/B (1) RPMDL4FC/T (1) RPMDL4FC/C (1)

Snap-Fit Windscreen RPMDL4SFWS/B (1) RPMDL4SFWS/T (1) RPMDL4SFWS/C (1)

Foam Windscreen RPMDL4WS/B (1) RPMDL4WS/T (1) RPMDL4WS/C (1)

Sticky Mount RPM40TS (1) RPM40TS (1) RPM40TS (1)

Case RPMDL4CASE RPMDL4CASE RPMDL4CASE

Threaded TA4F Adapter WA445 WA445 WA445

Accessories are available in Black (/B), Tan (/T), AND Cocoa (/C) color varieties. Please consult your Shure representative for

available options.

Optional Accessories

TA4F/TQG XLR Preamplifier RPM400TQG

Lemo XLR Preamplifier RPM400LEMO

Replacement Parts

Description Black Tan Cocoa

1Presence Cap, qty. 5 RPMDL4FC/B RPMDL4FC/T RPMDL4FC/C

2Foam Windscreen, qty. 3 RPMDL4WS/B RPMDL4WS/T RPMDL4WS/C

3Snap-fit Windscreen, qty. 3 RPMDL4SFWS/B RPMDL4SFWS/T RPMDL4SFWS/C

Shure Incorporated

9/14

Description Black Tan Cocoa

4Microphone Boom Arm and Cable Assembly, Lemo Con

nector

RPMDH5B/O-

LM3

RPMDH5T/O-

LM3

RPMDH5C/O-

LM3

Microphone Boom Arm and Cable Assembly, MTQG Con

nector

RPMDH5B/O-

MTQG

RPMDH5T/O-

MTQG

RPMDH5C/O-

MTQG

5Boom Pivot, qty. 4 RPMDH5PIVOT RPMDH5PIVOT RPMDH5PIVOT

6Boom Mount, qty. 4 RPMDH5BM RPMDH5BM RPMDH5BM

7Headset Frame, qty. 1 RPMDHSF RPMDHSF RPMDHSF

Single Tie Clip, qty. 3 RPMDL4STC/B RPMDL4STC/T RPMDL4STC/C

Dual Tie Clip, qty. 3 RPMDL4DTC/B RPMDL4DTC/T RPMDL4DTC/C

DL4 Sticky Mount, qty. 3 RPMDL4SM RPMDL4SM RPMDL4SM

DH5 Case, Headsset RPMDH5CASE RPMDH5CASE RPMDH5CASE

TA4F XLR Preamp RPM400TQG RPM400TQG RPM400TQG

LEMO XLR Preamp RPM400LEMO RPM400LEMO RPM400LEMO

Threaded Mount Instructions

Shure Incorporated

10/14

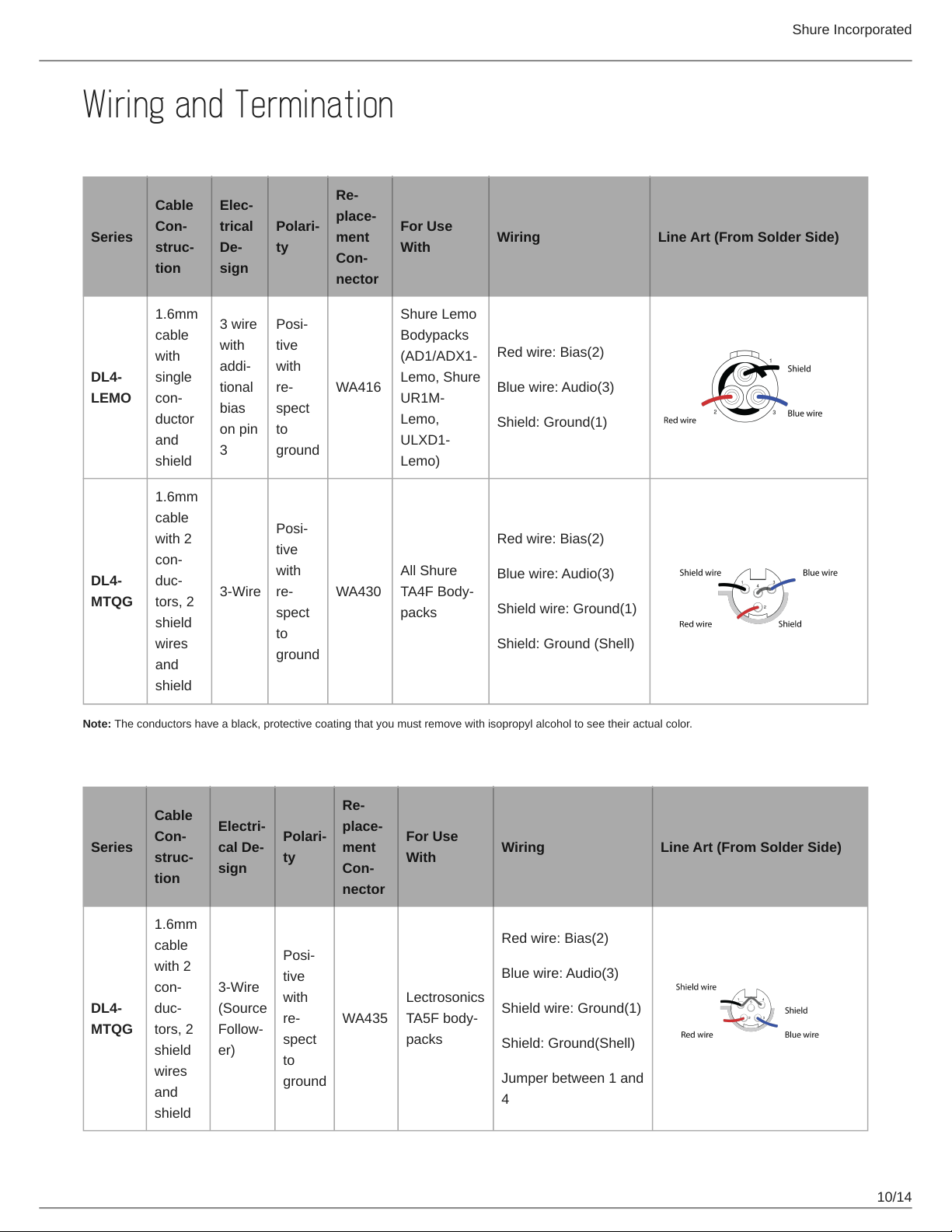

Wiring and Termination

Typical Wiring Table

Series

Cable

Con

struc

tion

Elec

trical

De

sign

Polari

Re

place

ment

Con

nector

For Use

With Wiring Line Art (From Solder Side)

DL4-

LEMO

1.6mm

cable

with

single

con

ductor

and

shield

3 wire

with

addi

tional

bias

on pin

Posi

tive

with

re

spect

ground

WA416

Shure Lemo

Bodypacks

(AD1/ADX1-

Lemo, Shure

UR1M-

Lemo,

ULXD1-

Lemo)

Red wire: Bias(2)

Blue wire: Audio(3)

Shield: Ground(1)

DL4-

MTQG

1.6mm

cable

with 2

con

duc

tors, 2

shield

wires

and

shield

3-Wire

Posi

tive

with

re

spect

ground

WA430

All Shure

TA4FBody

packs

Red wire: Bias(2)

Blue wire: Audio(3)

Shield wire: Ground(1)

Shield: Ground (Shell)

Note: The conductors have a black, protective coating that you must remove with isopropyl alcohol to see their actual color.

TA5F Wiring for Lectrosonics Bodypacks (Servo Biased Wiring)

Series

Cable

Con

struc

tion

Electri

cal De

sign

Polari

Re

place

ment

Con

nector

For Use

With Wiring Line Art (From Solder Side)

DL4-

MTQG

1.6mm

cable

with 2

con

duc

tors, 2

shield

wires

and

shield

3-Wire

(Source

Follow

er)

Posi

tive

with

re

spect

ground

WA435

Lectrosonics

TA5Fbody

packs

Red wire: Bias(2)

Blue wire: Audio(3)

Shield wire: Ground(1)

Shield: Ground(Shell)

Jumper between 1 and
