Shure E2c Manual de usuario

27B8809 (Rev. 3)

ENGLISH

SAFE USE

Here are some general tips to follow for safe use of this product:

•Turn up the volume control only far enough to hear properly.

•Ringing in the ears may indicate that the volume level is too high. Try lowering

the volume.

•If you are connecting these earphones to an airplane's sound system, listen at

low levels so when loud messages from the pilot break into the program you do not

experience discomfort.

•Shure recommends that you have your ears checked by an audiologist on a regular

basis. If you experience wax buildup in your ears, stop using the earphones until an

audiologist has examined your ears.

•Wipe the earphones with an antiseptic before and after use to avoid infections.

Stop using the earphones if they are causing great discomfort or infection.

WARNING!

USING THESE EARPHONES AT EXCESSIVE VOLUMES

CAN CAUSE PERMANENT HEARING DAMAGE.

USE THE LOWEST VOLUME LEVEL POSSIBLE.

WARNING!

DUE TO THE ISOLATING CHARACTERISTICS OF THESE EARPHONES, DO NOT USE

THEM WHILE DRIVING OR WHILE BIKING, WALKING OR JOGGING WHERE VEHICULAR

TRAFFIC IS PRESENT, OR IN ANY OTHER ACTIVITY WHERE A FAILURE TO HEAR

SURROUNDING SOUNDS COULD BE DANGEROUS.

ENGLISH

EARPHONE FEATURES

The Shure E2c, E3c and E5c earphones are ideally suited for use with CD players, MP3

players, notebook computers and any other listening device that has a 3.5 mm (1/8-inch)

stereo output.

4= Model has listed feature.

8= Model does not have listed feature.

Features: E2c E3c E5c

Low-mass, high-energy transducer 844

Full-range dynamic transducer 488

Universal fit 444

Variety of isolating sleeves included 444

Custom-molded sleeves optional 848

Adjustment tube for securing cables 444

Tool for removing wax buildup in earphone 844

Wax guard to prevent wax buildup

in earphone

488

ENGLISH

EARPHONE COMPONENTS

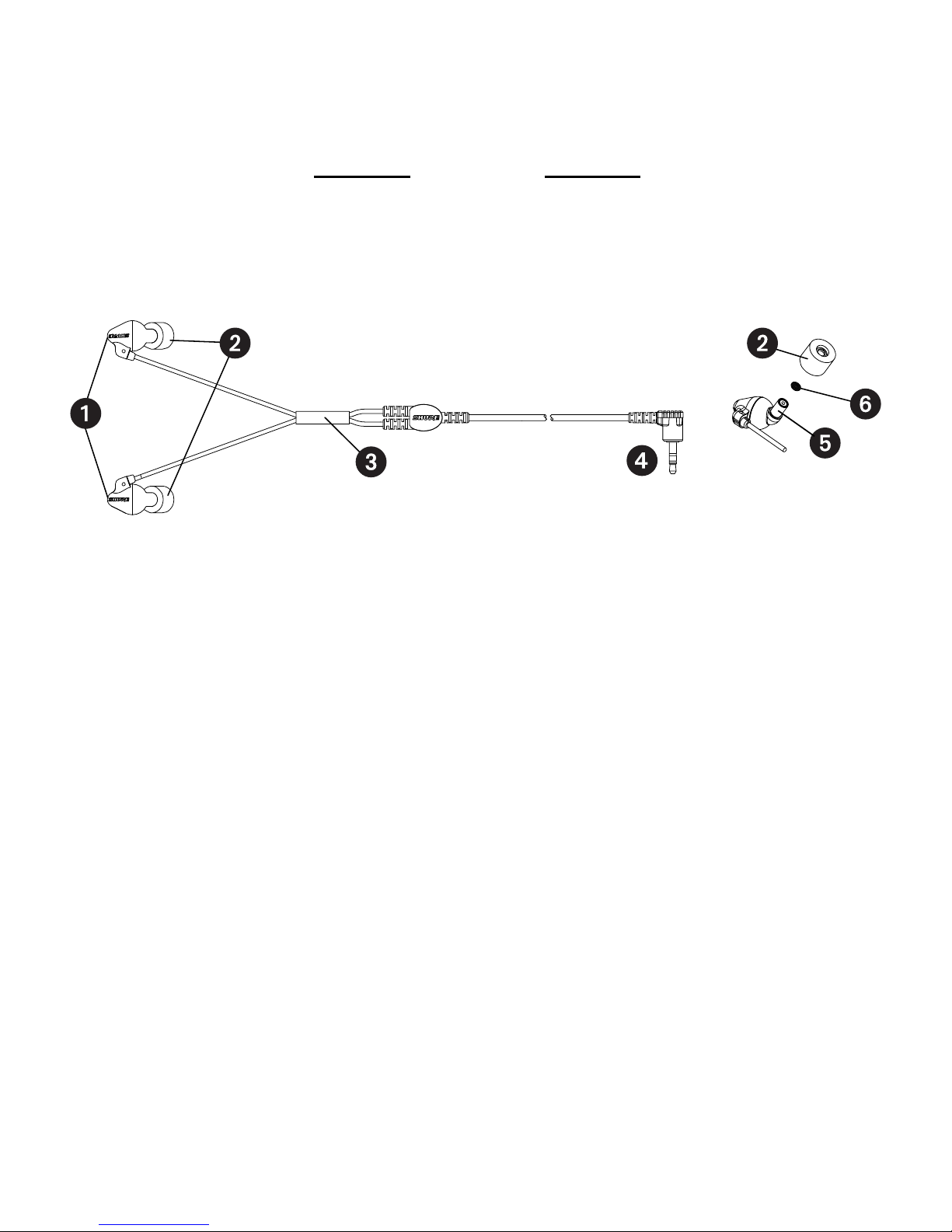

The earphone components are illustrated below, using the E2c model as an example. Ear-

phone shapes vary, depending on the model.

Earphones: When properly inserted in the ear, the Shure logo will appear right-side up

on the outside of the earphone with the cable exit pointing upwards. For complete in-

structions on inserting earphones, see page 4.

Sleeves: All earphone models come with a pair of sleeves installed and an additional

assortment of flex and foam sleeves. See Sleeve Varieties on page 5.

Adjustment Tube: For a secure fit, slide the adjustment tube up and down to adjust the

slack of the cables leading to the earphones.

3.5 mm (1/8-inch) Input Connector: connects to the stereo earphone output of a lis-

tening device.

Nozzle: This part of the earphone, which is covered by the sleeve, delivers the sound

into the ear canal. It’s important to keep this component clean. See Care and Cleaning

on page 7.

Wax Guard: (model E2c only) The earphones include special wax guards (not installed)

for preventing earwax from entering the nozzles. For installation instructions, see page 9.

ENGLISH

INSERTING THE EARPHONES

The quality of both the frequency response and the sound isolation depend on how well the

earphone sleeve seals the ear canal. If the earphone seems to be lacking in low frequency

response, insert the earphone deeper into the ear canal to obtain a better seal, or try one of

the other sleeve options.

2. E2c and E3c: wrap the earphone cord over the top and down the back of the ear.

E5c: wrap the formfitting wire over the top and down the back of the ear.

3. Use the adjustment tube to secure the cables comfortably.

nser

e earp

ones us

ng gu

nes:

•Note the difference between the right and left earphones:

E2c: earphone all one color = left ear

bicolored earphone = right ear

E3c: earphone with “L” = left ear

earphone with “R” = right ear

E5c: earphone with blue dot = left ear

earphone with red dot = right ear

When inserting the earphones, pull the ear

upward and outward to straighten out the ear

canal, as illustrated.

•Flex sleeves - Try the different sizes to deter-

mine the best fit for comfort and isolation.

•Foam sleeves - Compress the foam sleeve at

the end of the earphone by rolling it between

your thumb and forefinger. Insert the ear-

phone into your ear and hold it in place for

about 10 seconds while the foam expands

and creates a tight seal. The E2c comes with

three sizes of foam sleeves: try the different

sizes to determine the most comfortable fit.

ENGLISH

CONNECTING TO A LISTENING DEVICE

1. Turn down the volume of your listening device.

2. Connect the 3.5 mm (1/8-inch) plug into the earphone output jack.

3. Insert earphones into your ears (see previous page).

4. Slowly raise the volume to a comfortable listening level.

SLEEVE VARIETIES

Your earphones include a fit kit with a variety of sleeve options so you can find the best sleeve

fit for any application. The E3c and E5c also come with a cleaning tool (see Figure 1 on

page 7) and the E2c comes with wax guards (see the Wax Guard section on page 9) to pre-

vent wax buildup in the earphone nozzle.

WARNING: Always turn the volume down before plugging the earphones into a

sound source.

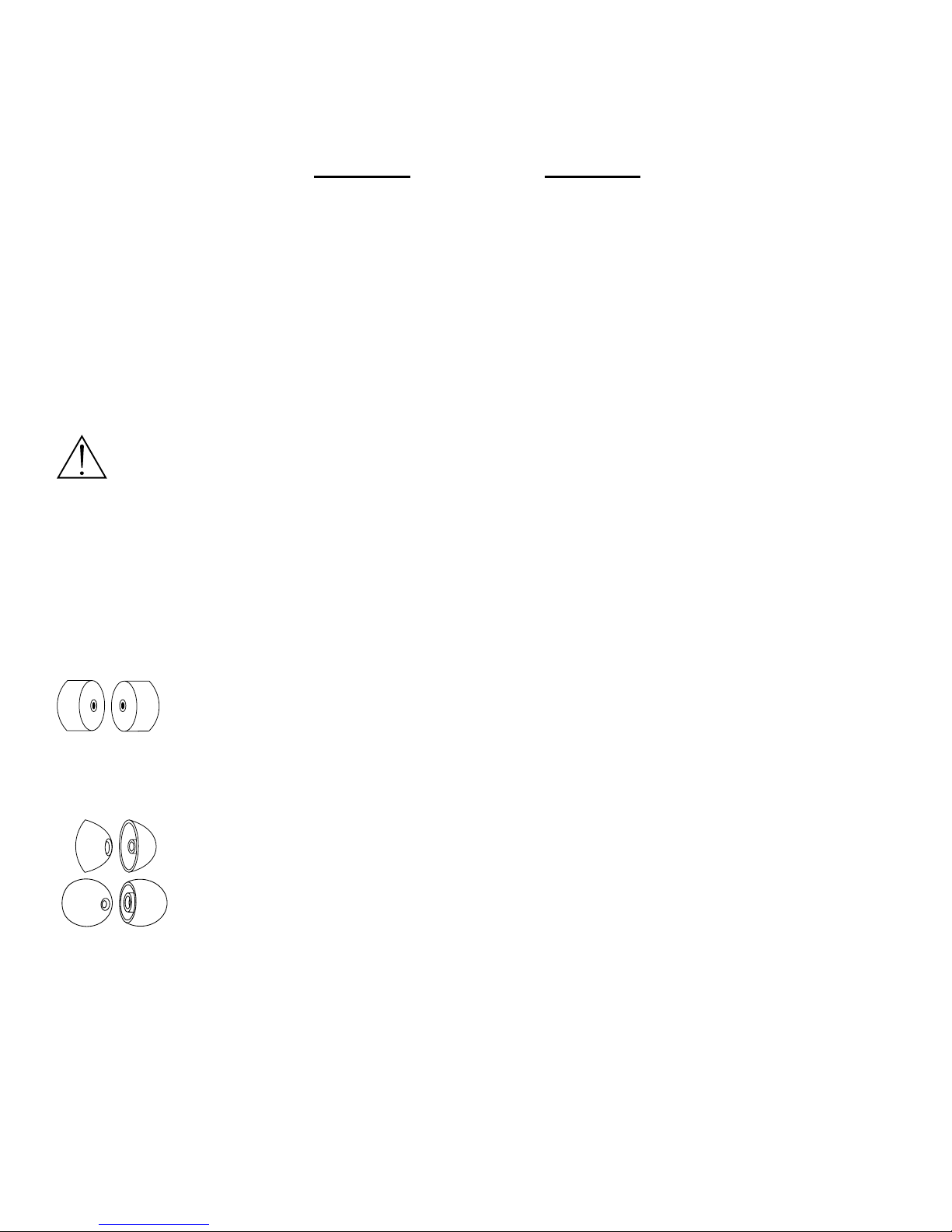

Foam Sleeves. These disposable foam sleeves compress to fit in the ear

canal. Once in the ear, the foam expands to form a tight seal. Once tightly

sealed, the sleeves hold the earphones firmly in place. The E3c and E5c

come with yellow foam sleeves. The E2c earphones come with three sizes of orange foam

sleeves to choose from—small, medium or large—for the best fit.

Flex Sleeves. These reusable sleeves, made of a clear pliable plastic

(PA756) or a soft, gray silicone rubber (PA758), fit comfortably in the ear and

allow for ease of insertion. Choose from 3 sizes—small, medium or large—

for the best fit. These should be cleaned regularly, using alcohol wipes or

an antiseptic.

ENGLISH

CHANGING SLEEVES

The sleeves at the end of the earphones can be replaced by sliding them off and on. A com-

bination of twisting and pulling is recommended for sleeve removal.

NOTE: On each foam sleeve there is a rough side and a smooth side. For greater com-

fort, Shure recommends that you place the smooth side facing out, away from the ear-

phone. With the E2c model earphones, the sleeve will only fit the earphone properly with

the smooth side facing out.

Triple-Flange Sleeves (optional accessory for E3c and E5c only).

These reusable sleeves form a tighter seal than flex sleeves while holding

the earphones firmly in place. These should be cleaned regularly, using

alcohol wipes or an antiseptic.

ROUGH SIDE SMOOTH SIDE

IMPORTANT: Make sure that the sleeve complete-

ly covers the nozzle. If the nozzle is exposed, the

sleeve is not properly installed.

ENGLISH

CARE AND CLEANING

Follow these tips to prevent service costs and ear infections:

•Avoid getting moisture in the nozzle, as this can adversely affect sound quality.

Sweat entering the nozzle may cause the earphone to temporarily stop working.

However, normal operation often returns after the earphone dries out.

•Avoid striking or dropping the earphones. Extreme shock can damage them.

•Return earphones to carrying pouch when not in use.

•E3c/E5c: clean the nozzles after each use using the supplied wax removal tool.

FIGURE 1: E3c/E5c Wax Removal

•E2c: Routinely check the wax guard on the tips of the nozzles (see figure 2 on

page 9). If the wax guards appear to be clogged, replace them.

•Foam sleeves should be disposed of and replaced when they get dirty.

•Flex and triple-flange sleeves should be cleaned with an antiseptic or soapy water

after each use or when sharing.

•Always remove the sleeve from the earphone nozzle before cleaning.

NOZZLE

WAX REMOVAL LOOP

ENGLISH

•Wipe down the case and cable with an antiseptic after each use. Stop using the

earphones if they are causing great discomfort or infection.

NOTE: Nozzles can collect cerumen (earwax), which can clog the earphone and lower

the sound quality. If you experience sound loss, check the nozzles for clogging before

sending the product in for service. There is a service charge for removing wax.

If you believe this product is defective within the warranty period, carefully repack the unit,

insure it and return it postage prepaid to:

Shure Incorporated

Attention: Service Department

5800 W. Touhy Avenue

Niles, IL 60714-4608 U.S.A.

Outside of the United States, return the product to your dealer or Authorized Service Center.

CAUTION: Shure earphones are not immersible. Make sure flex and flange

sleeves are completely dry before reattaching to earphone nozzles.

ENGLISH

WAX GUARD

You should place wax guards on the nozzle of your E2c earphones before using them. These

protective rings are found on an adhesive strip in the fit kit that comes with your earphones.

To place a wax guard on one of your E2c earphones:

1. Remove the sleeve from the earphone nozzle.

2. If there is a dirty wax guard on the earphone, peel it off.

3. Clean the tip of the E2c nozzle with an antiseptic or alcohol wipe.

4. Make sure that the tip of the nozzle is dry, then remove a wax guard from the supplied

strip and place it on the tip of the nozzle, adhesive side down.

5. Replace the sleeve on the earphone.

FIGURE 2: E2c Wax Guard Installation

WAX GUARD

NOZZLE

IMPORTANT: Do not place wax guards on sleeves! Wax guards are

intended for use on the tip of the earphone nozzle only. If wax guards are placed

on sleeves they will not function properly and may fall off the sleeves into your ears.

ENGLISH

SPECIFICATIONS

CERTIFICATION

Eligible to bear CE marking. Conforms to European EMC Directive 89/336/EEC. Meets ap-

plicable tests and performance criteria in European Standard EN 55103 (1996) Parts 1 and

2, for residential (E1) and light industrial (E2) environments.

FURNISHED ACCESSORIES

E2c Carrying pouch....................................................................... 95A2232

E3c Carrying pouch....................................................................... 95B2232

E5c Carrying pouch....................................................................... 95A2259

E2c Fit Kit w/ wax guards

(2 each-small, medium, large foam and clear flex sleeves)..90WW1371

E3c/E5c Fit Kit w/cleaning tool

(2 each-small, medium, large clear flex and soft gray flex

sleeves, one pair foam sleeves) .............................................90XC1371

E5c Triple-Flange Sleeves .........................................................90WX1371

E2c E3c E5c

Transducer Type Dynamic Low mass/

high energy

Dual low mass/

high energy

Sensitivity (at 1kHz) 105 dB

SPL/mW

113.5 dB

SPL/mW

122 dB

SPL/mW

Impedance (at 1kHz) 16W29W110W

Output Connector Gold-plated, 3.5 mm (1/8in.), stereo plug

Cable Length 1.57m

(62 inches)

1.57 m

(62 inches)

1.55 m

(61 inches)

Net Weight 30 g (1 oz) 28 g (0.9 oz) 31 g (1.1 oz)

Otros manuales para E2c

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Auriculares de Shure

Shure

Shure SE215-BT1 Manual de usuario

Shure

Shure RMCE-BT2 Manual de usuario

Shure

Shure E5c Manual de usuario

Shure

Shure SE530 Manual de usuario

Shure

Shure Sound Isolating Instrucciones originales

Shure

Shure Sound Isolating SE846 Manual de usuario

Shure

Shure Sound Isolating SE846 Manual de usuario

Shure

Shure Sound Isolating SE215 Manual de usuario

Shure

Shure E3c Manual de usuario

Shure

Shure SCL5 Manual de usuario

Shure

Shure SE215m+ Special Edition Manual de usuario

Shure

Shure Sound Isolating Aonic 4 Manual de usuario

Shure

Shure KSE1500 Manual de usuario

Shure

Shure i4c-t Manual de usuario

Shure

Shure SRH440 Manual de usuario

Shure

Shure Sound Isolating SE535 Manual de usuario

Shure

Shure SE315 Manual de usuario

Shure

Shure Sound Isolating SE846 Manual de usuario

Shure

Shure E500 Manual de usuario

Shure

Shure SRH840 Manual de usuario

Shure

Shure KSE1500 Manual de usuario

Shure

Shure SE315 Manual de usuario

Shure

Shure Sound Isolating SE535 Manual de usuario

Shure

Shure Computer Headset Manual de usuario

Manuales populares de Auriculares de otras marcas

Sony

Sony MDR-NC8 Manual de usuario

AUSounds

AUSounds AU-Stream Manual de usuario

ENERGY SISTEM

ENERGY SISTEM Style 7 Manual de usuario

Philips

Philips SHE3622 Manual de usuario

Insignia

Insignia NS-CAHBTSPORT Manual de usuario

Movie Vision

Movie Vision HP-400 Manual de usuario

MobiFren

MobiFren SM Pro Manual de usuario

Motorola solutions

Motorola solutions PMLN8120 Manual de usuario

Jaybird

Jaybird freedom Guía de instalación

Sony

Sony MDR-ED12LP Manual de usuario

HiFuture

HiFuture Tidy Buds Pro Manual de usuario

Creative

Creative CB2530 Manual de usuario

Renkforce

Renkforce RF FTVK-100 Manual de usuario

Philips

Philips SHQ3000 Manual de usuario

Sennheiser

Sennheiser 500371 Manual de usuario

Califone

Califone 2924AV Manual de usuario

Philips

Philips EARGEAR HE205 Series Manual de usuario

Technics

Technics EAH-AZ80 Manual de usuario
