Shure AONIC FREE Manual de usuario

AONIC FREE

Shure True Wireless Sound Isolating Ear-

phones

User guide for AONIC FREE.

Version: 1.2 (2021-K)

Shure Incorporated

2/21

Table of Contents

AONIC FREE Shure True Wireless Sound Isolating®

Earphones 3

Important Safety Information 3

ShurePlus™ PLAY Mobile Listening App 3

The best sound starts with a good fit 3

Auto Power and Pair 3

Changing Sleeves 4

Button Functions 4

Phone Call Functions 5

Troubleshooting 6

Reset paired devices list 7

LED indicators 7

Charging the earphones 8

Specifications 8

ShurePlus™ PLAY Mobile Listening App 10

General Description 10

Environment mode 10

PausePlus 10

Button Controls 11

Prompts & Tones 11

Auto Power Off 12

Preset Modes 12

Create Custom Presets 13

Use Screen Orientation to Adjust EQ 13

Updating the Firmware for Shure AONIC products 14

SAFETY PRECAUTIONS 16

WARNING FOR ALL EARPHONES! 16

SAFETY PRECAUTIONS 16

WARNING 17

CAUTION 17

IMPORTANT SAFETY INSTRUCTIONS 17

For Products That Use Bluetooth 18

Certifications 18

LIMITED WARRANTY 19

FOR ORIGINAL PURCHASES IN AUSTRALIA ONLY 20

Service Centers 20

Shure Incorporated

3/21

•

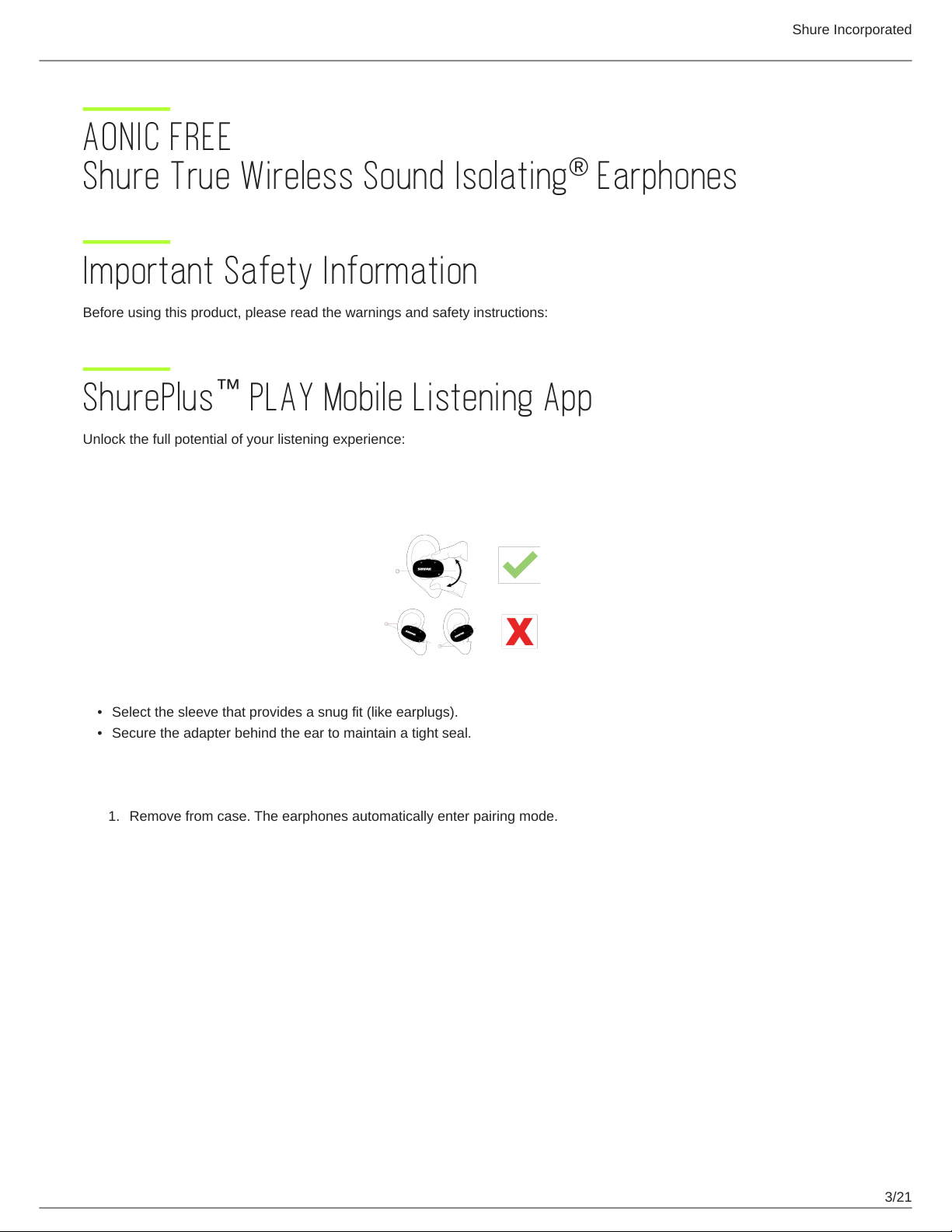

AONIC FREE 

Shure True Wireless Sound Isolating Earphones

Important Safety Information

Before using this product, please read the warnings and safety instructions: SAFETY PRECAUTIONS

ShurePlus PLAY Mobile Listening App

Unlock the full potential of your listening experience: more info here

The best sound starts with a good fit

Select the sleeve that provides a snug fit (like earplugs).

Secure the adapter behind the ear to maintain a tight seal.

Auto Power and Pair

Remove from case. The earphones automatically enter pairing mode.

™

Shure Incorporated

4/21

•

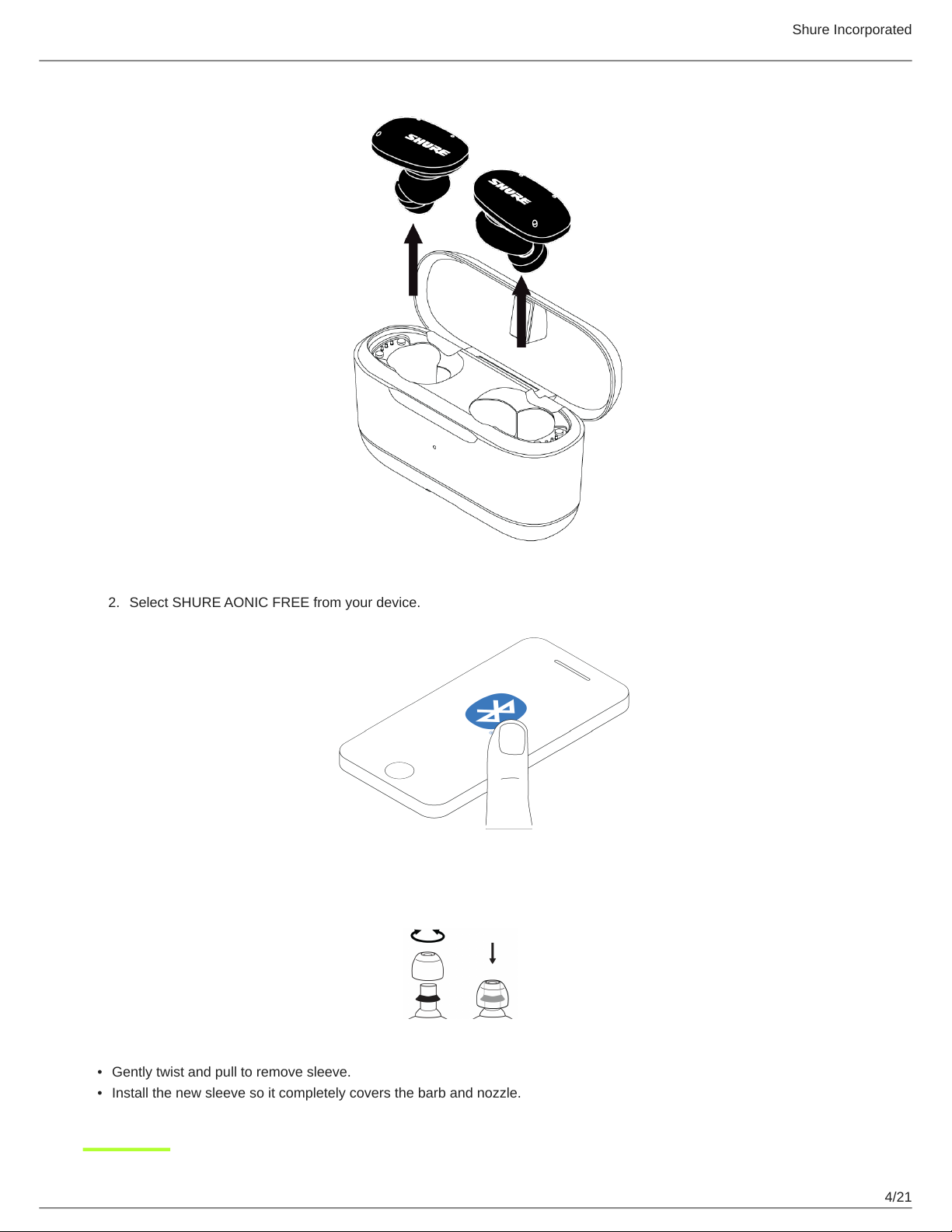

Select SHURE AONIC FREE from your device.

Changing Sleeves

Gently twist and pull to remove sleeve.

Install the new sleeve so it completely covers the barb and nozzle.

Shure Incorporated

5/21

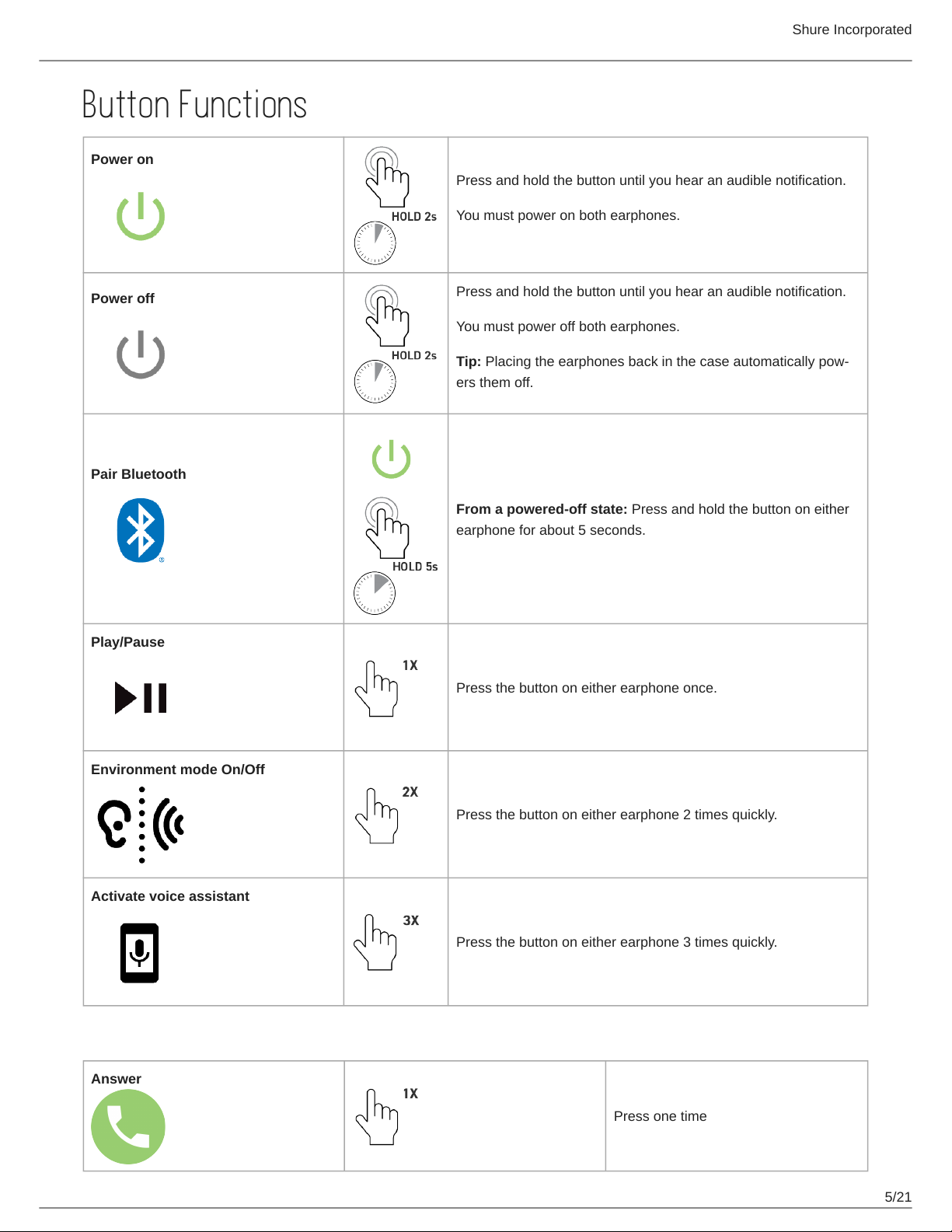

Button Functions

Power on

Press and hold the button until you hear an audible notification.

You must power on both earphones.

Power off Press and hold the button until you hear an audible notification.

You must power off both earphones.

Tip: Placingtheearphonesbackinthecaseautomaticallypow

ers them off.

Pair Bluetooth

From a powered-off state: Press and hold the button on either

earphone for about 5 seconds.

Play/Pause

Press the button on either earphone once.

Environment mode On/Off

Press the button on either earphone 2 times quickly.

Activate voice assistant

Press the button on either earphone 3 times quickly.

Phone Call Functions

Answer

Press one time

Shure Incorporated

6/21

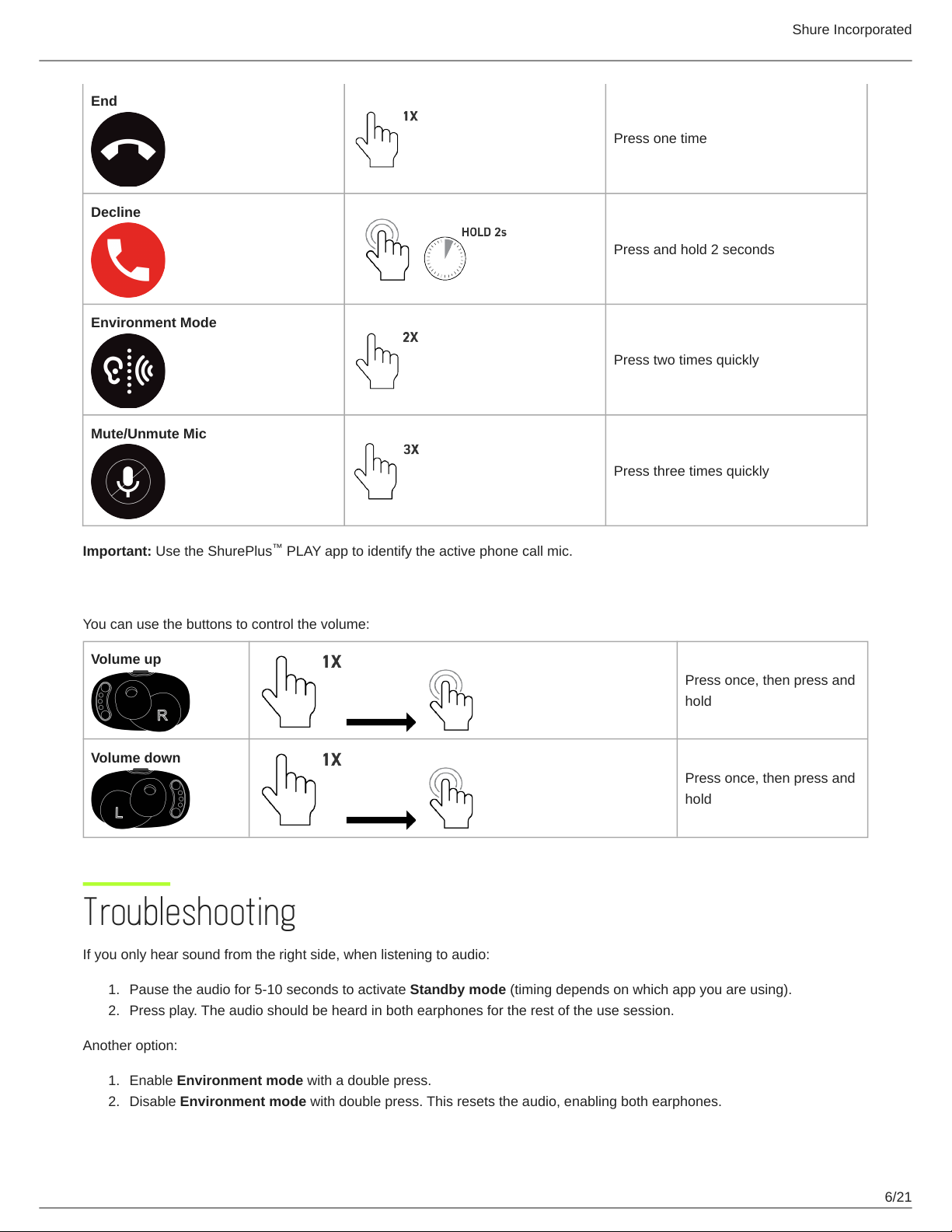

End

Press one time

Decline

Press and hold 2 seconds

Environment Mode

Press two times quickly

Mute/Unmute Mic

Press three times quickly

Important: Use the ShurePlus PLAY app to identify the active phone call mic.

Volume controls

You can use the buttons to control the volume:

Volume up

Press once, then press and

hold

Volume down

Press once, then press and

hold

Troubleshooting

If you only hear sound from the right side, when listening to audio:

Pause the audio for 5-10 seconds to activate Standby mode (timing depends on which app you are using).

Press play. The audio should be heard in both earphones for the rest of the use session.

Another option:

Enable Environment mode with a double press.

Disable Environment mode with double press. This resets the audio, enabling both earphones.

™

Shure Incorporated

7/21

•

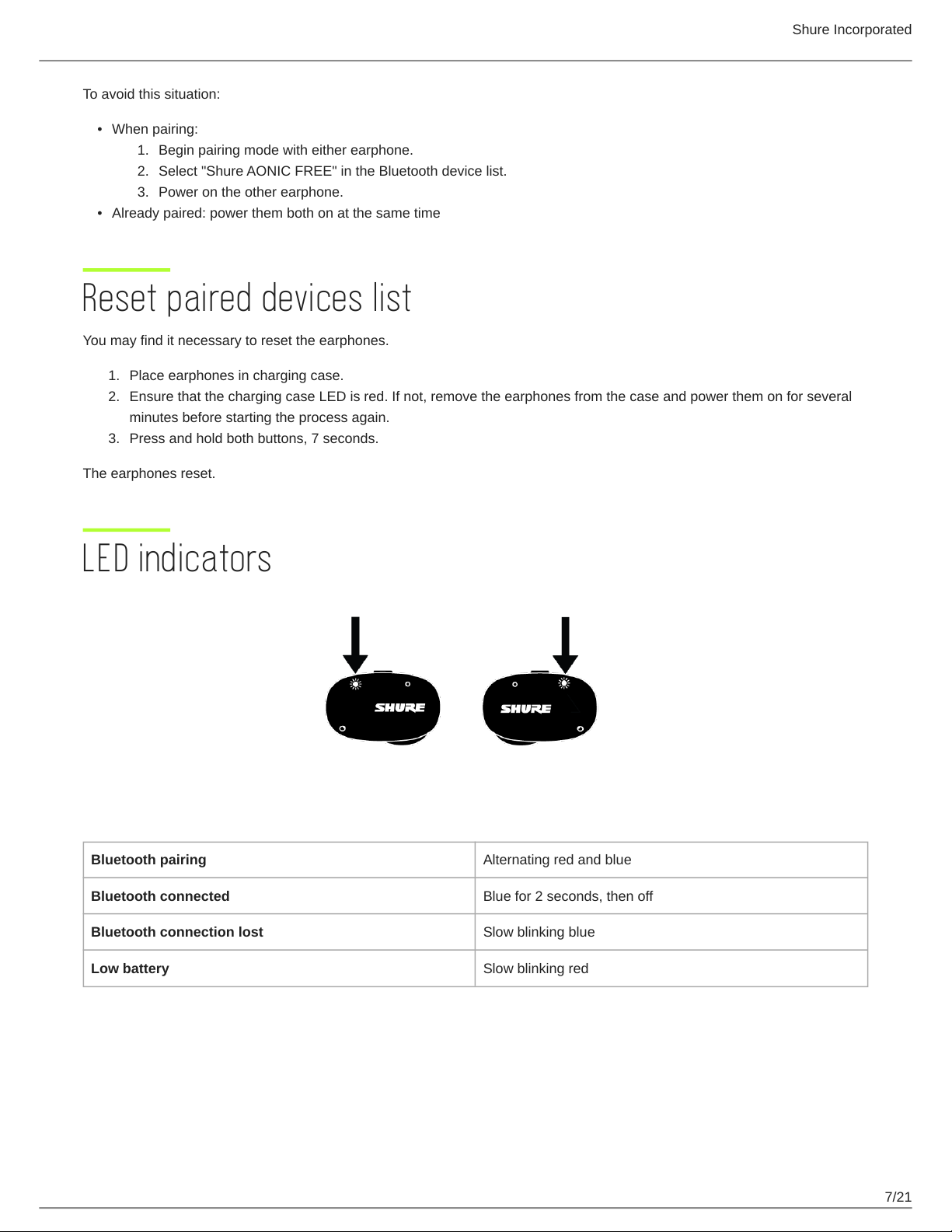

To avoid this situation:

When pairing:

Begin pairing mode with either earphone.

Select "Shure AONIC FREE" in the Bluetooth device list.

Power on the other earphone.

Already paired: power them both on at the same time

Reset paired devices list

You may find it necessary to reset the earphones.

Place earphones in charging case.

Ensure that the charging case LED is red. If not, remove the earphones from the case and power them on for several

minutes before starting the process again.

Press and hold both buttons, 7 seconds.

The earphones reset.

LED indicators

Earphone LEDs

Bluetooth pairing Alternating red and blue

Bluetooth connected Blue for 2 seconds, then off

Bluetooth connection lost Slow blinking blue

Low battery Slow blinking red

Shure Incorporated

8/21

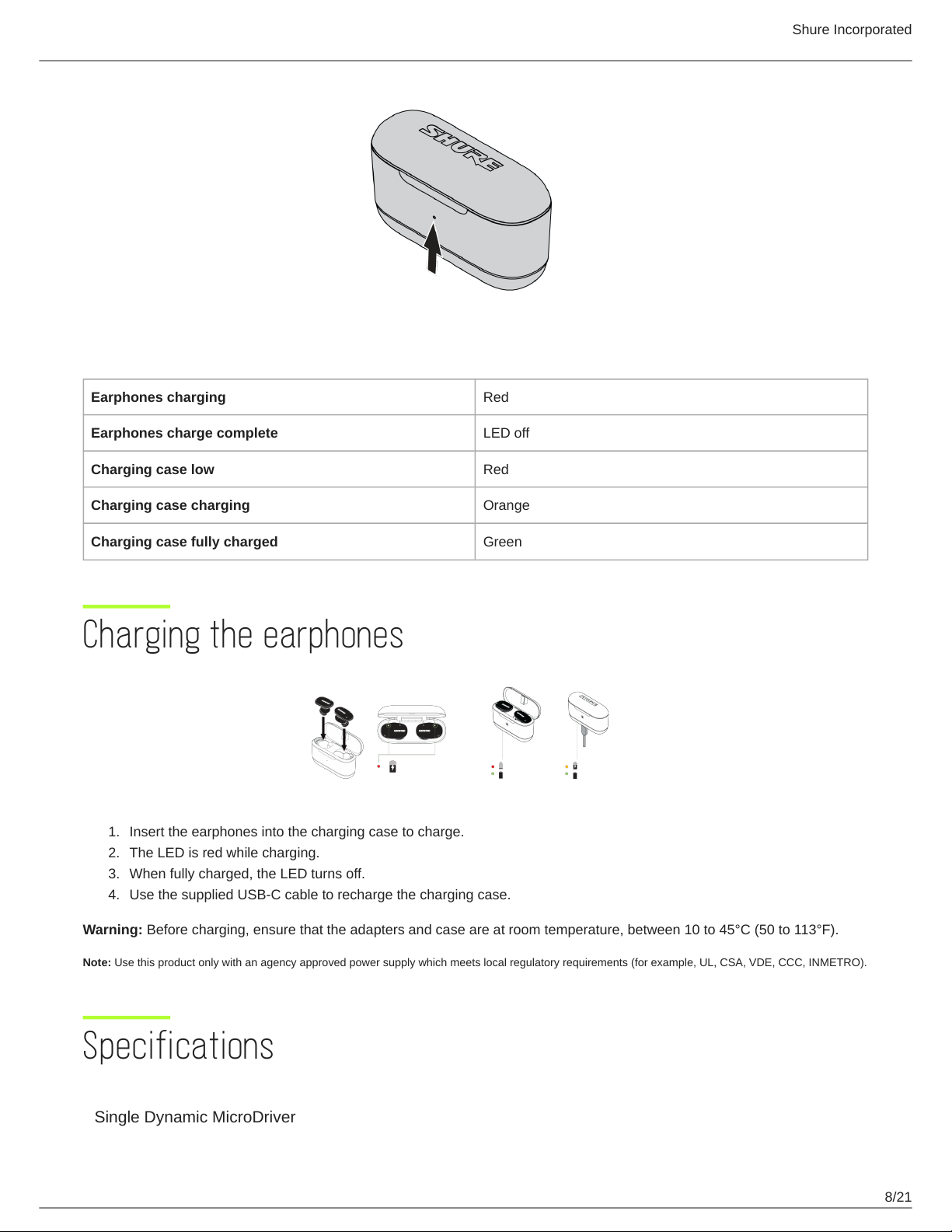

Charging case LEDs

Earphones charging Red

Earphones charge complete LED off

Charging case low Red

Charging case charging Orange

Charging case fully charged Green

Charging the earphones

Insert the earphones into the charging case to charge.

The LED is red while charging.

When fully charged, the LED turns off.

Use the supplied USB-C cable to recharge the charging case.

Warning: Before charging, ensure that the adapters and case are at room temperature, between 10 to 45°C (50 to 113°F).

Note: Use this product only with an agency approved power supply which meets local regulatory requirements (for example, UL, CSA, VDE, CCC, INMETRO).

Specifications

Transducer Type

Single Dynamic MicroDriver

Shure Incorporated

9/21

Sensitivity

at 1 kHz

107dBSPL/mW

Impedance

at 1 kHz

20Ω

Noise Attenuation

upto37dB

Frequency Range

21Hz–17.5kHz

Net Weight

13.4g(.5oz.)

Frequency

2402to2480MHz

Modulation Type

GFSK,π/4DQPSK,8DPSK

RF Output Power

9.22dBmEIRP(Left),9.49dBmEIRP(Right)

Antenna Type

Integral antenna

Antenna Gain

-0.82 dBi (Left), -0.82 dBi (Right )

Supported Codecs

Qualcomm aptX , SBC, AAC

Battery Life

Up to 7 hours

Working Range

10m

Operating Temperature

0°C to 45°C (32°F to 113°F)

Charging Temperature Range

0°C to 40°C (32°F to 104°F)

™

Shure Incorporated

10/21

•

Storage Temperature

-10°C to 35°C (14°F to 95°F)

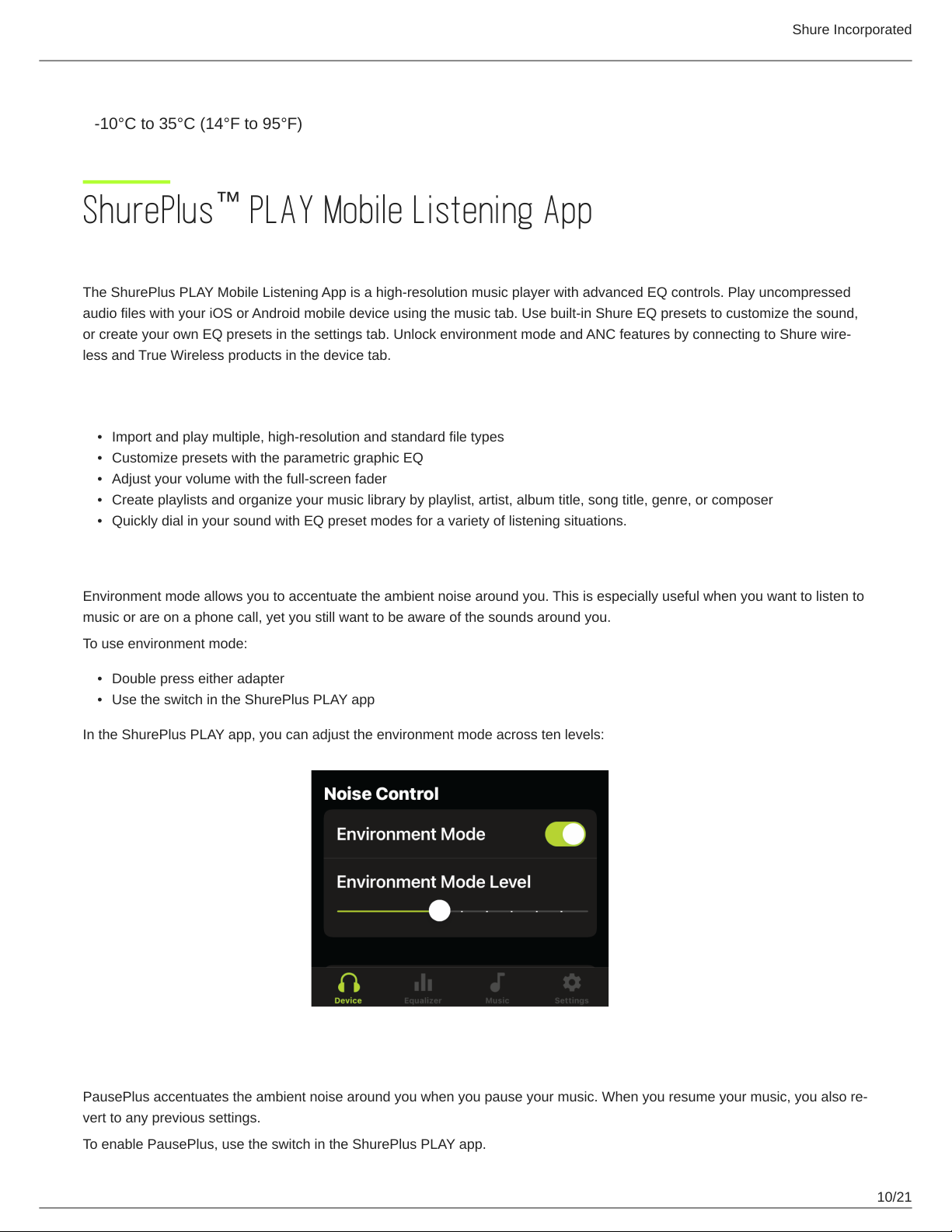

ShurePlus PLAY Mobile Listening App

General Description

The ShurePlus PLAY Mobile Listening App is a high-resolution music player with advanced EQ controls. Play uncompressed

audio files with your iOS or Android mobile device using the music tab. Use built-in Shure EQ presets to customize the sound,

orcreateyourownEQpresetsinthesettingstab.UnlockenvironmentmodeandANCfeaturesbyconnectingtoShurewire

less and True Wireless products in the device tab.

Features

Import and play multiple, high-resolution and standard file types

Customize presets with the parametric graphic EQ

Adjust your volume with the full-screen fader

Create playlists and organize your music library by playlist, artist, album title, song title, genre, or composer

Quickly dial in your sound with EQ preset modes for a variety of listening situations.

Environment mode

Environment mode allows you to accentuate the ambient noise around you. This is especially useful when you want to listen to

music or are on a phone call, yet you still want to be aware of the sounds around you.

To use environment mode:

Double press either adapter

Use the switch in the ShurePlus PLAY app

In the ShurePlus PLAY app, you can adjust the environment mode across ten levels:

PausePlus

PausePlusaccentuatestheambientnoisearoundyouwhenyoupauseyourmusic.Whenyouresumeyourmusic,youalsore

vert to any previous settings.

To enable PausePlus, use the switch in the ShurePlus PLAY app.

™
