Showtec Giant™Product Guide

Warning..…...................................................................................………………………………………………………..

Safety-instructions…………………………………………………………………………………………………………

Operating Determinations………………………………………………………………………………………………

Rigging……………………………………………………………………………………………………………………...

Description..…..............................................................................……….………………………………………………

Features and Overview ………………………………...….……………….………….……….……….……………...

Installation...............................................................................…...………………………………………….………..….

Installing the Lamp ........................................................……………………………………..…..…………………..

Set Up and Operation.....................................................................……..………………………………………………

One Giant..........................................................................…………………………………………………………….

Giant Controller...........................................……………………………………………………….…………………….….

Maintenance...................................................................................………..………….…….…………………………..

Changing the Lamp........................................................................…………………….……………………………

Changing the Fuse........................................................................…………………….………………………..…...

Troubleshooting............................................................................………………….………………….………………...

No Light, No Movement - All Products............................................………………….…………………………....

No Response…………....................................................................………………….……………………………….

Product Specifications.................................................................……………….…….………………………………...

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should there

be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow

the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-

observance of this manual or any unauthorized modification to the device.

Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

Never remove warning or informative labels from the unit.

Never use anything to cover the ground contact.

Never run the device without lamp!

Never ignite the lamp if the objective-lens or any housing-cover is open, as discharge lamps may

expose and emit a high ultraviolet radiation, which may cause burns.

Never lift the fixture by holding it at the projector-head, as the mechanics may be damaged. Always

hold the fixture at the transport handles.

Never look directly into the light source.

Never leave any cables lying around.

Never unscrew the screws of the rotating gobo, as the ball bearing will otherwise be opened.

Do not insert objects into air vents.

Do not connect this device to a dimmerpack.

Do not switch the device on and off in short intervals, as this would reduce the lamp’s life.

Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).

Do not shake the device. Avoid brute force when installing or operating the device.

Only use device indoor, avoid contact with water or other liquids.

CAUTION!

Keep this device away from rain and moisture!

Unplug mains lead before opening the housing!

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dangerous electric shock when touching the wires!

Only operate the fixture after having checked that the housing is firmly closed and all screws are

tightly fastened.

Only operate the device after having familiarized with its functions.

Avoid flames and do not put close to flammable liquids or gases.

Always replace the lamp, when it is damaged or deformed due to the heat.

Always keep case closed while operating.

Always allow free air space of at least 50 cm around the unit for ventilation.

Always disconnect power from the mains, when device is not used, before cleaning or when

replacing lamp! Only handle the power-cord by the plug. Never pull out the plug by tugging the

power-cord.

Make sure that the device is not exposed to extreme heat, moisture or dust.

Make sure that the available voltage is not higher than stated on the rear panel.

Make sure that the power-cord is never crimped or damaged. Check the device and the power-

cord from time to time.

If the lens is obviously damaged, it has to be replaced. So that its functions are not impaired, due to

cracks or deep scratches.

If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

For adult use only. Movinghead must be installed out of the reach of children. Never leave the unit

running unattended.

For replacement use lamps and fuses of same type and rating only.

Allow time to cool down, before replacing lamp.

This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

During the initial start-up some smoke or smell may arise. This is a normal process and does not

necessarily mean that the device is defective.

Repairs, servicing and electric connection must be carried out by a qualified technician.

WARRANTY: Till one year after date of purchase.

OPERATING DETERMINATIONS

This device is not designed for permanent operation. Consistent operation breaks will ensure that the device

will serve you for a long time without defects.

The minimum distance between light-output and the illuminated surface must be more than 1.3 meter.

The maximum ambient temperature tamust never be exceeded.

If this device is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash etc.

You endanger your own safety and the safety of others!

CAUTION ! EYEDAMAGES !

Avoid looking directly into the light source.

(meant especially for epileptics) !

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all other

safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

If the projector is lowered from the ceiling or high joists, professional trussing systems have to be used.

Use a clamp to mount the projector, with the mounting-bracket, to the trussing system.

The projector must never be fixed swinging freely in the room.

The installation must always be secured with a safety attachment, e.g. an appropriate safety net or

safety-cable.

When rigging, derigging or servicing the projector, always make sure, that the area below the

installation place is blocked and staying in the area is forbidden.

Improper installation can cause serious damage to people and property !

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

FASE

BLUE

BLACK

SILVER

NUL

YELLOW/GREEN

GREEN

EARTH

Make sure that the device is always connected properly to the earth!

Description of the device

Features

The Showtec Giant is a center-effect with high output and great effects.

• Sound-controlled via built-in microphone

• Lamp HMI 575 DE

• Fuse T8A / 250V

Overview

Fig. 1

1 2 3 4 5 6 7

Fig. 2

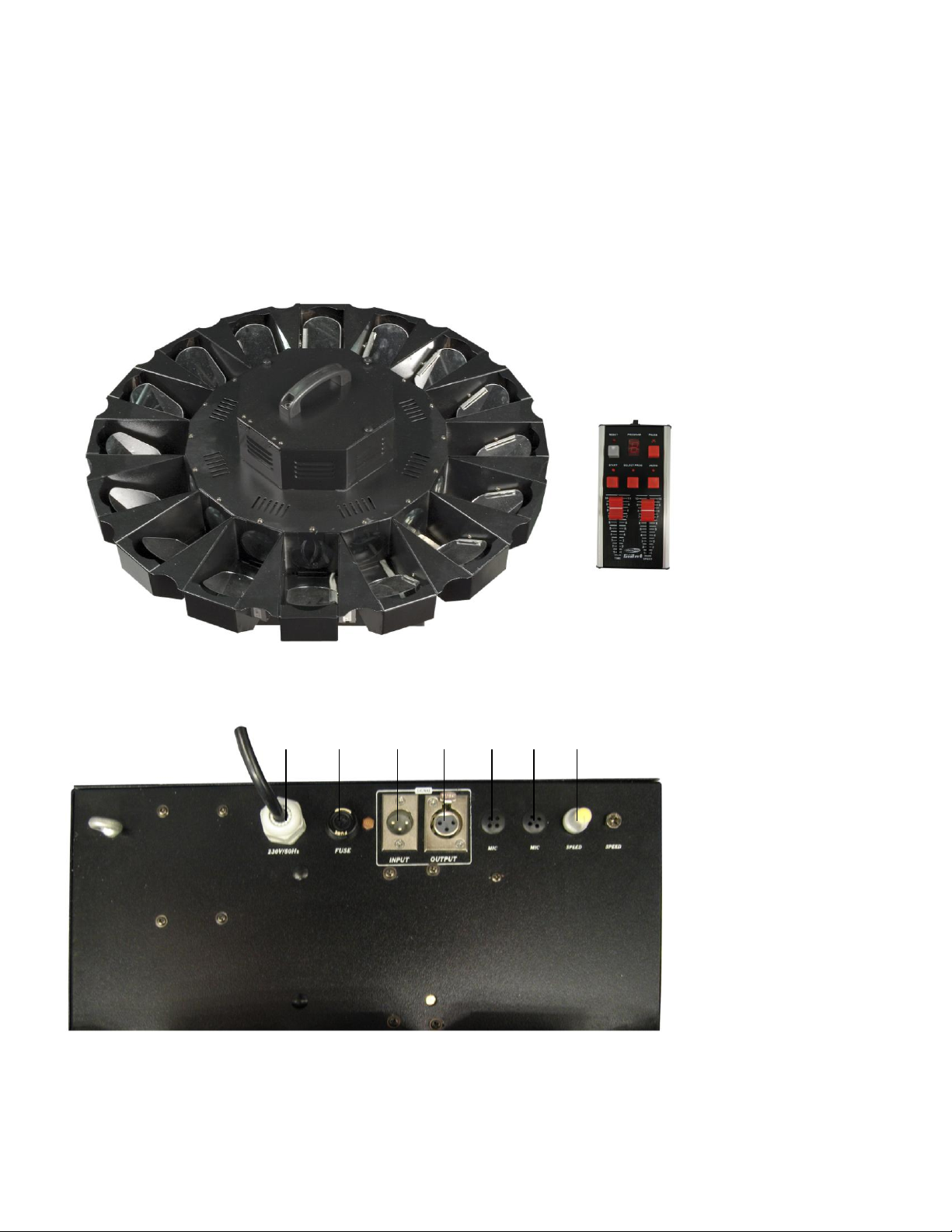

1) Powercable 5) Mic for internal mirrors

2) Fuse 8A 6) Mic for external mirrors

3) Input 7) Audio Sensitivity

4) Output

Installation

Installing the Lamp

The Showtec Giant uses the HMI 575 (ordercode 80901O, 80901P) reflectorbulb as manufactured by all

popular manufacturers. Use only the appropriate lamp for your unit.

Note that, product versions that use other lamps, may be offered in the future. Check your product

specification label for information.

Always disconnect from electric mains power supply before changing lamps.

The lamp has to be replaced when it is damaged or deformed due to the heat.

Do not install lamps with a higher wattage! Lamps with a higher wattage generate temperatures the device

was not designed for.

Damages caused by non-observance are not subject to warranty.

Procedure :

1. Loosen the 3 screws on the metal housing.

2. Gently open the small metal housing. Loosen the 4 screws and remove the small metal plate, then take

out the lamp.

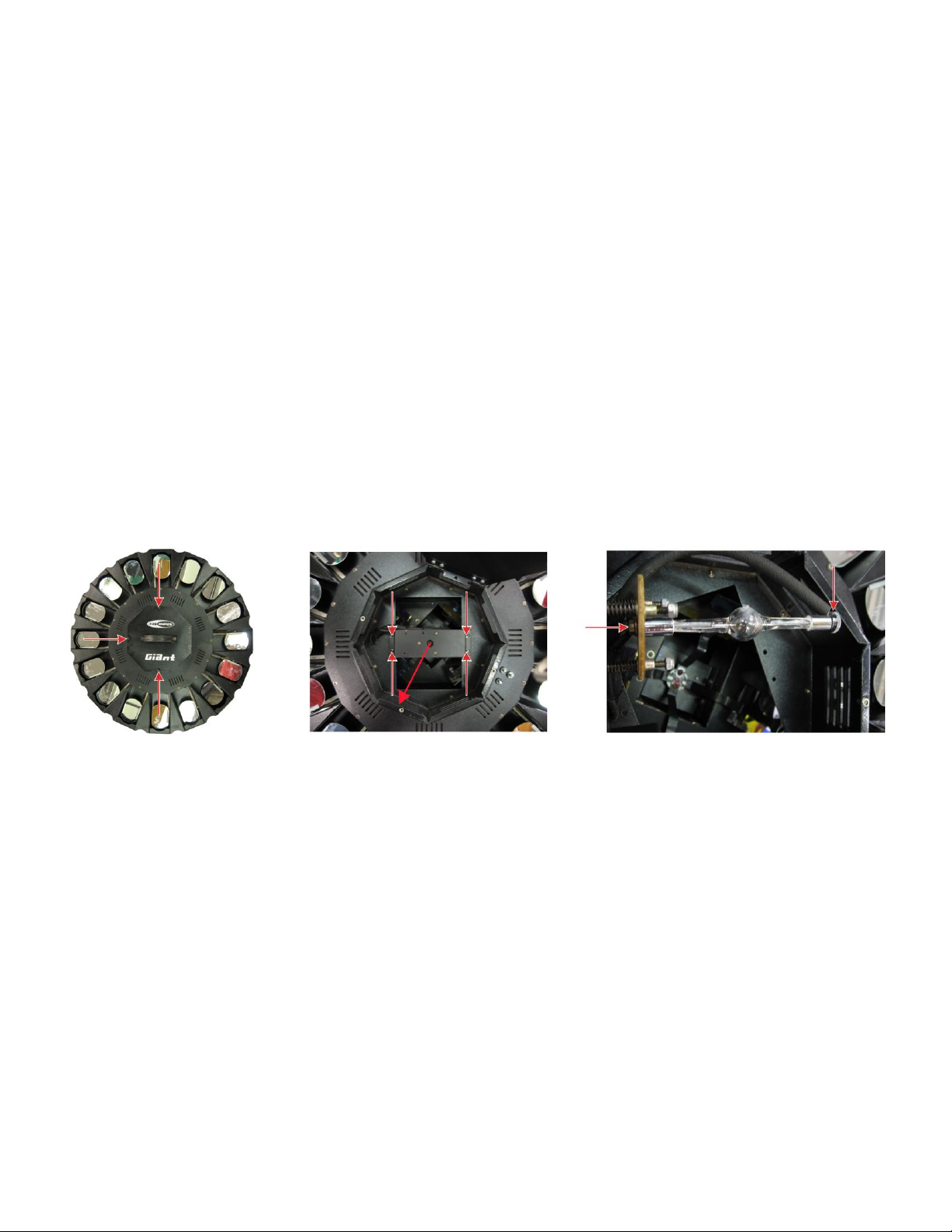

3. Unscrew the screw on the bottom and the screw on top of the lamp. Read lamp instructions. Do not touch

the lamp bulb glass. (See Figure 3.). Oil on hands shortens the lamp life. (If you touch the bulb glass, wipe

off the glass with a clean, lint-free towel and rubbing alcohol.).

4. Insert the lamp into the lamp socket.

5. Put the small metal housing back and fasten the 3 screws snugly.

1 2 3

Fig. 3

Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode.

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Giant

1. Fasten the centerpiece onto firm trussing (Use a stronger C-clamp fastened onto the Giant).

Leave at least 1 meter on all sides for air circulation.

2. Plug the controller into the center effect.

3. Plug the power cord into a proper electric power supply socket.

Note : Link all cables before connecting electric power

Giant Controller

Fig. 4

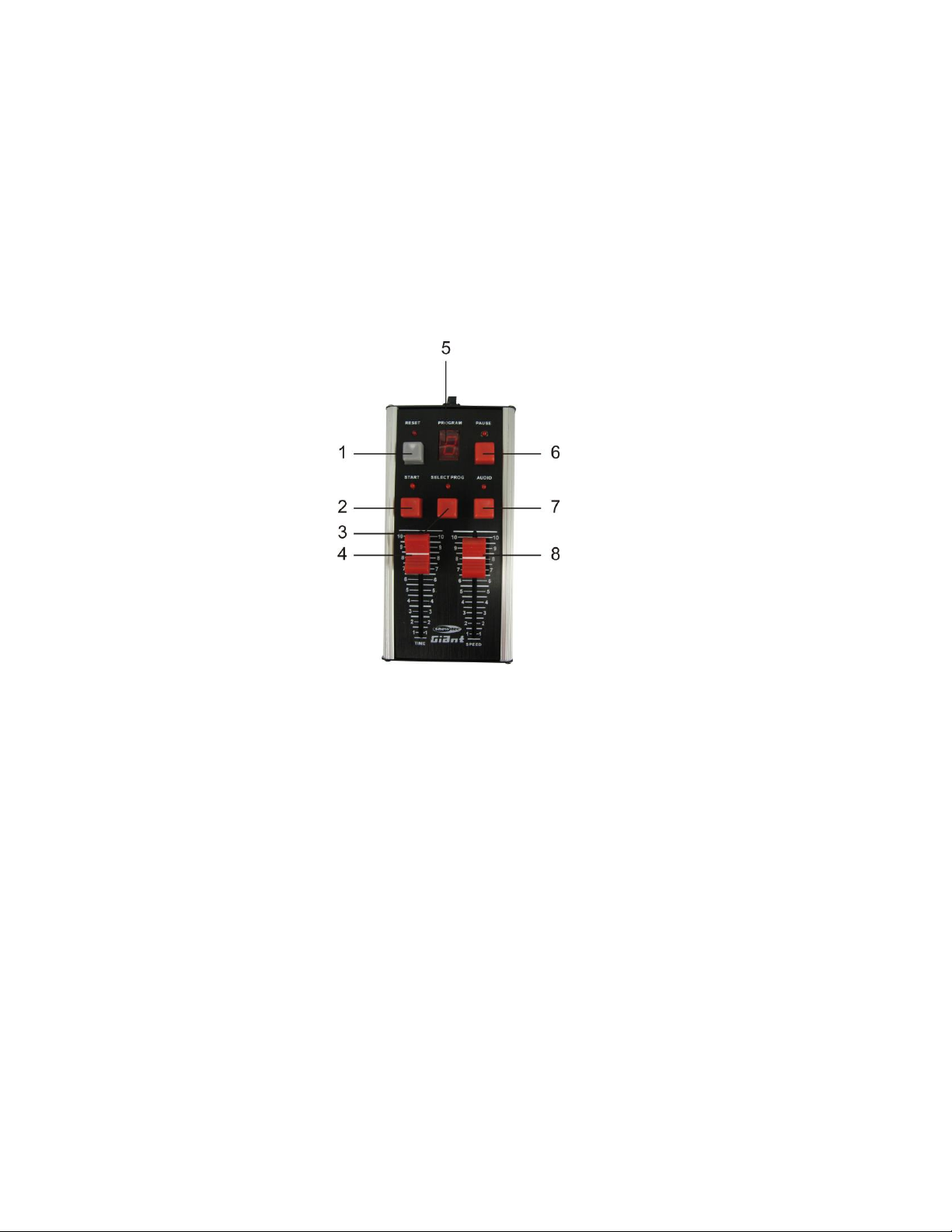

1) Reset-button: The Giant will reset and start up after 30 seconds

2) Start-button: When you press start during the movement of the mirrors, the display keeps blinking and the

device is in standby modus. When you press start again, the lamp will work and the mirrors

start moving.

3) Select Programs: Press this button to choose between Program 1-8 or P.

P means the center effect will do all built-in programs after each other.

4) Time Fader: Vary the time between the steps with this fader.

5) Display

6) Pause-button: When you press pause during the movement of the mirrors, the display will read H and the

mirrors will stop, but the lamp keeps burning. When you press pause again, the mirrors start

moving.

7) Audio-button: When you press this button, a small point will appear in the display and the center effect will

be music-controlled.

8) Speed Fader: Use this fader to control the speed of the mirror movement.

Maintenance

The operator has to make sure that safety-relating and machine-technical installations are to be inspected

by an expert after every four years in the course of an acceptance test.

The operator has to make sure that safety-relating and machine-technical installations are to be inspected

by a skilled person once a year.

The following points have to be considered during the inspection:

1. All screws used for installing the device or parts of the device have to be tightly connected and must

not be corroded.

2. There may not be any deformations on housings, fixations and installation spots.

3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing.

4. The electric power supply cables must not show any damages or material fatigue.

The Showtec Giant requires almost no maintenance. However, you should keep the unit clean.

Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and

then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents.

The mirrors will require weekly cleaning, as smoke-fluid tends to build up residues, reducing the light-output

very quickly.

Please clean internal components once a year with a light brush and vacuum cleaner.

Keep connections clean. Disconnect electric power, and then wipe the connections with a damp cloth.

Make sure connections are thoroughly dry before linking equipment or supplying electric power.

Changing the Lamp

1. Disconnect mains power supply. Loosen the 3 screws on the metal housing.

2. Gently open the small metal housing. Loosen the 4 screws and remove the small metal plate, then take

out the lamp.

3. Follow directions for installing a new lamp, page 6.

Replacing a Fuse

Power surges, short-circuit or inappropriate electrical power supply may cause a fuse to burn out. If the fuse

burns out, the product will not function whatsoever. If this happens, follow the directions below to do so.

1. Unplug the unit from electric power source.

2. Insert a screwdriver into the slot in the fuse cover. Turn the screwdriver to the left, at the same time gently

push a bit (Turn and Push). The fuse will come out.

3. Remove the used fuse. If brown or unclear, it is burned out.

4. Insert the replacement fuse into the holder where the old fuse was. Reinsert the fuse cover. Be sure to

use a fuse of the same type and specification. See the product specification label for details.

Tabla de contenidos

Otros manuales de Equipo de iluminación de Show Tec

Show Tec

Show Tec Scorpion Scan 280 Manual de usuario

Show Tec

Show Tec Galactic GBC-120 Manual de usuario

Show Tec

Show Tec Phantom 300 Spot Manual de usuario

Show Tec

Show Tec Dreamer 31150 Manual de usuario

Show Tec

Show Tec NanoQ 12 Q4 V1 Manual de usuario

Show Tec

Show Tec Spectral M1500 Q4 IP66 V1 Manual de usuario

Show Tec

Show Tec LED Light Bar 16 Manual de usuario

Show Tec

Show Tec Shogun DJ G-100 Manual de usuario

Show Tec

Show Tec Light Desk Pro 136 Manual de usuario

Show Tec

Show Tec Perfomer Profile 600 LED MKIII V1 Manual de usuario

Show Tec

Show Tec Parcan 36 Pinspot V1 Manual de usuario

Show Tec

Show Tec LED Pinspot DMX V3 Manual de usuario

Show Tec

Show Tec LED Par 56 Short Eco V2 Manual de usuario

Show Tec

Show Tec Galactic RBP-180 Manual de usuario

Show Tec

Show Tec galactic b300 Manual de usuario

Show Tec

Show Tec Stage Blinder 4 Black DMX Bulb Manual de usuario

Show Tec

Show Tec Club Barrel Manual de usuario

Show Tec

Show Tec Galactic FX RGB-1000 Manual de usuario

Show Tec

Show Tec Aquatic 30838 Manual de usuario

Show Tec

Show Tec Performer 1500 Fresnel Tungsten Manual de usuario

Show Tec

Show Tec Stage Blinder 4 LED Manual de usuario

Show Tec

Show Tec XS-1W V1 Manual de usuario

Show Tec

Show Tec City Painter 1800 Spot Manual de usuario

Show Tec

Show Tec Bat 1 Digital Manual de usuario

Manuales populares de Equipo de iluminación de otras marcas

Brizo

Brizo 8SP-MU-4 Manual de usuario

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manual de usuario

IKEA

IKEA BJÖRKSPIREA Manual de usuario

Laserworld

Laserworld Evolution Series ES-400RGB Manual de usuario

Alien

Alien RG STAR Manual de usuario

EuroLite

EuroLite LED B-40 Manual de usuario

Qazqa

Qazqa Suplux SL 3 Black 103062 Manual de usuario

Commercial Electric

Commercial Electric 54568141 Manual de usuario

CREE LIGHTING

CREE LIGHTING 304 Series Manual de usuario

Goobay

Goobay 49867 Manual de usuario

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manual de usuario

Alkalite

Alkalite Krypton KT-81 Manual de usuario

Clas Ohlson

Clas Ohlson GU10 Manual de usuario

DTS

DTS DELTA 10 F Manual de usuario

ring

ring Solar Steplight Manual de usuario

One Stop Gardens

One Stop Gardens 57696 Instrucciones de montaje

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manual de usuario

SIREM

SIREM Swimeo A2 Manual de usuario
