Jumbo Strobe MKIII DMX

ORDERCODE 40218

Congratulations!

You have bought a great, innovative product from Showtec.

The Showtec Jumbo Strobe MKII brings excitement to any venue. Whether you want simple plug-&-play

action or a sophisticated DMX show, this product provides the effect you need.

You can rely on Showtec, for more excellent lighting products.

We design and manufacture professional light equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

For more information: iwant@showtec.info

You can get some of the best quality, best priced products on the market from Showtec.

So next time, turn to Showtec for more great lighting equipment.

Always get the best -- with Showtec !

Thank you!

Showtec

Showtec Jumbo Strobe MKII™Product Guide

Warning.................................................................................…...……………..…………………………….………..…

Safety-instructions………………………………………………………………………………………………………..

Operating Determinations.…………………………………………………………………………………………….

Rigging.…………………………………………………………………………………………………………………….

Return Procedure……………………………………………………………………………......................................

Claims…………………………………………………………………………….........................................................

Description...............................................................................…...………………………………………….…………

Features and Overview ………………………………...….……………….………….……….……….…………….

Backside…………………………………………………...…...….……………….…………………...….……………..

Installation...............................................................................…...…………………………………………………..…

Installing the Lamp ........................................................…………………………………………………….………

Set Up and Operation.............................................................................................................................................

One Jumbo Strobe MKII Stand-alone.…...........................……………………………………………………..…

DMX-Control…...................................................………………………………………………..………………………..

DMX Dip Switch Setting.......................…………………………………………………………………………….….

DMX Channel Chart.......................................................................………..………….…….……………..…………..

Maintenance...................................................................................………..………….…….……………………..….

Changing the Lamp........................................................................…………………….………………...……….

Replacing the Fuse........................................................................…………………….…………………………..

Troubleshooting............................................................................………………….………………….……………….

No Light, No Movement - All Products............................................………………….…………………………..

No Response to DMX ....................................................................………………….…………………………..…

Product Specifications.................................................................……………….…….……………………………….

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-

observance of this manual or any unauthorized modification to the device.

Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

Never remove warning or informative labels from the unit.

Never use anything to cover the ground contact.

Never run the device without lamp!

Never ignite the lamp if the objective-lens or any housing-cover is open, as discharge lamps may

expose and emit a high ultraviolet radiation, which may cause burns.

Never look directly into the light source.

Never leave any cables lying around.

Never modify, bend, mechanically strain, put pressure on, pull or heat up the power cord.

Never strain the cable insert or the female part in the device. There must always be sufficient

cable going to the device. Otherwise, the cable will be damaged, which can cause serious

damage.

Never operate the stroboscope without protective shield! When the shield is cracked, replace it

before using the device again.

Do not insert objects into air vents.

Do not connect this device to a dimmerpack.

Do not switch the device on and off in short intervals, as this would reduce the lamp’s life.

Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).

Do not shake the device. Avoid brute force when installing or operating the device.

Only use device indoor, avoid contact with water or other liquids.

Only operate the fixture after having checked that the housing is firmly closed and all screws are

tightly fastened.

Only operate the device after having familiarized with its functions.

CAUTION!

Keep this device away from rain and moisture!

Unplug mains lead before opening the housing!

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dangerous electric shock when touching the wires!

Avoid flames and do not put close to flammable liquids or gases.

Always replace the lamp, when it is damaged or deformed due to the heat.

Always keep case closed while operating.

Always allow free air space of at least 50 cm around the unit for ventilation.

Always disconnect power from the mains, when device is not used, before cleaning or when

replacing lamp! Only handle the power-cord by the plug. Never pull out the plug by tugging the

power-cord.

Make sure that the device is not exposed to extreme heat, moisture or dust.

Make sure that the available voltage is not higher than stated on the rear panel.

Make sure that the power-cord is never crimped or damaged. Check the device and the power-

cord from time to time.

Make sure that the core diameter of extension cords and power cords is sufficient for the required

power consumption of the device.

If device is dropped or struck, disconnect main power supply immediately. Have a qualified

engineer inspect for safety before operating.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do

not switch it on immediately. The arising condensation water might damage your device. Leave

the device switched off until it has reached room temperature.

If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

For adult use only. Lighteffect must be installed out of the reach of children. Never leave the unit

running unattended.

For replacement use lamps of same type and rating only.

Allow time to cool down, before replacing lamp.

Keep away from direct insulation.

This device is only allowed for an installation via the mounting bracket.

This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

The relative humidity must not exceed 50 % with an ambient temperature of 45° C.

During the initial start-up some smoke or smell may arise. This is a normal process and does not

necessarily mean that the device is defective.

Repairs, servicing and electric connection must be carried out by a qualified technician.

WARRANTY: Till one year after date of purchase.

OPERATING DETERMINATIONS

This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

The minimum distance between light-output and the illuminated surface must be more than 0.8 meter.

The maximum ambient temperature tamust never be exceeded.

If this device is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash

etc.

You endanger your own safety and the safety of others!

CAUTION ! EYEDAMAGES !.

Avoid looking directly into the light source.

(meant especially for epileptics) !

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all other

safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

If the strobe is lowered from the ceiling or high joists, professional trussing systems have to be used.

Use a clamp to mount the strobe, with the mounting-bracket, to the trussing system.

The strobe must never be fixed swinging freely in the room.

The installation must always be secured with a safety attachment, e.g. an appropriate safety net

or safety-cable.

When rigging, derigging or servicing the strobe, always make sure, that the area below the

installation place is blocked and staying in the area is forbidden.

Improper installation can cause serious damage to people and property !

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

FASE

BLUE

BLACK

SILVER

NUL

YELLOW/GREEN

GREEN

EARTH

Make sure that the device is always connected properly to the earth!

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.

Be prepared to provide the model number, serial number and a brief description of the cause for the

return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the

customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

1) Your name

2) Your address

3) Your phone number

4) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

otherwise agreed in writing.

Complaints against us must be made known in writing or by fax within 10 working days after receipt of the

invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement of which the obligation is resulting.

Description of the device

Features

The Showtec Jumbo Strobe MKII is a dimmable, DMX-controlled strobe light with a high output.

• 1500W flash

• DMX-control via standard DMX-controller

• 2 DMX-control channels required

• Strobe-effect with adjustable speed (1 - 12 flashes/sec.)

• Lamp: Strobe Bulb GE XOP-1500W (80603)

• Fuse 15A / 250V

Overview

Fig. 1

Backside

1 2

Fig. 2

3 6

4 7

Fig. 3

1) Manual Control Intensity

2) Manual Control Flash rate speed

3) DMX signal connector (OUT)

4) DMX signal connector (IN)

5) Dip Switches

6) Fuse 15A / 250V

7) Power cable

Installation

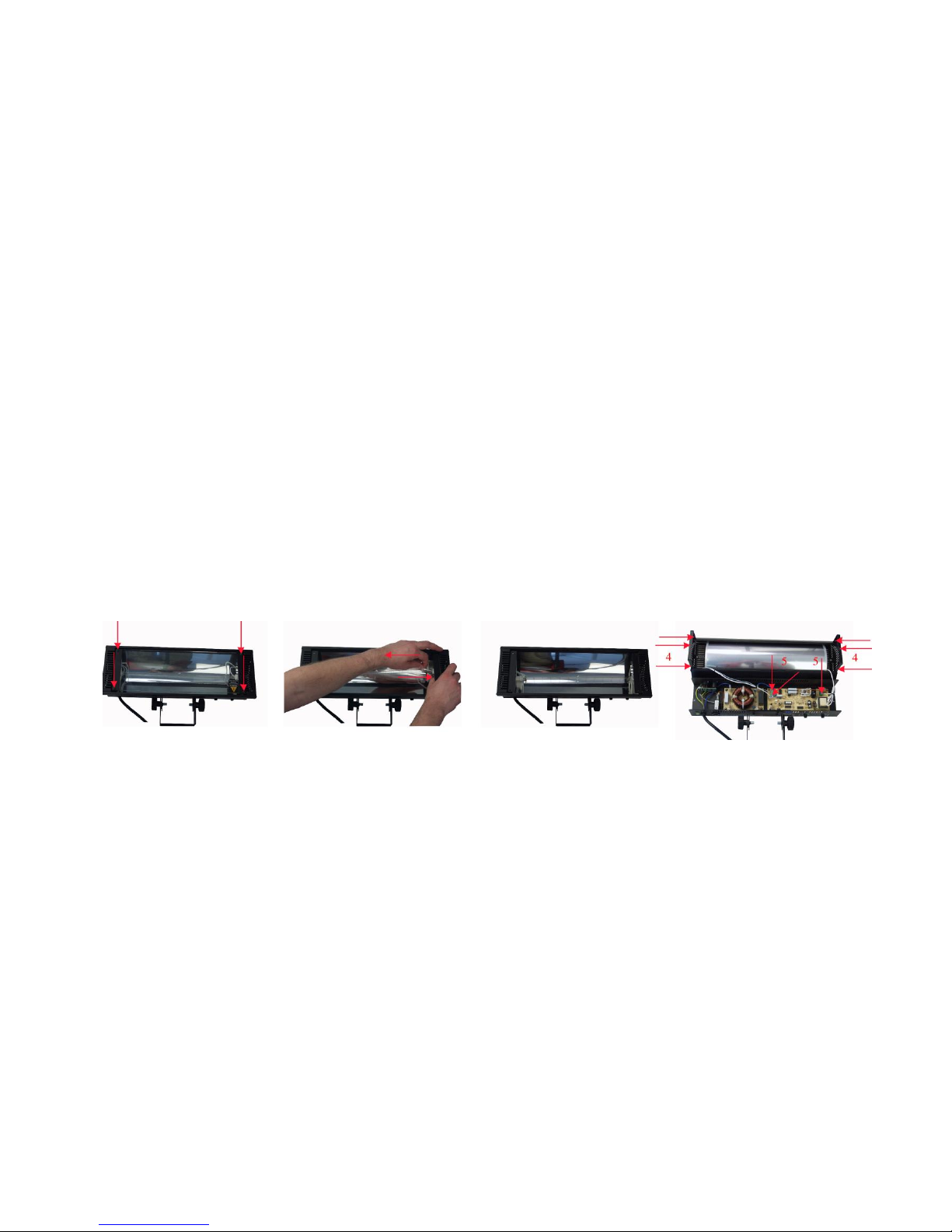

Installing the Lamp

The Showtec Jumbo Strobe MKII uses the GE XOP-1500W (ordercode 80603) strobe bulb as manufactured

by all popular manufacturers. Use only the appropriate lamp for your unit.

Note that, product versions that use other lamps, may be offered in the future. Check your product

specification label for information.

Always disconnect from electric mains power supply before changing lamps.

The lamp has to be replaced when it is damaged or deformed due to the heat.

Do not install lamps with a higher wattage! Lamps with a higher wattage generate temperatures the

device was not designed for.

Damages caused by non-observance are not subject to warranty.

DANGEROUS: Leave the device disconnected for 15 min before opening. Otherwise you could be

seriously injured due to a power shock !!!

Procedure :

1. Disconnect from main power supply, and leave for 15 minutes. Loosen the 4 screws of the glass cover.

2. Remove the glass cover. With the left hand gently pull the lamp out the spring, while pushing the spring

back with the right hand.

3. Leave the lamp laying in the mirror. Then put the glass cover back and fasten the 4 screws again.

4. Turn the strobe over and loosen the 6 screws (4) on the back. Remove the back cover.

5. Carefully loosen the 3 screws (5) Turn the strobe over again and remove the glass cover, then remove

the lamp. Read lamp instructions. Do not touch the lamp bulb glass. Oil on hands shortens the lamp

life. (If you touch the bulb glass, wipe off the glass with a clean, lint-free towel and rubbing alcohol.)

Hold the lamp with one hand and Insert the lamp into the spring. Put the glass cover back and fasten

the 4 screws.

6. Turn the strobe over and insert the 3 cables, then fasten the 3 screws. Put the cover back and fasten

the remaining 6 the screws snugly.

1 2 3 4 & 5

Fig. 4

Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode.

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

One Jumbo Strobe MKII Stand-alone

1. Fasten the Jumbo Strobe MKII onto firm trussing. Leave at least 1 meter on all sides for air circulation.

2. Before connecting the strobe with the mains, the Intensity-control and the Flash Rate-control have to

be set to a minimum position . For manual control, all DIP-switches have to be set to OFF. Plug the cord

into a proper electric power supply socket. The strobe will now start.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Equipo de DJ de Show Tec

Show Tec

Show Tec Phantom 120 LED Wash V1 Manual de usuario

Show Tec

Show Tec FLEXSTRIP SET IP4RGB Manual de usuario

Show Tec

Show Tec Spectral M800 Q4 Tour Manual de usuario

Show Tec

Show Tec LED Pixel Floor Manual de usuario

Show Tec

Show Tec EventLITE 4/10 Q4 Set 6x Manual de usuario

Show Tec

Show Tec Star Dream 6x3m 128 LED RGB Manual de usuario

Show Tec

Show Tec Stellar FZ-1000 Fazer Manual de usuario

Show Tec

Show Tec Hydrogen DMX MKII Manual de usuario

Show Tec

Show Tec Accent Spot Q4 V1 Manual de usuario

Show Tec

Show Tec LED Pinspot Q4 Manual de usuario

Show Tec

Show Tec Performer 2000 Fresnel DDT MKII V1 Manual de usuario

Show Tec

Show Tec GALACTIC BEAM G40 V1 Manual de usuario

Show Tec

Show Tec 60409 Manual de usuario

Show Tec

Show Tec LED Par 56 Short V2 42421-01 Manual de usuario

Show Tec

Show Tec STAGE BLINDER 8 DMX V1 Manual de usuario

Show Tec

Show Tec Eventspot 1900 MKII Manual de usuario

Show Tec

Show Tec Shark - The Meg - Beam One Manual de usuario

Show Tec

Show Tec Sunstrip Active MKII 110V V1 Manual de usuario

Show Tec

Show Tec Galactic G-30 Manual de usuario

Show Tec

Show Tec Performer Profile IP Q4 Manual de usuario

Show Tec

Show Tec 43560 Manual de usuario

Show Tec

Show Tec Sustrip II Stageblinder Manual de usuario

Show Tec

Show Tec EVENTSPOT 60 Q7 Manual de usuario

Show Tec

Show Tec PIXEL BAR 12 MKII Manual de usuario

Manuales populares de Equipo de DJ de otras marcas

ALPHA LITE

ALPHA LITE ALPHA 1500 Manual del propietario

Chauvet

Chauvet OVATION E-930VW Manual de usuario

Zumtobel

Zumtobel APHRODITE Home Manual de usuario

Snow Masters

Snow Masters Zig Oscillator Manual de usuario

EuroLite

EuroLite 50530554 Manual de usuario

Beamz

Beamz BUV243 Manual de usuario

thomann

thomann Stairville DJ Lase 40-G MK-III Manual de usuario

Eagletone

Eagletone 6 Eyes Flower Manual de usuario

EuroLite

EuroLite FLD-1508 Manual de usuario

Technical Pro

Technical Pro LG8xSEA Manual de usuario

JB Systems

JB Systems Lounge Laser DMX Manual de usuario

Lightmaxx

Lightmaxx Vega Halo 90 Manual de usuario

Elation

Elation FUZE WASH Z350 Manual de usuario

Maverick

Maverick MK3 WASH Manual de usuario

Infinity

Infinity TF-260C7 Fresnel Manual de usuario

Chauvet

Chauvet EVE E-50Z Manual de usuario

Eliminator Lighting

Eliminator Lighting E 138 Manual de usuario

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manual de usuario
