SHIELD IP Camera RSCM-13601B/W

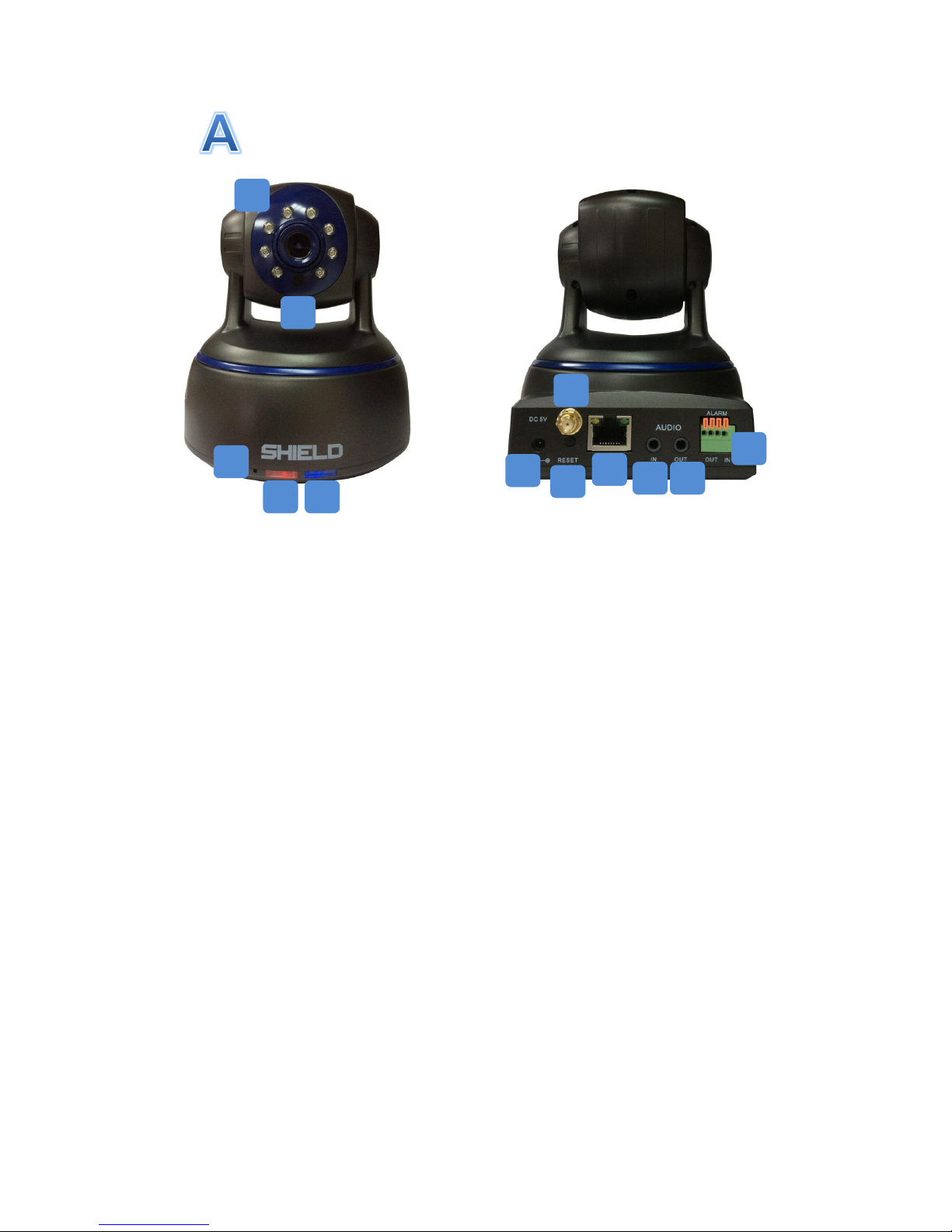

Getting to know your RSCM-13601B/W

1. Infrared LEDs: Active while encountering conditions such as lower lights, generating

black and white image even in entire darkness.

2. Illumination Sensor: Detecting the light and enable the IR LEDs when required.

3. Microphone: Enable the camera to transit sounds nearby the camera and allows the

interaction with ones nearby.

4. Power LED: Indicating that the camera is operating when the LED light is on.

5. Network LED: The light flashing whilst the camera is sending/ receiving data via the

wired/ wireless network

6. DC In Power: Connecting the DC input here.

7. Antenna Connector: A Wi-Fi antenna could be attached to this port.

8. Reset Button: Pressing the reset button and held for 3-5 seconds would enable the

wireless connection to a WPS support router. All settings will be reverted to the

factory defaults when the button is press and held in the disconnected condition.

9. Network (LAN) Port: Connecting to a wired connection through this port and the

router.

10. Audio In: To connect an external microphone if audio monitoring required from other

locations.

11. Audio Out: Intercom function could active while linking speakers to the audio output.

Voice could be heard by the speakers via the mobile application.

12. Alarm I/O Block: Sensors and external alarms could be connected here.

SHIELD IP Camera RSCM-13601B/W

Start you IP camera via your smart phone

1. Installing the App, SHIELDeye

1. Go to Apple Store or Google Play Store.

2. Search SHIELDeye

3. Tap Free to download

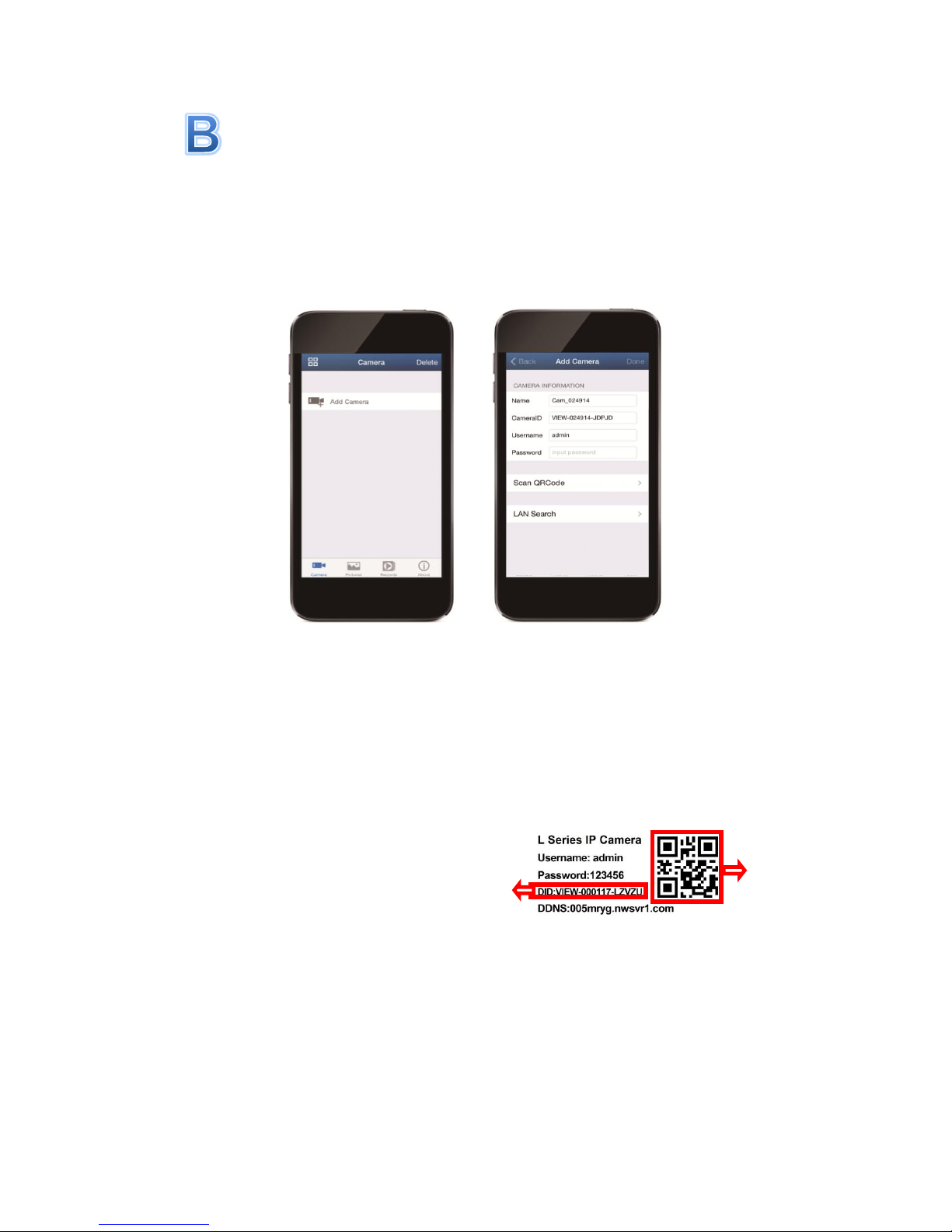

2. Add Camera

Add Cameras by (a) Search in LAN,(b) Scan QR Code and (c) Add manually

1. If the Phone and IP camera are in the same Wi-Fi network, click LAN Search. Tap

the DID of the camera found and finish the details as step 4 and 5 below.

Note if you have more than one camera in your network, you see more camera

DIDs in this list, set each one up separately.

2. While the Phone and camera are in different networks, simply tap Scan QR code

and use your smartphone’s camera to scan the QR code on the bottom of the IP

camera. This automatically populates the DID box with the camera’s DID; then just

follow steps 4 and 5 to finish off.

3. Or if you prefer to add it manually, tap in the boxes and type the camera’s DID code

carefully. Make sure the DID code you enter is corrective or it will fail to connect.

4. Enter the camera’s password (default is 123456 but we recommend you change

this using the software on your PC as soon as possible).

5. Tap the Name box and we suggest you to name a unique ID for the camera that can

help you identify it easily. When you’re finished, tap back to the Camera List screen.

QR Code Sample

DID Code

SHIELD IP Camera RSCM-13601B/W

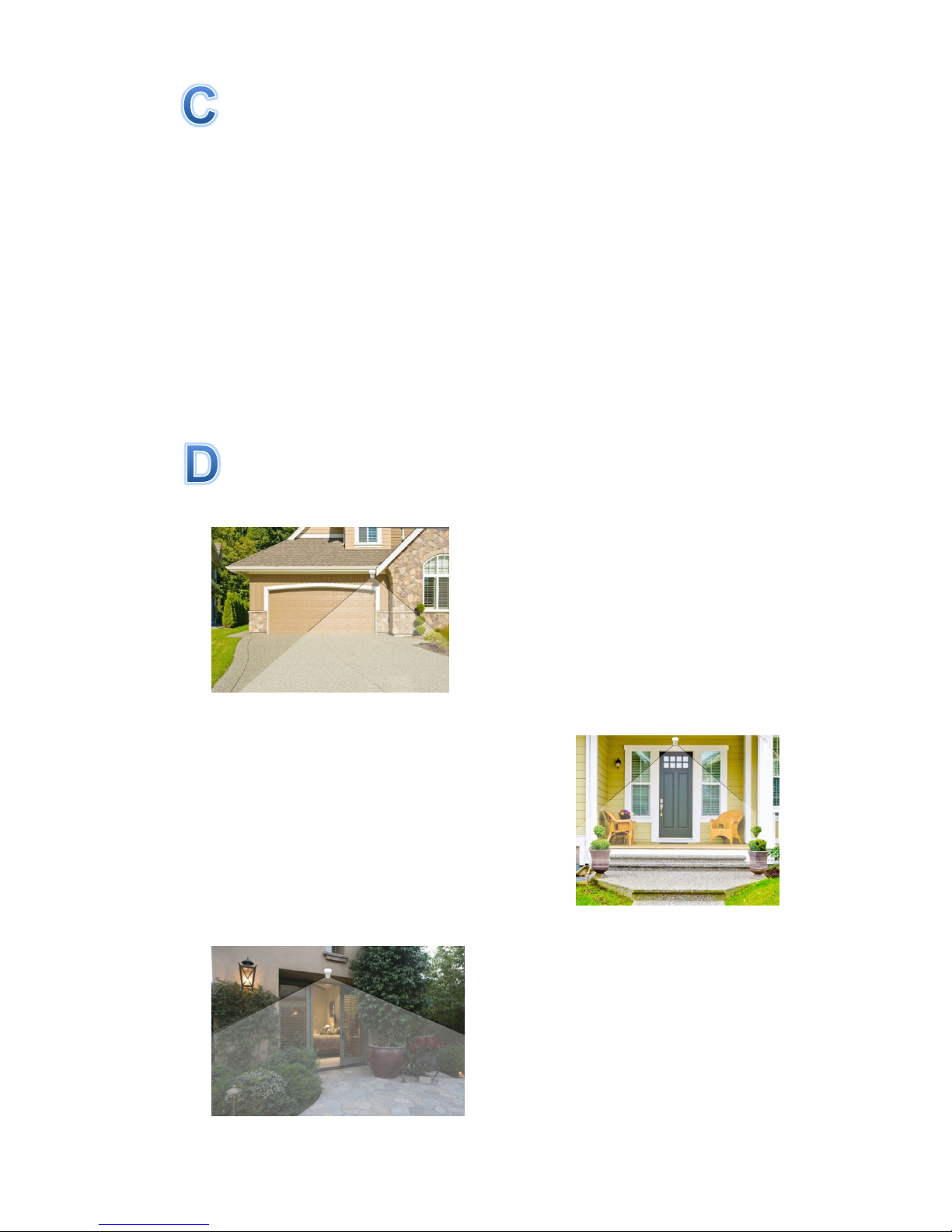

Camera Location Tips

The location of cameras is essential. Positioning cameras at the proper places could

maximize the proficiency of the camera. On the other hand, miss locating the cameras

could result in blind spots, poor definition or having blur vision of the inspecting targets.

Therefore, locations of camera should be well organized and refer to the below conditions:

1. The preferred monitoring area

2. Lighting and environmental conditions

3. The distance between the DVR/NVR and the camera

Mount cameras at an elevated position

Placing the cameras at a higher position would increase the inspecting area. The higher

mounting positions also prevent the camera out of reach of intentional damage.

Have the target area covered

A sufficient range should be covered by the camera. For instance, the camera for garage

inspecting should cover driveway and the garage gate. Hence the circumstance in front of

the garage gate could be captured as much as possible with high video quality.

Location suggestion

1. Front of House and Driveway

It is recommended to have a camera monitor the

front entrance, garden or driveway. To achieve a

better field of view and avoid vandalize, the

cameras should be install at the intersections

between the roof and wall where the cameras

could be sheltered.

2. Front Door

It is important to install a camera at the front door

since most burglars break in houses from the front

entrance. The front door camera is recommended

to set in an elevated position at a slight angle.

Placing the camera at a slight angle provides a

clear view to have facial recognition of those

approaching people at the front door.

3. Backyard and Side Entrance

To have an overview of the backyard, a camera

installing at the intersection between roof and

wall of the house would be recommended.

Furthermore, if the house includes side gate

and other entrances toward backyard, an

additional camera might need to be considered

to monitor these pathways.

SHIELD IP Camera RSCM-13601B/W

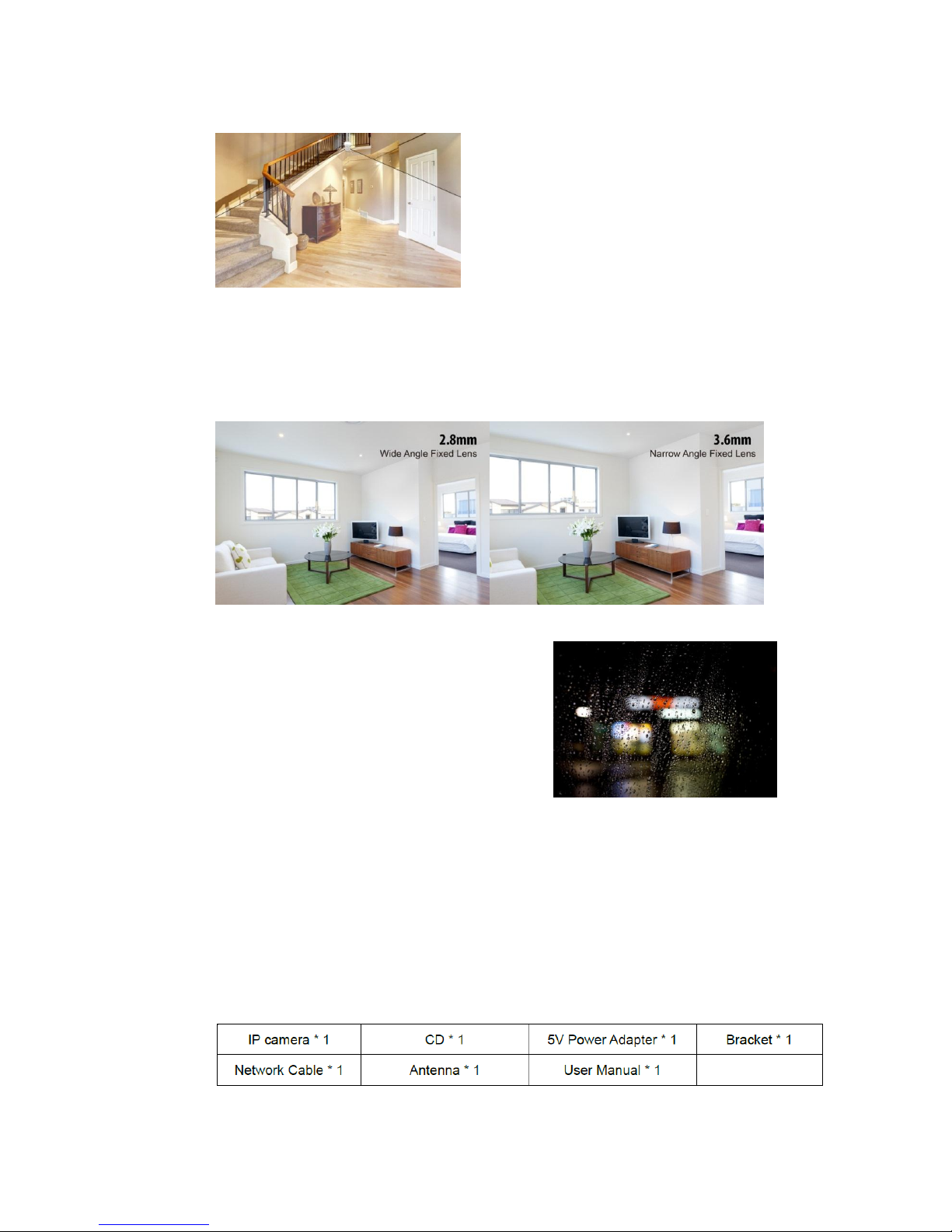

4. Indoors

The cameras could be placed along the high

traffic area like entrance, hallways or exits.

Other positions are those windows and rooms

where the luxury personal belongings stored.

5. Camera Field of View

The viewing area provided by a camera is the observable area the camera could deliver.

As the level of definition and the focusing distance could be influenced, the camera

setting should be considered according to the specific requirements. For instance, the

wide-angle lens allows a wider area but smaller objects in the monitor area. Instead, the

narrow-angle lens has a minor Field of View yet larger objects shown in the scene area.

6. Lighting and Environment Tips

Lighting

1. Do not point the camera towards a light

resource directly.

2. To avoid a poor display, please prevent the

camera monitor through glasses.

3. The light in front of the camera should be

bright as the location of the sensor to achieve

the clearer results.

4. Clean the lens regularly to prevent the picture degrades while activating night vision

via infrared LED.

Environment

1. Notice that the power connections are covered with water resistance equipment, the

circumstances outdoor such as moisture and humidity should be avoided.

2. The camera is weatherproof that enable its operation under conditions like raining

and snowing. Nonetheless, it cannot be plunged in water.

3. Avoid the lens to expose directly under rain and snow.

7. What’s in the box
