Shenzhen Eager LED LED Display Screen Manual de usuario
Shenzhen Eager LED Co., Ltd.
1
Shenzhen Eager LED
Co., Ltd.
LED Display Screen User
Manual
Version 2.1---edited by EagerLED
Shenzhen Eager LED Co., Ltd.
2

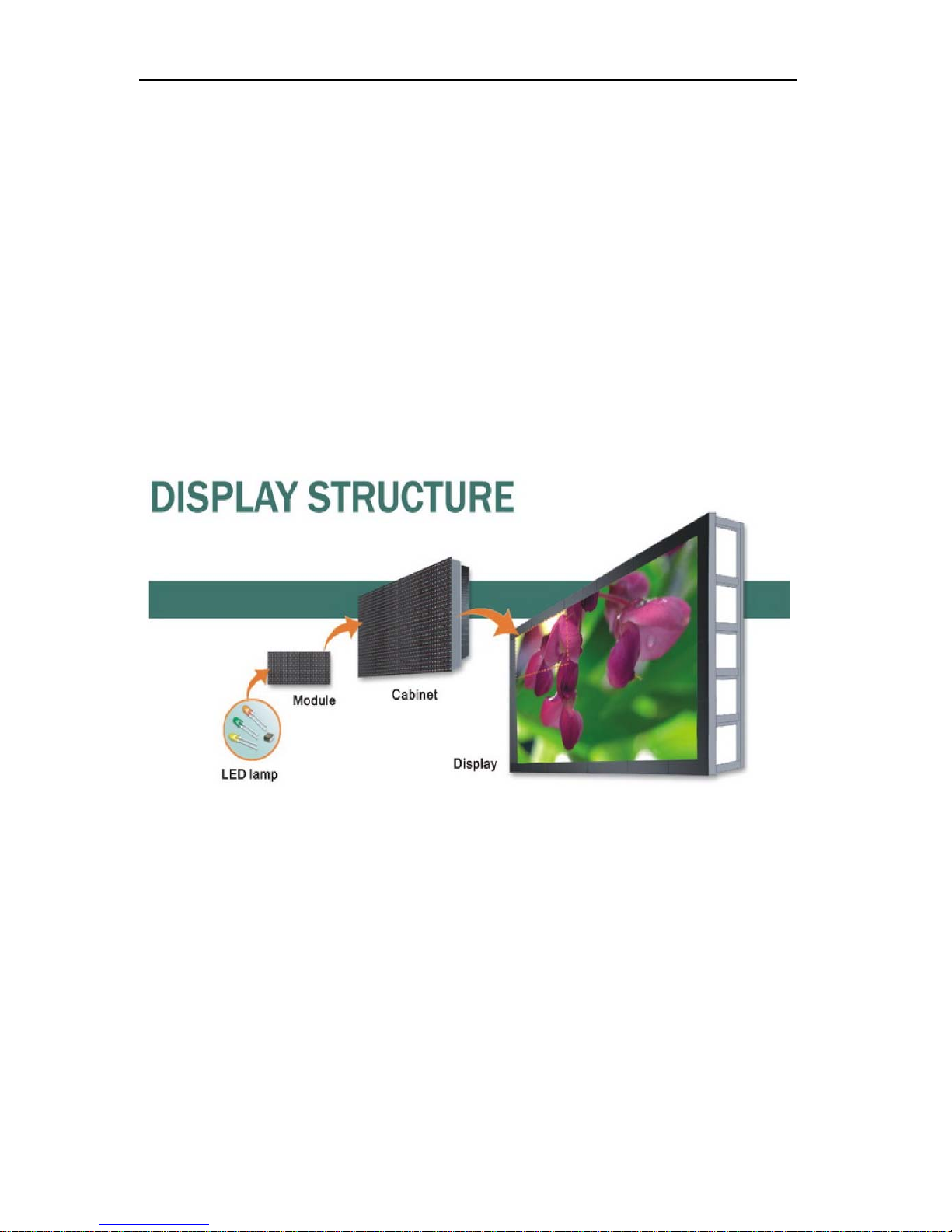

1Services And Function Of Eager LED
Display
LED Video Display Screen is a large display screen system combining micro-electronic,
computer and information processing technology. It is renowned for the distinctive features of
vivid color, high brightness, durability and stability. Of all the display media choices, LED
Video Display Screen ranks number one, and is widely used in commercial advertisement,
stadiums, information transmission, news release, stock exchange, etc. It is one of the most
advanced display media all over the world.
Shenzhen Eager LED Co., Ltd.
3

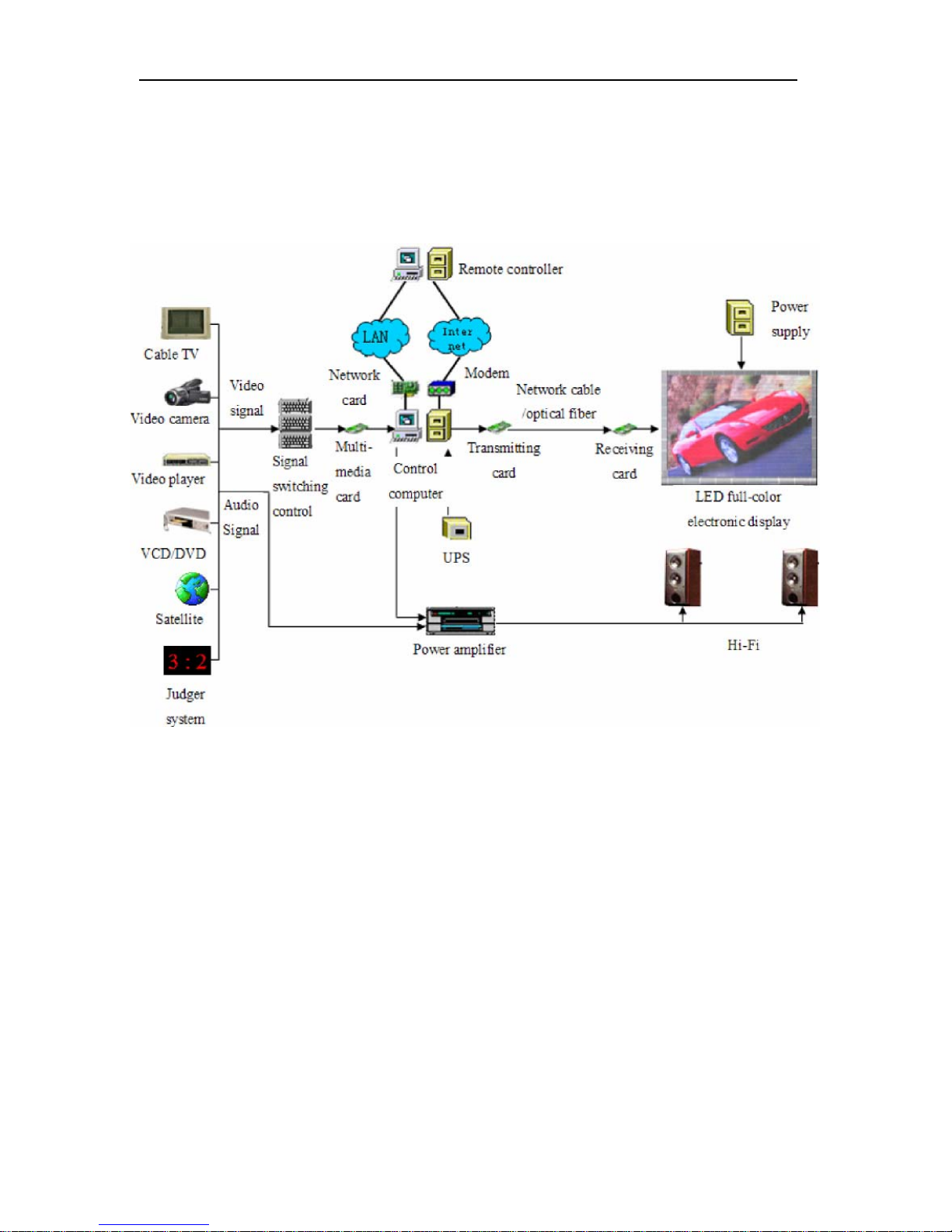

2LED Video Display System Structure
Shenzhen Eager LED Co., Ltd.
4
◆LED dis
p
la
y
installation ste
p
s◆
1. Mount the cabinets on the Steel Structure;
2. Connect all UTP cable and AC cables
b
etween cabinets;
3. Install Graphic Card and Sending Card, connect the DVI cable, USB cable
b
etween
graphic card and sending card
4. Connect UTP cable between Sending Card and Receiving Card;
5. Power on LED display(Checking whether the display has short circuit before
power on);
6. Power on control computer;
7. Checking the DVI Clone Mode of Display is
On(Desktop→Property→Settings→Advanced→Display)
Shenzhen Eager LED Co. , Ltd.
5
3LED Cabinet And Connection Diagram
A. Guide of LED display mechanical installation
Shenzhen Eager LED Co. , Ltd.
6
B. Socket WS16 and WP20 are equipped on the back side of the
Cabinet
Electric connection can be set up correctly by connecting UTP cables and AC cables to all
cabinets.
Shenzhen Eager LED Co. , Ltd.
7

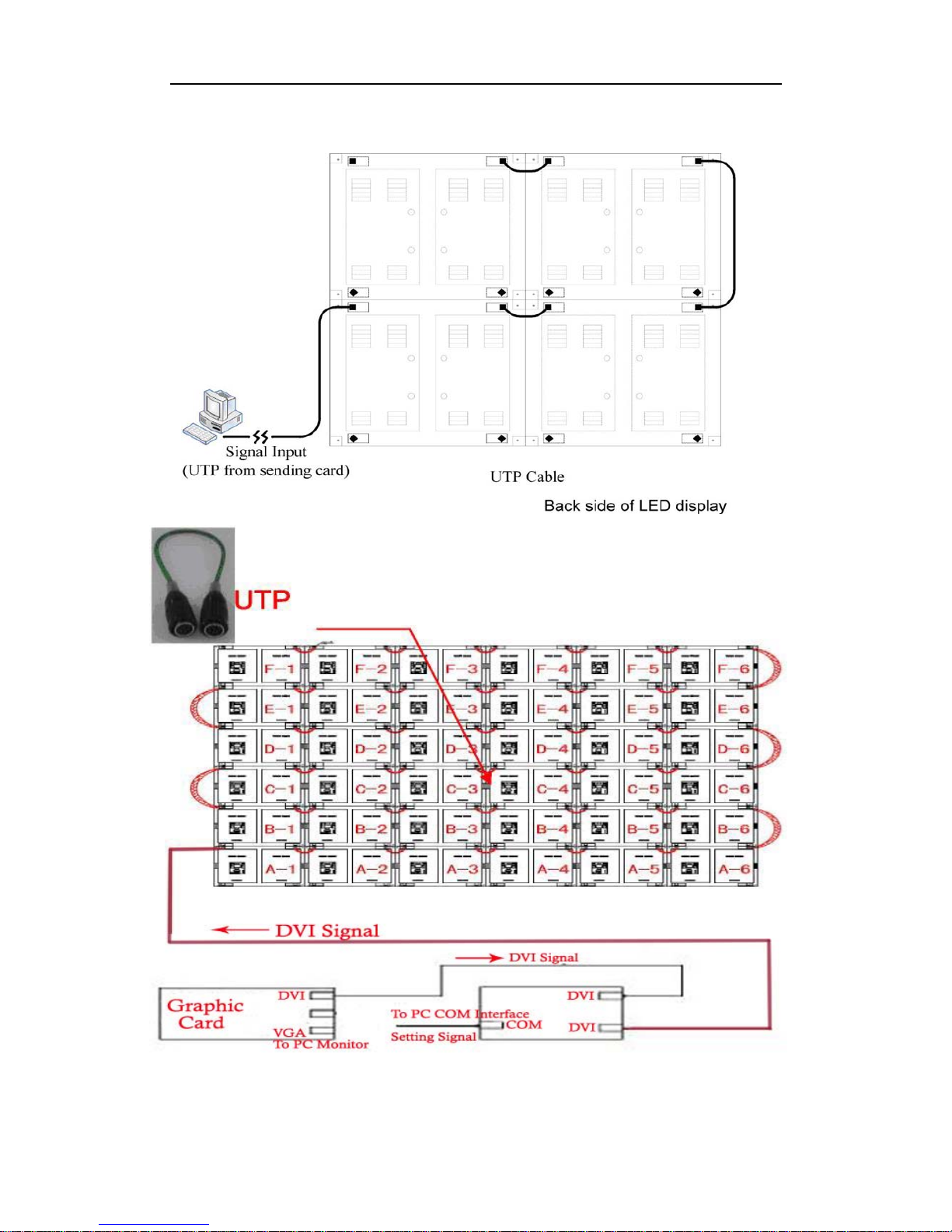

C. UTP Cable Connection of the Display
Connection of UTP
Shenzhen Eager LED Co. , Ltd.
8

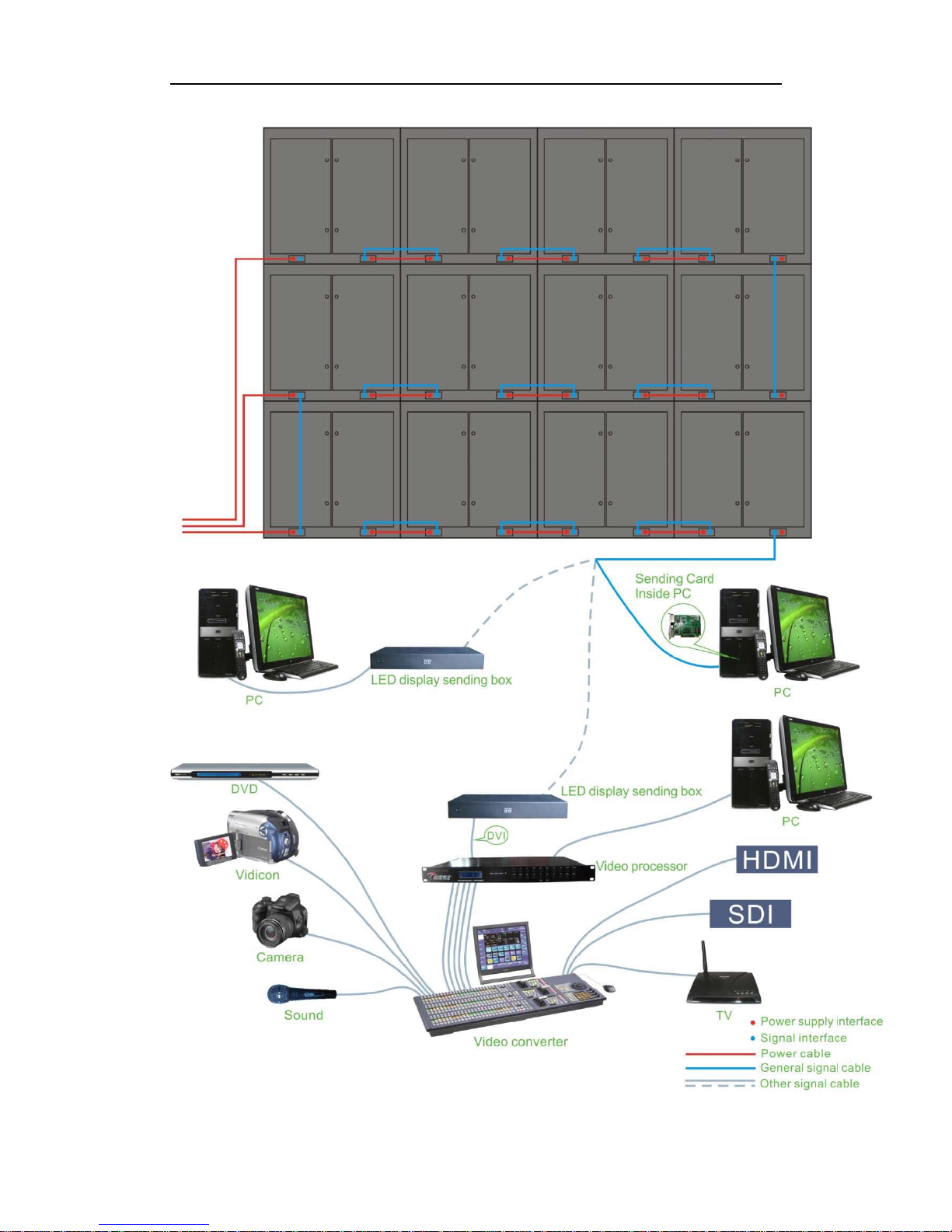

D. AC Cable Connection of the Display
Connection of AC cable
Shenzhen Eager LED Co. , Ltd.
9
Shenzhen Eager LED Co. , Ltd.
10

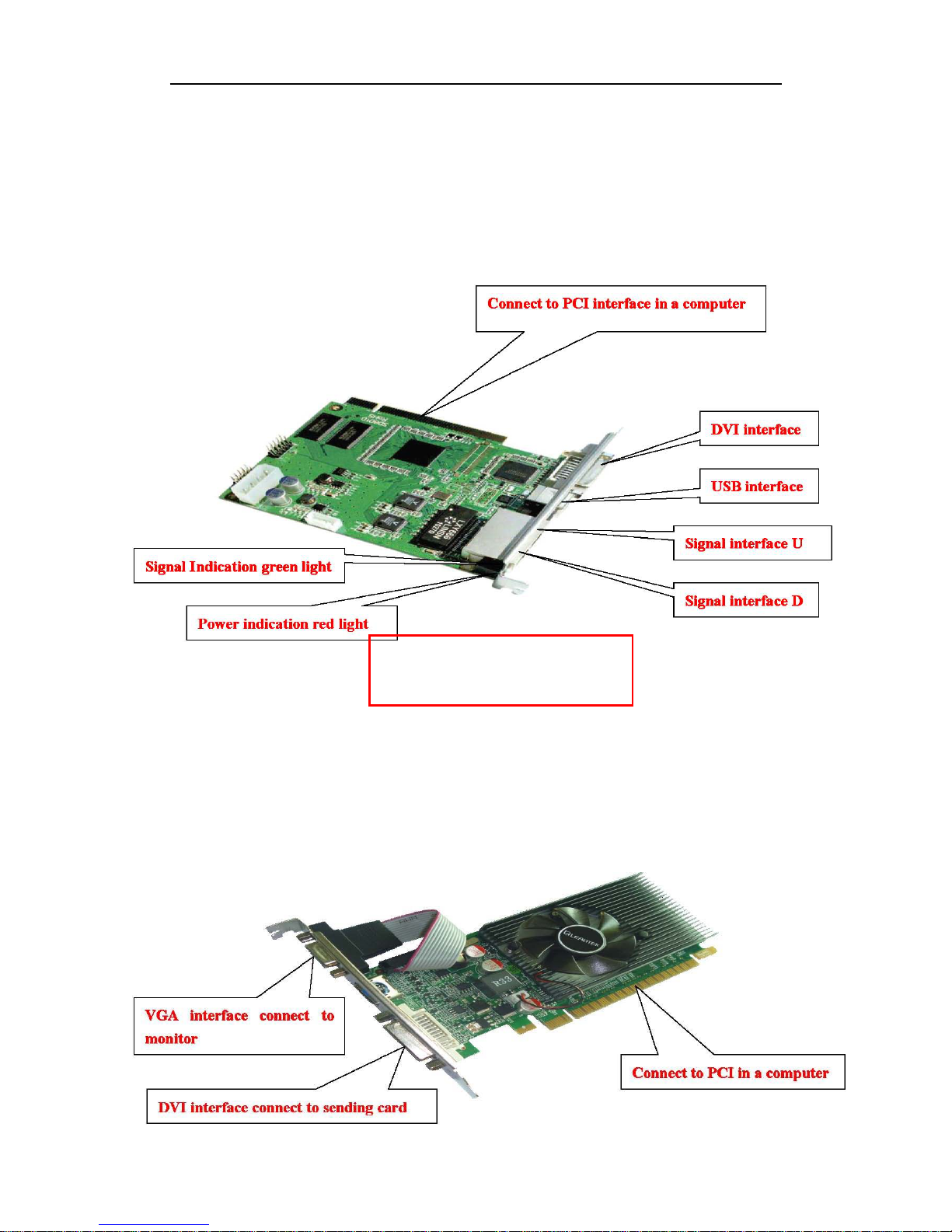

4Control System and Software
A. Sending Card
B. Graphic Card
UTP interface connect to the LED
Display
Este manual sirve para los siguientes modelos
