Shel lab SMI2 Manual de usuario

SMI INCUBATORS 100 – 120 Voltage

Installation - Operation Manual

SMI2 SMI6 SMI7 SMI11 SMI12

2 | Page

Pictured on cover: SMI6

SMI2

SMI7

SMI11

SMI12 (2 Stacked SMI6s)

3| Page

SMI General Purpose Incubators 100 – 120 Voltage

Installation and Operation Manual

Part Number: 4861572-1

Revised: March 2, 2018

SHEL LAB is a brand of Sheldon Manufacturing, INC.

Safety Certifications

These units are CUE listed by TÜV SÜD as incubators for professional, industrial, or educational use

where the preparation or testing of materials is done at an ambient air pressure range of 22.14 – 31.3

inHg (75 – 106 kPa) and no flammable, volatile, or combustible materials are being heated.

These units have been tested to the following requirements:

CAN/CSA C22.2 No. 61010-1:2012

CAN/CSA C22.2 No. 61010-2-010 + R:2009

UL 61010A-2-010:2002

UL 61010-1:2012

EN 61010-1:2010

EN 61010-2-010:2003

4 | Page

TABLE OF CONTENTS

INTRODUCTION ........................................................................................................................................................ 5

Read this Manual....................................................................................................................................................................5

Safety Considerations and Requirements ......................................................................................................................5

Contacting Assistance ..........................................................................................................................................................6

Temperature Reference Sensor Device ..........................................................................................................................6

Engineering Improvements..................................................................................................................................................6

RECEIVING YOUR UNIT ............................................................................................................................................7

Inspect the Shipment............................................................................................................................................................. 7

Recording Data Plate Information.....................................................................................................................................8

INSTALLATION .......................................................................................................................................................... 9

Installation Procedure Checklist ........................................................................................................................................9

Required Ambient Conditions........................................................................................................................................... 10

Required Clearances........................................................................................................................................................... 10

Environmental Disruption Sources .................................................................................................................................. 10

Power Source Requirements ............................................................................................................................................. 11

Lifting and Handling ............................................................................................................................................................ 12

Leveling................................................................................................................................................................................... 12

Install Incubator in Location .............................................................................................................................................. 12

Installation Cleaning............................................................................................................................................................ 12

Deionized and Distilled Water.......................................................................................................................................... 13

Install the Shelving............................................................................................................................................................... 13

Access Port ............................................................................................................................................................................ 13

GRAPHIC SYMBOLS ................................................................................................................................................15

CONTROL PANEL OVERVIEW ............................................................................................................................... 17

OPERATION...............................................................................................................................................................19

Theory of Operation ............................................................................................................................................................ 19

Put the Incubator into Operation .................................................................................................................................... 20

Set the Incubator Temperature Set Point...................................................................................................................... 21

Set the Over Temperature Limit...................................................................................................................................... 22

Loading Samples................................................................................................................................................................. 23

Chamber Accessory Power Outlets ............................................................................................................................... 23

Humidifying the Incubator................................................................................................................................................. 23

Condensation and the Dew Point .................................................................................................................................. 24

USER MAINTENANCE............................................................................................................................................. 25

Cleaning and Disinfecting................................................................................................................................................. 25

Minimizing Contamination Exposure ............................................................................................................................. 26

Storing the Incubator...........................................................................................................................................................27

Door Components................................................................................................................................................................27

Electrical Components........................................................................................................................................................27

Calibrate the Temperature display................................................................................................................................ 28

UNIT SPECIFICATIONS .......................................................................................................................................... 33

Weight..................................................................................................................................................................................... 33

Dimensions............................................................................................................................................................................ 33

Capacity ................................................................................................................................................................................. 34

Temperature ......................................................................................................................................................................... 34

Power...................................................................................................................................................................................... 34

PARTS LIST............................................................................................................................................................... 35

Ordering Parts and Consumables.................................................................................................................................. 35

5| Page

INTRODUCTION

Thank you for purchasing a SHEL LAB Incubator. We know you have many choices in today’s competitive

marketplace when it comes to constant temperature equipment. We appreciate you choosing ours. We

stand behind our products and will be here for you if you need us.

READ THIS MANUAL

Failure to follow the guidelines and instructions in this user manual may create a protection

impairment by disabling or interfering with the unit safety features. This can result in injury or death.

Before using the unit, read the manual in its entirety to understand how to install, operate, and

maintain the unit in a safe manner. Keep this manual available for use by all operators. Ensure all

operators are given appropriate training before the unit begins service.

SAFETY CONSIDERATIONS AND REQUIREMENTS

Follow basic safety precautions, including all national laws, regulations, and local ordinances in your

area regarding the use of this unit. If you have any questions about local requirements, please

contact the appropriate agencies.

SOPs

Because of the range of potential applications, this unit can be used for, the operator or their

supervisors must draw up a site-specific standard operating procedure (SOP) covering each

application and associated safety guidelines. This SOP must be written and available to all operators

in a language they understand.

Intended Applications and Locations

The incubators are intended for constant temperature, non-humidified general incubation

applications in professional, industrial, and educational environments. The units are not intended for

use at hazardous or household locations.

Power

Your unit and its recommended accessories are designed and tested to meet strict safety

requirements.

•The unit is designed to connect to a power source using the specific power cord type

shipped with the unit.

•Always plug the unit power cord into a protective earth grounded electrical outlet

conforming to national and local electrical codes. If the unit is not grounded properly, parts

such as knobs and controls can conduct electricity and cause serious injury.

•Do not bend the power cord excessively, step on it, or place heavy objects on it.

•A damaged cord can be a shock or fire hazard. Never use a power cord if it is damaged or

altered in any way.

•Use only approved accessories. Do not modify system components. Any alterations or

modifications to your unit can be dangerous and void your warranty.

6 | Page

INTRODUCTION

CONTACTING ASSISTANCE

Phone hours for Sheldon Technical Support are 6 am – 4:30 pm Pacific Coast Time (west coast of

the United States, UTC -8). Please have the following information ready when calling or emailing

Technical Support: the model number and the serial number (see page 8).

EMAIL: [email protected]

PHONE: 1-800-322-4897 extension 4, or (503) 640-3000

FAX: (503) 640-1366

Sheldon Manufacturing, INC.

P.O. Box 627

Cornelius, OR 97113

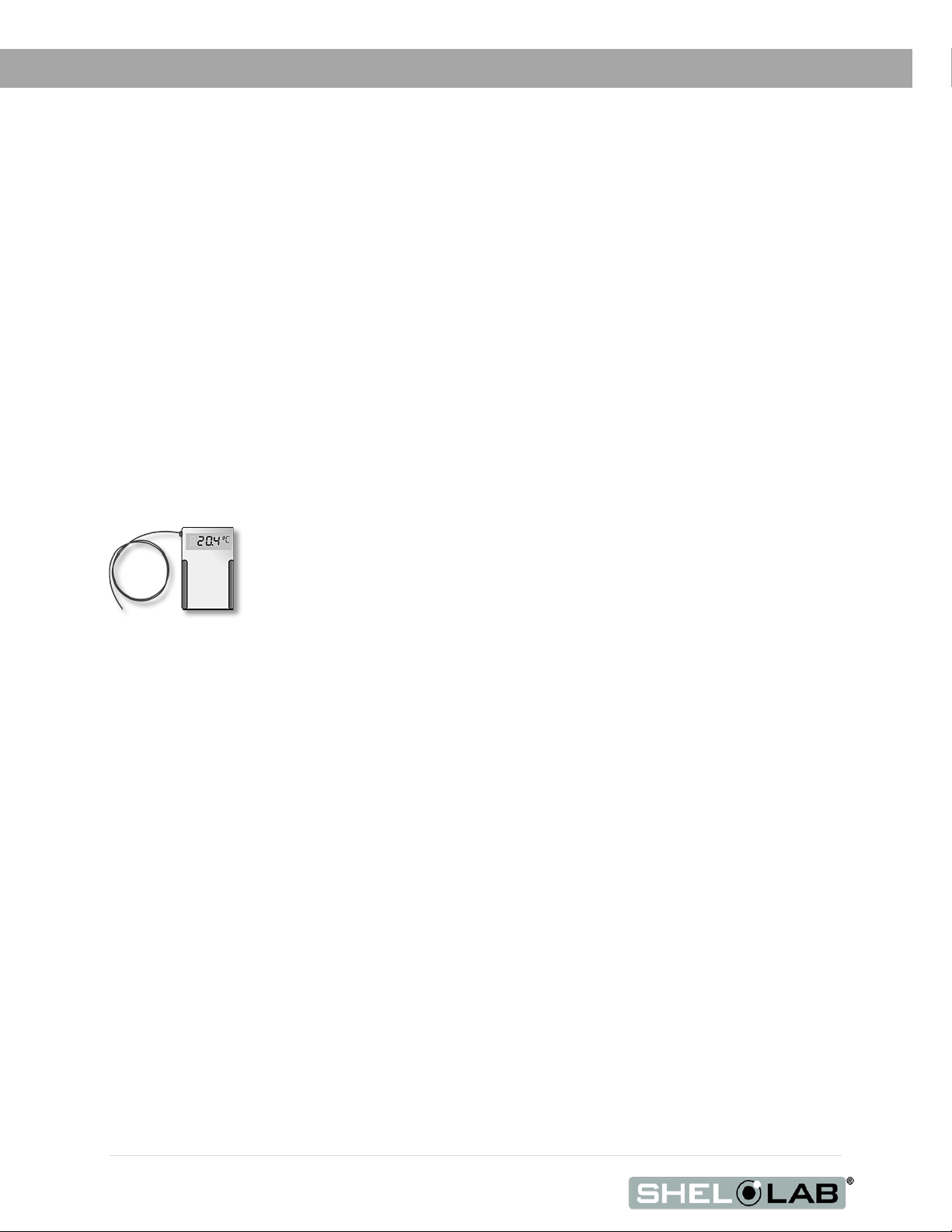

TEMPERATURE REFERENCE SENSOR DEVICE

This unit does not come with a temperature reference device. A reference

device must be purchased separately for performing in-house accuracy

validations or calibration adjustments of the incubator temperature display.

The device must be accurate to at least 0.1°C and should be regularly

calibrated by a third party. For best results, use a digital device with one or

more thermocouple probes. Remote readings eliminate chamber door openings and avoid

subsequent waits for the chamber temperature to re-stabilize. Select probes suitable for the

application temperature you will validate or correct the display accuracy at.

Alcohol thermometers are insufficient for conducting accurate validations and calibrations. Do not

use a mercury thermometer. Never place a mercury thermometer in the incubation chamber.

Always use thermocouple probes.

ENGINEERING IMPROVEMENTS

Sheldon Manufacturing continually improves all of its products. As a result, engineering changes and

improvements are made from time to time. Therefore, some changes, modifications, and

improvements may not be covered in this manual. If your unit’s operating characteristics or

appearance differs from those described in this manual, please contact your SHEL LAB dealer or

customer service representative for assistance.

7| Page

RECEIVING YOUR UNIT

INSPECT THE SHIPMENT

•When a unit leaves the factory, safe delivery becomes the responsibility of the carrier.

•Damage sustained during transit is not covered by the manufacturing defect warranty.

•Save the shipping carton until you are certain that the unit and its accessories function

properly

When you receive your unit, inspect it for concealed loss or damage to its interior and exterior. If you

find any damage to the unit, follow the carrier’s procedure for claiming damage or loss.

1. Carefully inspect the shipping carton for damage.

2. Report any damage to the carrier service that delivered the unit.

3. If the carton is not damaged, open the carton and remove the contents.

4. The unit should come with an Installation and Operation Manual.

5. Verify that the correct number of accessory items have been included.

Included accessories

Model Shelves Shelf Slides Leveling Feet Power Cord

SMI2, SMI7 2 4 4 1

SMI6

SMI11

SMI12 6 12 4 2

6. Carefully check all packaging for accessories before discarding.

8 | Page

RECEIVING YOUR UNIT

RECORDING DATA PLATE INFORMATION

The data plate contains the incubator model number and serial number. Tech Support will need this

information during any support call. Record it below for future reference.

•The data plate is located on the top right corner of the incubation chamber door interior.

Model Number

Serial Number

9| Page

INSTALLATION

INSTALLATION PROCEDURE CHECKLIST

Carry out the procedures and steps listed below to install the incubator in a new workspace location

and prepare it for use. All procedures are found in the Installation section of this manual.

Pre-Installation

Check that the required ambient condition for the unit are met, page 10

Check that the spacing clearance requirements are met, page 10

•Unit dimensions may be found on page 33

Check for performance-disrupting heat and cold sources in the environment, page 10

Check that a suitable electrical outlet and power supply is present, page 11

Install the Incubator in a suitable workspace location

Review the lifting and handling instructions, page 12

Make sure the incubator is level, page 12

Install the incubator in its workspace location, page 12

Set up the Incubator for use

Clean and disinfect the unit and shelving (recommended), page 12

Install the shelving, page 13

Verify the port cover has been installed on the access port, page 13

10 | Page

INSTALLATION

REQUIRED AMBIENT CONDITIONS

These units are intended for use indoors, at room temperatures between 15°C and 30°C (59°F and 86°F),

at no greater than 80% Relative Humidity (at 25°C / 77°F).

Operating these units outside of these conditions may adversely affect its incubator temperature stability

and effective operating range. For conditions outside of those listed above, please contact your SHEL LAB

distributor to explore other options suited to your laboratory or production environment.

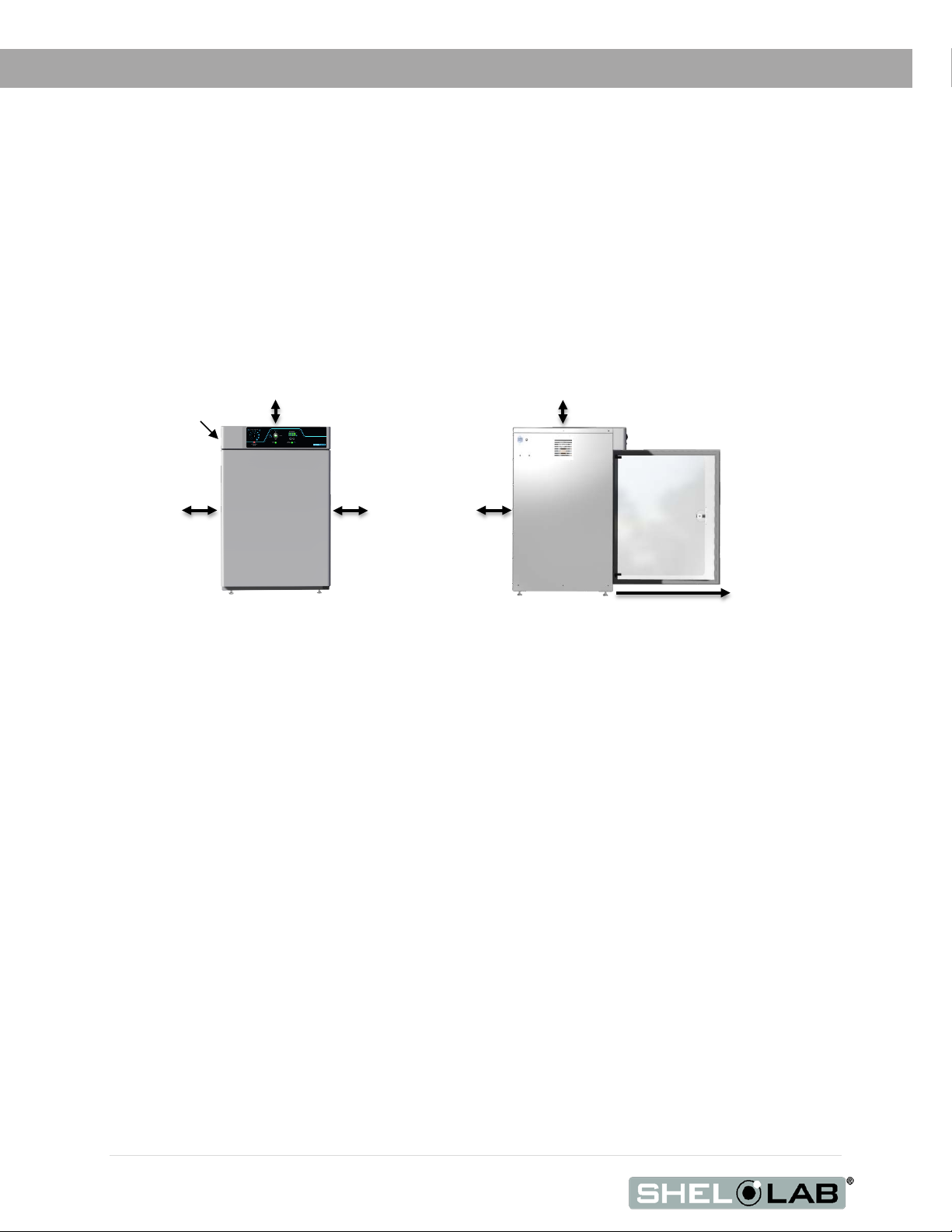

REQUIRED CLEARANCES

These clearances are required to provide air flows for ventilation and cooling.

4 inches (102mm) of clearance is required on the sides and back.

2 inches (51mm) of headspace clearance between the top of the unit and any overhead partitions.

ENVIRONMENTAL DISRUPTION SOURCES

Consider proximate environmental factors that can affect the chamber temperature and atmospheric

integrity when selecting a location to install the unit:

•Ovens, autoclaves, and any device that produces significant radiant heat

•High-traffic areas

•Direct sunlight

•Heating and cooling ducts, or other sources of fast-moving air currents

Power Cord

2” (51mm)

4” (102mm)

SMI7 30” (762mm)

All Other SMIs 26” (660mm)

Door Swing

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Accesorios de Shel lab

Shel lab

Shel lab 5215 Manual de usuario

Shel lab

Shel lab SCO6WE-2 Manual de usuario

Shel lab

Shel lab SCO6AD Manual de usuario

Shel lab

Shel lab SCO5A Manual de usuario

Shel lab

Shel lab SCO5W Manual de usuario

Shel lab

Shel lab SMI Series Manual de usuario

Shel lab

Shel lab SCO6WE Manual de usuario

Shel lab

Shel lab SMI31-2 Manual de usuario

Shel lab

Shel lab SCO6AD-2 Manual de usuario

Manuales populares de Accesorios de otras marcas

Hillco

Hillco 2810 Manual de usuario

Siemens

Siemens QSA2700D Manual del operador

Contours

Contours ZY024 Manual de usuario

Saivod

Saivod VS621 Manual de usuario

Virtuox

Virtuox VirtuCLEAN 2.0 Manual de usuario

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manual de usuario

Z-Wave

Z-Wave HSD-200Z Manual de usuario

turck

turck FMX-IM-2UPLI63FX Manual de usuario

Decagon Devices

Decagon Devices 10HS Manual de usuario

UPPAbaby

UPPAbaby Cup Holder Manual de usuario

Elko

Elko SmartSensor Leakage Wireless Manual de usuario

Grizzly

Grizzly H8371 Manual de usuario

Panasonic

Panasonic HG-T Series Manual de usuario

IFM Electronic

IFM Electronic Efector 250 Series Guía de referencia

DigiDesign

DigiDesign 888/24 I/O Manual de usuario

PROZIS

PROZIS QUAY Manual de usuario

patagonia

patagonia PSI Vest Manual de usuario

SFC Energy

SFC Energy EFOY GO! Manual de usuario
