Chapter 1 precautions and installation

1. Maintenance1. Maintenance

The lamp shall be kept dry to avoid working in humid environment.

Intermittent use will effectively prolong the service life of the lamp.

In order to obtain good ventilation effect and lighting effect, pay attention to

regularly cleaning the fan, fan net and lens.

Do not wipe the lamp shell with alcohol or other organic solvents to avoid damage.

2. Declaration2. Declaration

This product has good performance and complete packaging when leaving the

factory.All users shall strictly abide by the warnings and operating instructions

stated above. Any damage caused by misuse is not within the warranty of the company,

and the faults and problems caused by ignoring the operating manual are not within

the scope of the distributor's responsibility.

This manual is subject to technical changes without notice.

3. Product precautions3. Product precautions

In order to ensure the service life of the product, the product shall

not be placed in a wet or leaking place, nor shall it work in an

environment with a temperature of more than 60 ℃

Do not place the product in a place easy to loosen or shake.

In order to avoid the danger of electric shock, please ask a professional for

maintenance of this product.

When the bulb is used, the change of power supply voltage shall not exceed ±10%.

If the voltage is too high, the service life of the bulb will be shortened. If

the voltage is too low, the light color of the bulb will be affected.

After power failure, the lamp shall be fully cooled after 20 minutes before it

can be powered on again.

To ensure the normal use of this product, please read this instruction carefully.

4. Product introduction4. Product introduction

Light source power: 380W;

Rated power: 500W (high efficiency and reliable switching power supply);

Power supply: high efficiency and reliable switching power supply;

Color disk: one color disk, each color disk is composed of 14 color chips + white

light;

Pattern disc: 14 pattern effects, 9 rotating pattern effects;

Effect wheel: a rotatable 8 prism and a 6-sided array of mirrors;

Dimming: 0-100% electronic dimming;

Large adjustable range of beam angle;

Stroboscopic: support mechanical stroboscopic and adjustable speed stroboscopic

effects, and support stroboscopic macro functions;

Lens group optical system, electric focusing, beam angle 3.8 °- 45 °, linearly

adjustable;

Photoelectric reset system is adopted, which can automatically retrieve and reset

in case of accidental misoperation;

Horizontal 540 °, resolution 8bit / 16bit;

Vertical 270 °, resolution 8bit / 16bit;

Overheating protection;

Control mode: DMX512 / master-slave / automatic;

Protection grade: IP20;

5. Signal line connection (DMX)5. Signal line connection (DMX)）

Use RS-485 cables that meet the specifications: shielded, 120ohm characteristic

impedance, 22-24 AWG, low capacitive reactance. Do not use microphone cables or

cables with different specified characteristics. The terminals must be connected

with 3 or 5-pin XLR male / female connectors. A 120ohm impedance matching resistance

(minimum 1 / 4 W) must be inserted between terminals 2 and 3 of the terminal plug.

Important: wires shall not contact each other or metal shell.

Figure 1 DMX signal line connection diagram

6. Lamp installation6. Lamp installation

Lamps can be placed horizontally, hung obliquely and upside down. Pay attention

to the installation method when hanging obliquely and upside down

As shown in Figure 2, before positioning the lamp, ensure the stability of the

installation site. During reverse hanging installation, ensure that the lamp does

not fall on the support frame. It is necessary to use safety rope to pass through

the support frame and lamp handle for auxiliary hanging to ensure safety and prevent

the lamp from falling and sliding.

During the installation and commissioning of lamps, pedestrians are not allowed

to pass below. Regularly check whether the safety rope is worn and whether the hook

screw is loose.

If the lamp falls due to unstable hanging and installation, our company will not

bear any responsibility.

chart2 Schematic diagram of upside down lamps

Chapter 2 panel operation

1. General1. General

The schematic diagram of the lamp panel is shown in Figure 3 (this diagram is a 4-key key).

The TFT display screen on the left supports touch operation, and the 4-key or 5-key keys or encoder

knob on the right can directly operate the lamp or set system parameters.

The display and operation are similar to "Android operating system". If the product you select

supports touch operation, you can click the corresponding item with your fingertips or blunt objects.

Note: do not use sharp or sharp objects to click on the display screen to prevent damage.

chart3 Display panel diagram

2. Operation2. Operation

1. Use visual touch or encoder to operate lamps1. Use visual touch or encoder to

operate lamps

The left area is TFT display area and touch area. Click the panel content with

your finger or blunt hardware to complete parameter setting or view status.

The right area is the "rotary encoder" as auxiliary input. If you do not use the

touch function of TFT, you can rotate the encoder to select the item to be set

or viewed, then press the encoder to confirm the selection, rotate the encoder

to set the parameter value again, and finally press the encoder protection

setting to complete the operation.

2. Parameter value input2. Parameter value input

When the selected parameter item needs to enter a value, the window as shown

in Figure 4 will open:

chart4 Value setting page

Set value:You can directly pull the slider to quickly set the required value,

or you can click the "up" or "down" button on the right to accurately set the

required value Or rotate the "rotary encoder" on the right to set it;

Application value:When the data is set through the "up" or "down" buttons, then

press the button in the lower left corner“apply”Application key, the value is

sent to the lamp immediately, but the value is not saved;

Save value:At any time, click the "OK" button in the lower right corner, that

is, save the current value to the internal memory, and apply the saved value

to the lamp next time.

3. Set Boolean parameters3. Set Boolean parameters

When the set parameter is Boolean (such as on or off)When pressing, you can directly

click the corresponding item to switch the parameter value, and the modified

parameters will be saved to the internal memory. Press the parameter option on

the right, and the corresponding option will become gray. When you release your

hand, the corresponding parameters will be changed and saved. If the pressed

parameter option is not the parameter you want to change, you can move your finger

to other parts of the screen, and the corresponding parameters will not be

changedChange.

Important Boolean parameters will be set through the confirmation window, as shown

in Figure 5 below:

chart5 OK input window

4. Sub page (parameter)4. Sub page (parameter)

Click the main menu to enter the sub menu page, as shown in Figure 6. There are

6 sub pages, including different types of parameters or states, as follows:

Address: set the DMX address of the lamp;

Workmode: set the working mode and master / slave mode of the lamp;

Display: set the parameters of the display interface, such as language,

screensaver mode, etc;

Test: it is mainly used to test lamps and simulate the values of corresponding

DMX channels. Refer to the channel menu for the corresponding functions of

channel values;

Advance: set the operating parameters of lamps;

Status: view the current status of lamps.

chart6 Page graph

3. Function operation and parameter setting3. Function operation and

parameter setting

Enter the setting interface, as shown in Figure 6:

In the main interface, you can touch six buttons to enter the corresponding

parameter setting interface.

In the parameter setting interface, you can press the blue option on the left to

quickly switch to other setting interfaces.

1. Set DMX1. Set DMXAddress code

Click and select "address (addr)" to enter the DMX address code setting page.

The address code value range is 1 ~ 512, and the address code cannot be greater than

(512 channel number), otherwise the lamp will not be controlled. The specific setting

operations are as follows:

Enter the DMX setting interface, as shown in Figure 7, click the white area on

the right to pop up the parameter setting window as shown in Figure 4. You can directly

pull the red square of the progress bar to quickly set the DMX address code value,

or press the "up" or "down" key to accurately set the desired DMX address code, and

then press the Enter key to save the data to complete the address code setting

operation.

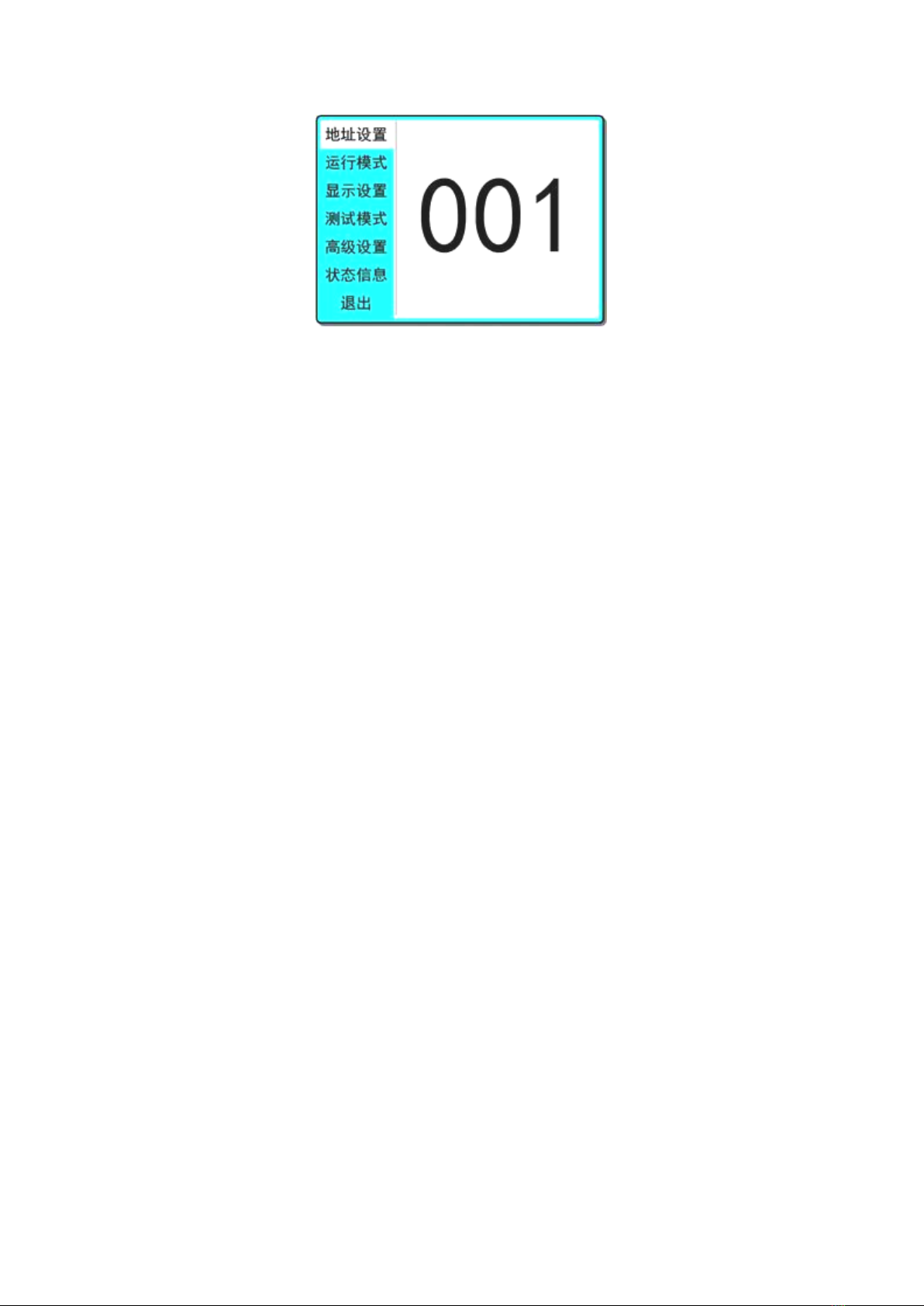

chart7 Address code setting page

2. Set the lamp working mode2. Set the lamp working mode

The operation mode, control light gun and channel mode of the lamp can be set

through the page shown in Figure 8. The lamp supports three operation modes (DMX

mode, self-propelled mode and voice control mode). Please refer to the previous

section for detailed parameter value settings. The specific parameters are described

as follows:

DMX mode:In this mode, the lamp receives data from the console and operates

according to the data of the console (common mode);

Self propelled mode:In this mode, the lamp does not receive console data and runs

by itself with an internal fixed program;

Voice control mode:In this mode, the lamp does not receive console data. When

there is a strong sound in the environment, the lamp will run a scene, otherwise

it will maintain the last scene.

Master slave selection:"Master-slave selection" only takes effect when the lamp

works in "self-propelled mode" or "voice control mode". When this option is

turned off, the internal program data of lamp operation will not passDMXThe

data line is sent to other lamps. When it is turned on, the data will be sent

to other lamps in real time, and other lamps (slave) of the same type will run

synchronously with the lamp (host).

Lamp switch:Through this setting, the opening and closing of the lamp can be

controlled. Note that the lamp can not be opened and closed too frequently, which

will reduce the service life of the lamp. The time interval between turning on

and off the lamp has been limited to30Seconds, that is, after the light bulb

changes state30Within seconds, multiple on and off operations are ignored, and

only the last operation is retained.

Channel mode:The lamp supports two channel modes, "simplified" channel saves

several channels for setting motor speed, and each operation mode channel saves

energyDMXFor channel utilization, the "extended" channel is more than the

"thin" channel, as described above. Please refer toThe first3chapterChannel

table description for.

Tabla de contenidos

Manuales populares de Equipo de DJ de otras marcas

ALPHA LITE

ALPHA LITE ALPHA 1500 Manual del propietario

Chauvet

Chauvet OVATION E-930VW Manual de usuario

Zumtobel

Zumtobel APHRODITE Home Manual de usuario

Snow Masters

Snow Masters Zig Oscillator Manual de usuario

EuroLite

EuroLite 50530554 Manual de usuario

Beamz

Beamz BUV243 Manual de usuario

thomann

thomann Stairville DJ Lase 40-G MK-III Manual de usuario

Eagletone

Eagletone 6 Eyes Flower Manual de usuario

EuroLite

EuroLite FLD-1508 Manual de usuario

Technical Pro

Technical Pro LG8xSEA Manual de usuario

JB Systems

JB Systems Lounge Laser DMX Manual de usuario

Lightmaxx

Lightmaxx Vega Halo 90 Manual de usuario

Elation

Elation FUZE WASH Z350 Manual de usuario

Maverick

Maverick MK3 WASH Manual de usuario

Infinity

Infinity TF-260C7 Fresnel Manual de usuario

Chauvet

Chauvet EVE E-50Z Manual de usuario

Eliminator Lighting

Eliminator Lighting E 138 Manual de usuario

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manual de usuario
