Sharp AN-65AG1 Manual de usuario

日本語

AN-65AG1

LC-65GE1

液晶カラーテレビ用壁掛け金具

LCD Color TV Wall-Mount Bracket

Téléviseur couleur LCD et le support de

montage au mur

Wandhalter für LCD-Farbfernsehgerät

Ménsula de montaje el TV color de cristal

líquido en la pared

取扱説明書

OPERATION MANUAL

MODE D’EMPLOI

BEDIENUNGSANLEITUNG

MANUAL DE MANEJO

・壁用金具取付ネジは同梱しておりませんので

市販品をお求めください。

適応機種 Used Models / Modéle utilisé /

Gebrauchtes Modell / Modelo usado /

• The wall bracket mounting screws are not in-

cluded with the product, so please separately

purchase off-the-shelf screws.

• Los tornillos de montaje de ménsula en la pared

no vienen con el producto, compre los tornillos

por separado en la tienda.

• Die Wandhalter-Befestigungsschrauben sind

nicht im Lieferumfang des Produkts enthalten.

Besorgen Sie sich daher bitte im Handel

erhältliche Schrauben.

• Les vis de fixation du support à base ne sont

pas fournies avec le produit; veuillez donc

acheter séparément des vis en vente dans le

commerce.

ENGLISH

FRANÇAIS

DEUTSCH

ESPAÑOL

ENGLISH

E-1

To Ensure Safe and Correct Use

• Thank you for purchasing a SHARP product.

Before using the product, please be sure to read this operation manual carefully. In particular, be sure

to read the section “To Ensure Safe and Correct Use.” After reading the manual, keep it in a

convenient location where it can be accessed at any time.

• Follow the instructions in this manual regarding the installation method and installation orienta-

tion. Not following these instructions could results in injury or damage from falling parts.

• Accurate work is required for the installation work, so please have it done by the dealer or

qualified contractor.

• During installation, be careful not to pinch your fingers in the fixture, etc.

• Make sure the installation wall is sufficiently strong to support the weight of the TV. (Attach the

fixtures to the reinforcing material in the walls.)

• Do not apply any other loads to the installation fixtures. Doing so could cause the TV to fall

causing injury and damage.

• Do not modify or change the installation parts. Doing so could cause the TV to fall causing

injury and damage.

Special Precautions for Safety

Warning

Caution

Install in a location with low humidity and little dust

• Do not plug the air passage holes in

the LCD color TV cabinet. Plugging

the air passage holes could trap heat

inside the cabinet, causing a fire.

• Do not use the cabinet as follows.

Do not place the cabinet in a place

with poor air circulation, such as in a

closet or bookcase. Do not place a

drop cloth, etc., on the installed LCD

color TV.

Install in a well-ventilated area

• Do not install the LCD color TV in a

location with high humidity and much

dust. Doing so could result in fire or

electric shock.

• Do not place the LCD color TV where it

will come into contact with oily smoke

or steam, such as near a cooking

range or humidifier. Doing so could

result in fire or electric shock.

This operation manual and the product use various displays and labels to ensure safe use.

Ignoring these displays and labels and incorrectly using the product could have results as

classified below. Please read the following warning symbol information before reading the rest of

this section, and be sure to strictly observe all instructions.

Warning: Not following these instructions could result in death or serious injury.

Caution: Not following these instructions could result in injury or property damage.

The symbol means something that should not be done.

Meaning of symbol

E-2

Outside dimension drawing

Please strictly observe the following.

Special skill is required to install the LCD color

TV, so please have it installed by a contractor

specializing in such installation. The customer

should not attempt to install the TV. Sharp shall

not be responsible for improper installation or

any accidents, damage, or injury resulting from

improper installation.

To the contractor

• To ensure the safety of the customer, conduct the

design so that the strength of the installation

location is sufficiently strong to support the weight of

the LCD color TV and the wall-mount bracket.

• Be sure to use two or more people to conduct the

work.

• The wall installation screws for the wall-mount

brackets are not included with the fixtures. Select

off-the-shelf screws that match the wall.

528

220 220

518

280

560

440

14 26

343

280

115 11

115115

115115115

718

440

478

468

460

650 15

766.8

558

9mm

384

429

Unit: mm

Wall-mount bracket

(Mark A: At a height at the center of the

LC-65GE1 screen)

Base bracket

ENGLISH

E-3

Weight table (Unit: kg)

Accessories packaged with the TV

*The screw notation M6 means the diameter of the threaded part is 6 mm.

*Please also store the screws that are not used.

Base bracket: 1 Wall-mount bracket: 1

*Assembly completed

for perpendicular

installation.

M6 length:

8mm (2 screws) M8 length:

15mm (2 screws)

• Wall installation screws (off-the-shelf) 17

Be sure to consult the dealership or a qualified contractor when installing the TV.

• Stand hole covers ×2 (Included with the LCD color TV)

• A plumb bob made by tying a coin with a hole in it to the end of a string.

• A pin, such as a thumbtack

• Cushion, soft cloth, etc.

• Tool (Phillips head screwdriver)

• LCD color TVs have a viewing angle (range in which the image can be viewed correctly). The

best viewing position is from directly in front of the screen. Determine the TV installation location

after taking into consideration the viewing posture, line of sight, and the visual and aural ranges.

• Sharp shall bear no responsibility for damages, etc., caused by the LCD color TV falling due

to insufficient installation strength or improper installation.

Please use the following

Installation location

Caution

Screws

M10 length:

30mm (4 screws) with

hexagonal sockets

Operation manual

(This manual)

Angle setup bracket: 2

Allen wrench: 1

For the angle setup

bracket

For fastening the

wall-mount bracket

For installing the wall-

mount bracket unit

E-4

Wall-Mount Bracket Installation

Determine the location where the base bracket will be

installed.

(1) Use tape or other means to mark the measured positions

on the wall where the display will be installed. The center

of the “X” drawn from the four corners of the square marks

the center of the panel.

(2) Take the coin with the string and align it perpendicular to

the base bracket.

Use a pencil, etc., to mark the two screw hole locations.

Cellophane tape, etc.

Wall-mount bracket

unit installation hooks

Position the base

bracket so that the

perpendicular parts

of it are parallel with

the string.

Position the base

bracket so that the

center of it is aligned

with the string.

Use a pencil, etc., to

mark the screw hole

position on the wall

behind the bracket.

923mm

1572mm

Display

outline

Dimension lines

used as a guide

Base

bracket

outline

Cellophane tape, etc.

String

Weight

Center

line

shaped screw holes

Tighten the screws

Temporarily remove the base bracket from the wall and loosely screw in off-the-shelf screws (8

mm dia. ×2 screws) in the screw hole positions marked on the wall. At this time, the screw

heads should extend more than 4 mm above the wall so that the base bracket can be hung on

the screw heads. Hang the base bracket on the installed screws, check to make sure the

bracket is not sagging to the left or right, and then firmly tighten the screws. Use off-the-shelf

screws to secure the remaining screw holes (15 screws). (The screw hole diameter is 9 mm.)

Min. 4mm

Use the weight with the string

used in Step 1 to make sure

the bracket is perpendicular.

*When marking on the wall, use a material that will not leave a permanent mark on

the wall and get the approval of the customer before beginning the work.

Base bracket

Included part

ENGLISH

E-5

• Be sure to use at least two people to perform the wall-mount bracket installation work for the LCD color TV.

• The installation work must be conducted while the LCD color TV is standing upright, so be careful that it

does not fall over.

Place the LCD color TV on a strong stand

about 20 to 30 cm high and remove the

two back terminal covers.

Two terminal covers,

top and bottom

Remove the terminal covers while

the LCD color TV is standing upright.

(2 covers top and bottom)

Remove the 3 fastening screws from both the left and right stands on the back of the

LCD color TV.

Keep the removed screws (short ×2 screws, long ×4 screws).

Long screws

Short screw

(1) Remove the 2 screws from each of the stand edge covers (total of 4 screws from the

left and right sides).

Use the removed screws (total of 4 screws) as shown in Step 2 on page 9.

(2) Remove the stand fastening screws (2 screws each on

the left and right sides).

Edge covers

Edge cover screws

Removing the edge covers reveals

the stand fastening screws in the

center of the stands, so remove

these screws.

Installing the wall-mount bracket (For Model 65 inch Separate Type)

Caution

E-6

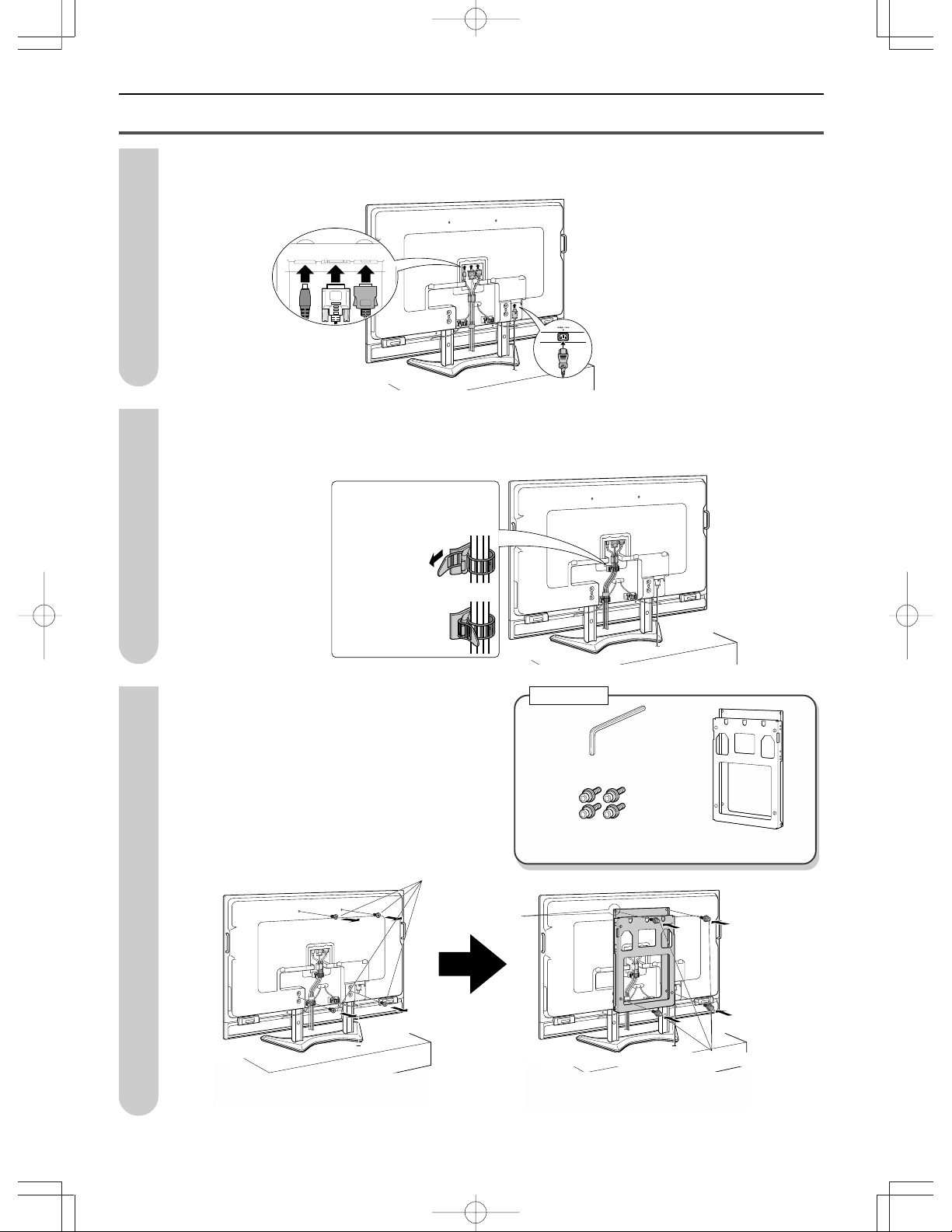

Installing the wall-mount bracket (Continued)

Connect the system cables and power cord to the terminals on the back

of the LCD color TV.

Cable holders

Surround the system cables.

(1) Pass through

the band.

(2) Pull the band

forward and

catch it on

the hook.

Use the cable holder at the center of the back of the LCD color TV and the cable holders

holding the speaker cables to connect the system cables.

Remove the screw hole plugs (4 plugs) of

the wall-mount bracket on the back of the

TV and then screw in the 4 wall-mount

bracket unit screws (hexagonal socket

screws, M10 length: 30 mm) that are in-

cluded with the wall-mount bracket unit.

Carefully keep the removed screw hole plugs.

Screw hole plugs (4 plugs)

Mark A

Included hexagonal socket screws (4 screws)

Use an Allen wrench to screw in the included

hexagonal socket screws into the Mark A holes.

System cables Power cord

Wall-mount bracket

Included part

Hexagonal socket screws

(M10 length: 30 mm)

Allen wrench

ENGLISH

E-7

These screws are used for the angle

setup in Step 2.

Hole at the very top

Set the angle of the wall-mount bracket

• Please perform this work before mounting the LCD color TV on the wall.

• When setting the angle of the wall-mount bracket, be careful not to pinch your fingers, etc.

Remove the perpendicular positioning screws from the wall-mount bracket (2 screws

each on the left and right sides).

Assemble the included angle setup brackets as shown in the illustration and then use

them to set the TV to the desired angle.

For the screws, use the included angle setup bracket screws (M8 length: 15 mm ×2 screws)

and screws removed in Step 1.

First loosely tighten the 4 screws and then securely tighten them after the angle setup bracket

is set to the desired position.

5°

10°

15°

20°

The numbers 5, 10, 15, and 20 at the

screw holes mean that the higher the

number, the more the LCD color TV

slants downward. The angle that can

be set is limited depending on the

TV model.

Caution

Included part

Angle setup bracket screws

M8 length:

15mm (2 screws)

Angle setup bracket

E-8

Remove the stands

• Be sure to use at least 3 people for the work from this point onward.

• Be very careful when holding the LCD color TV at a slant or when lifting it up.

Caution

Lift up the LCD color TV and remove the stand.

While the stand is being held down, lift up the LCD color TV to remove it from the stand.

Hold down the stand so that

it does not move.

Temporarily place the LCD color TV on a cushion or soft material and install the stand

hole covers that are included with the LCD color TV.

Hold the LCD color TV at a slant and align the stand hole covers (included with the LCD color

TV) with the stand insertion locations.

Use the screws removed during Step 3 on page 6 to attach the stand hole covers and speaker

cables.

Stand hole cover

*Remove the LCD color TV from the stand while tipping it backward slightly.

ENGLISH

E-9

Installing the LCD color TV on the wall

Caution

Install the wall-mount bracket attached to the LCD color TV to the base bracket.

Hang the square holes of the wall-mount bracket on the hooks (see page 5) of the base

bracket unit.

Check to make sure the hooks are securely inserted into the notches at the top of the slanted

side of the wall-mount bracket unit.

• Be sure to use at least 4 people when installing the LCD color TV to the base bracket.

• Be sure to perform Steps 1 and 2 below. Only performing Step 1 could result in the display falling and

injuring someone.

Hook

Notch

Wall

Fasten the screws in the wall-mount bracket

unit and bottom of the base bracket (Be sure

to do this).

Fasten using the included wall-mount bracket

fastening screws (M6 length: 8 mm ×2 screws).

Included part

Wall-mount bracket fastening screws

M6 length: 8mm (2 screws)

Tabla de contenidos

Otros manuales de TELEVISOR de Sharp

Sharp

Sharp 70FW-57E Manual de usuario

Sharp

Sharp 32U-S610 Manual de usuario

Sharp

Sharp 63CS-03S Manual de usuario

Sharp

Sharp AQUOS LX959H Manual de usuario

Sharp

Sharp Aquos LC-40LE820X Manual de usuario

Sharp

Sharp 37DM-23S Manual de usuario

Sharp

Sharp 50EQ3KA Manual de usuario

Sharp

Sharp Aquos LC-19SB280UT Manual de usuario

Sharp

Sharp 28LF-94E Manual de usuario

Sharp

Sharp 20F540 L Manual de usuario

Sharp

Sharp 21HS-50H Manual de usuario

Sharp

Sharp 29A-80ST Manual de usuario

Sharp

Sharp 29H-FG1S Manual de usuario

Sharp

Sharp LC-32HI5012E Manual de usuario

Sharp

Sharp Aquos LC 32GD6U Manual de usuario

Sharp

Sharp 29H-S3P Manual de usuario

Sharp

Sharp 19U-M100 Manual de usuario

Sharp

Sharp 21E-FG1S Manual de usuario

Sharp

Sharp 32F641 Manual de usuario

Sharp

Sharp Aquos LC-20AD5E Manual de usuario

Sharp

Sharp 21E-FG1F Manual de usuario

Sharp

Sharp 28LS-92EC Manual de usuario

Sharp

Sharp 25N M180 Manual de usuario

Sharp

Sharp AQUOS LC-32Z33H Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario

Sylvania

Sylvania 6427FB Manual de usuario
