28JW-74E

PAL B/G, I / SECAM L/L’, B/G, D/K SYSTEM COLOUR TELEVISION

SERVICE MANUAL

This document has been published to

be used for after sales service only.

GA-200 CHASSIS

In the interests of user safety (required by safety

regulations in some countries) the set should be re-

stored to its original condition and only parts identi-

cal to those specified should be used.

CONTENTS

ELECTRICAL SPECIFICATIONS ................... 3

IMPORTANT SERVICING NOTES ................. 4

CONTROLS & TERMINALS ........................... 5

ADJUSTMENT PROCEDURES ...................... 6

LED FLASHING CODES ............................... 13

PRINTED WIRING BOARDS ........................ 14

COMPONENT LOCATION TABLES ............... 22

CHASSIS LAYOUT ......................................... 29

SCHEMATIC DIAGRAMS ............................... 32

BLOCK DIAGRAM ....................................... 45

TROUBLESHOOTING TABLES ..................... 46

ICs ADDITIONAL INFORMATION .................. 51

PARTS LISTING ............................................. 67

SERVICING NOTES.................................... 77

SOURCE OF DOCUMENTATION .................. 79

SHARP CORPORATION

MODEL

28JW-74EES

SE0028JW74E00

Issued: 2nd April 2003

28JW-74E

Use this page to keep any special servicing information as Technical Report (Bulletin), Technical Information, etc.

If only part number changes are required, just change part number directly the part number in the Parts Listing Section.

If you need more information, please refer to the Technical Report (Bulletin).

SERVICE MANUAL UPDATE LOG SHEET

Part No.

Technical Report No.

Technical Bulletin No. Cause / Solution Page No. Application

Data /Serial No.

28JW-74E

ELECTRICAL SPECIFICATIONS

•White Level

Set brightness control to get total picture tube cathode current of 600 µA under no signal condition.

Maximum necessary correction of each picture tube cathode current to get 8550 degrees K+1 MPCD

screen temperature should not exceed 15% of its original value.

X=0.290 ± 0.015 Y=0.300 ± 0.015

WARNING

The chassis in this receiver is partially hot. Use an isolation transformer between the line cord plug

and power receptacle, when servicing this chassis.

To prevent electric shock, do not remove cover. No user-serviceable parts inside. Refer servicing to

qualified service personnel.

•Sweep Deflection ............................. Magnetic

•Picture Intermediate frequency

L’ ................................................ 33.9MHz

L, B/G, D/K,I .............................. 38.9MHz

•Sound Carrier Trap

L’ ................................................ 40.4MHz

L, D/K ......................................... 32.4MHz

B/G ............................................ 33.4MHz

I .................................................. 32.9MHz

•Adjacent Sound Carrier Trap

L’ ................................................ 32.4MHz

L, D/K, B/G ................................ 40.4MHz

I .................................................. 40.9MHz

•Adjacent Picture Carrier Trap

L’ ................................................ 41.9MHz

L, D/K, I ...................................... 30.9MHz

B/G ............................................ 31.9MHz

•Aerial Input Impedance

VHF/UHF ................. 75 ohm Unbalanced

•Tuning Ranges ..... 45.75MHz thru 855.25 MHz

VHF: IR A - J / S1 - S41 CH (Hiperband)

E2 - E12 / F2 - F10

UHF: I21 - I69 CH / E21 - E69

CATV Special Channels

Specifications are subject to change without prior notice.

•Power Input .................... 220V-240 Volts AC 50Hz

•Power Consumption

Normal Operation (Method IEC60107) ................. 90W

Stand-by Operation ..........................................1.5W

•Audio Power Output Rating (MPO) / Impedance

Internal Left Speaker ................................. 10W, 7Ω

Internal Right Speaker ............................... 10W, 7Ω

•Speakers

Left / Right ................................................. 12 x 6cm

•Convergence (Maximum Misconvergence)

•Focus .................................................. Electrostatic

MODEL DESTINATION (Operation Manual Languages)

28JW-74E: Deutsch, Français, Nederlands.

28JW-74EES: Español, Português.

20 mm

20 mm20 mm

1,4 mm

1,4 mm 1,4 mm

1,2 mm 1,2 mm

1 mm 1 mm0,4 mm

0,9 mm

TV screen

28JW-74E

IMPORTANT SERVICING NOTES

Only qualified service personnel are allowed to carry out maintenance and repair of this receiver.

Servicing of High Voltage System and CRT

It is important that the static charge is removed from the high voltage system when carrying out work on the

receiver. This can be achieved by connecting a 10K resistor (with a suitably insulated lead) from the CRT

cavity connector to the CRT ground tag. This must be carried out with the AC supply disconnected from the

receiver.

Note the following:

•The CRT in this receiver employs Integral Implosion Protection.

•If the CRT has to be changed it MUST be replaced with the correct type for continued safe working.

•DO NOT lift the CRT by its neck.

•When handing the CRT, ensure that shatterproof goggles are worn.

•Ensure that the CRT is discharge before handling.

X-Ray

This receiver is designed to keep any x-ray emission to an absolute minimum. Some fault conditions and

servicing procedures may produce potentially hazardous x-ray radiation levels. This is a problem when in

close proximity to the receiver for long periods of time. To reduce any risks associated with this, please

observe the following precautions:

1. When undertaking any servicing on this chassis, DO NOT increase the EHT to more than 32 KV, (at a

instantaneous beam current of 1300µA).

2. Ensure that during normal operation the EHT does not exceed 29 KV ± 1.5 KV (at a beam current of

1300µA). This level has been preset in the factory. Always check that this level has not been exceeded

after carrying out any repair on the receiver.

3. DO NOT replace the CRT with any other type than that specified in the parts listing as this may cause

excessive x-ray radiation.

Before returning the receiver to the customer

In addition to the above checks, the following should also be carried out before returning the receiver to the

customer.

1. Inspect all the leads to ensure that they are dressed correctly and that they are not obstructed or pinched

by any other parts.

2. Ensure that all protective devices are in good condition. These will include nonmetallic control knobs,

insulating fish papers, cabinets backs, compartment covers or shields, mechanical insulators, etc.

28JW-74E

CONTROLS & TERMINALS



























 

  

 

 

 





  





  





 



      



/6*,5'''

$8',2

69,'(29,'(2

 





 





$97(50,1$/



6&$57

3(5,7(/(9,6,21

 

28JW-74E

REMOTE CONTROL

TV 1. Stand-by button (TV)

Video 2. Power button (VCR)

TV 3. 0 ~ 9 digit buttons

4. Flash back button

Teletext 5. GREEN button

6. RED button

TV 7. Volume DOWN button

8. MENU button

Teletext 9. REVEAL button

10. LIST button

11. STORE button

12. CANCEL button

13. HALF PAGE button

TV 14. RESET button

Video 15. Rewind/picture search reverse

16. Play button

17. Pause/Still button

18. Stop button

TV 19. TV/VIDEO button

20. Channel Call button

21. Single/Double entry button

Teletext 22. YELLOW button

23. BLUE button

TV 24. Channel UP button

25. Volume UP button

26. Channel DOWN button

27. Wide mode button

TV /Teletext 28. CLOCK button

TV 29. Sound mode button

Teletext 30. HOLD button

TV 31. Sound Mute button

Teletext 32. TEXT/MIX/PICTURE button

33. INDEX button

Video 34. Channel UP button (VCR)

35. Fast forward/picture search forward

36. Channel DOWN button (VCR)

37. Record button

1. 19.

23.

21.

24.

25.

26.

27.

28.

29.

30.

31.

32.

34.

37.

36.

35.

33.

22.

20.

10.

11.

12.

13.

15.

18.

17.

16.

14.

ADJUSTMENT PROCEDURES

All adjustments to this chassis, except for focus, are carried out in the Service Mode.

Service Mode

The Service Mode is provided to enable the engineer to correctly set up the receiver to the CRT fitted in the set.

Note that these adjustments may vary from one receiver to another.

To enter the Service Mode, carry out the following procedure.

1. Connect a test pattern to the antenna terminal.

2. Tune the receiver to this signal.

3. Turn the receiver off using the mains switch.

4. Press volume down and channel up buttons on the

front of the receiver at the same time.

5. Keeping these buttons pressed, turn the mains on.

6. When the set starts up it will be in Service Mode.

7. Release the two buttons. Figure 1

28JW-74E

01. Horizontal Shift

02. East West Width

03. Pin Phase

04. Pin Amp

05. Upper corner correction

06. Lower corner correction

07. Extreme Corner Correction

08. Vertical Linearity

09. Vertical Angle

10. Vertical Bow

11. Vertical Amplitude

12. S Correction

13. Vertical Shift

14. Red Cut Off

15. Green Cut Off

16. Blue Cut Off

17. Alter NVM Pag (Page)

18. Alter NVM Pos (Position)

19. Alter NVM Val (Value)

20. Teletext Mix Mode Contrast

21. Teletext Contrast

22. OSD Contrast

23. DVCO Adjustment (Only PAL)

24. DVCO Adjustment (Only NTSC)

25. AGC Adjustment

26. Auto Installation On/Off

••

•Use the channel up and down buttons to move between the options.

••

•Use the volume control buttons to change the data.

••

•To store the data, use the stand-by button on the remote control.

••

•To exit the Service Mode, turn the receiver off using the mains switch.

When the Service Mode is entered the following On Screen Display appears:

The figures displayed in the “XXXX” locations are hexadecimal representations of the number of times that particular

function has been executed. For example if the hexadecimal number displayed after “SW ON” was 0E4A, this would

correspond to the receiver being turned on 3658 times.

Adjustment menu:

The following adjustments can be carried out in the Service Mode.

When in the Service Mode it is possible to access certain functions by using the teletext keys as below.

••

•By pressing the Blue button each adjustment can be directly accessed via the remote control. Referring to the

list above, press the Blue button followed by the adjustment number, this will directly access the selected

adjustment. If any number above 26 is selected, the set will revert to the Service Mode entry page. To access a

number less than 10, use the 0 key first, i.e. 02.

••

•Press the Yellow button to go straight to the AGC adjustment.

••

•Press the Green button once to enter “FACTORY VOLUME” level. Use volume control keys to change the

setting. The original value will be recovered after resetting the TV set.

••

•Press the Green button twice to enter “FACTORY BALANCE” level. Use volume control keys to change the

setting. The original value will be recovered after resetting the TV set.

••

•Press the Red button once to enter “FACTORY CONTRAST” level. Use volume control keys to change the

setting. The adjustment is stored automatically.

••

•Press the Red button twice to enter “FACTORY BRIGHTNESS” level. Use volume control keys to change the

setting. The adjustment is stored automatically.

••

•Press the Red button three times to enter “FACTORY COLOUR” level. Use volume control keys to change the

setting. The adjustment is stored automatically.

••

•If buttons 0 through 9 are pressed, the set will automatically go to that program number.

Note that in case the blue button has been used before, the program number should be requested by using two

digit number (01...99).

••

•By pressing the Menu button, the unit will normalise Picture and Audio settings. The Auto Installation is then

turned “on”.

SERVICE SOFTWARE 28JW74E ∗∗-∗∗∗∗∗

SW on: XXXX SW off: XXXX Hours ON: XXXX

28JW-74E

The following geometry adjustments can be carried out. Detailed instructions on how to execute these are given on the

following pages:

Horizontal

• Horizontal Shift

• East West Width

• Pin Phase

• Pin Amp

• Vertical angle

• Vertical bow

• Upper Corner Amplitude

• Lower Corner Symmetry

• Extreme Corner Symmetry

Vertical

• Vertical Amplitude

• S Correction

• Vertical Shift

• Vertical Linearity

Just in case the TV set requires a full geometry adjustment, please proceed first with Verti-

cal according to the above order, and after that, adjust Horizontal according to the above

order.

Horizontal Shift

Adjust the horizontal shift so that the picture is centred.

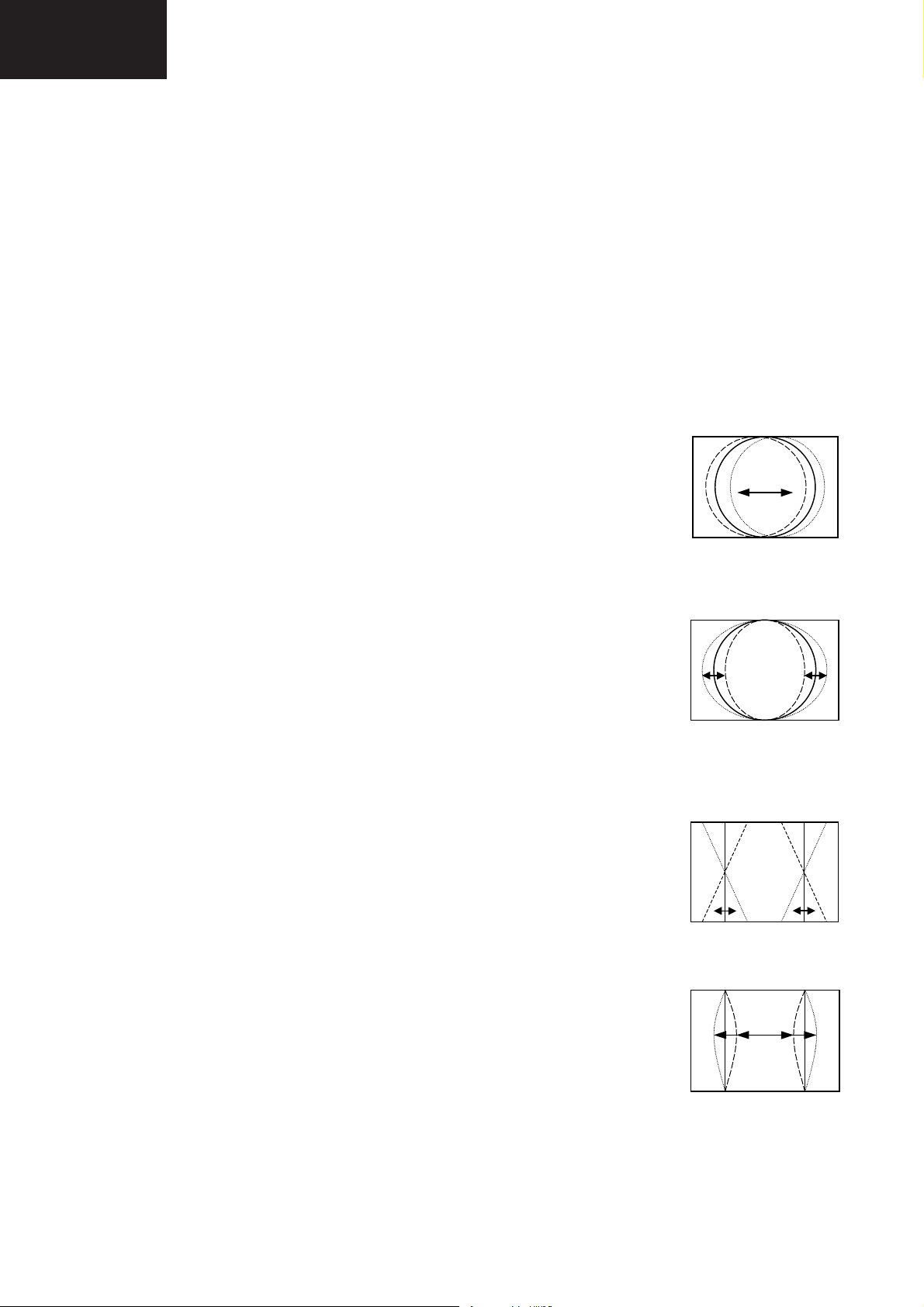

The effect of this adjustment is shown in figure 2.

•When the volume up button is pressed, the picture moves to the left.

•When the volume down button is pressed, the picture moves to the right.

•Press the stand-by button on the remote control to store.

East West Width

Adjust the East West Width so that 8% over-scan is achieved.

The effect of this adjustment is shown in figure 3.

•When the volume up button is pressed, horizontal scanning increases.

•When the volume down button is pressed, horizontal scanning decreases.

•Press the stand-by button on the remote control to store.

Pin Phase

Adjust the Pin Phase so that the picture is symmetrical top and bottom.

The effect of this adjustment is shown in figure 4.

•When the volume up button is pressed, side pincushion changes.

•When the volume down button is pressed, side pincushion changes.

•Press the stand-by button on the remote control to store.

Pin Amp

Adjust the Pin Amplitude so that the picture is centred.

The effect of this adjustment is shown in figure 5.

•When the volume up button is pressed, side pincushion changes from pincushion to

barrel shape.

•When the volume down button is pressed, side pincushion changes from barrel

shape to pincushion.

•Press the stand-by button on the remote control to store.

Figure 2

Figure 3

Figure 4

Figure 5

28JW-74E

Upper Corner Correction

Adjust the Upper Corner Correction so that the picture is centred.

The effect of this adjustment is shown in figure 6.

• When the volume up button is pressed, side pincushion changes from pincushion to

barrel shape.

•When the volume down button is pressed, side pincushion changes from barrel shape to

pincushion.

•Press the stand-by button on the remote control to store.

Lower Corner Correction

Adjust the Lower Corner Correction so that the picture is centred.

The effect of this adjustment is shown in figure 7.

• When the volume up button is pressed, side pincushion changes from pincushion to

barrel shape.

• When the volume down button is pressed, side pincushion changes from barrel shape to

pincushion.

• Press the stand-by button on the remote control to store.

Extreme Corner Correction

Adjust the Extreme Corner Correction so that the picture is centred.

The effect of this adjustment is shown in figure 8.

• When the volume up button is pressed, side pincushion changes from pincushion to

barrel shape.

•When the volume down button is pressed, side pincushion changes from barrel shape to

pincushion.

•Press the stand-by button on the remote control to store.

Vertical Linearity

Adjust the Vertical Linearity so that the upper and lower parts of the picture are symmetrical.

The effect of this adjustment is shown in figure 9.

• When the volume up button is pressed, the upper picture scanning decreases and the

lower picture scanning increases.

• When the volume down button is pressed, the upper picture scanning increases and the

lower picture scanning decreases.

• Press the stand-by button on the remote control to store.

Vertical Angle

Adjust the Vertical Angle so that the picture is centred.

The effect of this adjustment is shown in figure 10.

• When the volume up button is pressed, the vertical angle changes to right.

• When the volume down button is pressed, the vertical angle changes to left.

• Press the stand-by button on the remote control to store.

Figure 9

Figure 7

Figure 10

Figure 6

Figure 8

28JW-74E

Colour Adjustments

The following adjustments should only be carried out when the CRT, IC850, IC851

or IC852 are replaced.

G2, Cut Off and Gain Adjustments

1. Follow the procedure below to set the G2

1.1 Tune the set to the output of a signal generator (cross hatch pattern).

1.2 In the user menu, set contrast to 80/100 and brightness to 40/100.

1.3 Connect the oscilloscope to the RED cathode (pin 8 of CRT socket)

and adjust G2 to read 150V on the sensor pulse as in the drawing:

Vertical Bow

Adjust the Vertical Bow so that the picture is centred.

The effect of this adjustment is shown in figure 11.

• When the volume up button is pressed, the vertical bow changes to left.

• When the volume down button is pressed, the vertical bow changes to right.

• Press the stand-by button on the remote control to store.

Vertical Amplitude

Adjust the Vertical Amplitude so that 8% over-scan is achieved.

The effect of this adjustment is shown in figure 12.

• When the volume up button is pressed, the vertical size of the picture increases.

• When the volume down button is pressed, the vertical size of the picture decreases.

• Press the stand-by button on the remote control to store.

S Correction

Adjust the S Correction so that the picture symmetrical between the top, centre and bottom.

The effect of this adjustment is shown in figure 13.

• When the volume up button is pressed, the top and bottom scanning decreases and the

centre scanning increases.

• When the volume down button is pressed the top and bottom scanning increases and the

centre scanning decreases.

• Press the stand-by button on the remote control to store.

Vertical Shift

Adjust the Vertical Shift so that the picture is centred.

The effect of this adjustment is shown in figure 14.

• When the volume up button is pressed, the picture moves up.

• When the volume down button is pressed, the picture moves down.

• Press the stand-by button on the remote control to store.

Figure 14

Figure 11

Figure 12

Figure 13

150 V

CH1 gnd

Figure 15

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de TELEVISOR de Sharp

Sharp

Sharp 20F540 XFlat Manual de usuario

Sharp

Sharp 21JF2-GA Manual de usuario

Sharp

Sharp LC-43P3000U+ Manual de usuario

Sharp

Sharp Aquos LC-46D92U Manual de usuario

Sharp

Sharp 32N-S500 Manual de usuario

Sharp

Sharp 29H-FG3RU Manual de usuario

Sharp

Sharp 32C230 Manual de usuario

Sharp

Sharp aquos LC-20S5E-BK Manual de usuario

Sharp

Sharp AQUOS LCDF0073 Manual de usuario

Sharp

Sharp 37GT-27S Manual de usuario

Sharp

Sharp XM-1446G Manual de usuario

Sharp

Sharp AQUOS LC-70LE740E Manual de usuario

Sharp

Sharp AQUOS LC-32L400M Manual de usuario

Sharp

Sharp Aquos LC-65UB30U Manual de usuario

Sharp

Sharp 21L-FG1RU Manual de usuario

Sharp

Sharp LC-32LD164E Manual de usuario

Sharp

Sharp LC-20SH3H Manual de usuario

Sharp

Sharp LC-37D40U Manual de usuario

Sharp

Sharp 27F830 Manual de usuario

Sharp

Sharp EQ Series Manual de usuario

Sharp

Sharp 27F541 XFlat Manual de usuario

Sharp

Sharp 50BJ2K Manual de usuario

Sharp

Sharp AQUOS LC-46D43U Manual de usuario

Sharp

Sharp 32JF-76E Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario

Sylvania

Sylvania 6427FB Manual de usuario
