Sharp 21LF-90H Manual de usuario

SCART

ANT.

Aerial connection - TV set only -

Aerial IN

BACK OF TV

Aerial

(Not supplied)

Aerial Lead

(Not supplied)

ANT.

SCART

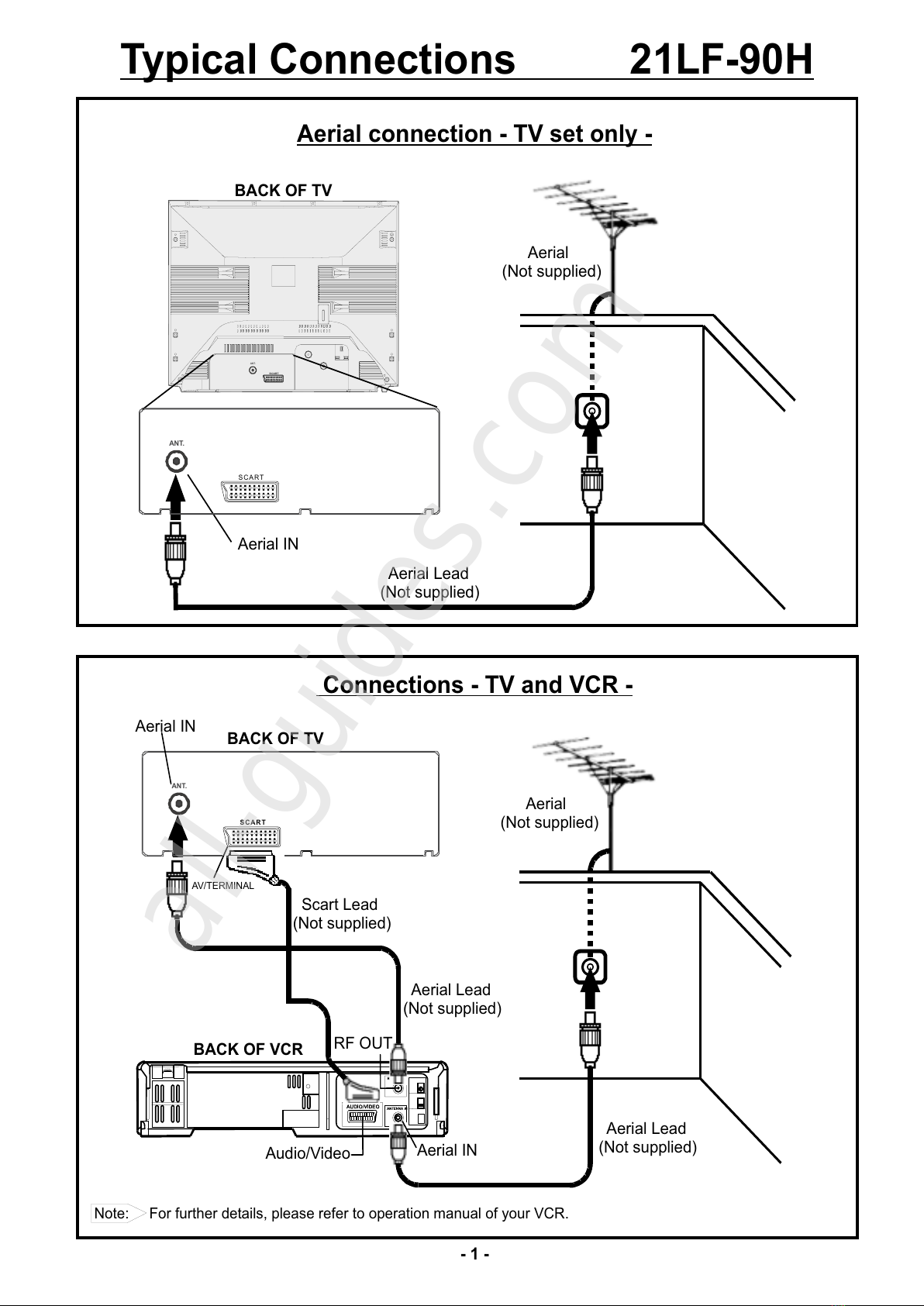

Connections - TV and VCR -

Aerial

(Not supplied)

Aerial Lead

(Not supplied)

ANT.

SCART

Aerial Lead

(Not supplied)

Scart Lead

(Not supplied)

BACK OF TV

Aerial IN

BACK OF VCR

Audio/Video

RF OUT

AV/TERMINAL

Aerial IN

Typical Connections 21LF-90H

Note: For further details, please refer to operation manual of your VCR.

-1-

All manuals and user guides at all-guides.com

all-guides.com

Connections - TV, DVD Player and Digital Set Top Box-

BACK OF TV

ANT.

SCART

DVD PLAYER

Scart Lead

(Not supplied)

AV/TERMINAL

Aerial IN

Aerial

(Not supplied)

Satellite dish

(Not supplied)

Dish Lead

(Not supplied)

Aerial Lead

(Not supplied)

Scart Lead

(Not supplied)

Aerial Lead

(Not supplied)

DIGITAL SET

TOP BOX

RF OUT AERIAL IN

TV SCART DISH IN

Note: For further details, please refer to operation manuals of your DVD Player and Digital Set Top Box.

-2-

SCART

ANT.

All manuals and user guides at all-guides.com

-3-

FRONT TV

Audio/Video lead

(Not supplied)

Audio Input Terminal

(left)

Video Input Terminal

Audio Input Terminal

(right)

Front connections -TV and Video camera-

Note: For further details, please refer to operation manual of your Video Camera.

All manuals and user guides at all-guides.com

SHARP ELECTRONICS (U.K.) LTD.

Sharp House, Thorp Road, Newton Heath,

Manchester M40 5BE

SHARP CORPORATION

500*****

01/04

All manuals and user guides at all-guides.com
