ENGLISH

Safety Precautions

This equipment complies with the requirements of Directives 89/336/EEC and 73/23/EEC as amended

by 93/68/EEC.

;;;;;;;;

;;;;;;

CAUTION: Make sure that the main power is switched off when going out.

;;;;;;;;;

;;;

;;;;;

;;;

;;;;

;

To prevent fire or electrical

shock, do not use theTV set

in an excessively damp

place.

Position the TV set out of

direct sunlight and away from

heat, as high temperatures

can damage the cabinet, CRT,

or other electronic parts.

Do not cover the ventilation

holes at the back of theTV

set, this can cause fire or

other serious problems. Leave

an adequate open space

behind the TV set for good

ventilation.

Do not install this equipment

in a confined space, such as a

bookcase or built-in cabinet.

Television equipment and cart

combination should be moved

with care. Quick stops,

excessive force, and uneven

surfaces may cause the

equipment and cart

combination to overturn.

Never remove the back of the

cabinet, as there is high

voltage inside the TV set.

Please call for service.

Unplug the power cord from

the wall outlet immediately if

the TV set begins to make

unusual noises or gives off

smoke or an odd smell, then

call your dealer for service.

Even if your television is switched

off, it can still be damaged by

lightning striking the mains and/or

aerial cables. For this reason, you

should always disconnect your

television from the mains and the

aerial cable during thunderstorms.

To prevent fire, never place

any type of candle or naked

flames on the top or near the

TV set.

Wall or shelf mounting should

follow the manufacturer’s

instructions, and should use a

mounting kit approved by the

manufacturer.

Do not place this television equipment on an unstable cart, stand, or table.The television

equipment may fall, causing serious injury to a child or an adult, and serious damage to the

equipment.

Use only with a cart or stand recommended by the manufacturer, or sold with the television

equipment.

Never insert or drop any metallic or inflammable objects into the venitilation holes of the TV

set.This can cause fire, electrical shock or electrical failure.Do not place a flower vase or

anything else containing liquid on the TV set, as liquid spilt on the TV set can cause

serious problems.

Downloaded from: http://www.usersmanualguide.com/

Remote control Size-AA Dry batteries

Contents

Dear SHARP Customer

Congratulations!You are now the proud owner of a SHARP Colour Television Receiver.To

ensure proper operation, please read this manual carefully. After reading, keep this manual in a

safe place for future reference.

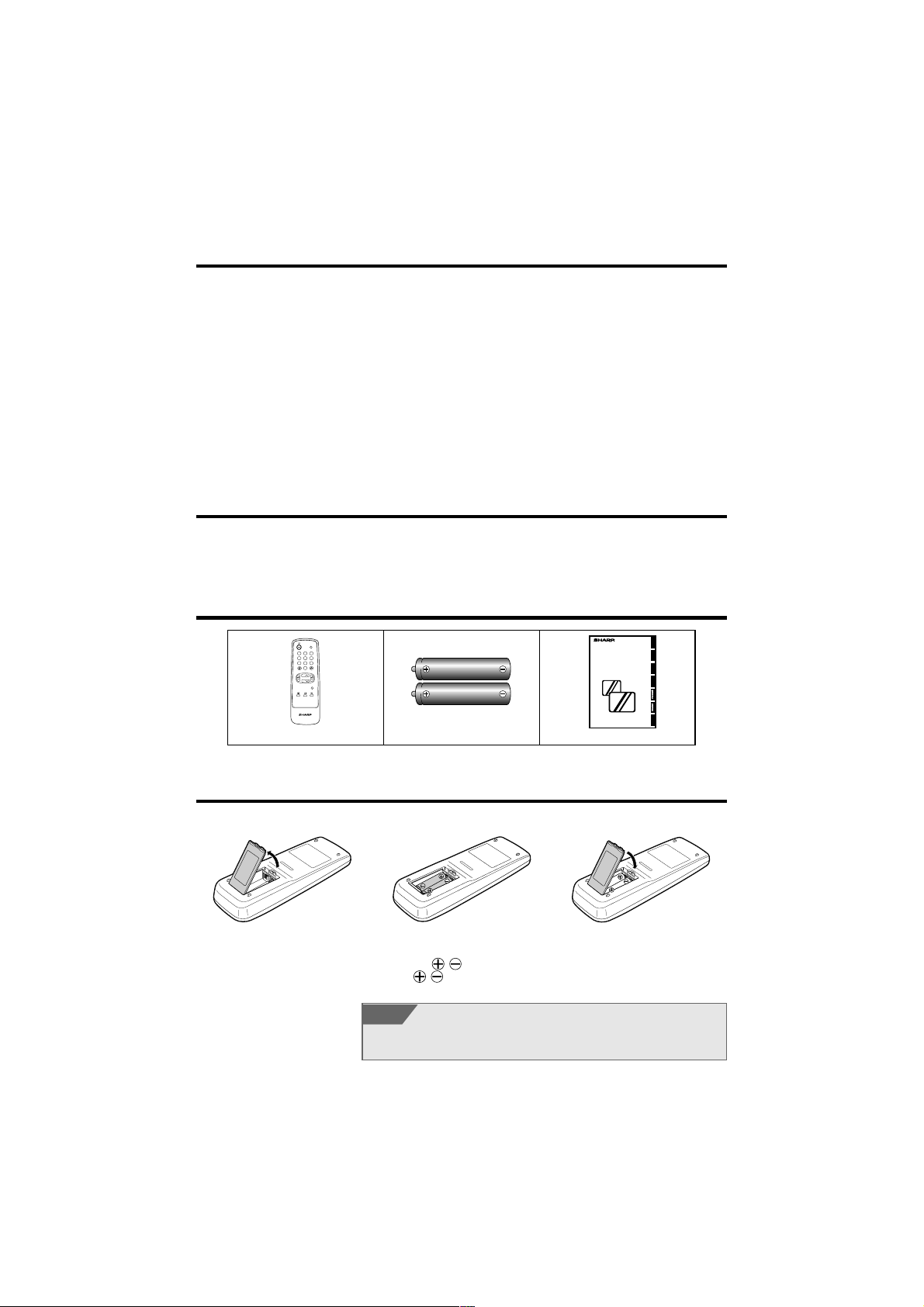

Accessories

1 2 3

4 5 6

7 8 9

TV/VIDEO

Operation Manual

Remote Control Battery Installation

Before using theTV set for the first time, install the supplied dry batteries in the remote control.

• Remove batteries if weak or if the unit is not in use for long periods.

• Do not mix old and new batteries.

• Incorrect installation of the batteries may damage the remote control.

NOTE

#Replace the battery cover.!With your thumbnail, pull up

the slit as indicated by the

arrow to remove the battery

cover.

@Insert two batteries 1.5 V (size

“AA”). Be sure to match the

battery /terminals with

the /marks inside the

compartment.

General Information

Safety Precautions............ 1

Accessories....................... 2

Remote Control Battery

Installation ...................... 2

Installing your TV

Aerial Connections............ 3

Typical Connections.......... 3

Location of Controls .......... 4

Channel Setting

Auto Tuning....................... 5

Manual Tuning .................. 6

Fine Tuning ....................... 8

Skipping programmes ....... 9

Manual Channel Sorting .. 11

Channel Sorting .............. 12

Basic Operation

Watching aTV programme ...

Useful Features

Picture Adjustment.......... 14

Timer Setting................... 15

Child Lock ....................... 17

Other Functions

Flashback & Sound Mute ...

TV/VIDEO & Call............. 21

Reference

Troubleshooting............... 22

Specifications.................. 23

21HM-10C

ENGLISHČESKYMAGYARPOLSKI

SLOVENČINA

COLOURTELEVISION

BAREVNÝ TELEVIZOR

SZÍNES TELEVÍZIÓ

KOLORWYTELEWIZOR

ЦBETHOЙ TEЛEBNЗOP

RECEPTORDE TELEVIZIUNE ÎN CULORI

FAREBNÝ TELEVÍZOR

OPERATIONMANUAL

NÁVODK OBSLUZE

HASZNÁLATI UTASÍTÁS

INSTRUKCJA OBSŁUGI

CБОPHИK ИHCTPУKЦИЯ

INSTRUC©IUNI DE UTILIZARE

NÁVOD NA OBSLUHU

Downloaded from: http://www.usersmanualguide.com/

ENGLISH

75-ohm coaxial cable (round cable)

Rear of TV

Typical connection (VCR and TV)

through the RF terminal

LINE2 IN/DECODER

LINE1 IN/OUT

TESTSIG

OFF

CHANNEL

ANTENNAIN

RFOUT

Back of VCR

Rear of TV

Scart Terminal

Aerial IN

Aerial Lead

(not supplied)

Aerial Lead

(not supplied)

Aerial Lead

(not supplied)

Antenna in

RF Out

SCART Lead

(not supplied)

Outdoor aerial

(not supplied)

Aerial Connections

•To enjoy a clearer picture, we recommend that you use an outdoor aerial lead.The following is a

brief explanation of the types of connection that are used for coaxial:

Aerial Lead: Connect the cable from the aerial to a

standard DIN45325 plug (IEC169-2) and plug it

into the aerial terminal at the back of the TV set.

Downloaded from: http://www.usersmanualguide.com/

Location of Controls

Remote Control

TV Front

MENU CH

Power ( ) button

Power/On Timer indicator

Remote Control Sensor Menu button Volume Up ( )/Down ( ) buttons

Channel Up ( )/Down ( ) buttons

1 2 3

4 5 6

7 8 9

TV/VIDEO

CALL ( )button

Infrared Transmitter Window

Aim this window at the infrared sensor

on your TV set

FLASHBACK ( ) buttons

Returns to previously viewed

programme

~ CHILD LOCK ()button

TV/VIDEO Select button

SOUND MUTE ( )button 20

POWER/STANDBY ( )button 13

Programme Select buttons 13

VOLUME UP ( )/DOWN ( ) buttons

( ) Increases sound

( ) Decreases sound

(These are also used for menu set up)

MENU button

Single/Double Entry button ( )

CHANNEL (PROGRAMME) UP ( )/

DOWN ( ) buttons

( ) Selects next higher programme

( ) Selects next lower programme

(These are also used for menu

set up)

Downloaded from: http://www.usersmanualguide.com/

ENGLISH

NOTE

Channel Setting

This function will automatically tune all local channels for you.

The following steps are carried out using the remote control

Initial setting AutoTuningtunes in and presets receivable TV stations

Automatically tunes in and presets receivable TV stations

Press the main POWER ( )

button on theTV.When you install

the TV at first time, it will appears

this picture.

AUTOTUNING will start when

selecting “START”, using

and

and pressing MENU on

the remote control, or pressing

on the TV.

All the TV stations in your area

that can be received by the TV set

are automatically preset between

programme position 1 to 99.

The screen shows whatever is on

programme position 1 when full

auto channel preset is finished.

NOTE:Make sure to execute AUTO TUNING until tuning is complete.When EXIT has been

selected during tuning or when the power has been turned off and then turned on again,

the AUTO TUNING screen will be displayed.

After initial setting Auto tuning

Automatically tunes in and presets receivable TV stations

The AUTOTUNING screen will

appear by holding down

the TV for more than 2 seconds.

Repeat step 2 above from page 5 (Initial seting)

•To stop AUTO TUNING, press

on the

remote control.

•When AUTOTUNING is not done, select EXIT

by using

and

on the remote control

or press

on the TV to return to the TV

screen.

• Make sure to start AUTO TUNING after connecting the antenna, as the AUTO TUNING

screen will be displayed when the power is turned on for the first time.

•Make sure to execute AUTO TUNING until tuning is complete.When EXIT has been

selected during tuning or when the power has been turned off and then turned on again,

the AUTO TUNING screen will be displayed.

• When the Child Lock is set, it is not possible to enter theTuning mode.This is to make

sure that Child Lock is not over-ridden by re-tuning the set.(To cancel Child Lock please

refer to page 19.)

MENU CH

1 2 3

4 5 6

7 8 9

TV/VIDEO

AUTO TUNING

START EXIT

AUTO TUNING

START EXIT

PR 1

AUTO TUNING

2 CH

AUTO TUNING

START EXIT

Downloaded from: http://www.usersmanualguide.com/

Channel Setting (Continued)

This section describes how to tune your TV manually and to store channels in the order you prefer.

The following steps are carried out using the remote control.

Manual Tuning

Setting a TV station to a desired programme position

Press MENU to call the MAIN menu

screen.

Press

to select

“<PR>”, and press

Press

to select

the “PR” position, and select the

programme number (1–99) with

or .

Press

to select

“CH”, and directly select the

channel number if known, using

or .

Press

to select

“SYS”, and press MENU to change

the SYSTEM.

The system switches between

SECAM-B/G, D/K and PAL-B/G,

D/K.

Sound System On screen

display

SECAM-D/K D/K

PAL -D/K

SECAM-B/G B/G

PAL-B/G

1 2 3

4 5 6

7 8 9

TV/VIDEO

SORT

EXIT

<PR>

EXIT

SORT

<PR>

PR1 CH1

SKIP OFF

FINE

OFF

EXIT

SYS D/K

PR1 CH1

SKIP OFF

FINE

OFF

EXIT

SYS D/K

PR1 CH1

SKIP OFF

FINE

OFF

EXIT

SYS D/K

Downloaded from: http://www.usersmanualguide.com/

ENGLISH

NOTE

Channel Setting (Continued)

Repeat steps 3 and 5 if you wish

to set other channels.

Press

to select

“EXIT”, and press MENU to return to

the normal screen.

If there is no sound and the key mark ( ) is displayed after setting the channels, the

Child Lock Mode has been activated.To cancel the settings, make sure to set key mark

() to OFF.

1 2 3

4 5 6

7 8 9

TV/VIDEO

PR1 CH1

SKIP OFF

FINE

OFF

EXIT

SYS D/K

PR1 CH1

SKIP OFF

FINE

OFF

EXIT

SYS D/K

Downloaded from: http://www.usersmanualguide.com/

1 2 3

4 5 6

7 8 9

TV/VIDEO

Channel Setting (Continued)

Fine Tuning

This function lets you easily fine-tune the TV set to improve reception and picture quality.

Press

to call the MAIN menu

screen.

Press

to select

“<PR>”, and press

Press

to select

the “FINE” position.

Press and hold or until

the best tuning position is found.

Press

to select

“EXIT”, and press

to return to

the normal screen.

PR1 CH1

SKIP OFF

FINE

EXIT

OFF

SYS D/K

PR1 CH1

SKIP OFF

FINE

EXIT

OFF

SYS D/K

PR1 CH1

SKIP OFF

FINE

EXIT

OFF

SYS D/K

SORT

EXIT

<PR>

EXIT

SORT

<PR>

Downloaded from: http://www.usersmanualguide.com/

ENGLISH

Channel Setting (Continued)

Skipping Programmes

This function lets you skip vacant channels or channels that you never watch when you select

channels with

Setting Skip

Press

to call the MAIN menu

screen.

Press

to select

“<PR>”, and press

Press

to select

the “PR” position, and select the

programme number (1–99) you

wish to skip with or .

Press

to select

“SKIP”, and press

to select

“SKIP ON”.

The programme number will turn

from white to red.

Repeat steps 3 and 4 if you wish

to skip other programmes.

Press

to select

“EXIT”, and press

to return to

the normal screen.

1 2 3

4 5 6

7 8 9

TV/VIDEO

SORT

EXIT

<PR>

EXIT

SORT

<PR>

PR3 CH4

SKIP OFF

FINE

EXIT

OFF

SYS D/K

PR3 CH4

SKIP ON

FINE

EXIT

OFF

SYS D/K

PR3 CH4

SKIP ON

FINE

EXIT

OFF

SYS D/K

Downloaded from: http://www.usersmanualguide.com/

Otros manuales para 21HM-10C

Tabla de contenidos

Otros manuales de TELEVISOR de Sharp

Sharp

Sharp LC-32CFG6241KF Manual de usuario

Sharp

Sharp SV-2189N Manual de usuario

Sharp

Sharp 29K-F200F Manual de usuario

Sharp

Sharp 29F-PE550 Manual de usuario

Sharp

Sharp LC-19LE430E Manual de usuario

Sharp

Sharp LC-28HM2U Operation Manual de usuario

Sharp

Sharp CX34K3 Manual de usuario

Sharp

Sharp LC-20B2UA Manual de usuario

Sharp

Sharp LC-22CFF4011E Manual de usuario

Sharp

Sharp AQuas LC-46D62U Manual de usuario

Sharp

Sharp 28JF-76E Manual de usuario

Sharp

Sharp 21YF30 Manual de usuario

Sharp

Sharp 28LS-94EC Manual de usuario

Sharp

Sharp 21v-r70MM Manual de usuario

Sharp

Sharp LC-32CHG6242E Manual de usuario

Sharp

Sharp 81GF-66E Manual de usuario

Sharp

Sharp 20F550 Manual de usuario

Sharp

Sharp CX51HF3 Manual de usuario

Sharp

Sharp 21B-FX8 Manual de usuario

Sharp

Sharp 51GT-25S Manual de usuario

Sharp

Sharp 20R-S100S Manual de usuario

Sharp

Sharp 21JF2-GA Manual de usuario

Sharp

Sharp 21C-FX1C Manual de usuario

Sharp

Sharp 14A-30MT Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario

Sylvania

Sylvania 6427FB Manual de usuario
