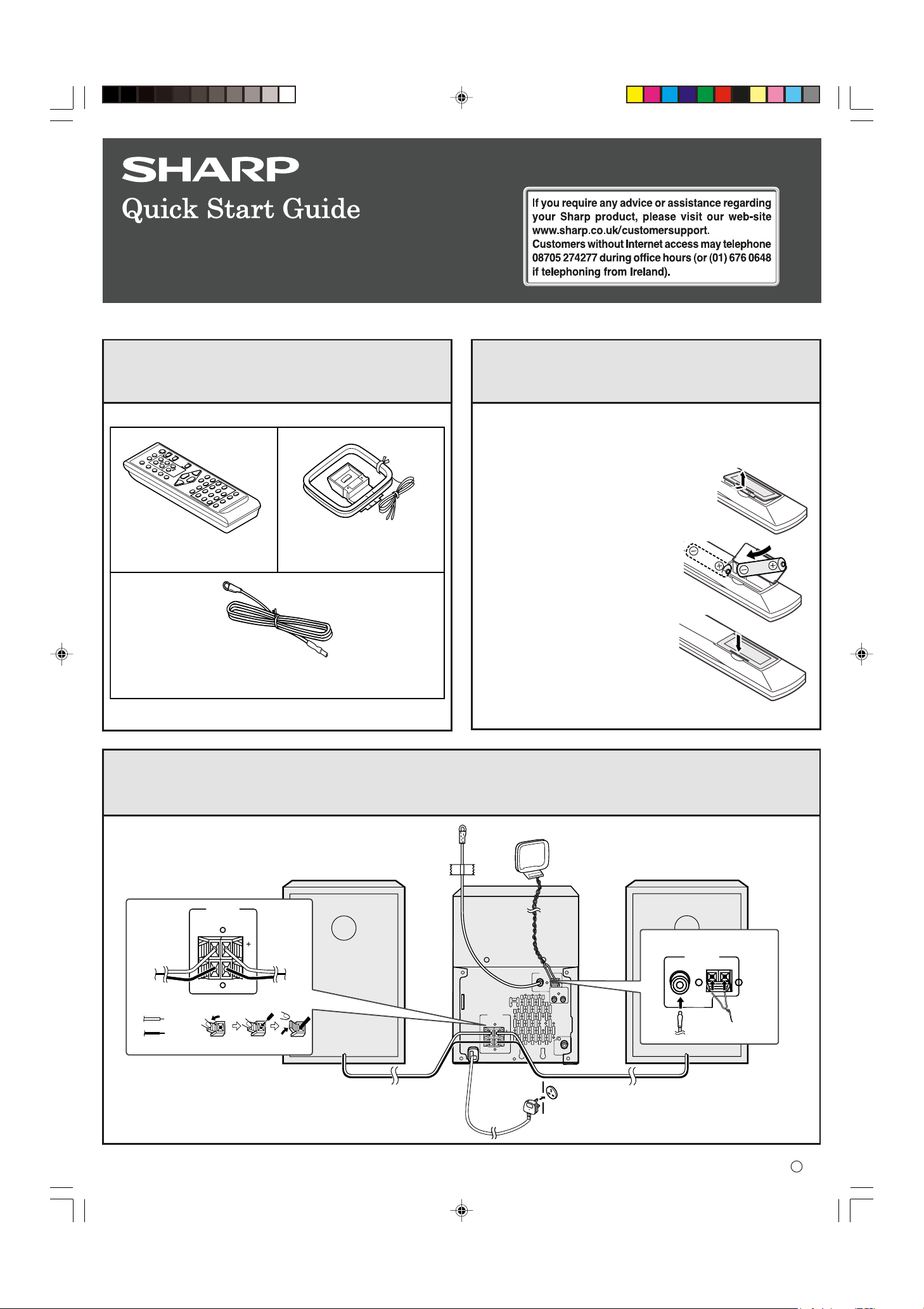

Sharp XL-UH240H Manual de usuario

RATED SPEAKER IMPEDANCE:

6 OHMS MIN.

AC INPUT

RIGHT

RIGHT LEFT

VIDEO/AUX IN

SPEAKERS

LEFT

ANTENNA

75 OHMS

GND

SUBWOOFER

PRE-OUT

Black

Red

RATED SPEAKER IMPEDANCE:

6 OHMS MIN.

RIGHT

SPEAKERS

LEFT

ANTENNA

75 OHMS

GND

Accessories

Remote control × 1

TINSEA132AWZZ

06CR AS 1

System connections

AM loop aerial × 1

FM aerial × 1

Remote control battery installation

1Open the battery cover.

2Insert the batteries as shown.

3Close the cover.

Use 2 “AA” size batteries (UM/SUM-3, R6, HP-7 or similar).

Batteries are not included.

Wall socket (AC 230 - 240V, 50 Hz)

Left speaker

FM aerial

AM loop aerial

Right speaker

MODEL

XL-UH240H

MICRO COMPONENT SYSTEM

This Quick Start Guide will help you to correctly install and operate your system.

XL-UH240HE QG NEW 2/14/06, 8:52 AM1

Downloaded from: http://www.usersmanualguide.com/

1Press the CD button.

2Press the 1 button and within 5 seconds, press the 77

7OPEN/

CLOSE button to open the disc tray 1.

3Place the disc on the disc tray 1, label side up.

4Press the 77

7OPEN/CLOSE button to close the disc tray 1.

5You can place discs on trays 2 - 5 by following steps 2 - 4.

6Press the 00

0/ RR

Rbutton to start playback.

ON/

STAND-BY

TUNER/

(BAND)

OPEN/

VIDEO

/AUX

VOLUME

Turn on your system

The first time the unit is plugged in, the unit will enter the dem-

onstration mode. You will see words scroll.

1Press the X-BASS/DEMO button to cancel the demonstra-

tion mode.

2Press the ON/STAND-BY button to turn the power on.

Listening to a CD or MP3/WMA disc

12 cm (5") 8 cm (3")

Listening to USB mass storage device / MP3 Player

1Press the VIDEO/AUX/USB (USB/AUX) button, and push up the USB door. Connect the USB Memory device that has MP3/WMA

format files on the unit.

2Press the FOLDER button, and press the TUNING (XX

X or WW

W) button to select desired playback folder. (Folder mode on)

3Select desired file to be played back by pressing the 55

5 or 44

4 button. Proceed to step 5.

4Select desired file to be played back by pressing the 55

5 or 44

4 button. (Folder mode off)

5Press the 0 / RR

(USB 0 / RR

R) button. Playback will start and file name will be displayed.

NOTE: This product is not compatible with MTP and AAC file systems.

ON/

STAND-BY

ON/

STAND-BY

FOLDER indicator

Total files in Folder 2

FOLDER number

USB

VIDEO

/AUX
