This Quick Guide will help you to correctly
install and operate your system.
SD-SG11H
1-BIT DIGITAL AUDIO COMPONENT
If you require any advice or assistance re-
garding your Sharp product, please visit
our web-site www.sharp.co.uk/support.
Customers without internet access may
telephone 08705 274277 during office
hours (or (01) 676 0648 if telephoning from
Ireland).
Accessories
System connection lead × 1
“AAA” size battery
(UM-4, R03, HP-16 or similar) × 2
Remote control × 1
Sound connection lead × 1
FM aerial × 1
1 2 3
Battery installation of remote control
Use 2 “AAA”size batteries (UM-4, R03, HP-16 or similar).
Open the
Insert the batteries
Close the
battery cover.
as shown.
battery cover.
1
1
2
2
TINSE0390AWZZ A0105.YT
AM loop aerial × 1
AC power lead × 1
– 2 –
Web-site: www.sharp.co.uk/support Help Line: 0990 274277 (office hours)

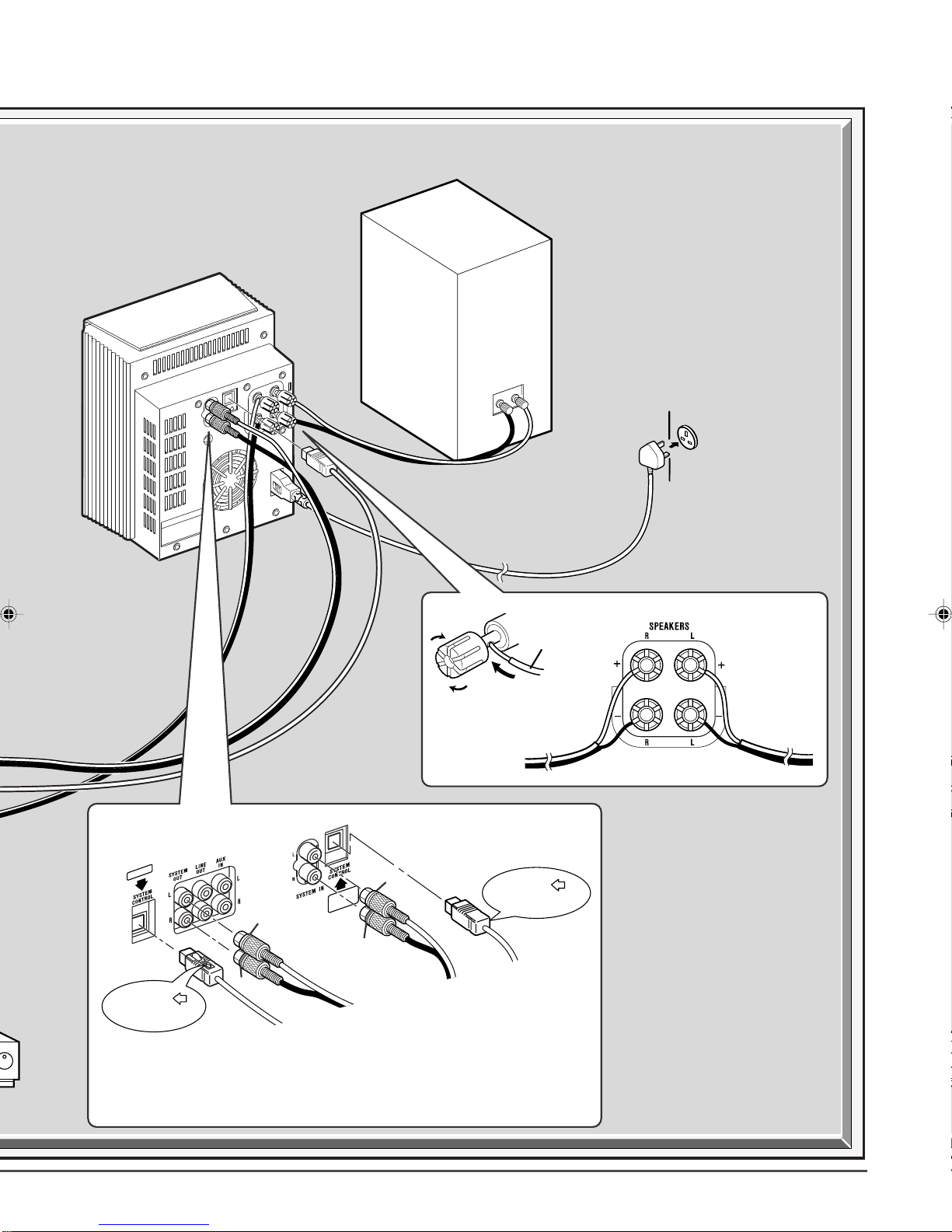

System Connections
3
3
FM aerial
Right speaker
AM loop aerial
MD deck, digital tuners
or DAT decks
Connecting cable
for digital recording
(Not supplied)
To the optical line
output socket
To the analogue
input sockets
To the line
output sockets
RCA lead
(Not supplied)
RCA lead
(Not supplied)
VCR, DVD, etc.
TV
Speaker wire (Not supplied)
– 3 –
Web-site: www.sharp.co.uk/support Help Line: 08705 274277 (office hours)
a
erial Left speaker
Wall socket
(AC 230V, 50 Hz)
t
c.
Plug in with
mark facing down.
MD/CD/tuner unit Amplifier unit
Red
Red
White
White
Plug in with
mark facing up.
Speaker wire
Caution:
The SYSTEM CONTROL sockets are for the MD/CD/tuner unit and
the amplifier unit of SD-SG11H only.
Do not connect to other equipments.
Speaker wire (Not supplied)
– 4 –
Web-site: www.sharp.co.uk/support Help Line: 0990 274277 (office hours)
Listening to a CD
Total number of tracks
Turn on your System
4
4
Total playing time
1Press the CD HH
HH
Hbutton.
2Press the OPEN/CLOSE
button to open the CD/MD cover.
3Load a CD into the CD compartment, label side facing you.
4Press the CD 0606
0606
06 button to start playback.
Label side facing you.
– 5 –
Web-site: www.sharp.co.uk/support Help Line: 08705 274277 (office hours)
Listening to a MiniDisc
1Press the MD HH
HH
Hbutton.
2Press the OPEN/CLOSE button to open the CD/MD cover.
3Load a MiniDisc into the MD compartment, label side facing you.
4Press the MD 0606
0606
06 button to start playback.
Disc name Total number of
tracks Total playing time
Label side facing you.
– 6 –
Web-site: www.sharp.co.uk/support Help Line: 0990 274277 (office hours)
■If trouble occurs (reset)
When this product is subjected to strong external interference (mechanical shock, excessive static electricity,
abnormal supply voltage due to lightning, etc.) or if it is operated incorrectly, it may malfunction.
If such a problem occurs, do the following:
Unplug the power lead from the AC socket.Then, plug it in again and retry the operation.
■Before transporting the unit
RemovetheCDand MD fromthe unit.Yourunit checkswhether
there are any discs inside. "NO DISC" appears if no disc is
inside.Then, set the unit to the power stand-by mode.Carrying
the unit with discs left inside can damage it.
1Press theTUNER (BAND) button repeatedly to select the desired frequency
band (FM STEREO, FM or AM).
2Press theTUNING (XX
XX
Xor WW
WW
W) button to tune in to the desired station.
●When theTUNING (Xor W) button is pressed for more than 0.5 seconds, scanning will
start automatically and the tuner will stop at the first receivable broadcast station.
3To receive an FM stereo transmission, press the TUNER (BAND) button.
The“STEREO” indicator lights up.
●“ST” will appear when an FM broadcast is in stereo.
Listening to the Radio
